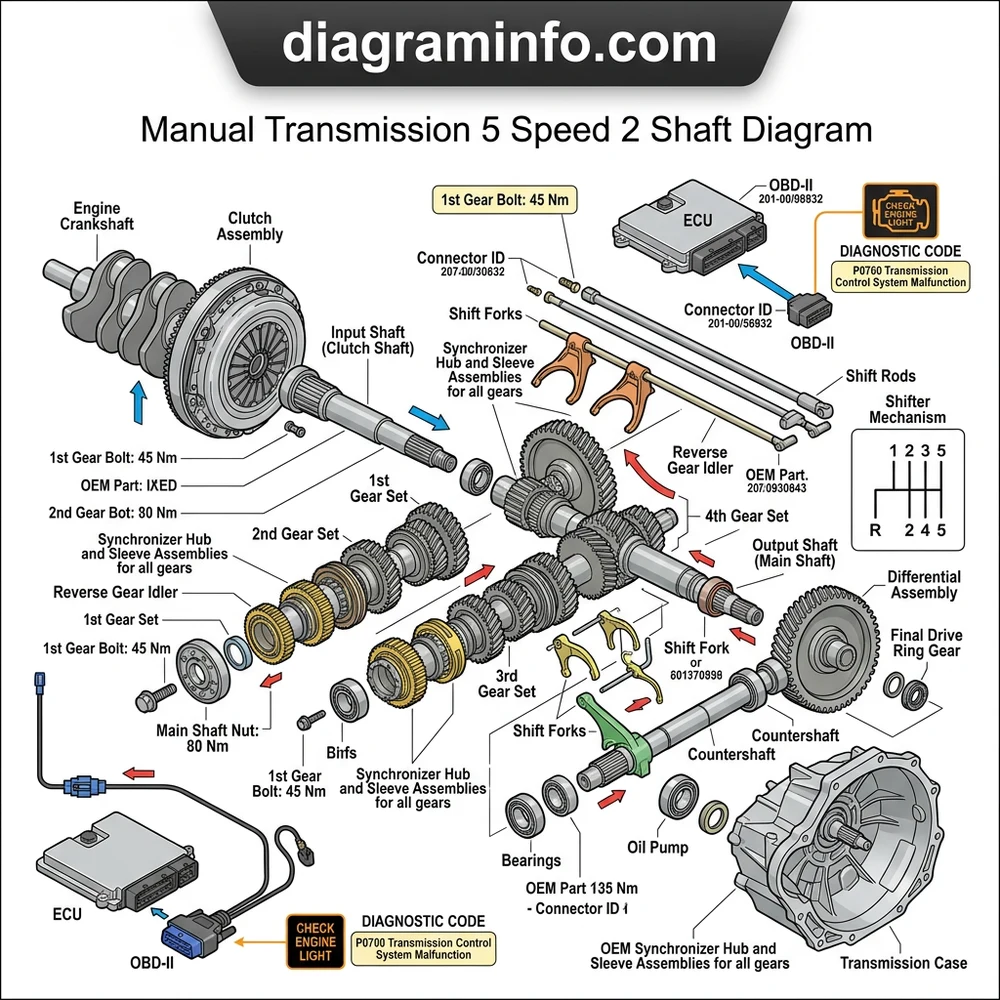

A 2-shaft 5-speed manual transmission diagram outlines the parallel input (main) and output (counter) shafts housing gears 1 through 5 and reverse. The input shaft receives engine power, driving output gears via synchronizers. Gear speed sensors relay telemetry to the ECU; improper sensor signals or mechanical drag trigger an OBD-II check engine light and diagnostic code.
📌 Key Takeaways
- Input shaft and output shaft operate in parallel, with 1st-5th drive gears meshed directly across both shafts.
- Fastener torque specs typically require 18-22 lb-ft for casing bolts and 110-130 lb-ft for main shaft locknuts.
- Worn synchronizer brass rings are the primary cause of grinding during high-RPM gear shifts.
- Speed sensor signals feed directly into the ECU, where disruptions trigger an OBD-II check engine light.
- DIY split-case teardowns require measuring shaft endplay tolerances (typically 0.001–0.004 inches) before final reassembly.
Understanding a two-shaft manual transmission layout requires examining power transfer from the engine flywheel through to the final drive differential. In a standard transverse front-wheel-drive or compact longitudinal transaxle configuration, the manual transmission 5-speed 2-shaft diagram illustrates a design consisting of an input shaft (mainshaft) and an output shaft (countershaft). Power flows from the clutch splines directly into the input shaft, transfers across adjacent gear pairs on the output shaft, and exits via the integrated pinion gear to the ring gear. Mapping this internal architecture helps technicians isolate synchro wear, evaluate bearing preloads, and execute precise overhaul procedures according to factory service manual standards.
Decoding the Manual Transmission 5-Speed 2-Shaft Diagram Layout
A two-shaft 5-speed transmission uses a parallel layout where the input and output shafts remain constantly engaged via constant-mesh helical gear sets. As illustrated in the schematic, torque enters through the input shaft clutch splines. The input shaft houses fixed or freewheel gears corresponding to 1st, 2nd, 3rd, 4th, 5th, and Reverse speeds. The parallel output shaft holds the corresponding driven gears, synchronizer assemblies, shift hubs, and the final drive pinion gear. Unlike a three-shaft layout that utilizes a dedicated countershaft and direct-drive 1:1 top gear, a two-shaft transaxle routes every gear ratio—including 4th and 5th overdrive speeds—through a direct torque path across both parallel shafts.
Input Shaft Assembly and Gear Integration
According to OEM technical specifications, the input shaft is supported by a pilot bearing at the engine flywheel interface and a heavy-duty tapered roller or deep-groove ball bearing at the transmission case wall. The 1st and 2nd drive gears are typically machined directly into the hardened alloy steel input shaft to maximize fatigue resistance against severe torque load. The 3rd, 4th, and 5th drive gears sit on needle roller bearings or press-fit splines depending on whether the synchronizer hubs are located on the input or output shaft. Correct axial endplay for the input shaft is established using selectable snap rings or precision shims located behind the main casing bearing race.
Output Shaft, Synchronizers, and Final Drive Pinion
The output shaft features freewheeling driven gears mounted on hardened needle bearings alongside sliding synchronizer sleeves, spring-loaded keys, and brass or carbon-composite blocker rings. When a gear is selected, the shift fork moves the sleeve over the synchronizer hub, matching shaft speeds via frictional cone engagement before interlocking with the gear’s engagement teeth (dog teeth). The output shaft terminates with a precision-cut spiral helical pinion gear that directly drives the differential ring gear, transferring rotational force outward to the drive axles.
Shift Selector Rails, Detent Mechanism, and Interlocks
Gear selection is driven by internal shift rails and selector forks mounted parallel to the primary shafts. The diagram highlights the shift interlock mechanism, which uses hardened steel pins and spring-actuated detent balls resting in detent grooves on the shift rails. This mechanical interlock prevents dual-gear engagement, holding selected gears locked under high acceleration while providing distinct mechanical feedback through the gear shifter linkage.
| Component / Fastener | Factory Torque Spec | Clearance / Tolerances |
|---|---|---|
| Main Transmission Casing Bolts (M8) | 18 – 22 ft-lbs (24 – 30 Nm) | N/A |
| Output Shaft Main Nut / Locknut | 115 – 135 ft-lbs (156 – 183 Nm) | Stake thread post-torque |
| Synchronizer Blocker Ring to Gear Gap | N/A | 0.035 in – 0.065 in (0.9mm – 1.65mm) service limit: 0.020 in (0.5mm) |
| Input Shaft Axial Endplay | N/A | 0.001 in – 0.004 in (0.02mm – 0.10mm) preloaded/shimmed |
| Reverse Light Switch & Detent Bolts | 22 – 28 ft-lbs (30 – 38 Nm) | Thread sealant required |
Manual Transmission 5-Speed 2-Shaft Diagram Mechanical Failures and Symptoms
Mechanical wear within a two-shaft transmission creates operational symptoms ranging from gear grinding during upshifts to full lockout. Reviewing the mechanical structural layout reveals how specific component degradation manifests during drive cycles under varying engine load and thermal expansion conditions.
Synchronizer Ring Friction Material Wear and Gear Lockout
The brass or carbon friction surface of a synchronizer blocker ring matches gear rotation speed prior to mechanical dog ring mesh. When aggressive driving or incorrect fluid viscosity degrades this lining, the ring bottoms out against the gear face. This eliminates the frictional gap, causing high-RPM gear grinding during shifts from 1st to 2nd or 2nd to 3rd. Complete wear prevents the sliding sleeve from traversing the engagement teeth, resulting in total gear lockout when shifting.
Popping Out of Gear Under Acceleration or Engine Braking
If a transaxle pops out of 5th or 3rd gear under heavy engine torque or sudden throttle release, inspect the shift fork, sleeve dog teeth, and detent springs. Over time, worn shift fork pads apply asymmetrical pressure on the sliding sleeve, causing premature taper on the gear dog teeth. Additionally, fatigued detent springs fail to maintain sufficient clamping force on the selector rail groove, allowing torsional back-lash from high engine torque to push the sliding hub back into neutral.
Input Bearing Whine vs. Engine Mechanical Noise
A damaged input shaft main bearing generates a high-pitched growling or whining noise that correlates directly with input shaft rotation speed. Diagnosing this noise requires differentiating transmission gear train noise from engine engine assembly anomalies such as loose timing chain tensioners or low oil pressure conditions. If the growl vanishes when depressing the clutch pedal, the source is isolated to the transmission input shaft bearing or main shaft support race rather than internal engine components.
Using GL-5 extreme-pressure gear oils in two-shaft manual transmissions calling for GL-4 specification can cause rapid chemical corrosion of yellow-metal (brass) synchronizers due to active sulfur additives. Always verify fluid compatibility before servicing.
Mainshaft thrust washer float and gear endplay clearance must be measured with a dial indicator before final casing reassembly. Maximum allowable axial sideplay across 1st-5th speed gears should not exceed 0.012 inches (0.30mm).
Diagnostic Protocols for Transaxle Faults, ECU Codes, and OBD-II Systems
Modern manual transmissions work in tandem with engine management electronics. Internal transaxle sensors inform the engine control module of vehicle velocity, neutral state, and active gear ratios to optimize engine idle control, fuel cut-off mapping, and rev-matching routines.
Interfacing OBD-II Diagnostic Scanners for Transmission Faults
When an electronic fault occurs on the transmission gear position sensor or vehicle speed sensor (VSS), the Powertrain Control Module (PCM) or engine ECU illuminates the check engine light on the instrument cluster. Connecting an OBD-II diagnostic scanner allows technicians to read real-time data streams and pull stored diagnostic codes related to speed signal dropouts or range sensor electrical open/short conditions.
- Diagnostic Code P0500: Vehicle Speed Sensor (VSS) ‘A’ Circuit Malfunction – Traced to a damaged speed sensor gear driven off the output shaft ring gear or faulty 5-volt reference sensor wiring.
- Diagnostic Code P0705: Transmission Range Sensor Circuit Malfunction (PRNDL / Manual Neutral Gear Switch Input) – Triggered by misaligned external shift linkages or corrosion inside the neutral position switch.
- Diagnostic Code P0700: Transmission Control System Illumination Request – Sent by auxiliary modules to the primary engine ECU when gear ratio mismatches or speed sensor anomalies occur.
Isolating Transaxle Faults from Related Engine Systems
Prior to bench-teardown, isolate mechanical gearbox anomalies from adjacent systems such as the clutch hydraulic release system, engine timing chain tension, or auxiliary thermal cooling circuits. Fluid contamination can be accelerated if intense engine heat caused by restricted coolant flow passages breaks down transaxle fluid viscosity, accelerating synchro degradation.
- Clutch Release Hydro-Test: Verify master and slave cylinder hydraulic pressure to eliminate clutch drag before condemning manual gearbox synchronizers for notchiness.
- Electrical Sensor Output Testing: Using a multimeter set to Hertz (Hz) or AC voltage, tap the Vehicle Speed Sensor terminal pins while spinning the front wheels to verify signal output to the engine ECU.
- Drain Plug Magnetic Visual Inspection: Drain gear oil into a clean pan and inspect the magnetic drain plug for large ferrous metallic fragments, which indicate broken gear teeth or failed needle bearing cages. Fine metallic sludge is considered normal wear.
When troubleshooting intermittent check engine light codes related to manual transmission speed sensors, verify ground continuity across the transaxle bellhousing to engine block interface. Paint, heavy corrosion, or missing ground straps create voltage offsets that corrupt low-voltage ECU sensor signals.
Manual Transmission 5-Speed 2-Shaft Diagram Frequently Asked Questions
How does a 2-shaft 5-speed manual transmission architecture differ from a 3-shaft design?
A 2-shaft transmission (input shaft and output shaft) routes power through a single gear mesh step per ratio directly to the final drive differential ring gear, making it ideal for compact transverse front-wheel-drive vehicles. A 3-shaft design includes an input shaft, a countershaft (lay軸), and a mainshaft, routing power through two gear meshes for most ratios, with a 1:1 direct-drive lockup in 4th gear, commonly found in longitudinal rear-wheel-drive drivelines.
What specific torque spec and lockup procedures apply to the main output shaft locknut?
Manufacturer technical specifications require torquing the main output shaft locknut between 115 and 135 ft-lbs (156 to 183 Nm) using a calibrated torque wrench while locking the transaxle in two gears simultaneously to prevent rotation. After reaching the correct torque spec, the outer flange of the nut must be staked into the shaft keyway using a punch to prevent counter-rotation under torque load.
Why does an internal manual transmission failure trigger an OBD-II diagnostic code and check engine light?
While manual transmissions are primarily mechanical, they incorporate electronic vehicle speed sensors (VSS) and reverse/neutral position switches linked to the vehicle ECU. If an internal mechanical failure causes input vs. output shaft speed discrepancies, or if sensor wiring fails, the ECU detects an invalid speed signal and registers an OBD-II diagnostic code (such as P0500), illuminating the check engine light.
How can a technician distinguish between transmission bearing noise and engine timing chain wear?
Transmission input shaft bearing noise changes in response to clutch pedal position and vehicle gear engagement; the noise typically disappears when the clutch pedal is depressed completely with the vehicle stationary. Conversely, engine timing chain rattle or oil pressure-related mechanical noise persists regardless of clutch engagement and fluctuates strictly with engine RPM changes.
What is the procedure for measuring synchronizer blocker ring clearance using the transmission diagram?
Place the synchronizer ring firmly against the gear cone surface by hand, then insert a feeler gauge into the gap between the blocker ring rear face and the gear dog teeth face. Manufacturer specifications require a minimum operating gap of 0.035 inches (0.90mm); if the clearance measures below the service limit of 0.020 inches (0.50mm), replace the brass or carbon blocker ring.
Step-by-Step Guide to Understanding the Manual Transmission 5-Speed 2-Shaft Diagram
Identify – Locate the input shaft splines and output shaft flange relative to the transmission casing in the diagram.
Locate – Position key components including shift forks, synchronizer hubs, and vehicle speed sensors relative to the housing.
Reference – Cross-check gear clearance tolerances and assembly torque specs using the diagram parts list.
Connect/Route – Reassemble selector rails, shift forks, and internal gear stacks according to the exploded shaft layout.
Verify – Spin shafts manually to confirm smooth gear engagement and check speed sensor harness connections.
Troubleshoot – Connect an OBD-II scanner to clear any diagnostic code or check engine light if electrical sensors fault.
