4-Wire Humbucker Wiring Diagram: Connection Mapping 2026
A 4-wire humbucker uses four colored wires for its two coils, plus a bare ground wire. The diagram illustrates connecting these wires to achieve series, parallel, or coil-split configurations. One wire acts as hot, two are joined, and one is grounded to the pot or output jack.
📌 Key Takeaways
- Understanding the specific wire color code (e.g., black=hot, white/red=series link, green=ground for Seymour Duncan) is crucial for proper connection.
- A 4-wire humbucker allows for versatile wiring options: standard series, brighter parallel, and single-coil simulating coil-split configurations.
- Always ensure proper grounding of all components (pickup baseplate, pot casings, bridge) to minimize hum, noise, and ensure player safety.
- The most common wiring mistake involves incorrect series link connections or reversed coil polarity, leading to out-of-phase sounds or silent coils.
- If persistent hum, weak signal, or unexpected sounds occur after following the diagram, consult an experienced guitar technician or luthier for diagnosis.
The accurate integration of a 4-wire humbucker pickup into an electronic circuit is crucial for achieving desired sonic characteristics and ensuring system reliability. This guide provides a detailed wiring diagram and accompanying instructions specifically tailored for technicians and experienced hobbyists working with such components, ensuring precise connections and optimal performance. Understanding the specific wire color codes, their functions, and proper termination points is paramount to avoiding signal degradation, phase issues, or complete operational failure. This diagram and procedure clarify the typical connections for a standard series wiring configuration, laying the foundation for more advanced modifications such as coil-splitting or series/parallel switching.

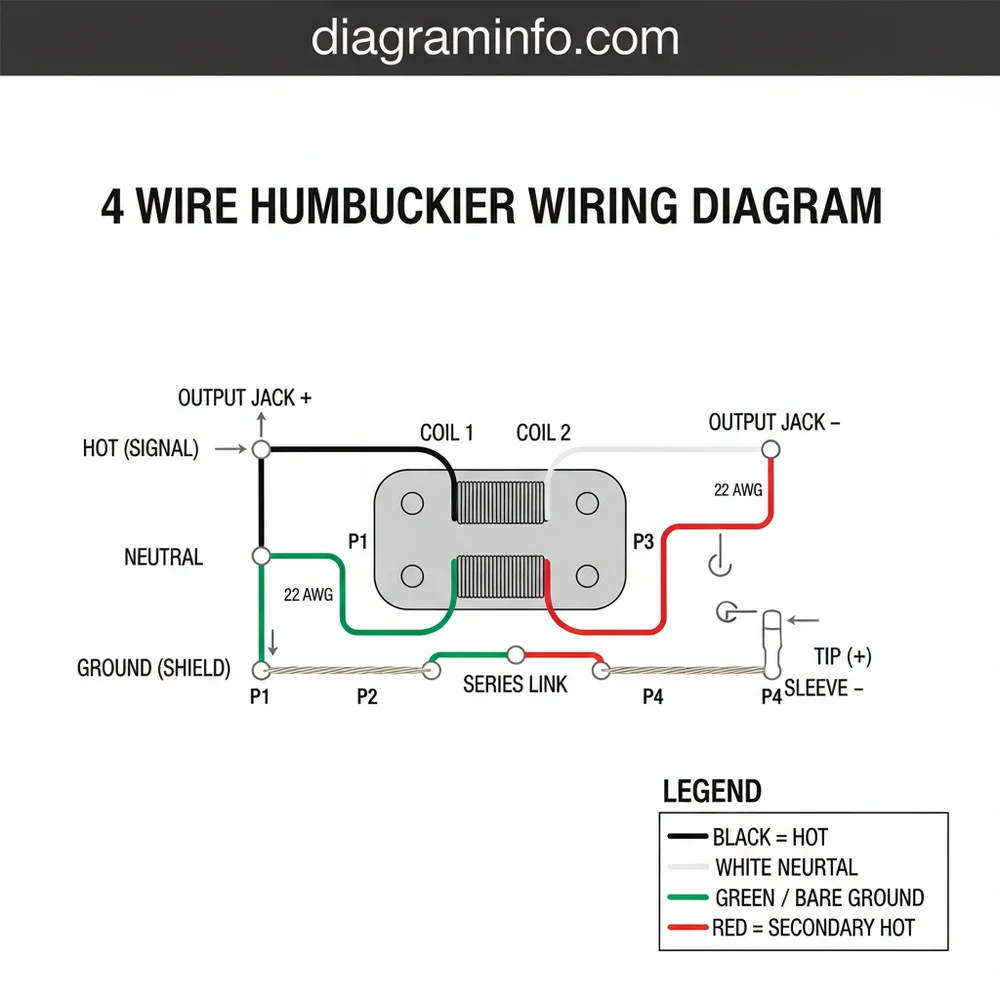

WIRE COLOR REFERENCE TABLE
| Wire Color (Common) | Function/Pin Assignment | Coil ID | Notes |
|---|---|---|---|
| Black | Hot / Live (+ Output) | Coil 1 Start | Main signal output. Connects to input of volume potentiometer. |
| White | Coil 1 Finish | Coil 1 Finish | Part of the series link. Paired with red wire. |
| Red | Coil 2 Start | Coil 2 Start | Part of the series link. Paired with white wire. |
| Green | Ground / Common (-) | Coil 2 Finish | Signal ground. Connects to main circuit ground point. |
| Bare (Uninsulated) | Shield Ground | Shield | Connects to main circuit ground point with green wire to minimize interference. |
While the table above details a commonly adopted wire color code (e.g., by Seymour Duncan), it is critical to consult the manufacturer’s specific documentation for your particular humbucker. Different manufacturers (e.g., DiMarzio, Gibson, EMG) often utilize distinct color codes for their wire functions. Failure to verify these color codes can lead to incorrect phase, reduced output, or damage to connected components. Always verify the pin assignment for your specific unit.
STEP-BY-STEP CONNECTION GUIDE
This guide outlines the procedure for wiring a 4-wire humbucker pickup in a standard series configuration, which is the most common setup providing full humbucking operation and maximum output. Ensure all connections are robust and properly insulated to prevent short circuits or signal loss. The typical wire gauge for these applications is 22-24 AWG (American Wire Gauge), which provides adequate current handling and flexibility.
- Preparation and Wire Identification: Before commencing any soldering, carefully strip approximately 5-7mm (0.2-0.28 inches) of insulation from the end of each of the four colored wires and the bare shield wire. Refer to the “Wire Color Reference Table” above and your specific manufacturer’s documentation to confirm the function of each wire. It is imperative that you identify the hot wire, the two series link wires, and the signal ground wire correctly according to your pickup’s specifications.
- Series Link Connection: The core of standard humbucker operation involves connecting the two coils in series. Locate the “Coil 1 Finish” wire (typically white) and the “Coil 2 Start” wire (typically red). Twist these two wires together securely. Solder this twisted pair connection. After soldering, insulate this joint thoroughly using heat-shrink tubing or high-quality electrical tape. This connection isolates the series link, allowing current to flow from the first coil directly into the second. Do not allow this junction to contact any other grounded or hot components.
- Hot Wire Termination: Identify the “Hot” wire (typically black), which represents the start of Coil 1 and carries the primary signal output from the humbucker. Connect this wire to the input lug of your volume potentiometer. For standard configurations, this is often the center lug of a 500k Ohm audio taper pot. Ensure a clean, secure solder joint. Refer to a Potentiometer Taper Selection Guide for optimal pot value and taper choices if you are unsure.
- Ground Wire Connections: The “Ground” wire (typically green), which represents the finish of Coil 2, and the bare shield wire are both critical for proper operation and noise rejection. Twist these two wires together. This combined ground connection should then be soldered to the chassis of the volume potentiometer, which serves as the common ground point for the circuit. Ensure this connection is mechanically sound before soldering. This effectively grounds both the pickup’s signal path and its electromagnetic shielding. Proper grounding is essential to minimize hum and interference; consult a Guitar Electronics Grounding Best Practices guide for advanced considerations.
- Output Jack Integration: Connect the output lug of the volume potentiometer (typically the outer lug opposite the ground connection) to the tip terminal of your output jack. The sleeve terminal of the output jack should be connected to the same common ground point as the green and bare wires. All solder joints should be firm, shiny, and free of cold joint indications. For detailed instruction on making these connections, consider reviewing a comprehensive Soldering Techniques Guide.
- Functionality Test: Before reassembling, perform a continuity and functional test. Use a multimeter to check for any unintentional short circuits between the hot and ground lines. Then, connect the circuit to an amplifier and gently tap the pickup pole pieces with a non-metallic object (e.g., a plastic pick) to verify signal output and ensure no significant hum or buzzing, which would indicate a grounding or wiring error.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Incorrect wiring of a 4-wire humbucker can lead to a variety of undesirable outcomes, from minor signal issues to complete circuit failure. Addressing these common mistakes proactively or during troubleshooting saves significant diagnostic time.
Always disconnect power or audio output before troubleshooting or making adjustments to wiring. Incorrect troubleshooting can damage components or pose electrical hazards.
- Incorrect Series Link (Red/White Wires):
- Consequence: If the red and white wires (or their manufacturer-specific equivalents for the series link) are incorrectly connected – for instance, one is grounded or connected as a hot lead instead of linked to the other coil – you will likely experience very weak or no output, as only one coil will be active (effectively a single-coil mode), or the circuit will be open.
- Fix: Re-examine the joint where Coil 1 Finish and Coil 2 Start wires are connected. Ensure they are twisted and soldered together, and crucially, insulated from all other components and grounds. This junction should have no direct connection to ground or the main hot signal in standard series wiring.
- Reversed Hot and Ground Wires:
- Consequence: If the hot wire (e.g., black) and the signal ground wire (e.g., green) are swapped at the potentiometer or output jack, the pickup will operate out of phase with other pickups in a multi-pickup system, resulting in a thin, hollow sound, especially when combined with other pickups. If it’s the only pickup, it might still function, but with increased noise and potential for ground loops.
- Fix: Verify the manufacturer’s color code and ensure the designated hot wire is connected to the potentiometer’s input lug and the designated signal ground wire (along with the bare shield) is connected to the common ground point. Correct these connections if reversed.
- Poor Solder Joints (Cold Joints):
- Consequence: A cold solder joint, characterized by a dull, grainy, or pitted appearance, indicates insufficient heat during soldering. This results in intermittent connections, signal dropouts, excessive noise (hum or crackling), or complete signal loss.
- Fix: Desolder the faulty joint completely, clean the wire and component surfaces, and re-solder, ensuring proper temperature, sufficient flux, and allowing the solder to flow smoothly. The joint should appear bright and shiny. Refer to professional Soldering Techniques Guide documentation for best practices.
- Improper Shielding/Grounding:
- Consequence: If the bare shield wire is not properly connected to the main circuit ground, or if there are multiple ground points creating a ground loop, the circuit will be highly susceptible to electromagnetic interference (EMI) and radio frequency interference (RFI), manifesting as an audible hum, buzz, or static.
- Fix: Confirm that the bare shield wire is twisted and soldered firmly with the green signal ground wire to a single, common ground point in the circuit (e.g., the back of the volume potentiometer). Ensure all ground connections are tight and provide low resistance.
FAQ
What is the purpose of the bare wire in a 4-wire humbucker?
The bare wire typically serves as the shield ground. It is wrapped around the internal conductor wires to provide electromagnetic shielding, significantly reducing susceptibility to external interference, such as hum and RFI. It should always be connected to the common ground point of your circuit, along with the main signal ground wire (e.g., green).
Can this 4-wire humbucker wiring diagram be used for 2-wire humbuckers?
No, this specific diagram is not directly applicable to 2-wire humbuckers. A 2-wire humbucker inherently connects its coils in series internally, providing only a hot output and a ground wire externally. The additional wires in a 4-wire humbucker (plus shield) are precisely what allow for advanced wiring options like coil-splitting, phase reversal, and series/parallel switching, which are not possible with a 2-wire design.
How do I wire a 4-wire humbucker for coil-splitting?
To wire for coil-splitting, you would connect the “hot” wire (e.g., black) to the volume pot as usual, and the “ground” wire (e.g., green) and bare shield to ground. The key difference lies with the series link wires (e.g., red and white). Instead of just soldering them together and insulating them, you connect this twisted pair to a switch (e.g., a DPDT switch or push-pull pot). When the switch is engaged for coil-splitting, these two wires are connected to ground, effectively bypassing one of the humbucker’s coils and running the other coil as a single-coil pickup.
Why do different humbucker manufacturers use varying wire color codes?
There is no universal industry standard for humbucker wire color codes, leading each manufacturer (e.g., Seymour Duncan, DiMarzio, Gibson) to adopt its own internal convention. These variations stem from historical design choices, intellectual property, and proprietary internal winding schemes. This is why it is absolutely critical to consult the specific wiring documentation provided by the manufacturer of your particular humbucker to ensure correct connections.
What is the typical voltage output for a passive humbucker, and does wire gauge affect it?
Passive humbuckers do not
For optimal signal integrity and longevity in automotive or high-vibration equipment environments, all soldered connections should be mechanically secure before soldering. Consider using mil-spec grade heat-shrink tubing for insulation, and where applicable, incorporate strain relief for wiring bundles to prevent fatigue failure. Manufacturer specifications often indicate preferred soldering temperatures and torque specifications for terminal block connections.
Step-by-Step Guide to Understanding the 4-Wire Humbucker Wiring Diagram: Connection Mapping 2026
Identify – Identify your humbucker’s specific wire color code and each wire’s function (hot, series link, ground) using the manufacturer’s documentation or the provided reference table.
Locate – Locate all necessary components on your guitar, including volume pots, tone pots, pickup selector switch, output jack, and the designated grounding points.
Reference – Reference the 4 wire humbucker wiring diagram to understand the exact connection path for hot, ground, and coil-split/series wires to each component.
Connect/Route – Carefully strip, tin, and solder each wire from the humbucker to its corresponding terminal on the potentiometers, switch, or output jack as depicted in the diagram, ensuring secure mechanical and electrical connections.
Verify – Verify all connections for continuity with a multimeter and test the guitar by plugging it into an amplifier, checking for sound, proper volume/tone control, and hum-free operation in all pickup selector positions.
Troubleshoot – Troubleshoot any issues like hum, no sound, or weak output by re-checking solder joints for cold connections or bridges, verifying correct wire polarity, and ensuring all components are properly grounded.
Frequently Asked Questions
What wire color is hot on 4 wire humbucker wiring diagram?
For many manufacturers, like Seymour Duncan, the black wire typically serves as the hot output, connecting to the volume pot. However, wire colors vary significantly by brand (e.g., DiMarzio uses red as hot). Always consult the specific manufacturer’s color code chart for your particular pickup model to ensure correct identification and wiring.
What do the pin numbers mean on 4 wire humbucker wiring diagram?
Humbucker diagrams don’t use ‘pin numbers.’ They identify four colored wires as coil start/finish leads (e.g., coil 1 start, coil 1 finish) and a bare ground. The diagram shows connecting these specific leads for series, parallel, or coil-split wiring to your volume/tone pots and output jack for various tonal options.
How many wires does 4 wire humbucker wiring diagram have?
A 4-wire humbucker has four color-coded wires for its two internal coils, plus a separate bare ground wire for shielding. So, it technically features five wires: four for the coil connections and one for ground. This wiring scheme provides flexibility for various configurations, including coil-splitting, series, or parallel operation.
What are common wiring mistakes with 4 wire humbucker wiring diagram?
Common mistakes include incorrect identification of hot and ground wires, improper soldering of series link wires leading to out-of-phase sounds or hum, and inadequate grounding of components. Reversing coil connections can cause an out-of-phase sound when combined with another pickup. Always check continuity and polarity carefully.
Do I need special shielding for 4 wire humbucker wiring?
While humbuckers are inherently hum-cancelling, proper shielding of your guitar’s control cavity with conductive paint or copper foil significantly reduces external noise and interference. Ensuring the bare ground wire from the humbucker is correctly soldered to the common ground point, along with the pots and output jack, is crucial for optimal noise reduction.
What gauge wire does 4 wire humbucker wiring diagram require?
The internal coil wires of a humbucker are typically very fine gauge (e.g., 42 AWG magnet wire), which is integral to the pickup itself. For connecting the humbucker’s output wires to pots and switches, standard guitar wiring typically uses 22 AWG (American Wire Gauge) stranded wire. Using this gauge ensures good signal integrity and ease of soldering.
