Ford Ranger 7-Way Trailer Wiring Diagram: Pinout & Installation 2026
The Ford Ranger’s standard 7-way trailer connector typically uses Pin 2 (blue wire) for electric brakes, Pin 4 (brown) for running lights, and Pin 6 (black) for auxiliary 12V power. Pin 3 (white) is ground, essential for all functions. Correct identification of these wires and their functions is crucial for a functional and safe trailer connection.
📌 Key Takeaways
- The 7-way RV blade connector is the standard for Ford Ranger models requiring electric brakes and auxiliary power, offering more functions than a 4-pin.
- The ground wire (typically white, Pin 3) is paramount; ensure a clean, secure connection to prevent intermittent trailer light and brake controller issues.
- The blue wire (Pin 2) is dedicated to the electric brake output from the brake controller, providing variable voltage for proportional braking.
- Corrosion at connector pins, damaged wiring insulation, or blown fuses (in both the truck and trailer) are the most common failure points for trailer lights and power.
- Seek professional assistance if experiencing persistent electrical shorts, complex auxiliary power routing, or if you are unsure about integrating a brake controller to prevent vehicle damage.
When preparing your Ford Ranger for serious towing, particularly for trailers equipped with electric brakes or requiring auxiliary power, understanding the intricate ford ranger trailer wiring diagram for a 7-way RV blade connector is paramount. This robust connector facilitates critical electrical connections for trailer brakes, running lights, turn signals, and a consistent 12V auxiliary power feed. Unlike simpler 4-flat or 5-flat connectors, the 7-way RV blade accommodates advanced trailer systems, ensuring both safety and functionality. This guide provides a technical deep dive into its pin assignments, wire colors, and a precise wiring sequence, essential for mechanics and experienced DIYers engaged in reliable trailer system integration.

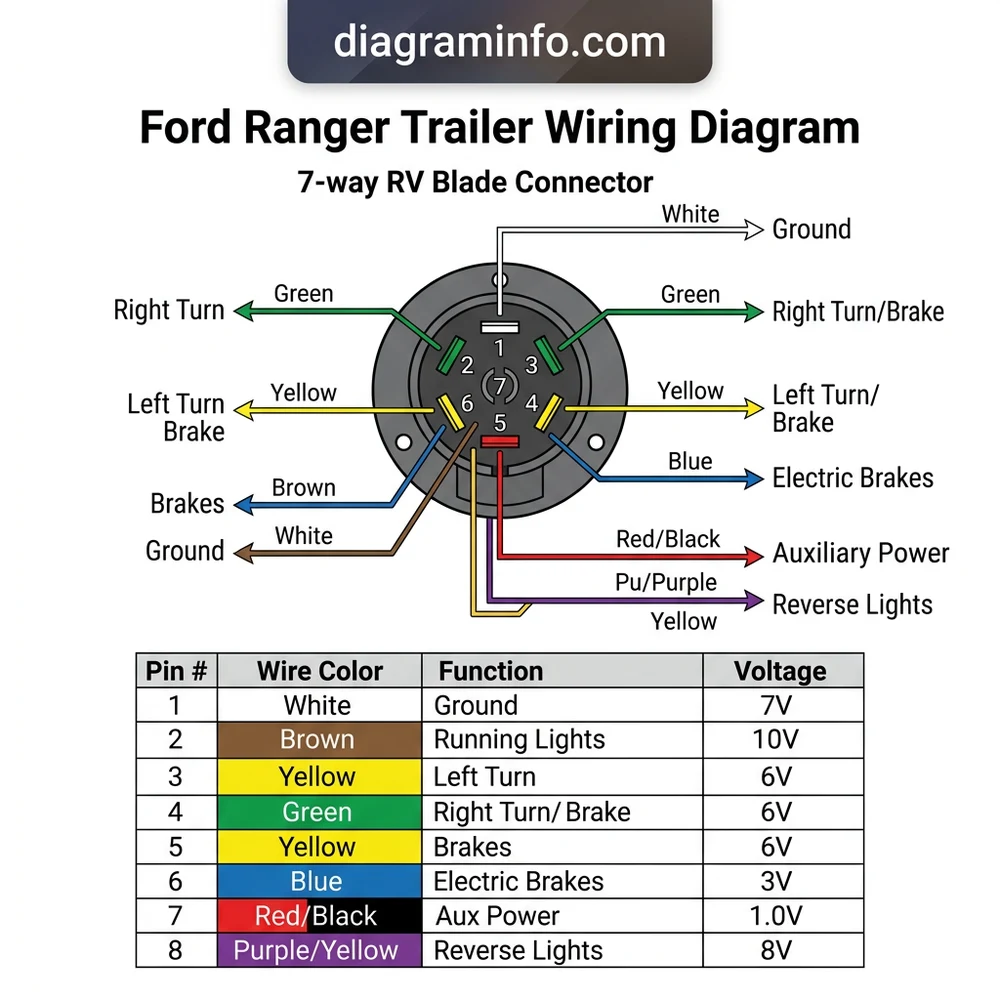

[DIAGRAM_PLACEHOLDER: A clear, technically accurate diagram of a 7-way RV blade connector, showing each pin’s location, corresponding wire color, and function, with an arrow indicating the orientation key (notch/keyway). The diagram should represent both the truck-side female receptacle and the trailer-side male plug.]
Recommended Best Deal Products
(Imagine a technical diagram illustrating the 7-way RV blade connector. It clearly labels each pin position with its standard function and wire color. For instance, the center pin might be labeled “Electric Brakes (Blue)”, the 1 o’clock position “Left Turn/Stop (Yellow)”, the 3 o’clock “12V Auxiliary Power (Black)”, the 5 o’clock “Running Lights (Brown)”, the 7 o’clock “Right Turn/Stop (Green)”, the 9 o’clock “Ground (White)”, and the 11 o’clock “Reverse Lights/Auxiliary (Red)”. The keyway for proper orientation would also be indicated.)
Pin Assignment Table: 7-Way RV Blade Connector
The following table details the standard pin assignments for a 7-way RV blade connector, critical for any ford ranger trailer wiring diagram installation. Adhering to these conventions ensures compatibility and safe operation across various trailer types.
| Pin Position (Reference Diagram) | Standard Wire Color | Function | Notes |
|---|---|---|---|
| 12 o’clock (Keyway/Notch) | N/A (Alignment) | Alignment Slot | Ensures correct plug orientation. |
| 1 o’clock | Yellow / Red | Left Turn Signal & Brake Light | Controls the left stop and turn lamps. |
| 3 o’clock | Black / Red | 12V Auxiliary Power / Battery Charge | Provides constant or switched 12V power for trailer battery charging or accessories. Requires a fuse link on the tow vehicle. |
| 5 o’clock | Brown / Green | Running Lights / Tail Lights | Activates trailer running lights, marker lights, and license plate lights. |
| 7 o’clock | Green / Brown | Right Turn Signal & Brake Light | Controls the right stop and turn lamps. |
| 9 o’clock | White | Ground | Essential common return path for all trailer electrical circuits. Critical for system integrity. |
| Center | Blue | Electric Brakes | Receives modulated power from the brake controller for electric trailer brakes. |
| 11 o’clock | Red / Purple | Reverse Lights / Auxiliary | Powers reverse lights or can be repurposed for other auxiliary functions if not used. |
While the wire colors listed are industry standards, slight variations may exist between Ford Ranger model years or with aftermarket harnesses. Always verify wire functions using a multimeter before making final connections. Consult your specific Ford Ranger’s owner’s manual or a wiring schematic for the most accurate OEM wire colors at the vehicle’s harness interface.
Step-by-Step Wiring Guide for 7-Way RV Blade Connector (Trailer Side)
This comprehensive guide details the proper sequence and procedures for wiring a 7-way RV blade connector to a trailer harness. This process assumes a pre-existing vehicle-side harness is installed on your Ford Ranger or other tow vehicle.
- Prepare the Wiring Harness: Carefully strip approximately 1/2 to 3/4 inch of insulation from the end of each trailer-side wire. Ensure not to nick the copper strands. For optimal conductivity and corrosion resistance, tin each wire end with solder. If using crimp connectors, select appropriate gauge heat-shrinkable butt connectors. Organize the wires according to their standard color and function (e.g., White for ground pin, Blue for electric brake, Brown for running lights).
- Connect the Ground Wire (White): Begin with the most critical connection: the ground wire. Route the white wire to the large pin located at the 9 o’clock position on the 7-way RV blade connector. Secure it firmly, either by crimping and soldering or by threading it into the terminal screw. A robust ground connection is paramount for the entire system’s reliability. Verify the ground path with a continuity tester from the connector pin to the trailer frame.
- Connect the Running Lights (Brown): Identify the brown wire from your trailer’s harness. Connect this wire to the pin at the 5 o’clock position on the 7-way connector. This circuit powers all running, marker, and license plate lights on the trailer, crucial for nighttime visibility.
- Connect the Right Turn Signal and Brake Light (Green): Locate the green wire from the trailer. Connect it to the pin at the 7 o’clock position. This circuit operates the right-side stop and turn lamps.
- Connect the Left Turn Signal and Brake Light (Yellow): Identify the yellow wire. Connect this to the pin at the 1 o’clock position. This circuit operates the left-side stop and turn lamps.
- Connect the Electric Brake Wire (Blue): For trailers equipped with an electric brake system, locate the blue wire from the trailer’s brake assembly. Connect this wire to the center pin of the 7-way connector. This pin carries the modulated signal from your Ford Ranger’s brake controller to the trailer’s brake magnets. Ensure this connection is exceptionally secure to prevent intermittent brake functionality.
- Connect the 12V Auxiliary Power Wire (Black): Locate the black wire, often a heavier gauge (10 or 12 AWG). Connect this to the pin at the 3 o’clock position. This auxiliary power circuit provides continuous 12V DC power for charging trailer batteries, operating interior lights, or powering other accessories while connected to the tow vehicle. Confirm your Ford Ranger’s vehicle-side harness has this circuit properly fused.
- Connect the Reverse Lights / Auxiliary Wire (Red): Identify the red or purple wire. Connect this to the pin at the 11 o’clock position. This circuit typically powers the trailer’s reverse lights. If your trailer lacks reverse lights, this pin can be repurposed for a different auxiliary function, provided the vehicle-side wiring supports it.
- Secure and Test Connections: After all wires are connected to their respective pins, ensure all terminal screws are torqued to manufacturer specifications, typically 15-20 in-lbs for small terminals. Use dielectric grease on all exposed connections within the connector body for corrosion protection. Perform a comprehensive test using a trailer light tester or by connecting to your Ford Ranger. Verify each function: running lights, left turn signal, right turn signal, brake lights, and electric brakes (using the manual override on the brake controller). Check auxiliary power with a voltmeter.
Recommended Best Deal Products
Improper wiring can lead to dangerous situations, including trailer brake failure, lighting malfunctions, or electrical fires. Always double-check your work with a multimeter and continuity tester. Never assume wire colors without verification, especially when dealing with non-standard trailer harnesses or older equipment. Refer to Advanced Trailer Electrical Safety Protocols for comprehensive safety guidelines.
Common Wiring Mistakes and Troubleshooting
Even experienced technicians can encounter issues during trailer wiring installations. Understanding the common pitfalls for a ford ranger trailer wiring diagram is crucial for efficient troubleshooting.
- Inadequate Ground Connections: The most frequent culprit for trailer lighting issues is a poor ground. A corroded, loose, or insufficient ground pin connection can cause dim lights, flickering, or functions bleeding into each other (e.g., brake lights activating turn signals). Always ensure the ground wire is securely connected to both the trailer plug and the trailer frame, with clean, bare metal contact points. Test ground continuity from the trailer plug’s ground pin directly to the trailer’s metallic frame.
- Incorrect Pin Assignments: Swapping wires for running lights with brake/turn signals is a common error, leading to unpredictable lighting behavior. Always reference the pin assignment table and the diagram, and test each circuit individually before final assembly. A dedicated trailer wiring tester can greatly simplify this verification process.
- Wire Gauge Mismatch: Using wires that are too thin (high gauge number) for the current draw can lead to voltage drop, resulting in dim lights or ineffective electric brakes. The 12V auxiliary and electric brake circuits typically require heavier gauge wires (10-12 AWG) due to higher current demands. OEM specifications for your Ford Ranger will typically dictate minimum wire gauges.
- Corrosion and Poor Splices: Exposed or poorly sealed connections are susceptible to corrosion, especially in harsh towing environments. Utilize heat-shrink butt connectors, marine-grade crimps, and dielectric grease to protect splices from moisture and contaminants. Corrosion significantly increases resistance, leading to circuit malfunctions.
- No Power to Auxiliary or Brake Controller Circuits: Many Ford Ranger models require specific fuses or relays to be installed, or factory circuits to be activated (sometimes by a dealership or specific procedure) to enable the 12V auxiliary power and electric brake output at the 7-way connector. If these circuits are dead, check your vehicle’s fuse box and owner’s manual for proper activation and fuse placement.
FAQ
What is the primary difference between a 4-flat and a 7-way RV blade connector for a Ford Ranger?
The primary difference lies in the number of circuits and capabilities. A 4-flat flat connector provides only basic lighting functions: ground, running lights, left turn/brake, and right turn/brake. A 7-way RV blade connector, as described in this ford ranger trailer wiring diagram, expands on this by adding circuits for electric brakes, 12V auxiliary power (for battery charging or accessories), and often reverse lights. This makes the 7-way essential for towing larger trailers equipped with electric braking systems or requiring onboard power.
Do all Ford Rangers come pre-wired for a 7-way RV blade connector?
Not necessarily. Many newer Ford Ranger models with a factory tow package will include the necessary wiring and often a 7-way receptacle. However, some base models or older Rangers may only have a 4-flat connector or require an aftermarket wiring harness and brake controller installation kit to upgrade to a full 7-way system. Always verify your specific Ford Ranger’s configuration by checking for the presence of the 7-way receptacle and consulting the owner’s manual.
How can I test the trailer wiring on my Ford Ranger without a trailer?
You can test your Ford Ranger’s vehicle-side 7-way receptacle using a 7-way trailer wiring tester, which plugs directly into the receptacle and has indicator lights for each circuit. Alternatively, a multimeter can be used: connect the negative lead to the ground pin (9 o’clock) and probe each other pin while activating the corresponding vehicle function (e.g., turn on headlights for running lights, depress brake pedal for brake lights). For the electric brake circuit, you’ll need to activate the manual override on your brake controller to get a voltage reading (typically 0-12V depending on controller setting). For detailed electrical diagnostic procedures, refer to specialized guides.
Can I convert a 7-way RV blade connector to a 4-flat for a different trailer?
Yes, adapters are commonly available to convert a 7-way RV blade connector to a 4-flat. These adapters typically plug into the 7-way receptacle on your Ford Ranger and provide a 4-flat output. However, remember that using such an adapter means you will only have the basic lighting functions; the electric brake and auxiliary power circuits from the 7-way will not be utilized by the 4-flat trailer. For long-term or heavy use, consider a direct wiring solution or a robust commercial adapter.
What gauge wire should be used for the electric brake and 12V auxiliary power circuits?
For the electric brake and 12V auxiliary power circuits, it is standard practice and highly recommended to use 10 AWG (American Wire Gauge) wire. These circuits can draw substantial current, especially the electric brake circuit during activation or the auxiliary power circuit when charging a trailer battery. Using 12 AWG may be acceptable for shorter runs or lower current draw, but 10 AWG provides a safer margin against voltage drop and overheating, ensuring optimal performance and compliance with most OEM specifications for your Ford Ranger.
Frequently Asked Questions
What is pin 1 on a ford ranger trailer wiring diagram?
For a Ford Ranger’s 7-way trailer wiring diagram, Pin 1 (often the center pin) is typically designated for auxiliary circuits such as reverse lights or a dedicated auxiliary power feed for specific trailer functions. Its exact use can vary by trailer type or aftermarket setup, so always confirm with the trailer’s specific diagram if available.
What wire color is the brake wire on ford ranger trailer wiring diagram?
On a Ford Ranger’s standard 7-way trailer wiring diagram, the electric brake wire is consistently blue. This wire connects to Pin 2 on the connector and carries the variable voltage signal from your brake controller to the electric brake assemblies on your trailer, enabling controlled stopping.
Can I use ford ranger trailer wiring diagram without a brake controller?
You can connect a trailer to your Ford Ranger using the trailer wiring diagram without a brake controller only if the trailer does not have electric brakes. For trailers equipped with electric brakes, a brake controller is legally required for safe operation, providing essential stopping power and control for heavier loads.
What is the auxiliary pin on ford ranger trailer wiring diagram for?
The auxiliary power pin (typically Pin 6, often a black wire) on your Ford Ranger trailer wiring diagram provides constant 12V power. This power is essential for charging the trailer’s battery, operating internal trailer lights, or running other 12V accessories within the trailer, even when the tow vehicle is off, assuming the vehicle’s ignition is on.
What causes trailer lights to not work with ford ranger trailer wiring diagram?
Common causes for trailer lights not working with your Ford Ranger trailer wiring diagram include blown fuses (in the truck’s fuse box or the trailer), corroded or loose ground connections, damaged or chafed wiring, or faulty bulbs/LEDs. Inspecting all connections, fuses, and testing for continuity are key troubleshooting steps.
Is ford ranger trailer wiring diagram compatible with 4-pin adapters?
Yes, a Ford Ranger’s 7-way trailer wiring system is fully compatible with 4-pin adapters. These adapters conveniently convert the 7-way RV blade connector to a simpler 4-pin flat connector, allowing you to tow trailers that only require basic lighting functions: running lights, turn signal, stop lights, and ground.
