Residential Electric Meter Box Wiring Diagram: Easy Setup Guide

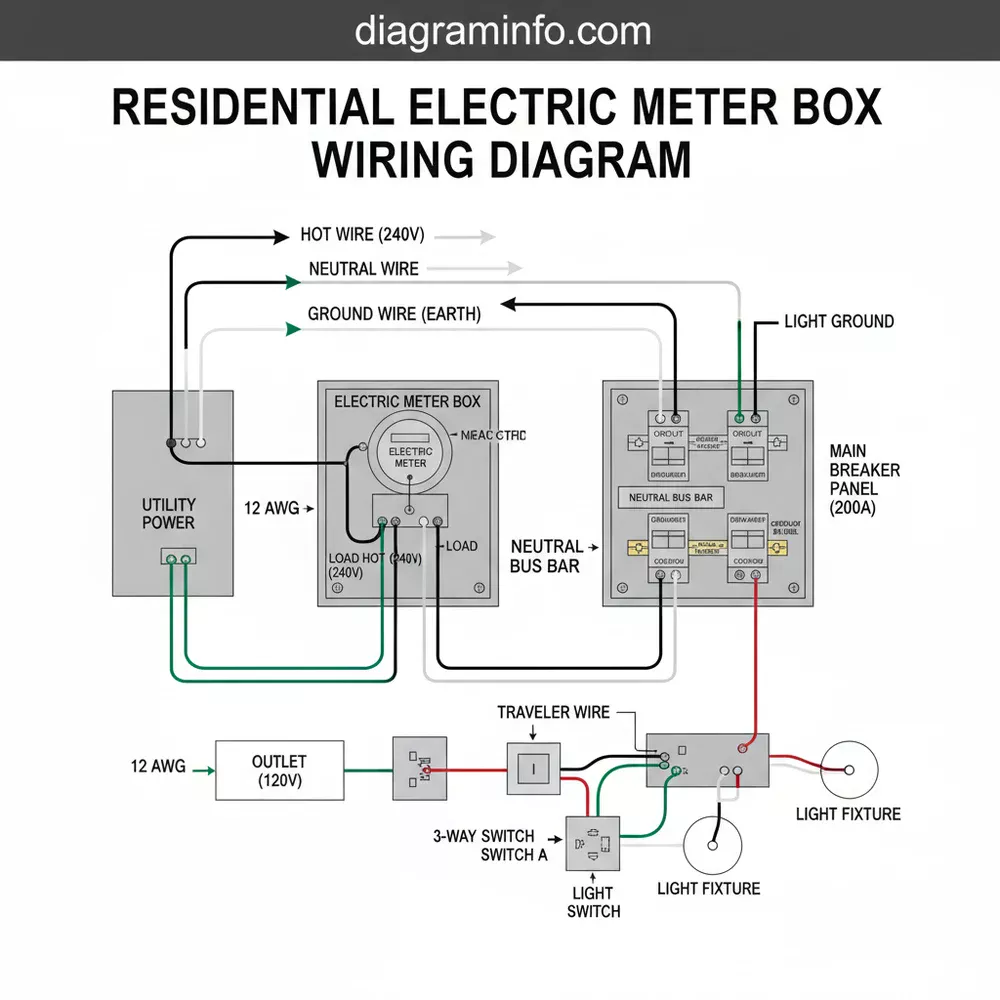

A residential electric meter box wiring diagram illustrates the connection between the utility service drop and the main breaker panel. It shows the hot wire entering the meter lugs, the neutral wire connecting to the neutral bus bar, and the essential ground wire linkage to ensure system safety and accurate billing.
📌 Key Takeaways
- Main purpose is to safely bridge utility power to the home distribution panel
- Identify the line-side vs. load-side terminals to prevent reverse wiring
- Proper bonding of the ground and neutral is critical for safety and code compliance
- Use high-quality insulated tools to handle heavy-gauge service entrance cables
- Use this diagram when installing new service or upgrading an existing meter socket
Understanding the intricacies of a residential electric meter box wiring diagram is a fundamental requirement for any homeowner or DIY enthusiast looking to comprehend how utility power safely enters a property. This guide is designed to demystify the complex web of connections found inside your service entrance equipment. By focusing on terminal identification, wire color coding, and the precise sequence of connections, we will explore the path from the utility transformer to your home’s main service panel. You will learn how to identify the hot wire and neutral wire connections, understand the vital role of the ground wire, and ensure your installation meets the voltage and gauge requirements dictated by modern electrical codes.
A residential electric meter box, often referred to as a meter socket or meter base, serves as the demarcation point between the utility company’s equipment and the customer’s internal wiring. It is essential that all work matches the specific residential electric meter box wiring diagram provided by your local utility provider, as standards can vary significantly between regions.
Decoding the Residential Electric Meter Box Wiring Diagram
The residential electric meter box wiring diagram serves as a blueprint for the “Point of Entry” of your home’s electrical system. Visually, the diagram is split into two primary sections: the Line side (Top) and the Load side (Bottom). The Line side represents the incoming power from the utility company, while the Load side represents the conductors that travel from the meter box to your home’s main breaker panel.
In a standard North American residential setup, the diagram illustrates a 120/240-volt single-phase system. This configuration utilizes three main conductors: two ungrounded “hot” wires and one grounded “neutral” wire. On the diagram, you will notice four main terminals (jaws) where the physical glass meter is plugged in. The top two terminals are designated for the incoming Line conductors, and the bottom two are for the outgoing Load conductors.
The center of the meter base contains the neutral bar or neutral lug. Unlike the hot terminals, the neutral wire is typically a continuous run or is bonded to the center terminal block. This block also provides the connection point for the ground wire, ensuring that the metal enclosure of the meter box is properly bonded to prevent electric shock.
Variations in these diagrams often depend on the amperage of the service. A 100-amp service will use different lug sizes and wire gauges than a 200-amp service. Furthermore, some modern diagrams include a “bypass lever,” which allows utility workers to jump the connection so the home doesn’t lose power while the meter is being serviced. Identifying these components on your specific diagram is the first step toward a successful installation.
[DIAGRAM_PLACEHOLDER: A detailed 2D technical illustration of a 200-amp residential meter socket. The top lugs are labeled ‘LINE 1’ and ‘LINE 2’ with black and red wires. The bottom lugs are labeled ‘LOAD 1’ and ‘LOAD 2’. The center lug is labeled ‘NEUTRAL’. A green ‘GROUND’ wire is shown bonded to the enclosure. Callouts point to the brass screw terminals and the bypass lever.]
The Anatomy of the Meter Socket Components
To effectively interpret a residential electric meter box wiring diagram, one must understand the physical components that correspond to the symbols on the page. Each piece plays a critical role in the safety and functionality of the electrical service.
- ✓ The Enclosure: Usually a NEMA 3R rated weatherproof box designed to protect the internal connections from rain, snow, and debris.
- ✓ Line Lugs: These are the heavy-duty connectors at the top of the box where the utility’s hot wire leads are secured.
- ✓ Load Lugs: Located at the bottom, these terminals receive the wires that carry power into the residence.
- ✓ Neutral Lug: A central connection point, often finished with a silver or zinc coating, where the white neutral wire resides.
- ✓ Bonding Jumper: A small metal strap or wire that connects the neutral lug to the ground terminal of the metal box.
Step-by-Step Guide to Wiring the Meter Box
Successfully wiring a meter base requires precision and a strict adherence to the sequence of operations. Before beginning, ensure that the utility company has disconnected the power at the transformer or the weatherhead to avoid working on live “hot” wires.
Step 1: Mount the Enclosure
Secure the meter box to the exterior of the structure at the height specified by your local utility company (usually between 4 and 6 feet from the finished grade). Use appropriate fasteners to ensure it can support the weight of the heavy-gauge cables.
Step 2: Prepare the Conduits
Install the service mast (for overhead) or the underground lateral conduit. Ensure all hubs and knockouts are fitted with watertight connectors. This prevents moisture from entering the enclosure and causing corrosion on the brass screw terminals or aluminum lugs.
Step 3: Identify and Strip the Conductors
For a 200-amp service, you will likely be using 4/0 aluminum or 2/0 copper wire. Use a dedicated cable stripper to remove approximately 1 to 1.5 inches of insulation from each hot wire and the neutral wire. Avoid nicking the metal strands, as this can create a “hot spot” under load.
Step 4: Connect the Neutral Wire
Always start with the neutral wire. Insert the white (or marked with white tape) conductor into the center neutral lug. In the context of a residential electric meter box wiring diagram, the neutral provides the return path for the current and is essential for maintaining balanced 120V circuits. Tighten the lug to the manufacturer’s specified torque.
Step 5: Connect the Line Side Hot Wires
Insert the two incoming “hot” leads into the top terminals. While wire color isn’t always strictly mandated by utility for the incoming side, typically one is black and the other is red (or black with a red stripe). These carry the 240V potential between them.
Step 6: Connect the Load Side Hot Wires
Connect the wires that lead to your home’s main service panel to the bottom two terminals. Ensure that the wire on the left side of the Line corresponds to the wire on the left side of the Load to maintain phase consistency throughout the house.
Step 7: Install the Grounding Electrode Conductor
Connect the bare or green ground wire to the grounding lug inside the meter box. This wire must travel to your grounding rods or water pipe electrode. Proper grounding is what prevents the metal enclosure from becoming energized during a fault.
Step 8: Final Inspection and Torquing
Use a torque wrench to ensure every connection is tight. Loose connections are the leading cause of electrical fires in meter bases. Check that no stray strands of wire are protruding from the lugs.
Apply a liberal coating of anti-oxidant joint compound (often called “No-Al-Ox”) to all aluminum wire ends before inserting them into the lugs. This prevents the aluminum from oxidizing, which can lead to high resistance and heat buildup over time.
Understanding Voltage and Wire Gauge Requirements
The residential electric meter box wiring diagram is built around the physical limitations of electricity. For most modern homes, a 200-amp service is standard. This requires specific wire gauges to handle the amperage without overheating.
If you are using copper conductors, 2/0 AWG is typically the minimum requirement for a 200-amp service. However, because aluminum is more cost-effective for large service entrance cables, many installers use 4/0 AWG aluminum. It is vital to check your specific diagram and local codes, as using an undersized gauge can lead to a significant voltage drop and may even cause the insulation to melt under peak load.
The voltage provided at the meter is a nominal 120/240V. The two hot wires each carry 120V relative to the neutral wire. When measured against each other, they provide the 240V necessary for heavy appliances like central air conditioners, electric dryers, and ranges. Within the home, the electrical system eventually branches out into smaller circuits. While the meter itself doesn’t use a traveler wire or a common terminal (which are used in three-way switch lighting circuits), the power it provides is what eventually feeds those components in your home’s interior wiring.
Never attempt to pull the meter or break the utility seal yourself. This is not only illegal in most jurisdictions but extremely dangerous. The “Line” side of the meter remains energized even if your main interior breaker is turned off.
Common Issues and Troubleshooting
Even with a perfect residential electric meter box wiring diagram, issues can arise during or after installation. One of the most common problems is “arcing” at the meter jaws. This usually happens if the meter is not seated firmly into the socket or if the lugs have loosened over time due to thermal expansion and contraction.
Another frequent issue is the intrusion of water. If the service mast is not properly sealed at the top (the weatherhead), water can travel down inside the cable insulation and drip directly onto the meter lugs. This leads to corrosion on the brass screw components and eventually causes a total loss of power to one or both “legs” of the service.
If you notice your lights flickering when a high-wattage appliance turns on, or if half of your house has power while the other half does not, the problem often lies within the meter box. This usually indicates a dropped “leg” (one hot wire has a poor connection) or a failing neutral wire. A failing neutral is particularly dangerous, as it can cause voltage imbalances that fry sensitive electronics.
Tools and Materials Needed
Before you begin working with your residential electric meter box wiring diagram, ensure you have the following specialized tools:
- ✓ Torque Wrench: Essential for tightening lugs to exact inch-pound or foot-pound specifications.
- ✓ Insulated Nut Drivers/Wrenches: To provide an extra layer of safety against accidental contact.
- ✓ Wire Strippers: Large-scale strippers capable of handling 2/0 to 4/0 cable.
- ✓ Voltmeter/Multimeter: To verify the 120/240V readings once the utility has energized the line.
- ✓ Knockout Set: For creating clean openings in the enclosure for conduits.
Maintenance and Best Practices
Maintaining your electrical service entrance is key to long-term safety. Periodically perform a visual inspection of the exterior of the meter box. Look for signs of rust, clear any vegetation growing around the unit, and ensure the conduit remains securely attached to the wall.
It is also wise to check the “load side” connections inside your main panel every few years. While you should not open the utility-sealed meter box, the other end of those wires is accessible in your breaker box. Ensure they remain tight and show no signs of heat damage. If you are ever in doubt about the integrity of your wiring, consult a licensed electrician who can use thermal imaging to detect hidden hot spots within the meter base.
When choosing components, always opt for high-quality, UL-listed meter sockets. Saving a few dollars on a generic enclosure can result in premature failure due to poor weather sealing or inferior lug materials. Ensure the socket is rated for the specific amperage of your main breaker; installing a 100-amp meter box on a 200-amp service is a major code violation and a severe fire hazard.
In conclusion, mastering the residential electric meter box wiring diagram is an essential skill for ensuring your home’s electrical backbone is installed correctly. By understanding the relationship between the hot wire leads, the neutral wire return, and the safety provided by the ground wire, you can oversee or perform an installation that stands the test of time and meets all safety regulations. Always prioritize safety, use the correct wire gauge, and ensure every connection is torqued to perfection to keep your residential power system running smoothly.
Frequently Asked Questions
Where is the meter box located?
The residential electric meter box is typically located on the exterior of the house, where the utility company’s service lines meet the structure. It must be placed at a specific height and remain easily accessible for utility workers to read the meter or perform maintenance without entering the home.
What does this wiring diagram show?
This diagram provides a visual map of the service entrance conductors. It shows the hot wire and neutral wire connections from the utility pole to the meter’s line terminals, and the subsequent path from the load terminals to the home’s main service panel, including all necessary grounding system connections.
How many connections does a standard meter box have?
A standard single-phase residential meter box typically features four main terminal lugs. Two ‘line’ lugs receive the incoming hot wire pairs from the utility, while two ‘load’ lugs send power to the house. Additionally, there is a center neutral bus bar for the neutral wire and ground wire bonding.
What are the symptoms of a bad meter box?
Common symptoms of a faulty meter box include flickering lights throughout the home, visible charring or melting on the meter socket, and buzzing sounds. If a common terminal or lug becomes loose, it can create high resistance, leading to heat buildup that poses a significant fire hazard to the residence.
Can I install or replace a meter box myself?
While a diagram helps you understand the system, meter box installation is usually not a DIY task. Most jurisdictions require a licensed electrician to perform the work and a local inspector to sign off. Working with the main hot wire from the utility is extremely dangerous and requires professional expertise.
What tools do I need for meter box wiring?
You will need heavy-duty cable cutters, wire strippers for large-gauge conductors, and a torque wrench to tighten lugs to manufacturer specifications. Always use a non-contact voltage tester to ensure the area is safe. Note that components like a traveler wire are for lighting circuits, not main meter boxes.
