Chrysler Town & Country 3.6 Serpentine Belt Diagram: Proper Routing 2026
The 2014 Chrysler Town & Country 3.6L serpentine belt utilizes an automatic belt tensioner, typically located near the alternator. The belt routes over the crankshaft, power steering, water pump, alternator, and A/C compressor pulleys. Ensure the belt’s ribs align perfectly with the grooved pulleys and the back of the belt rides on smooth idler pulleys.
📌 Key Takeaways
- The OEM serpentine belt for the 3.6L engine often has 6 ribs, with a common Mopar part number like 04891722AB (always verify with VIN).
- A worn serpentine belt is identified by cracks, fraying, glazing, or missing ribs, indicating replacement is due.
- Before attempting belt replacement, always ensure the engine is off and cool. Double-check all pulley alignments after installation.
- The most common mistake is incorrect belt routing, leading to immediate squealing or premature belt and pulley wear.
- If belt replacement doesn’t resolve squealing or if accessory components like the alternator or A/C compressor are faulty, professional diagnosis is recommended.
This article specifically addresses the serpentine belt routing for the 2014 Chrysler Town and Country equipped with the 3.6L Pentastar engine. While the Pentastar V6 is utilized across various Chrysler, Dodge, and Jeep platforms, minor accessory drive differences may exist between models and year groups. Always consult your vehicle’s specific service manual for precise details.
The serpentine belt on your 2014 Chrysler Town and Country with the robust 3.6L Pentastar engine is a critical component, orchestrating the simultaneous operation of multiple essential engine accessories. This single multi-ribbed belt transmits power from the crankshaft to vital systems such as the alternator, power steering pump, air conditioning compressor, and water pump. Correct serpentine belt routing is not merely a suggestion; it is paramount for ensuring each accessory spins at its intended speed and direction, maintaining the vehicle’s electrical, cooling, and steering functionality. Misrouting can lead to immediate operational failure, severe component damage, or unexpected system shutdown, highlighting why a precise understanding of the belt routing path is indispensable for proper maintenance and repair.
BELT PART NUMBERS
Selecting the correct serpentine belt for your 2014 Chrysler Town and Country 3.6L Pentastar is crucial for longevity and performance. While aftermarket options are plentiful, consulting OEM specifications ensures optimal fit and material quality. The table below outlines key part numbers and dimensions.
| Belt Type | OEM Part # | Dimensions (Approx.) | Compatible Models (3.6L Pentastar) |
|---|---|---|---|
| Main Serpentine Belt | Mopar 04891730AA | 6-rib, 93.0 inches (2362 mm) effective length | 2011-2020 Chrysler Town & Country, Dodge Grand Caravan, Dodge Journey, Ram Promaster, Jeep Grand Cherokee (specific years/trims), Chrysler 200/300, Dodge Charger/Challenger (specific years/trims) |
| Aftermarket Equivalent (Example) | Gates K060930 | 6-rib, 93.0 inches (2362 mm) effective length | Direct replacement for OEM 04891730AA |
| Aftermarket Equivalent (Example) | Dayco 5060930 | 6-rib, 93.0 inches (2362 mm) effective length | Direct replacement for OEM 04891730AA |
Always verify the exact belt part number and specifications with your vehicle’s VIN and a reputable parts catalog. Minor production variations, even within the same model year, can sometimes lead to different belt lengths. The “deck engagement” of the belt, referring to how many ribs make contact with each pulley, is designed for optimal power transfer and should always match the accessory’s pulley type.
STEP-BY-STEP ROUTING INSTRUCTIONS

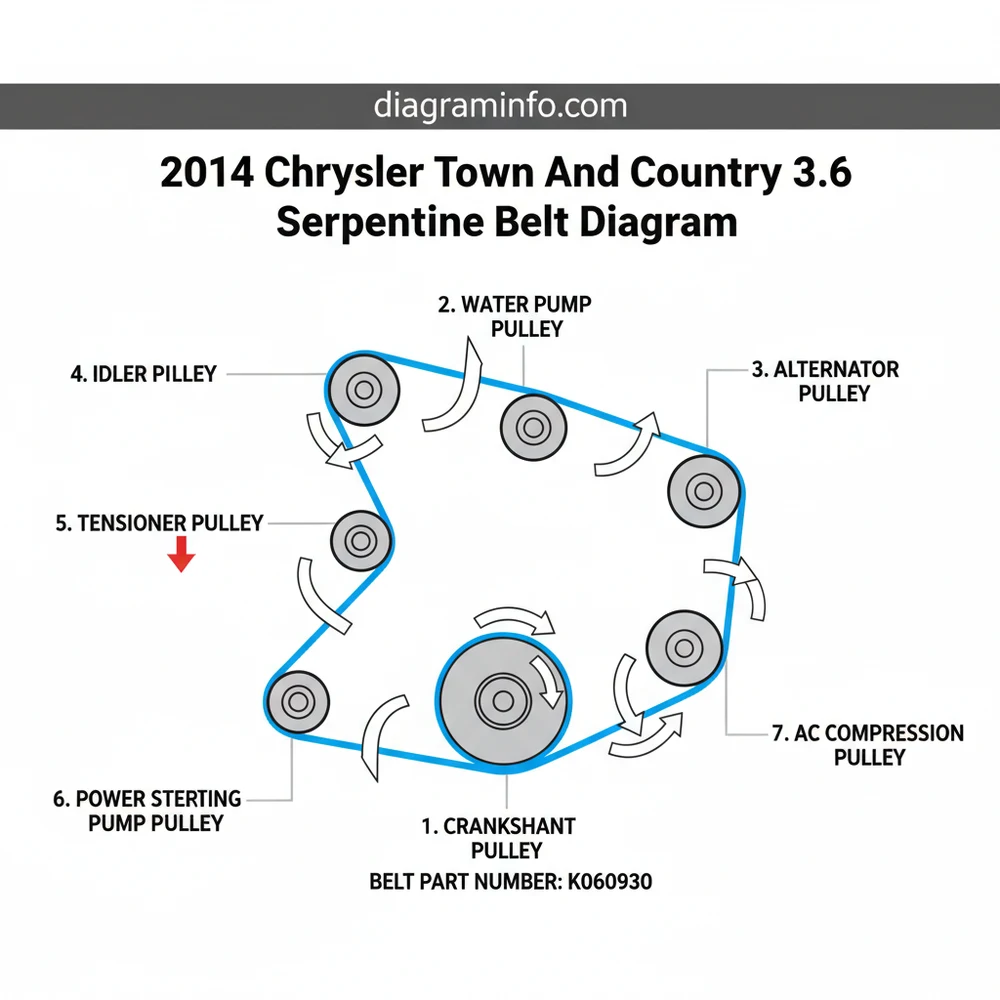

Correctly routing the serpentine belt on your 2014 Chrysler Town and Country 3.6L is crucial for the proper function of all accessory components. Refer to the belt routing path diagram (above) for visual confirmation. This procedure assumes the old belt has been removed or tension has been relieved from the belt tensioner.
- Identify the Crankshaft Pulley (1): Locate the largest pulley at the bottom-center of the engine, directly driven by the crankshaft. This is your primary drive pulley. Route the serpentine belt around the bottom (grooved side) of this pulley first.
- Route to the A/C Compressor Pulley (2): From the crankshaft, guide the belt upwards and to the lower right, ensuring the grooved side of the belt engages correctly with the grooves of the Air Conditioning compressor pulley.
- Engage the Idler Pulley (3): From the A/C compressor, the belt will typically travel upwards to an idler pulley. This pulley has a flat surface, meaning the smooth back of the belt should ride on its surface, not the ribbed side. This idler pulley helps maintain the correct belt routing path and tension.
- Proceed to the Alternator Pulley (4): Continue routing the belt from the idler pulley upwards to the Alternator pulley. Ensure the grooved side of the belt makes full contact with the alternator pulley’s grooves. This component is crucial for your vehicle’s electrical system, so proper engagement is vital.
- Engage the Water Pump Pulley (5): From the alternator, the belt will generally loop across the top of the engine to the Water Pump pulley, usually located on the upper left side of the engine. The smooth back of the belt typically rides on the water pump pulley’s smooth surface, driving it in the correct direction.
- Route to the Power Steering Pump Pulley (6): From the water pump, guide the belt downwards to the Power Steering Pump pulley, located on the middle-left side. The grooved side of the belt should engage this pulley. For further diagnostics on power steering issues, you might consult our guide on power steering pump diagnostics for the 3.6L Pentastar.
- Prepare for the Automatic Belt Tensioner Pulley (7): The final pulley in the routing path will be the automatic belt tensioner. Ensure the belt is correctly routed around all other pulleys first, with the grooved side on grooved pulleys and the smooth side on flat idler pulleys or the water pump, as dictated by the pulley diagram.
- Engage the Belt Tensioner Pulley: Using a specialized serpentine belt tool or a breaker bar with the correct size socket (typically 1/2″ or 3/8″ square drive, refer to the tensioner itself), rotate the belt tensioner arm counter-clockwise to relieve tension.
- Final Belt Installation: While holding the tensioner in the relieved position, slip the belt over the tensioner pulley. Slowly release the tensioner arm, allowing it to apply proper tension to the belt.
- Verify Routing: Double-check that all ribs of the belt are seated correctly in their respective pulley grooves across the entire serpentine belt routing path. Improper seating can lead to premature belt wear, squealing, or belt ejection.
Always ensure the engine is off and the battery is disconnected before attempting any work involving the serpentine belt or any engine components. Rotating engine parts can cause severe injury. Wear appropriate personal protective equipment, including gloves and eye protection.
TENSION & ADJUSTMENT NOTES
The 2014 Chrysler Town and Country 3.6L Pentastar engine utilizes an automatic belt tensioner, which means manual adjustment of the serpentine belt tension is generally not required. This integral component is designed to maintain optimal belt tension throughout the belt’s lifespan, compensating for minor stretching and wear. However, proper function of the belt tensioner itself is critical for overall belt system health.
To check the tension system’s integrity, visually inspect the belt tensioner. The tensioner arm should move smoothly without excessive play or binding. The indicator mark on the tensioner (if present) should fall within the specified operating range, as detailed in the factory service manual. A tensioner that is stuck, corroded, or exhibits excessive vibration can lead to insufficient or excessive belt tension.
Common issues arising from improper tension or a failing belt tensioner include audible squealing or chirping, particularly during cold starts or when accessory loads change (e.g., turning the steering wheel or engaging the A/C). This noise indicates belt slippage, which causes accelerated wear on both the belt and pulley surfaces. Conversely, a tensioner that is too tight can prematurely wear out accessory bearings (e.g., on the alternator or power steering pump) and the belt itself.
While no manual adjustment is typically required, the spring tension within the automatic tensioner is calibrated by the OEM to specific LBS/inch values to ensure adequate grip without overstressing components. Consult the service manual for the specified deflection range if performing a manual tension check, or if assessing tensioner spring fatigue.
If you observe consistent belt noise, visible belt wobble, or a tensioner arm that appears to be at either extreme of its travel range, further diagnosis of the belt tensioner is warranted. Often, a failing tensioner is replaced concurrently with the serpentine belt for preventative maintenance.
FAQ
What are the common signs that my 2014 Chrysler Town and Country 3.6L serpentine belt needs replacement?
Key indicators include visible cracking, fraying, or glazing on the belt’s surface. Audible cues such as squealing, chirping, or grinding noises, particularly upon startup or when engaging accessories like the air conditioning, often signal a worn or slipping belt. Excessive stretch leading to the automatic belt tensioner reaching its maximum travel can also suggest it’s time for replacement. Regular visual inspection during oil changes or other routine maintenance is recommended to catch issues early.
What happens if the serpentine belt breaks while driving?
A broken serpentine belt will immediately disable all accessories it drives. You will lose power steering, leading to significantly increased steering effort. The alternator will cease charging the battery, causing all electrical systems to eventually fail as the battery drains. The water pump will stop circulating coolant, leading to rapid engine overheating, which can cause severe and costly engine damage if not addressed immediately. It’s crucial to pull over safely and shut off the engine if this occurs. You might also want to research common causes of engine squealing for related symptoms.
Can I drive my vehicle for a short distance with a damaged serpentine belt?
Driving with a damaged or broken serpentine belt is not advised. Without the water pump, the engine will overheat quickly, risking serious internal damage. Without the alternator, your vehicle will operate solely on battery power, which is finite and unpredictable. While it might be possible to drive a very short distance to a safe stopping point, it is highly risky and should be avoided if possible. Arrange for a tow to prevent further complications.
Is it necessary to replace idler pulleys and the belt tensioner when replacing the serpentine belt?
While not strictly mandatory, it is highly recommended to inspect and consider replacing the idler pulley and the belt tensioner when changing the serpentine belt, especially on vehicles with higher mileage. These components have similar service lives to the belt and can fail independently, leading to premature belt wear, noise, or even belt ejection. A failing idler pulley or belt tensioner can cause significant diagnostic challenges if only the belt is replaced. Checking for excessive play, noise, or fluid leaks (in hydraulic tensioners) is part of a comprehensive assessment.
Step-by-Step Guide to Understanding the Chrysler Town & Country 3.6 Serpentine Belt Diagram: Proper Routing 2026
Identify – Identify the serpentine belt routing diagram, usually found under the hood or in the owner’s manual. Note the path over all pulleys.
Locate – Locate the automatic belt tensioner. This component typically has a square drive hole for a breaker bar or tensioner tool.
Reference – Reference the diagram to understand the specific path, including which pulleys are grooved and which are smooth (backside of belt).
Route – Route the new serpentine belt around all fixed pulleys first (crankshaft, water pump, power steering, alternator), then use the tensioner to slacken and guide the belt over the final pulley (A/C compressor).
Verify – Verify that the belt is correctly seated in all pulley grooves and that the tensioner returns to its operating range. Check for any twisted sections or misalignment.
Troubleshoot – If squealing or slippage occurs after installation, re-verify routing, check for proper tensioner operation, and inspect pulleys for damage or binding.
Frequently Asked Questions
What is the part number for the 2014 chrysler town and country 3.6 serpentine belt?
The OEM Mopar serpentine belt for the 2014 Chrysler Town & Country 3.6L engine is frequently Mopar part number 04891722AB. Aftermarket alternatives like Gates K061030 or Dayco 5061030 also fit. Always cross-reference with your VIN for the precise part number, especially if your vehicle has specific options.
How do I route the 2014 chrysler town and country 3.6 serpentine belt correctly?
Route the belt by first placing it around the crankshaft pulley, then the water pump, power steering pump, and alternator. Finally, lever the automatic tensioner to allow the belt to slide over the A/C compressor pulley. Refer to the under-hood diagram to ensure proper alignment on all grooved and smooth idler pulleys.
What size belt does 2014 chrysler town and country 3.6 serpentine belt use?
The 2014 Chrysler Town & Country 3.6L engine typically uses a 6-rib serpentine belt, approximately 103 to 103.5 inches (2616-2629 mm) in length. Specific aftermarket part numbers like Gates K061030 indicate a 6-rib, 103-inch belt. Always verify the exact length and rib count with your vehicle’s specifications or the old belt.
How do I adjust belt tension on 2014 chrysler town and country 3.6 serpentine belt?
The 2014 Chrysler Town & Country 3.6L utilizes an automatic belt tensioner, which requires no manual adjustment. To release tension for belt removal or installation, use a breaker bar or specific tensioner tool on the square drive hole of the tensioner pulley. The tensioner spring maintains optimal tension automatically.
What causes the 2014 chrysler town and country 3.6 serpentine belt to slip?
Belt slippage is commonly caused by a worn or stretched belt, a failing automatic tensioner, or misaligned/worn pulleys. Contamination from oil or coolant can also reduce friction. Inspect for cracks, fraying, and proper tensioner operation. A failing tensioner may not apply adequate force, leading to slip and squealing.
Can I replace the 2014 chrysler town and country 3.6 serpentine belt myself?
Yes, replacing the serpentine belt on a 2014 Chrysler Town & Country 3.6L is a common DIY task. It requires basic hand tools like a breaker bar or ratchet for the tensioner. Ensure you have the correct belt and carefully follow the routing diagram. If unsure, consulting a professional ensures correct installation and avoids potential engine damage.
