Single Battery Boat Wiring Diagram 2026: Complete Connection Guide
A typical single battery boat wiring diagram connects the battery’s positive (+) terminal (red wire, usually 6-8 AWG) to a main circuit breaker, then distributes power to accessories via a fuse panel. The negative (-) terminal (yellow or black wire, same gauge) connects to a common ground bus bar, which then grounds all devices. Ensure all connections are secure and corrosion-free.
📌 Key Takeaways
- Proper wire gauge (e.g., 16 AWG for lights, 10 AWG for pumps) is critical to prevent overheating and voltage drop in a single battery boat system.
- Identify positive (+) wires (typically red) and negative (-) or ground wires (typically black or yellow) to ensure correct polarity and safe operation.
- Always install appropriate fuses or circuit breakers for each circuit to protect against overcurrent and short circuits, adhering to ABYC standards.
- Corrosion at terminals, poor crimps, and inadequate waterproofing are the most common failure points in marine electrical systems.
- Consult a certified marine electrician for complex installations, significant modifications, or persistent electrical issues to ensure safety and compliance.
This comprehensive guide details the precise wiring procedure for a single battery boat system, ensuring reliable operation, safety, and compliance with industry standards. Mastering this configuration is paramount for maintaining critical onboard systems, from engine starting to navigation and auxiliary equipment. The accompanying diagram visually illustrates each connection point, wire color, and terminal designation, providing an indispensable reference for technical professionals and seasoned marine enthusiasts.

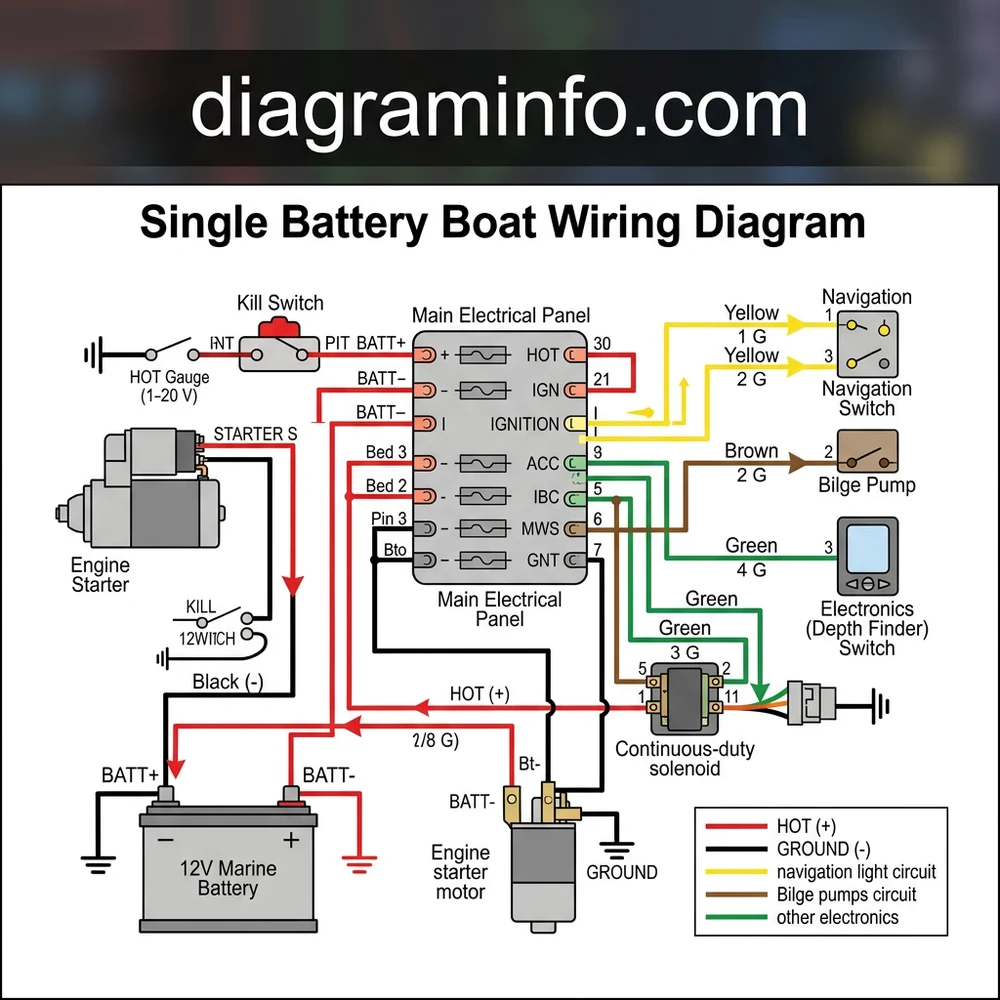

While this diagram illustrates a standard single battery system, specific boat models and years may feature variations in harness connectors or auxiliary component placements. Always consult your vessel’s OEM service manual for model-specific schematics and component locations to ensure precise adherence to manufacturer specifications. Cross-referencing against the American Boat and Yacht Council (ABYC) E-11 standard for DC Electrical Systems is also highly recommended.
WIRE COLOR REFERENCE TABLE
| Wire Color (ABYC E-11 Standard) | Function | Typical Pin/Terminal | Notes |
|---|---|---|---|
| Red | Uninterrupted Positive (+) Power (Hot Wire) | Battery (+) Terminal, Main Breaker Input | Always “hot.” Direct connection from battery positive, usually protected by a main circuit breaker or fuse. |
| Black | Negative (-) Return (Ground Wire) | Battery (-) Terminal, Common Ground Bus | Common system ground for all DC circuits. Ensures a safe return path for current. |
| Yellow | Starter Solenoid Trigger | Ignition Switch (Start), Starter Solenoid S-Terminal | Energizes the starter solenoid when the ignition switch is in the “Start” position. |
| Purple | Ignition Switched Positive (+) | Ignition Switch (Ignition), Coils, Fuel Pump | Power available when the ignition switch is in “On” or “Run” position. |
| Orange | Alternator Output (Charge) | Alternator B+ Terminal, Battery Isolator/Combiner | Main charging output from the alternator. Connects to the battery or charging distribution. |
| Brown | Accessory Switched Positive (+) | Accessory Switch, Nav Lights, Bilge Pump | Power for accessories, often via a dedicated fuse panel or switch. |
| Green (often with Yellow stripe) | Trim/Tilt Motor (Up/Down) | Trim/Tilt Switch, Motor Relays | Specific to outboard/sterndrive trim and tilt systems. Polarity reverses for up/down. |
| Gray | Tachometer Signal | Tachometer, Engine ECU/Sender | Sends engine RPM signal to the tachometer gauge. |
| Light Blue | Instrument Panel Illumination | Panel Light Switch, Gauge Lighting | Provides power to illuminate gauges and switches on the helm. |
STEP-BY-STEP CONNECTION GUIDE
Accurate and sequential wiring is crucial for the functionality and safety of any marine electrical system. This guide assumes the use of properly sized marine-grade tinned copper wire, appropriate crimp connectors (preferably heat-shrink type), and a robust marine-grade battery switch and fuse/breaker panel. Refer to the diagram above for visual confirmation of each connection point and component.
For primary battery cables, ensure you use 1/0 AWG or 2/0 AWG marine-grade cable, depending on engine starting current requirements and cable length, as per ABYC E-11 standards. General rule: for engines up to 100 HP, 1/0 AWG is typically sufficient for runs under 10 ft. For higher HP or longer runs, 2/0 AWG or larger may be required to minimize voltage drop below 3% for critical loads.
1. Mount Main Components: Securely mount the battery (in a battery box), main battery switch, main circuit breaker/fuse, engine, and accessory fuse block in their designated locations. Ensure all mounting surfaces are clean and provide robust support. This initial step is vital for proper wire routing and connection stability.
2. Battery Negative (-) to Common Ground Bus: Connect a heavy-gauge Black wire from the battery’s negative terminal to a central common ground bus bar. This bus bar serves as the primary ground point for all DC circuits on the vessel, including the engine block, ensuring a single, low-resistance return path.
3. Battery Positive (+) to Main Battery Switch (Input): Route a heavy-gauge Red wire from the battery’s positive terminal directly to the input terminal of the main battery switch. This switch acts as the primary disconnect for the entire electrical system. Ensure this cable is protected by a main fuse or circuit breaker rated just above the total maximum current draw, positioned as close to the battery as possible, ideally within 7 inches according to ABYC guidelines.
4. Main Battery Switch (Output) to Engine Starter Solenoid & Main Fuse Block:
From the output terminal of the main battery switch, connect a heavy-gauge Red wire to the main power input (often a large stud) on your engine’s starter solenoid or main engine harness connection.
Simultaneously, or via a separate branch, connect a separate, appropriately gauged Red wire from the main battery switch output to the input terminal of your accessory fuse block or circuit breaker panel. This supplies switched power to all auxiliary circuits.
5. Engine Wiring Harness Connections:
Connect the engine’s main positive feed (often a heavy-gauge Red or Orange wire) to the main battery switch output as described in step 4.
Connect the engine’s main negative/ground feed (heavy-gauge Black wire) to the common ground bus bar established in step 2.
Connect the Yellow wire from your ignition switch (Start terminal) to the small “S” terminal on the starter solenoid. This provides the momentary signal to engage the starter.
Connect the Purple wire from your ignition switch (Ignition terminal) to the engine’s ignition system power input (e.g., coil, electronic control unit). This powers the engine’s operational electronics when the key is “On.”
Connect the Orange wire from the alternator’s B+ output to the main positive distribution point, typically at the main battery switch or a dedicated charging bus, allowing the alternator to charge the battery when the engine is running.
6. Accessory Circuit Wiring:
From the accessory fuse block or circuit breaker panel, run appropriately sized Brown (or other colored, switched positive) wires to individual accessories like navigation lights, bilge pumps, depth sounders, and stereo systems. Each accessory circuit must have its own dedicated fuse or breaker for overcurrent protection.
For each accessory, run a corresponding Black ground wire from the accessory to the common ground bus bar. All grounds must terminate at this central point.
7. Helm/Dash Wiring:
Connect the Purple wire from the ignition switch to all gauges requiring switched 12V power (e.g., fuel gauge, voltmeter).
Connect the Gray wire from the engine’s tachometer sender to the tachometer gauge signal input.
Connect the Light Blue wire from your navigation light switch to the navigation lights. Ensure the navigation light’s ground wire connects to the common ground bus.
Connect the Light Blue wire from the instrument panel illumination switch to the gauge illumination circuits.
8. Final Checks: Before applying power, meticulously double-check all connections for tightness, correct polarity, and proper insulation. Verify that all fuses and circuit breakers are correctly rated for their respective circuits. Use a multimeter to confirm continuity and check for any short circuits to ground.
Always disconnect the battery negative terminal before performing any wiring or maintenance on the electrical system to prevent accidental shorts, component damage, or personal injury. Incorrect wiring can lead to severe electrical fires, damage to sensitive electronics, or even electrocution. If uncertain, consult a certified marine electrician.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even experienced technicians can encounter issues in marine electrical systems. Understanding common pitfalls and their solutions is critical for efficient troubleshooting.
1. Incorrect Wire Gauge Selection:
Mistake: Using wire that is too small (high AWG number) for the current draw or cable length.
Consequences: Excessive voltage drop, leading to dim lights, slow motors (e.g., bilge pump), hard starting, and potential overheating of the wire itself, creating a fire hazard. Manufacturer specifications for equipment, such as an outboard engine’s main power requirements, explicitly detail recommended wire gauges based on current and length.
Fix: Consult ABYC E-11 wire sizing charts (or manufacturer data) to determine the correct AWG for each circuit based on its continuous current draw and total round-trip length. For example, a 10-amp load on a 20-foot round trip (10 feet each way) might require 12 AWG wire to maintain less than 3% voltage drop.
2. Poorly Crimped or Corroded Connections:
Mistake: Using improper crimping tools, not stripping wire correctly, or failing to protect connections from moisture. This leads to high resistance points.
Consequences: Intermittent power, voltage drops under load, excessive heat at the connection point, and increased susceptibility to corrosion. Corrosion, particularly copper sulfate (green powdery substance), significantly increases resistance and can lead to open circuits.
Fix: Always use a high-quality ratchet-style crimping tool and marine-grade, heat-shrinkable crimp connectors. Ensure the crimp is mechanically secure and electrically sound. Seal all connections with heat shrink tubing to prevent moisture ingress. Regularly inspect terminals for corrosion and clean/replace as necessary. “Preventative maintenance schedules, often found in OEM documentation, emphasize annual inspection of all high-current connections for signs of corrosion or looseness,” advises one leading marine engine manufacturer.
3. Inadequate Grounding or Multiple Ground Paths:
Mistake: Scattering ground connections throughout the boat instead of centralizing them, or relying on dissimilar metals for ground paths. This can introduce ground loops or stray current corrosion.
Consequences: Electrical interference (noise in radios/electronics), unreliable operation of equipment, and galvanic corrosion of underwater metals due to stray DC currents.
Fix: Implement a robust common ground bus bar connected directly to the battery’s negative terminal with a heavy-gauge Black wire. All DC negative leads from all circuits and equipment must terminate at this single bus bar. The engine block should also be bonded to this common ground. This adheres to the “star grounding” principle recommended by ABYC.
4. Reversed Polarity:
Mistake: Connecting the battery’s positive terminal to a negative circuit, or vice-versa. While less common with visually distinct battery terminals, it can occur during repairs or component replacement.
Consequences: Immediate damage to sensitive electronics (e.g., radios, chartplotters, engine ECUs), potentially blowing fuses, or causing smoke/fire.
Fix: Always double-check polarity with a multimeter before connecting any component. Use the standard Red for positive and Black for negative convention. Many marine electronics feature built-in reverse polarity protection, but relying on it is not a substitute for correct wiring.
5. Lack of Overcurrent Protection (Fuses/Breakers):
Mistake: Not installing fuses or circuit breakers, or installing them with incorrect ratings.
Consequences: In the event of a short circuit or overcurrent, wires can overheat, melt, and ignite surrounding materials, leading to severe fire hazards. Components can also be permanently damaged.
Fix: Every positive current-carrying conductor must be protected by an appropriately sized fuse or circuit breaker, installed as close as practical to the power source for that conductor. For example, a bilge pump drawing 5 amps should be protected by a 7.5-amp fuse, not a 20-amp fuse, which would allow dangerous wire heating before blowing. Always refer to the manufacturer’s specified fuse rating for individual components.
FAQ
What is the recommended wire gauge for the main battery cables in a single battery boat system?
The recommended wire gauge for main battery cables depends on the engine’s starting current (cranking amps) and the total length of the positive and negative cable run. For typical outboard engines up to 100 HP, 1/0 AWG tinned marine-grade copper cable is often sufficient for runs under 10 feet. For higher horsepower engines, longer runs, or sterndrives, 2/0 AWG or even 4/0 AWG may be required to minimize voltage drop and ensure proper starting. Always consult your engine manufacturer’s specifications and the ABYC E-11 standard’s wire sizing charts, which account for current, length, and acceptable voltage drop (typically 3% for critical circuits, 10% for non-critical).
Can I use automotive-grade wire for marine applications?
No, automotive-grade wire is generally not suitable for marine applications. Marine environments expose wiring to constant moisture, salt spray, vibration, and temperature extremes, which can rapidly degrade automotive wire. Marine-grade wire is specifically designed to withstand these conditions. It features tinned copper conductors for corrosion resistance, thicker insulation (often PVC or cross-linked polyethylene) that is more flexible, flame-retardant, and resistant to oil, fuel, and abrasion. Using automotive wire can lead to premature failure, unreliable operation, and significant safety hazards like electrical fires.
What is the difference between a “ground wire” and a “neutral wire” in a marine context?
In a DC (Direct Current) marine system, you primarily deal with “ground wires” (typically Black), which are the negative return path to the battery. All DC components connect their negative terminals to this common ground. There is no “neutral wire” in DC. The term “neutral” typically applies to AC (Alternating Current) shore power systems, where it is a current-carrying conductor that provides a return path to the power source, often at or near ground potential but distinct from the safety ground (green wire). For detailed information on AC systems, refer to our article on “Marine Shore Power Wiring Diagrams.”
How often should I inspect my boat’s electrical wiring for maintenance?
It is highly recommended to perform a comprehensive visual inspection of your boat’s electrical wiring system at least once annually, ideally during pre-season commissioning or post-season winterization. This inspection should include checking all connections for tightness, corrosion, chafing, and proper insulation. Pay close attention to high-current connections (battery terminals, main circuit breakers) and areas prone to vibration or moisture. Regular checks during the operating season for any signs of intermittent power or unusual odors are also prudent. “Proactive electrical system checks are essential for preventing unexpected failures and ensuring safety,” states marine electrical expert Nigel Calder.
What role does a terminal block or bus bar play in a single battery boat wiring diagram?
A terminal block or bus bar is a critical component for organizing and centralizing electrical connections, promoting reliability and ease of maintenance. In a single battery system, a bus bar typically serves as a common distribution point for either positive (e.g., a fused positive distribution block) or negative (a common ground bus bar) connections. This avoids “daisy-chaining” multiple wires to a single small terminal, which can lead to high resistance and connection failures. By centralizing connections, bus bars provide a clean, organized, low-resistance point for multiple circuits to draw power or return to ground, simplifying troubleshooting and adhering to ABYC recommendations for a robust electrical system. For information on organizing complex power systems, you might find our guide on “Marine Battery Switch Wiring” helpful.
Step-by-Step Guide to Understanding the Single Battery Boat Wiring Diagram 2026: Complete Connection Guide
Identify – Identify all major components such as the battery, main breaker, fuse panel, and individual accessories (e.g., bilge pump, lights) within your single battery boat system.
Locate – Locate the main positive (+) and negative (-) terminals on your single battery, ensuring they are clean, corrosion-free, and accessible for secure connections.
Reference – Reference the complete boat wiring diagram to understand the wire color code, pin assignment details (if applicable for connectors), and proper routing paths for each circuit.
Connect/Route – Connect the main hot wire (typically red) from the battery to the main breaker, then to the fuse panel. Route individual hot wires from the fuse panel to accessories and all ground wires (black/yellow) to a common ground bus bar, then to the battery’s negative terminal.
Verify – Verify all connections are secure, properly insulated with marine-grade heat shrink, and match the diagram. Use a multimeter to check for correct voltage and continuity, ensuring no short circuits or open circuits.
Troubleshoot – Troubleshoot any issues by re-checking connections, fuses, and wire integrity. Use the diagram’s wire color code or pin assignment to isolate problem areas if a component fails to operate, addressing common wiring mistakes promptly.
Frequently Asked Questions
What wire color is the hot wire on a single battery boat wiring diagram?
Typically, the ‘hot’ or positive (+) wire on a single battery boat wiring diagram is red, especially for main battery connections and switched power. However, specific accessory manufacturers might use other colors for internal wiring. Always confirm with the device’s manual and the wire color code. The main ground wire is usually black or sometimes yellow.
What do the pin numbers mean on single battery boat wiring diagram?
Unlike automotive harness connectors, general single battery boat wiring typically uses labeled terminals on components like fuse blocks, switches, or bus bars rather than numbered pins. If a specific connector or relay is used, its pin assignments will be detailed in the component’s installation guide, indicating functions like ‘input,’ ‘output,’ ‘ground,’ or ‘trigger.’ Refer to device schematics for clarity.
How many wires does single battery boat wiring diagram have?
A basic single battery boat wiring diagram for essential systems will have at least two main battery cables (positive and negative), plus individual hot and ground wires for each circuit (e.g., navigation lights, bilge pump, fishfinder). The total number of wires depends heavily on the boat’s accessories, but even a simple setup involves dozens of individual wire runs for proper functionality.
What are common wiring mistakes with single battery boat wiring diagram?
Common wiring mistakes include using undersized wire (leading to voltage drop/overheating), poor crimp connections causing resistance and corrosion, improper fusing, and incorrect polarity for hot wire and ground wire connections. Forgetting to adequately waterproof connections or failing to secure wire runs, resulting in chafing, are also frequent issues that compromise safety and system reliability on a boat.
Do I need a brake controller for single battery boat wiring diagram?
A brake controller is typically used for managing electric trailer brakes, not directly for the internal wiring of a single battery boat itself. While the boat’s battery might power trailer lights via a specific trailer connector, the brake controller is part of the towing vehicle’s system. It does not integrate into the boat’s main internal electrical diagram for power distribution or control.
What gauge wire does single battery boat wiring diagram require?
Wire gauge requirements vary significantly based on circuit length, amperage draw, and voltage drop tolerance. Main battery cables for a single battery boat often require 6 or 8 AWG. For accessories, navigation lights might use 16 AWG, while bilge pumps or larger electronics could need 10 or 12 AWG. Always consult ABYC standards and voltage drop tables for precise sizing according to the wire color code.
