Honda Civic Belt Diagram: Routing & Tensioner Guide
The Honda Civic belt diagram illustrates the specific routing of the serpentine belt around the alternator, power steering pump, and air conditioning compressor. This visual configuration ensures the drive system operates correctly. Understanding the layout is essential for identifying the auto-tensioner component and ensuring the belt follows the proper structure to prevent engine overheating.
📌 Key Takeaways
- Main purpose: Visualize the drive belt’s path around pulleys
- Most important component: The automatic belt tensioner pulley
- Safety: Keep hands clear of pulleys while the engine is running
- Practical tip: Sketch the layout before removing the old belt
- When to use: During belt replacement or diagnosing squealing noises
If you are performing maintenance on your vehicle, having a clear and accurate 2008 honda civic belt diagram is essential for ensuring all engine accessories function correctly. The serpentine belt is a single, continuous loop that powers critical systems including the alternator, power steering, and air conditioning. Because the routing path can be complex, even a minor deviation in the configuration can lead to belt slippage, premature wear, or mechanical failure. In this comprehensive guide, we will break down the layout of the belt system, identify every key component involved, and provide a detailed walkthrough for replacement and troubleshooting. By the end of this article, you will have the technical knowledge necessary to navigate the engine bay of your Civic with confidence.

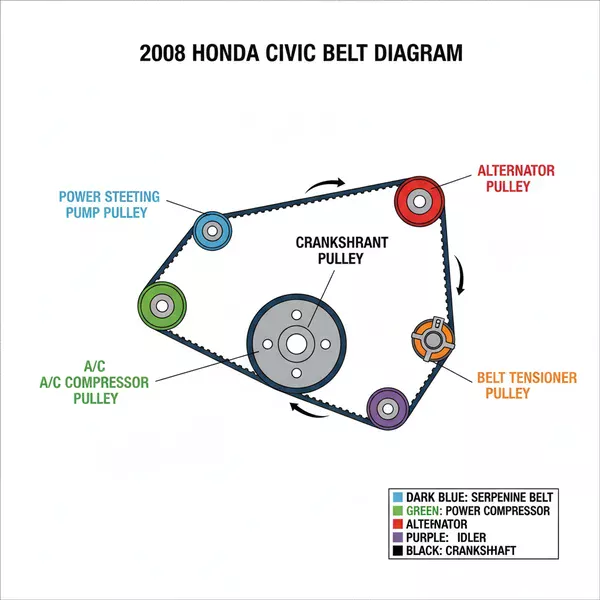

Main Belt Diagram and System Configuration
The 2008 Honda Civic, particularly the popular 1.8L R-series engine model, utilizes a serpentine belt system designed for efficiency and compactness. The structure of this layout is dictated by the placement of several rotating pulleys, each serving a specific role in the vehicle’s operation. When looking at the diagram, it is important to distinguish between the various components based on their location and the type of pulley they use.
Most 2008 Honda Civics use an automatic tensioner. This component maintains a constant pressure on the belt to prevent slipping. If the indicator mark on the tensioner body is outside the specified range, the belt or the tensioner itself likely needs replacement.
The visual breakdown of the system includes the following primary elements:
- ✓ Crankshaft Pulley: Located at the bottom of the engine, this is the drive pulley that provides the rotational force for the entire system.
- ✓ Alternator Pulley: Positioned near the top of the engine bay, this pulley drives the generator to charge your battery and power electrical systems.
- ✓ Air Conditioning (A/C) Compressor: Usually found lower toward the front of the vehicle, this pulley engages the climate control system.
- ✓ Water Pump Pulley: Essential for engine cooling, this pulley circulates coolant throughout the block and radiator.
- ✓ Auto-Tensioner and Idler Pulleys: These facilitate the correct pathing and maintain tension. The tensioner pulley is the only one that moves to allow for belt installation.
In the diagram, you will notice that the belt has two sides: a ribbed side and a smooth side. A critical rule of thumb for this configuration is that ribbed pulleys must make contact with the ribbed side of the belt, while smooth idler or tensioner pulleys usually contact the flat back side of the belt.
Step-by-Step Installation and Interpretation Guide
Interpreting a 2008 honda civic belt diagram requires a systematic approach. Before you begin the physical labor, study the diagram to understand which direction the belt loops around each component. On the 1.8L engine, the belt follows a “serpentine” or snake-like path that can be tricky to navigate in the tight engine compartment.
Always perform this work with the engine completely off and the key removed from the ignition. Ensure the engine is cool to the touch to avoid burns from the alternator or radiator hoses.
Tools and Materials Needed:
- ✓ 19mm long-handle wrench or a dedicated serpentine belt tool.
- ✓ New high-quality EPDM serpentine belt.
- ✓ Work light or flashlight for visibility in deep engine crevices.
- ✓ A printed copy of the belt diagram for reference.
Step 1: Locate the Tensioner
Open the hood and look at the passenger side of the engine. The tensioner is located between the alternator and the crankshaft pulley. It features a 19mm hex casting that looks like a bolt head but is actually part of the tensioner arm.
Step 2: Relieve the Tension
Fit your 19mm wrench onto the tensioner hex nut. To release the tension, you must rotate the wrench toward the front of the car (clockwise). This will compress the internal spring and create slack in the belt.
Step 3: Remove the Old Belt
While holding the tensioner in the compressed position, use your other hand to slide the belt off the uppermost pulley (usually the alternator). Once the belt is off one pulley, you can slowly release the tensioner and pull the old belt out of the engine bay.
Step 4: Inspect the Pulleys
Before installing the new belt, spin each pulley by hand (except the crankshaft). They should spin smoothly without any grinding noises or wobbling. If a pulley feels gritty or loose, it must be replaced to prevent the new belt from failing prematurely.
Step 5: Route the New Belt
Following your 2008 honda civic belt diagram, begin routing the new belt from the bottom up. Start by looping it around the crankshaft pulley, then the A/C compressor. Feed the belt over the water pump and around the tensioner. Leave the alternator pulley for last, as it is the easiest to reach.
Step 6: Final Seat and Tension
Double-check that the ribs of the belt are perfectly seated in the grooves of every pulley. Rotate the tensioner clockwise again and slide the belt over the alternator pulley. Release the tensioner slowly.
Step 7: Verification
Confirm the routing matches the diagram exactly. Start the engine briefly and observe the belt. It should run straight and quiet. If you hear a squealing sound, shut off the engine immediately and re-check the seating.
Common Issues & Troubleshooting
Even with a perfect 2008 honda civic belt diagram, issues can arise due to mechanical wear. The most common problem users face is belt noise. A high-pitched squeal often indicates a loose belt or a failing tensioner spring. If the noise is more of a “chirp,” it may be a sign of pulley misalignment or a drop of oil or coolant on the belt surface.
Check the “wear indicator” on the side of the auto-tensioner. There are typically two lines cast into the metal. If the pointer has moved beyond the range of these lines, your belt has stretched significantly and requires immediate replacement.
Another frequent issue is “glazing.” This occurs when the belt slips and the friction creates enough heat to crystallize the rubber, making it shiny and hard. A glazed belt has very little grip and will continue to slip regardless of how much tension is applied. If you notice cracks in the ribs of the belt, count how many appear within a one-inch span. If there are more than three or four cracks per inch, the belt is at high risk of snapping. The diagram helps solve these issues by ensuring that if you do replace the belt, you aren’t introducing new problems by routing it over the wrong side of a pulley, which could cause immediate snapping or system reversal.
Tips & Best Practices for Maintenance
Maintaining the belt system on your 2008 Honda Civic is about more than just knowing the routing. Proactive care can save you from being stranded on the side of the road. One of the best practices is to inspect your belt every 15,000 miles and plan for a full replacement every 60,000 to 100,000 miles, depending on your driving conditions.
When purchasing a replacement, opt for high-quality EPDM (Ethylene Propylene Diene Monomer) belts. Unlike older neoprene belts, EPDM does not crack as easily but rather wears down slowly like a tire. You may need a specialized belt wear gauge to check the depth of the ribs on these modern materials.
For the 2008 Honda Civic, the 1.8L engine’s serpentine belt is approximately 82 to 83 inches long. Ensure you verify the exact length at the parts store, as variations can exist between the sedan and coupe if aftermarket pulleys have been installed.
If you find that your belt is wearing out frequently, check the alternator and A/C compressor bearings. A pulley that is difficult to turn will put extra strain on the belt, leading to heat buildup. Furthermore, keep the belt area clean. Oil leaks from the front main seal or valve cover gasket can degrade the rubber quickly. If you find oil on your belt, fix the leak first, then clean the pulleys with a degreaser before installing a new belt. Using your 2008 honda civic belt diagram as a consistent reference during these checks ensures that every component is working within its intended system configuration and layout. Consistent maintenance not only extends the life of the belt but also protects the expensive accessories it drives.
Frequently Asked Questions
What is a Honda Civic belt diagram?
A Honda Civic belt diagram is a visual map showing the serpentine belt’s routing around various engine pulleys. This layout helps mechanics understand the system configuration, ensuring that the belt drives the alternator, AC compressor, and water pump correctly. It is a vital tool for any belt-related maintenance or diagnostic task.
How do you read a Honda Civic belt diagram?
To read the diagram, start by identifying the largest pulley, usually the crankshaft. Follow the lines representing the belt as they weave between components like the alternator and tensioner. Pay close attention to whether the belt goes over or under each specific pulley in the structure for a perfect fit.
What are the parts of the Honda Civic belt system?
The belt system consists of several vital parts including the crankshaft pulley, alternator, air conditioning compressor, and power steering pump. Additionally, the automatic tensioner component is crucial for maintaining proper pressure. Each part plays a specific role in the overall system layout, ensuring the vehicle’s electrical and cooling functions.
Why is the tensioner component important?
The auto-tensioner component is critical because it maintains constant pressure on the serpentine belt. Without this part, the belt would slip, causing a failure in the charging or cooling system. Its specific position in the diagram layout shows where to apply leverage when removing or installing a new belt.
What is the difference between serpentine and timing belts?
The primary difference lies in their function and location. The serpentine belt drives external accessories like the alternator, while the timing belt synchronizes internal engine components like valves and pistons. The serpentine belt diagram displays an external layout, whereas a timing belt is often hidden behind a protective cover.
How do I use a Honda Civic belt diagram?
Use the diagram as a reference guide before and during belt replacement. By comparing the physical belt path to the diagram’s configuration, you can ensure that the belt is routed correctly around every pulley. This prevents mechanical failures and ensures that every system component receives the necessary rotational power.
