12V RV Solar Panel Wiring Diagram: Installation & Setup 2026
To wire an RV solar panel system, connect solar panels (series/parallel) to the charge controller’s PV input. Then, link the charge controller’s battery output to the RV’s 12V battery bank. Fuse all positive lines correctly and ensure wire gauges match current load. This setup efficiently charges your RV batteries.
📌 Key Takeaways
- Correct Polarity: Always connect solar panels, charge controller, and battery with correct positive and negative polarity to prevent damage to your RV’s electrical system.
- Charge Controller Type: Match your charge controller (PWM vs. MPPT) to your solar panel and battery bank specifications for optimal charging efficiency and battery longevity.
- Fuse & Wire Sizing: Use appropriately sized fuses on all positive lines and select wire gauges based on maximum current draw and length to prevent overheating and excessive voltage drop.
- Common Failure: The most common issues are incorrect wiring (e.g., reverse polarity, loose connections) or an undersized charge controller for the solar panel array, impacting auxiliary power.
- Pro vs. DIY: For complex installations involving high-wattage systems, inverter integration, or significant modifications to existing RV blade auxiliary power systems, consult a certified RV technician.
The 7-pin RV blade connector is the industry standard for establishing a robust electrical connection between a tow vehicle and an RV or heavy-duty trailer. Unlike simpler 4-flat or 6-round connectors, the 7-pin RV blade configuration provides dedicated circuits for essential functions including electric brakes, auxiliary power for charging onboard batteries, and reverse lights, alongside the standard running lights and turn signals. Understanding its precise wiring is crucial for safe and compliant operation of your towed equipment, preventing critical failures in braking, lighting, and power management systems. This guide details the standard pin assignments and wiring procedures to ensure reliable functionality.

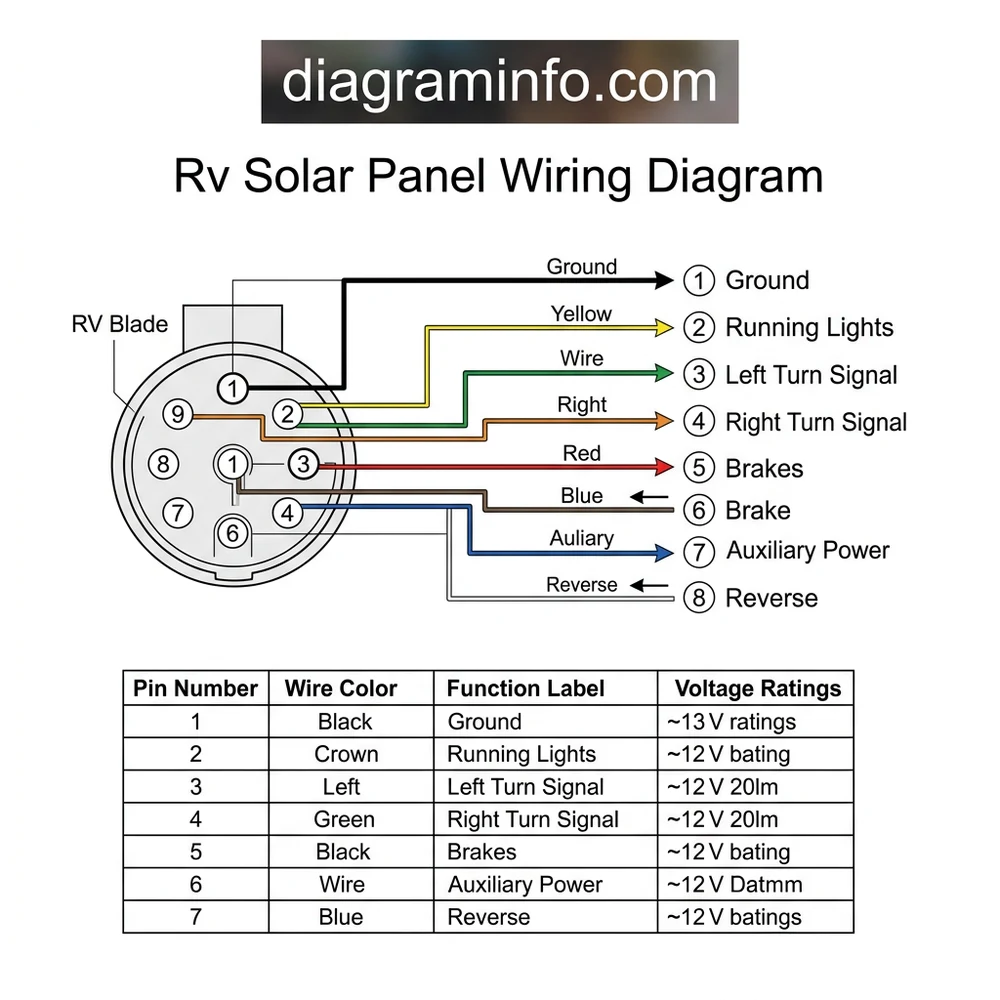

PIN ASSIGNMENT TABLE
| Pin # | Wire Color (Standard) | Function | Notes |
|---|---|---|---|
| 1 (Center) | WHITE | Ground | Essential for all other circuits. Connects to chassis ground on both vehicle and trailer. |
| 2 (11 o’clock) | BLUE | Electric Brakes | Connects to the trailer’s electric brake magnets via a brake controller. |
| 3 (5 o’clock) | GREEN | Tail/Running Lights | Powers all trailer running lights, marker lights, and license plate lights. |
| 4 (1 o’clock) | BLACK | 12V Auxiliary Power / Battery Charge | Provides constant or ignition-switched 12V power to charge the trailer’s battery or power accessories. Often fused. |
| 5 (7 o’clock) | RED / BROWN | Right Turn / Stop | Activates the right turn signal and brake light on the trailer. |
| 6 (9 o’clock) | YELLOW / GREEN | Left Turn / Stop | Activates the left turn signal and brake light on the trailer. |
| 7 (3 o’clock) | BROWN / PURPLE | Reverse / Backup Lights / Accessory | Powers trailer backup lights or can be used for other specific accessories, such as surge brake lockout or interior lights. |
While the wire colors listed are standard according to RVIA (Recreational Vehicle Industry Association) guidelines and SAE J2863, variations can occur, especially in older trailers or those from international manufacturers. Always verify continuity with a multimeter before making permanent connections. Some trailers, particularly older models or specialty applications, might deviate. For instance, some heavy equipment trailers might repurpose the backup light pin for auxiliary functions.
STEP-BY-STEP WIRING GUIDE FOR A 7-PIN RV BLADE CONNECTOR
Properly wiring a 7-pin RV blade connector, whether on the tow vehicle or the trailer, demands meticulous attention to detail. This guide assumes you are either replacing a damaged connector or installing a new system. Always refer to your vehicle’s service manual or the brake controller manufacturer’s instructions for specific wire routing and fuse requirements.
1. Safety First: Disconnect Power. Before initiating any wiring work, disconnect the tow vehicle’s battery. For the trailer, ensure it’s disconnected from the tow vehicle and any shore power. This prevents accidental shorts or electrical shocks.
2. Identify Wire Functions. On both the tow vehicle’s harness and the trailer’s existing wiring, identify each wire’s function. While color codes are generally standardized as per the table above (e.g., WHITE for ground pin, BLUE for electric brake, BLACK for auxiliary power), always use a continuity tester or multimeter to confirm the function of each wire. For instance, activate the left turn signal and test for voltage on the corresponding wire.
3. Prepare the Wires. Carefully strip approximately 3/8 to 1/2 inch of insulation from the end of each wire. Ensure the copper strands are clean and free of corrosion. If the wires are frayed, trim them and re-strip. For optimal connection integrity, consider tinning the wire ends with solder.
4. Connect the Ground Pin (Pin 1 – WHITE). The ground wire is arguably the most critical connection. Locate the central, larger pin on the 7-pin RV blade connector. This is Pin 1. Securely connect the WHITE ground wire from your harness to this terminal. Ensure a tight, corrosion-free connection. A poor ground can manifest as dim lights, intermittent brake function, or complete system failure.
5. Wire the Electric Brake Circuit (Pin 2 – BLUE). Identify Pin 2, typically positioned at the 11 o’clock position (when looking at the vehicle-side receptacle, or trailer-side plug with the keyway up). Connect the BLUE wire, which carries the signal from the brake controller to the trailer’s electric brake magnets, to this pin. This circuit must be properly sized, often requiring a 10- or 12-gauge wire depending on the number of electric brake axles.
6. Connect Running Lights (Pin 3 – GREEN). Locate Pin 3 (5 o’clock position). Attach the GREEN wire for the running lights. This circuit powers all exterior marker, tail, and clearance lights on the trailer.
7. Integrate Auxiliary Power (Pin 4 – BLACK). Find Pin 4 (1 o’clock position). Connect the BLACK 12V auxiliary power wire. This circuit is vital for maintaining the trailer’s battery charge while connected to the tow vehicle and for powering 12V accessories within the RV. Ensure this circuit is protected by an appropriate fuse on the tow vehicle, typically 30-40 amps.
8. Connect Turn/Stop Signals (Pin 5 – RED/BROWN & Pin 6 – YELLOW/GREEN). Pin 5 (7 o’clock) is for the Right Turn/Stop signal (RED or BROWN). Pin 6 (9 o’clock) is for the Left Turn/Stop signal (YELLOW or GREEN). These are crucial for safe signaling and braking.
9. Wire Reverse/Accessory (Pin 7 – BROWN/PURPLE). Finally, locate Pin 7 (3 o’clock). Connect the BROWN or PURPLE wire for the reverse lights or other auxiliary functions. For RVs, this often powers backup lights, but it can also be used for specific internal lighting or hydraulic pump activation on dump trailers.
10. Secure and Test. After all connections are made, secure them using appropriate methods – crimp connectors with heat shrink, solder and insulate, or use the connector’s internal screws. Use dielectric grease on all electrical connections to prevent corrosion. Reconnect the vehicle battery and thoroughly test all functions: running lights, brake lights, left/right turn signals, electric brakes (with a brake controller and a test light or helper), and auxiliary power.
For trailer wiring harnesses, utilize automotive-grade wiring. For electric brake and auxiliary power circuits (Pins 2 & 4), 10-gauge (AWG) wire is generally recommended for adequate current capacity and to minimize voltage drop over longer trailer lengths. Lighter loads like lighting (Pins 3, 5, 6, 7) typically suffice with 14- or 16-gauge wire. Always match wire gauge to the circuit’s current draw and length. Manufacturer specifications for specific RV blade connectors often stipulate minimum wire gauges.
COMMON WIRING MISTAKES
Improper wiring of a 7-pin RV blade connector can lead to inconvenient malfunctions, unsafe driving conditions, and costly electrical repairs. Experienced technicians frequently encounter several recurring issues:
Inadequate Grounding (Pin 1 – WHITE): This is by far the most prevalent problem. A weak or corroded ground connection acts as a bottleneck for all circuits. Symptoms include dim or flickering lights, intermittent electric brake operation, or a complete loss of power to multiple trailer functions. Always ensure the ground wire is securely fastened to a clean, unpainted, and rust-free chassis point on both the tow vehicle and the trailer. The ground wire itself must be of sufficient gauge, matching or exceeding the largest gauge wire in the system (typically the auxiliary power or brake wire).
Incorrect Pin Assignments: Misinterpreting the standard color code or diagram leads to functions being crossed. For example, connecting the running lights to the brake controller output, resulting in constant braking when lights are on. Always verify pin functions with a multimeter and the diagram before crimping or soldering. This is especially critical when dealing with older trailers or aftermarket wiring kits that may not adhere strictly to modern color conventions.
Insufficient Wire Gauge: Using wire that is too thin (high gauge number) for high-current circuits, such as the electric brake (BLUE) or auxiliary power (BLACK) lines, leads to excessive voltage drop. This reduces the effectiveness of electric brakes and severely limits the charging capability of the trailer battery. For long RV trailers, voltage drop can be significant even with correct wire gauges, warranting careful consideration of wire length and current draw.
Poor Connection Quality: Loose connections, uninsulated splices, or improperly crimped terminals are recipes for intermittent faults and corrosion. Use high-quality, weather-sealed butt connectors or solder connections with heat-shrink tubing to ensure long-term durability and resistance to moisture and vibration.
* Lack of Dielectric Grease: Neglecting to apply dielectric grease to the pins and inside the connector housing invites corrosion, especially in environments exposed to road salt, moisture, and debris. This non-conductive grease prevents moisture ingress without interfering with electrical contact.
Never attempt to diagnose electrical issues by trial and error, especially concerning brake circuits. An incorrectly wired electric brake system can result in catastrophic failure during towing. Always use a multimeter for testing voltage and continuity, and consult wiring diagrams specific to your equipment and vehicle year. Some newer tow vehicles incorporate complex CAN bus systems, and improper wiring can trigger vehicle fault codes or damage control modules.
FAQ
What is the difference between a 7-pin RV blade connector and a 4-flat connector?
The primary distinction lies in functionality and capacity. A 4-flat connector provides the bare minimum: left turn/stop, right turn/stop, running lights, and ground. It lacks provisions for electric brakes, auxiliary power, or reverse lights, making it suitable only for light-duty utility trailers without electric brakes or onboard batteries. The 7-pin RV blade connector, conversely, includes these critical additional circuits, making it essential for RVs, boat trailers, and any heavy-duty trailer equipped with electric brakes or requiring auxiliary power.
Can I convert a 4-flat connector to a 7-pin RV blade connector?
Yes, a 4-flat connector can be adapted to a 7-pin RV blade connector, but it requires significant additional wiring. The four basic circuits from the 4-flat will connect to their corresponding pins on the 7-pin. However, you will need to run new, dedicated wiring from your tow vehicle for the electric brake circuit (requiring a brake controller installation), the 12V auxiliary power circuit (often needing a fuse and relay direct from the battery), and the reverse light circuit (tapping into the vehicle’s reverse light wiring). This is not a simple plug-and-play conversion and typically involves more than just a simple adapter; it’s a full wiring upgrade. Consider a complete wiring harness upgrade, which can be found at our vehicle-specific harness selection guide.
What wire gauge should I use for the electric brake circuit?
For the electric brake circuit (Pin 2 – BLUE), an appropriate wire gauge is crucial for safe and effective brake operation. Manufacturer specs for most electric brake systems and brake controllers recommend a minimum of 12-gauge (AWG) wire for single-axle trailers and 10-gauge (AWG) wire for tandem-axle or heavier trailers (typically over 6,000 lbs GVWR) to minimize voltage drop. Excessive voltage drop can reduce the braking force. Always consult the electric brake and brake controller manufacturer’s guidelines for precise recommendations based on your trailer’s weight and brake system configuration. Our brake controller installation guide provides further details.
My trailer’s battery isn’t charging while connected to the tow vehicle. What should I check?
First, verify the 12V auxiliary power circuit (Pin 4 – BLACK) on both the tow vehicle and the RV blade connector itself. Check for continuity and voltage at the tow vehicle’s 7-pin receptacle; you should read approximately 12-14V with the engine running. Many tow vehicles require the engine to be running or an ignition switch to be “on” for this circuit to be live. Also, inspect the fuse and relay associated with this circuit on the tow vehicle, usually located in the under-hood fuse box. On the trailer side, ensure the connection to the battery is sound, and check for any inline fuses or battery isolators that might be preventing charge. A common issue is a blown fuse on the tow vehicle dedicated to this auxiliary power pin, or a faulty battery isolator in the RV. For advanced diagnostics, reference our RV electrical troubleshooting article.
How do year-specific notes impact 7-pin RV blade wiring?
While the 7-pin RV blade pin assignment standard remains largely consistent across years, how the tow vehicle implements these circuits can vary. For example, some older vehicles might require manual installation of relays and fuses for the auxiliary power and electric brake circuits, while newer vehicles (post-2005, especially trucks) often have factory-installed tow packages with pre-wired harnesses and integrated brake controller connections. Additionally, late-model tow vehicles frequently utilize complex CAN bus systems, meaning tapping into certain circuits without proper integration modules can cause vehicle fault codes or damage. Always consult the specific repair manual for your tow vehicle’s make, model, and year when performing any wiring modifications.
Step-by-Step Guide to Understanding the 12V Rv Solar Panel Wiring Diagram: Installation & Setup 2026
Identify – Identify all necessary components: solar panels, charge controller (MPPT/PWM), battery bank, appropriate fuses, and correctly sized wire gauges for your RV solar system.
Locate – Locate suitable, shade-free mounting positions for solar panels on the RV roof. Position the charge controller near the battery bank to minimize wire length and voltage drop.
Reference – Reference the manufacturer’s specific RV solar panel wiring diagram and the charge controller manual for input/output specifications, polarity, and recommended connection order.
Connect/Route – Connect solar panels to the charge controller’s PV input terminals, then connect the charge controller’s battery output to the battery bank terminals. Install fuses on all positive lines closest to the power source.
Verify – Verify all connections are secure and tight, ensuring correct polarity using a multimeter. Confirm the charge controller displays appropriate charging status indicators or voltage readings.
Troubleshoot – Troubleshoot by checking voltage at each stage (panels, controller input/output, battery) and inspecting for loose wires, corrosion, or blown fuses if the RV solar system isn’t functioning as expected.
Frequently Asked Questions
How do I connect multiple solar panels on an RV?
Multiple solar panels can be wired in series to increase voltage or parallel to increase current. For 12V RV systems, parallel wiring is common to maintain 12V, connecting positive to positive and negative to negative to the charge controller. Ensure total panel voltage doesn’t exceed the charge controller’s input limits.
What wire gauge is needed for RV solar panels?
Wire gauge depends on current and distance. For a typical 100W panel (approx. 5-6A), 10 AWG might suffice for short runs. Larger systems or longer runs require thicker wire (e.g., 8 AWG, 6 AWG) to minimize voltage drop and safely deliver auxiliary power. Always consult a voltage drop calculator.
Do I need a charge controller for my RV solar panel system?
Yes, a charge controller is essential. It acts like a “brake controller” for your battery, regulating the voltage and current from the solar panels to prevent overcharging or damage to your RV’s auxiliary power battery bank. Without one, batteries can be severely harmed, shortening their lifespan.
What is the role of an inverter in an RV solar setup?
An inverter converts the 12V DC auxiliary power from your RV batteries (which are charged by solar panels) into 120V AC household power. This allows you to run standard appliances like microwaves, TVs, or coffee makers. It’s an optional component for those needing AC power from their solar system.
Why are my RV solar panels not charging the battery?
Common issues include reversed polarity, loose connections at the panels or charge controller, a faulty charge controller, or a critically discharged battery beyond recovery. Check all inline fuses, wiring connections, and ensure the panels are receiving adequate, unobstructed sunlight. Verify charge controller settings and any error codes.
Can an RV solar system power trailer running lights or turn signals?
An RV solar system charges the RV’s house battery, which in turn powers the RV’s onboard 12V systems. If your trailer’s running lights and turn signals draw auxiliary power from the RV via the RV blade connector, then the solar system indirectly supports them by maintaining the RV battery charge.
