Samsung Ice Maker Parts Diagram: Complete Repair Guide
A Samsung ice maker parts diagram illustrates the internal structure and configuration of your refrigerator’s ice production system. It highlights critical components like the mold, heater, ejector arm, and motor. By understanding this layout, you can quickly identify failed parts and perform necessary repairs to keep your unit functioning properly.
📌 Key Takeaways
- Visualizing the assembly and physical part relationships
- Identifying the ice mold and motor assembly accurately
- Always unplugging the refrigerator before servicing parts
- Matching exact part numbers to your specific model number
- Diagnosing mechanical vs. electrical failures in the unit
Understanding your appliance starts with a clear visual reference that bridges the gap between a malfunction and a successful repair. A Samsung ice maker parts diagram is an essential tool for any homeowner looking to maintain or repair their refrigerator’s ice production system. This guide provides a comprehensive overview of the internal structure and configuration of these complex units, ensuring you can identify every vital component. By studying the blueprint and schematic of your specific model, you can identify failing parts and perform targeted repairs without guesswork. In the following sections, you will learn how to interpret complex layouts, identify key elements like the harvest motor and thermistor, and troubleshoot common malfunctions with professional precision.
Detailed Breakdown of the Samsung Ice Maker Layout
The Samsung ice maker assembly is a sophisticated electromechanical system designed to operate in a high-moisture, low-temperature environment. When you view a Samsung ice maker parts diagram, you are looking at a system overview that highlights the interaction between mechanical movement and electrical signals. The structure of the unit is typically divided into three main zones: the harvesting zone, the control zone, and the water delivery zone.
The harvesting zone includes the ice tray or mold, which is often coated with a non-stick material to facilitate easy release. Above this mold sits the ejector arm—a plastic or metal rake that rotates to push frozen cubes into the storage bucket. The diagram will also show the ice stripper, a small comb-like part that prevents cubes from sticking to the ejector as they exit the mold. In many modern configurations, a small heating element is located directly beneath the tray; its role is to slightly warm the surface of the ice, breaking the tension between the cube and the mold so the motor can rotate freely.
The control zone is the “brain” of the unit. This consists of the motor assembly and the circuit board (PCB) or sensor array. A critical component found here is the thermistor, which monitors the temperature of the ice tray to signal when the water is fully frozen. The blueprint also identifies the micro-switches or optical sensors that tell the refrigerator when the ice bucket is full, preventing overflows. Finally, the water delivery zone includes the fill tube and the water inlet valve, which are external to the main assembly but integral to its operation. The layout often uses specific numbering or color-coding to distinguish between electrical wiring harnesses and mechanical fasteners, making it easier to follow the flow of the schematic during a teardown.
Most Samsung diagrams use a numerical indexing system. Each number on the visual blueprint corresponds to a specific part name and manufacturer part number listed in the legend below the image. Always cross-reference your refrigerator’s specific model number, as ice makers can vary significantly between French door and side-by-side models.
Step-by-Step Guide to Reading and Implementing the Diagram
Interpreting a Samsung ice maker parts diagram requires a methodical approach to ensure safety and accuracy. Whether you are replacing a single component or the entire assembly, following these steps will help you navigate the system configuration effectively.
Step 1: Locate Your Model Number
Before looking at any schematic, you must find the model number of your refrigerator. This is usually located on a sticker inside the refrigerator compartment or on the side of the door. Samsung produces dozens of ice maker variations; using a generic blueprint can lead to purchasing incompatible parts. Once you have the model number, search for the official parts breakdown specific to that unit.
Step 2: Disconnect Power and Water
Safety is the most critical part of any appliance repair. Before you begin exploring the physical structure of the ice maker, unplug the refrigerator from the wall outlet. Additionally, turn off the water supply valve, typically located behind the fridge or under the kitchen sink. This prevents accidental electrical shocks or kitchen flooding while you are working with the internal components.
Step 3: Identify the Mounting Points
Using the diagram as a guide, identify the screws or locking tabs that hold the ice maker assembly in place. Most Samsung units are held by two main screws at the top and a wiring harness plug. The diagram will show exactly where these fasteners are located, which is helpful if they are obscured by frost or ice buildup.
Step 4: Analyze the Wiring Harness
The schematic will detail the wiring harness configuration. Look for the connector that links the ice maker to the refrigerator’s main control board. When disconnecting, observe the pin layout shown in the diagram. This ensures that when you install a new part, the pins are aligned correctly and no wires are pinched during the reinsertion of the unit.
Step 5: Inspect the Sensor and Thermistor
If your ice maker is failing to harvest, use the diagram to locate the thermistor. This small component is often tucked away at the bottom or side of the ice mold. By identifying its position on the blueprint, you can use a multimeter to test for continuity. If the thermistor is faulty, the system will never know the ice is cold enough to eject, stalling the entire cycle.
Step 6: Check the Fill Tube Alignment
One of the most common issues shown in a system overview is the alignment of the water fill tube. The diagram shows how the tube should sit over the fill cup of the ice maker. If the tube is misaligned or frozen, water will leak into the back of the freezer rather than filling the tray. Ensure the physical layout matches the blueprint exactly.
Step 7: Perform a Manual Test (Reset)
Most Samsung ice makers feature a small rectangular “Test” or “Reset” button, often located on the side or bottom of the unit. The diagram will pinpoint this button’s location. Press and hold this button for three to five seconds. The unit should chime and begin a manual harvest cycle. This is the best way to see the mechanical components (motor and ejector arm) in action as depicted in your schematic.
Never use a hair dryer or heat gun to melt ice inside the ice maker compartment. The high heat can warp the plastic components and damage the sensitive thermistor shown in your diagram. Instead, use warm water or allow the unit to defrost naturally by leaving the door open with the power off.
Common Issues and Troubleshooting with the Diagram
When your ice maker stops producing, the Samsung ice maker parts diagram acts as your diagnostic map. One frequent problem is the “ice jam,” where cubes fail to clear the ejector arm. By looking at the ejector arm and stripper layout in the diagram, you can identify if a plastic tooth has snapped or if the arm is out of timing with the motor.
Another common issue is a leaking water valve. The diagram will show the connection between the water line and the inlet valve at the base of the refrigerator. If you see ice building up in a “stalactite” formation from the fill tube, the diagram helps you trace the path back to the valve, which may not be closing fully. Furthermore, if the ice maker is completely silent, the schematic points you toward the harvest motor. If the motor doesn’t turn during a test cycle, the diagram confirms that the motor is a self-contained unit that usually requires a full assembly replacement rather than a sub-component repair.
Tips and Best Practices for Maintenance
To keep your Samsung ice maker running according to its design specifications, regular maintenance is required. The blueprint of these systems assumes a specific range of environmental conditions to function correctly.
- ✓ Maintain Proper Temperature: Your freezer should be set between -2 and 0 degrees Fahrenheit. If the temperature fluctuates, the thermistor in the diagram will provide inconsistent readings, leading to slushy ice or no production.
- ✓ Replace Water Filters: A clogged filter reduces water pressure. The ice maker requires 40 to 120 psi to fill the tray correctly. Low pressure leads to small cubes that can get stuck in the harvesting mechanism.
- ✓ Check for Leveling: If your refrigerator is not level, the water in the ice tray (as seen in the mold layout) will sit at an angle, causing oversized cubes on one side that can jam the ejector arm.
When purchasing replacement parts, always opt for OEM (Original Equipment Manufacturer) components. While aftermarket parts may look similar to the ones in your samsung ice maker parts diagram, they often lack the precise tolerances required for the sensors to communicate correctly with the Samsung control board.
Investing time into understanding your Samsung ice maker parts diagram is the most effective way to extend the life of your appliance. By familiarizing yourself with the structure, layout, and electrical configuration of the system, you move from being a frustrated user to an empowered home maintainer. Whether you are performing a simple reset or a full component replacement, the schematic serves as your definitive guide to a functional and efficient kitchen. Always prioritize safety, use the correct tools, and refer back to your model-specific blueprint whenever you encounter a production hurdle. With the right information, keeping your ice bucket full becomes a simple, manageable task.
Frequently Asked Questions
Where is the ice maker assembly located?
The ice maker assembly is typically located in the upper-left corner of the refrigerator compartment or inside the freezer door, depending on your model’s configuration. You may need to remove a plastic housing cover or release a locking tab to see the full internal component structure clearly.
What does the parts diagram show?

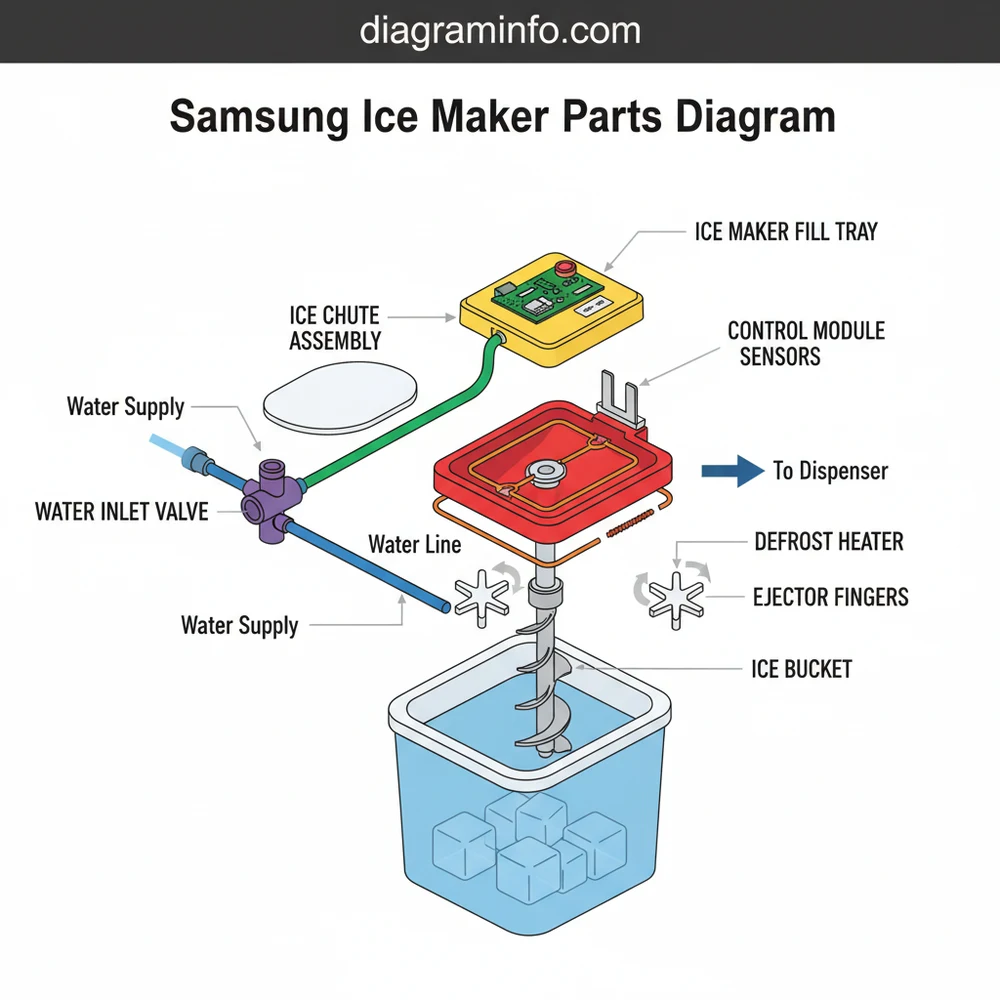

A Samsung ice maker parts diagram shows the exploded view of the entire system, including the mounting bracket, drive motor, ice tray, heater, and wiring harness. It identifies how each component fits together, allowing you to trace water flow and mechanical movement for easier troubleshooting and repair.
How many connections does the ice maker have?
Most Samsung ice makers feature two primary connections: a multi-pin electrical wiring harness that provides power and data to the control board, and a water fill tube connection. The layout ensures that the system receives water and signals to harvest ice once the tray reaches the correct temperature.
What are the symptoms of a bad ice maker?
Common symptoms of a failing component include no ice production, small or shattered cubes, water leaking into the bin, or loud grinding noises during the harvest cycle. If the system layout shows no visible blockages, the motor or timing gear within the ice maker may have failed.
Can I replace the ice maker myself?
Yes, replacing a Samsung ice maker is a common DIY task. The process generally involves removing one or two mounting screws and disconnecting a single wire harness. Using a parts diagram helps you understand the configuration so you can swap the unit without calling a professional technician.
What tools do I need for this task?
To service the components shown in the diagram, you will typically need a Phillips head screwdriver, a flat-head screwdriver or putty knife to release plastic clips, and potentially a nut driver. These tools allow you to disassemble the housing and access the internal system structure safely.
