4 wire color diagram splicing security camera wires Guide
Splicing security camera wires involves matching the red hot wire for power, the black neutral wire for ground, and the yellow and white wires for video. For advanced setups, identifying the traveler wire and common terminal ensures continuous signal flow, allowing you to restore a clear video feed and consistent power supply.
📌 Key Takeaways
- Standard color coding uses Red/Black for power and Yellow/White for video
- Always identify the ground wire to protect the camera from electrical surges
- Use waterproof connectors or heat-shrink tubing for all outdoor splices
- Maintaining correct polarity for the hot wire is critical for camera operation
- This diagram is essential for repairing cut cables or custom length installations
Repairing or extending surveillance systems often requires a deep dive into the 4 wire color diagram splicing security camera wires to ensure signal integrity and power delivery. Whether you are dealing with a cut cable, a weathered connection, or a custom installation, understanding how these four specific conductors interact is the difference between a crystal-clear feed and a blank screen. This comprehensive guide will walk you through the color-coding standards used in the industry, the specific functions of each internal strand, and the mechanical process of creating a professional-grade splice. You will learn how to identify power and video leads, how to manage voltage drop over long distances, and the best practices for shielding your connections against environmental interference.
Most analog and HD-over-coax security cameras (TVI, CVI, AHD) that use a multi-strand “pigtail” or “siamese” cable follow a standardized 4-wire color protocol: Red and Black for power, and Yellow and White (or Green) for video signals.
Understanding the 4 Wire Color Diagram and Component Functions
The primary 4 wire color diagram splicing security camera wires revolves around two distinct circuits housed within a single jacket. Unlike standard household electrical systems that utilize a hot wire, neutral wire, and ground wire for high-voltage AC, security cameras typically operate on low-voltage 12V DC. In this configuration, the four wires are divided into two pairs: one pair for power and one pair for the composite video signal. Understanding this division is critical before you begin any splicing operation.
The first pair consists of the Red and Black wires. The Red wire acts as the positive (+) lead, while the Black wire serves as the negative (-) lead or the common terminal connection. These wires carry the 12V DC current from the power adapter to the camera’s internal circuitry. If these are reversed, you risk damaging the camera’s sensitive image sensor. The second pair usually consists of a Yellow wire and a White or Green wire. The Yellow wire is the “positive” video signal carrier, while the White/Green wire is the video ground. This pair transmits the high-frequency data that translates into the visual image on your DVR or monitor.
Variations do exist depending on the manufacturer and the age of the equipment. In some older systems, you might find a thicker gauge wire for the power pair to mitigate voltage drop, while the video pair remains thinner to preserve signal impedance. When looking at a 4 wire color diagram splicing security camera wires, you may also see shielding—a foil or braided mesh—wrapped around the video pair. This is not a fifth wire but a protective layer designed to prevent electromagnetic interference (EMI) from the power lines or nearby AC “hot” wires from bleeding into the video feed.

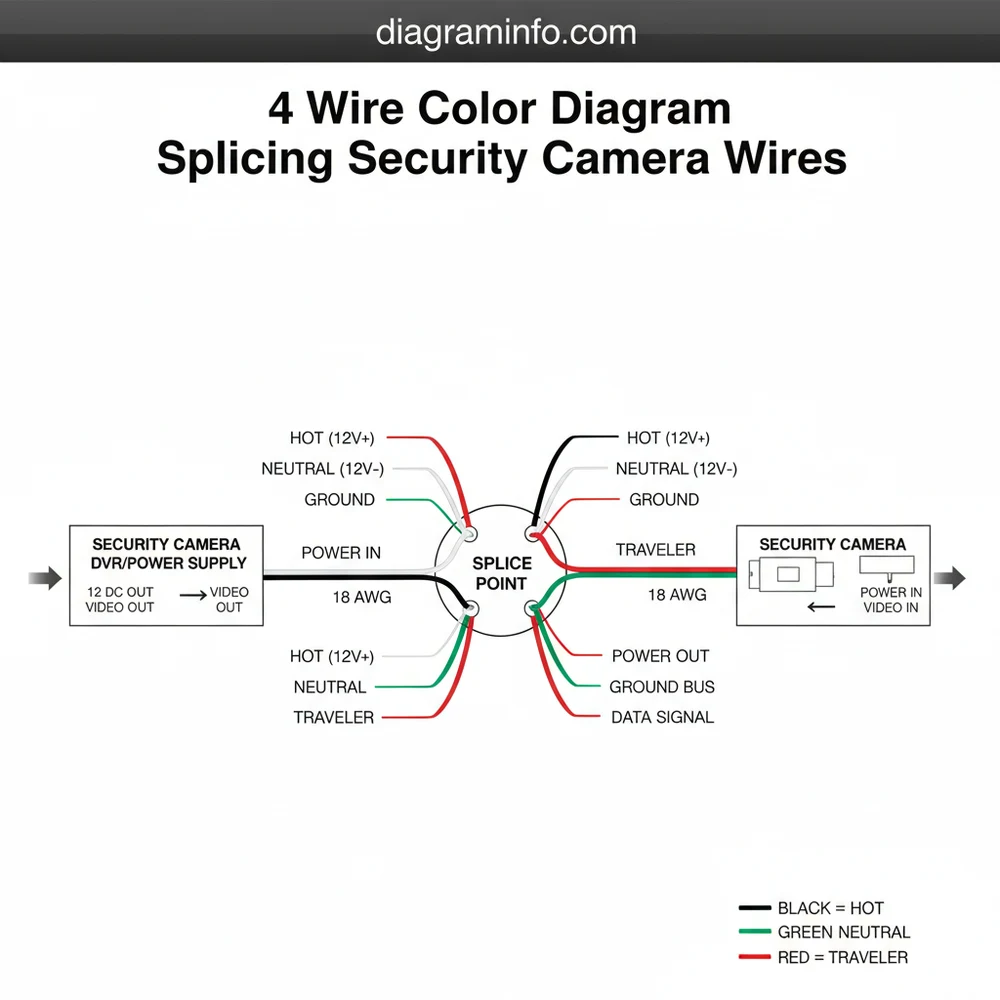

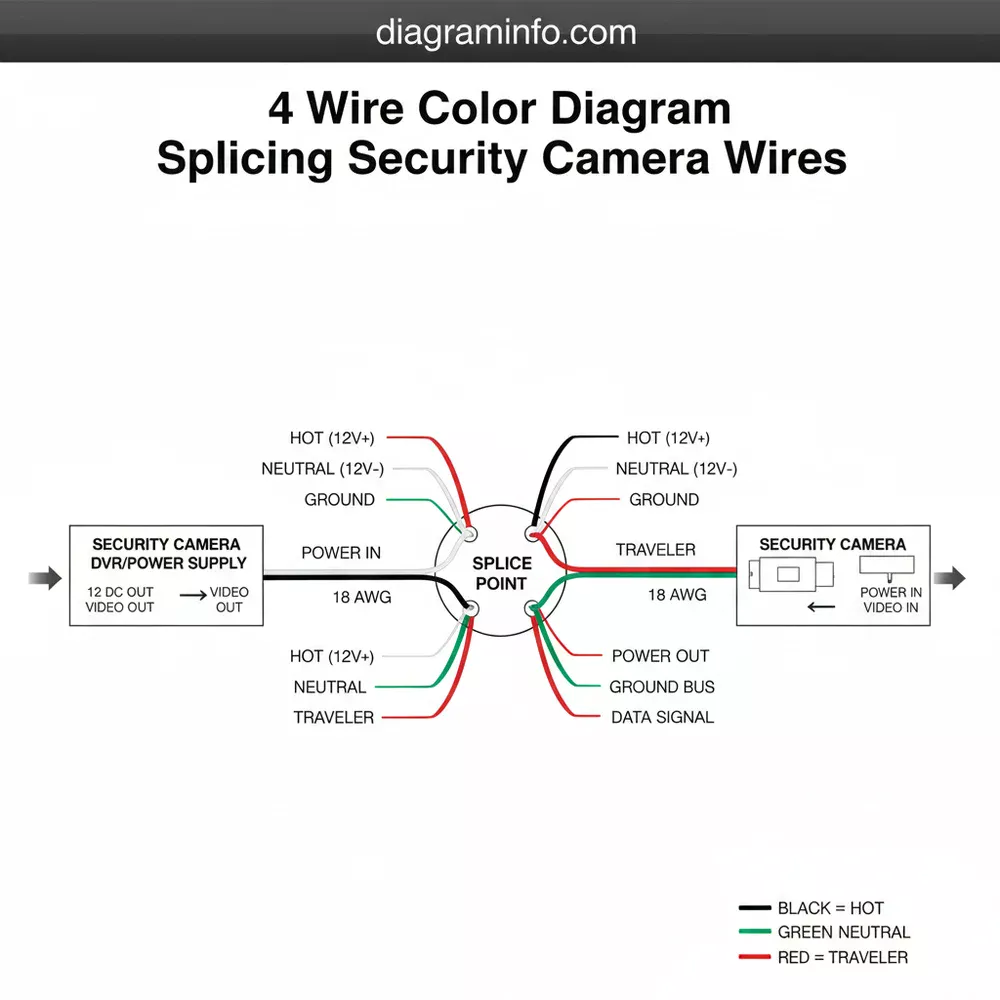

[DIAGRAM_PLACEHOLDER: A 4-wire pigtail illustration showing Red (12V+), Black (GND-), Yellow (Video Signal), and White (Video GND). Arrows indicate connection points to a BNC connector and a DC power jack.]
Identifying terminal points is the next phase of reading the diagram. In professional power distribution boxes, you will often find a brass screw or a common terminal block where these wires are landed. The Red wire connects to the positive terminal, and the Black wire connects to the common terminal. Understanding the gauge of these wires is equally important; thinner 24-gauge wires are common in short pigtails, but for runs exceeding 100 feet, installers often splice into 18-gauge wire to ensure the voltage remains stable enough to power infrared LEDs at night.
Step-by-Step Guide to Splicing Security Camera Wires
Performing a splice requires precision and the right set of tools to ensure the connection does not degrade over time. Follow these steps to translate the 4 wire color diagram splicing security camera wires into a functional physical connection.
- ✓ Step 1: Preparation and Safety. Disconnect the power supply from the wall outlet. Even though 12V DC is generally safe for humans, shorting the Red (positive) and Black (negative) wires can blow a fuse in your power supply or damage the camera.
- ✓ Step 2: Stripping the Outer Jacket. Use a precision wire stripper to remove approximately 1 to 2 inches of the outer protective jacket from both ends of the cables you are splicing. Be careful not to nick the insulation of the inner four wires.
- ✓ Step 3: Exposing the Conductors. Strip about 1/2 inch of insulation from the Red, Black, Yellow, and White/Green wires. Note the gauge; these wires are often very thin (22-26 AWG), so use the correct notch on your wire strippers to avoid cutting the copper strands.
- ✓ Step 4: Applying Heat Shrink Tubing. Before joining the wires, slide a small piece of heat shrink tubing over each individual wire on one side of the splice. Then, slide a larger diameter piece of heat shrink over the entire cable jacket.
- ✓ Step 5: Matching the Colors. Twist the copper strands of the matching colors together tightly. Follow the 4 wire color diagram: Red to Red, Black to Black, Yellow to Yellow, and White/Green to White/Green. For the best connection, use a “Western Union” or “Lineman” splice to provide mechanical strength.
- ✓ Step 6: Soldering the Connections. While twisting wires and using electrical tape is common, soldering is the professional standard. Apply a small amount of solder to each twisted pair to ensure a permanent, low-resistance connection.
- ✓ Step 7: Sealing the Splice. Slide the individual small heat shrink tubes over the soldered joints and shrink them with a heat gun. Finally, slide the large heat shrink tube over the entire area and seal it to create a waterproof and tension-resistant bond.
- ✓ Step 8: Testing. Reconnect the power and check the video feed. Use a multimeter to verify that 12V is reaching the camera end if the device fails to power on.
Never attempt to splice security camera wires while the power supply is active. Small sparks can occur when the power wires touch the video wires, which may fry the camera’s video processing chip instantly.
Common Issues & Troubleshooting the Splice
Even when following a 4 wire color diagram splicing security camera wires perfectly, issues can arise due to environmental factors or cable quality. One of the most frequent problems is “rolling lines” or “hum bars” on the video screen. This is often caused by a ground loop or electromagnetic interference. If your video wires are run too close to a household hot wire or a high-voltage traveler wire in a conduit, the 60Hz AC signal can “leak” into your video feed. Ensure your splice preserves the shielding as much as possible.
Another common issue is the camera working during the day but cutting out at night. This is almost always a voltage drop issue. Night vision IR LEDs require significantly more amperage than the daytime sensor. If the gauge of your splicing wire is too thin or the splice has high resistance (due to poor twisting or corrosion), the voltage may drop below the camera’s operating threshold when the LEDs kick in. Use a multimeter to check the voltage at the camera while the IR lights are active. If you see less than 11V, you may need to use a thicker gauge wire for your power run.
Finally, “ghosting” or double-images usually point to a problem with the video signal wires (Yellow and White/Green). This happens when the impedance of the cable is changed abruptly at the splice point. Keeping the splice as short and tight as possible helps maintain the 75-ohm impedance required for clean video transmission. If the image is completely black but the camera’s IR LEDs are glowing red, the power splice is successful, but the video splice (Yellow/White) has failed or is reversed.
If you are confused by non-standard colors, use a multimeter’s continuity setting. The wire connected to the center pin of the BNC connector is always your Video Positive (Yellow), and the wire connected to the outer ring of the BNC is your Video Ground (White/Green).
Best Practices for Durable Camera Wiring
To ensure your 4 wire color diagram splicing security camera wires project lasts for years, you should adopt a “set it and forget it” mindset regarding durability. Moisture is the number one enemy of spliced wires. Even if you use heat shrink, if the splice is located outdoors, it should be housed inside an IP66-rated junction box. This prevents “wicking,” where moisture enters the cable jacket at the camera head and travels down the wire to the splice point through capillary action.
When connecting to a centralized power supply, pay close attention to the terminal markings. Most distribution boxes use a common terminal for all negative (Black) wires. Using a brass screw terminal ensures a tight mechanical connection that won’t vibrate loose. If you are extending a cable, consider using a higher gauge for the power wires while keeping the video wires in a twisted pair configuration. For example, splicing the pigtail into an 18/2 (power) and a RG59 (video) cable is the industry standard for long-distance runs.
Quality components make a significant difference. Avoid using “CCA” (Copper Clad Aluminum) wires for your splices. While cheaper, CCA has higher resistance and is more brittle than pure oxygen-free copper. This leads to higher voltage drop and a higher likelihood of the splice breaking under physical stress. Always use high-quality electrical tape or marine-grade heat shrink that contains an internal adhesive for a truly weather-tight seal.
Lastly, document your work. If you deviate from the standard 4 wire color diagram splicing security camera wires—perhaps because you are using Ethernet cable as a substitute—label both ends of the splice. In a professional setting, technicians often use small flag labels to identify which pair is acting as the power and which is the “traveler” for the video signal. This saves hours of troubleshooting if the system needs maintenance years down the line.
Conclusion
Mastering the 4 wire color diagram splicing security camera wires is an essential skill for anyone maintaining a modern surveillance system. By accurately identifying the Red and Black power wires and the Yellow and White/Green video signals, you can perform repairs that are just as reliable as a factory-made cable. Remember to focus on the technical details: maintain the proper gauge to avoid voltage drop at the camera, use soldered connections for maximum longevity, and always isolate your video signal from high-voltage AC lines to prevent interference. Whether you are landing wires on a brass screw at a common terminal or heat-shrinking a mid-span repair, the principles of clean signal transmission and stable power delivery remain the same. With the right tools and a methodical approach to color-coded wiring, you can ensure your security system provides the safety and clarity you expect.
Frequently Asked Questions
Where is the security camera splicing point located?
Splicing typically occurs at the point of cable damage or inside a weatherproof junction box near the camera mounting site. Protecting these connections from moisture is vital, so they are often tucked into the camera base or a dedicated enclosure to prevent signal degradation over time.
What does a 4 wire security camera diagram show?
This diagram illustrates the specific pinout for power and video signals. It identifies the hot wire and neutral wire for the power supply while showing how the data lines transmit video, ensuring that the camera receives the correct voltage and sends a stable image back to the DVR.
How many wires does a standard security camera have?
Most standard analog security cameras utilize 4 wires: two for power (positive and negative) and two for the video signal. While some specialized cameras might include extra wires for audio, the 4-wire configuration remains the industry standard for most residential and commercial surveillance systems.
What are the symptoms of a bad security camera splice?
Symptoms of a failing splice include flickering video, horizontal lines (ground loops), or a complete loss of power. If the traveler wire or data connections are loose, you may see intermittent signal drops, whereas a shorted hot wire can cause the camera to overheat or fail.
Can I splice security camera wires myself?
Yes, you can splice these wires yourself with basic tools. By following a 4 wire color diagram and using proper insulation techniques, you can effectively repair damaged lines. It is a cost-effective DIY task that avoids the need for a full cable replacement in most scenarios.
What tools do I need for camera wire splicing?
You will need precision wire strippers, a soldering iron or waterproof crimp connectors, and heat-shrink tubing. These tools help you securely attach wires to the common terminal and ensure all connections are insulated against the elements, preventing future shorts or corrosion in the line.
