Club Car DS 48V Charger Wiring Diagram: Troubleshooting Guide 2026
The 48V golf cart charger typically connects via a red positive (+) wire to the battery bank’s main positive terminal and a black negative (-) wire to the main negative or system ground. Ensure the charger’s output port matches the cart’s receptacle (e.g., Club Car’s 3-pin connector). Verify polarity before connecting to prevent damage.
📌 Key Takeaways
- 48V golf cart chargers typically require a 10-gauge minimum wire for main battery connections.
- Always identify positive (red) and negative (black) terminals correctly before connecting any charger.
- Confirm charger output voltage matches battery bank voltage (e.g., 48V to 48V) to prevent overcharging or undercharging.
- The most common mistake is reverse polarity connection or using an incompatible charger.
- If troubleshooting doesn’t resolve charging issues, or if internal controller wiring is suspect, consult a certified golf cart technician.
Understanding the intricate details of a golf cart’s charging system is paramount for maintenance professionals, seasoned mechanics, and dedicated equipment owners. This guide specifically addresses the critical “golf cart charger wiring diagram” for common 36-volt and 48-volt systems, primarily focusing on Club Car and EZ-Go models. Proper wiring ensures efficient battery charging, longevity of your battery bank, and safe operation. Whether you’re troubleshooting a charging fault or performing a complete system overhaul, precise knowledge of wire colors, terminal identification, and connection sequences is indispensable.

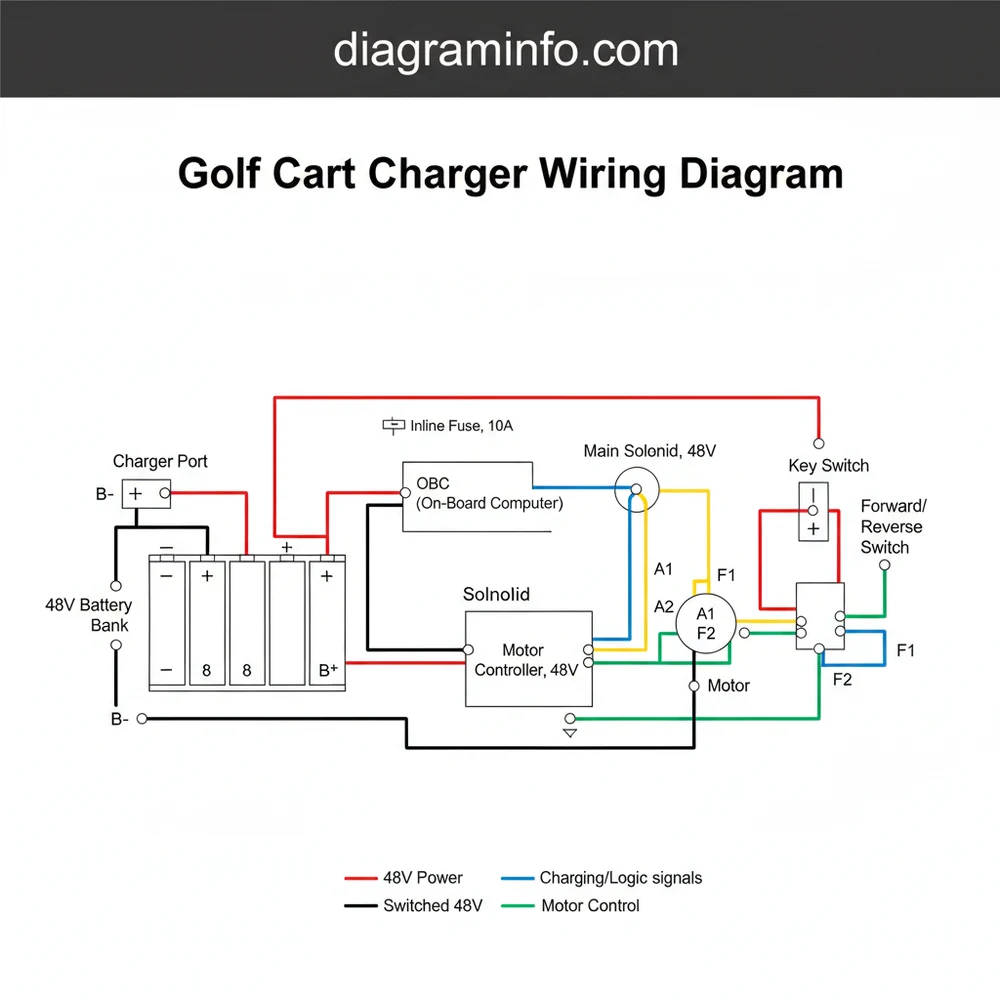

Wire Color Reference Table
| Wire Color (Typical) | Function | Connect To | Notes |
|---|---|---|---|
| Red (Heavy Gauge) | Main Positive (+) | Charger Port Pin A / Battery Bank Positive | Direct connection to positive terminal of the battery bank. Verify polarity. |
| Black (Heavy Gauge) | Main Negative (-) | Charger Port Pin B / Battery Bank Negative | Often routed through the On-Board Computer (OBC) for charge control. |
| Blue (Lighter Gauge) | Charger Enable/Sense | Charger Port Pin C / OBC Input | Communicates battery status or enables charger output. Critical for smart chargers. |
| White (Lighter Gauge) | Auxiliary Sense / Interlock | Charger Port Pin D / OBC or Controller | May be used for temperature sensing, auxiliary ground, or controller lockout during charge. |
| Green (Chassis Ground) | Chassis Ground / Safety | Metal Chassis / Ground Post | Essential safety ground connection, often separate from the battery negative. |
Component Connection Guide
Proper integration of your golf cart’s charging components is critical for optimal battery health and system function. This section details the wiring sequence and terminal connections for key elements involved in charging, including the charger port, On-Board Computer (OBC), main solenoid, and battery bank. Always consult your specific model’s OEM wiring diagrams, as variations exist, particularly across different model years.
Before performing any wiring, always ensure the golf cart’s run/tow switch is in the “TOW” or “MAINTENANCE” position, and disconnect the main negative terminal from your battery bank. Failure to do so can result in severe electrical shock, system damage, or fire.
Charger Port Wiring:
The charger port is the primary interface between the external charger and the golf cart’s electrical system. For 36-volt and 48-volt systems, common charger ports (like the Club Car 3-pin or EZ-Go TXT/Medalist 2-pin/3-pin) have dedicated terminals.
1. Main Positive (+): Typically the largest, most robust terminal. Connect a heavy-gauge (e.g., 6 AWG or 4 AWG, depending on system amperage) Red wire directly to the main positive post of your battery bank. Ensure this connection is clean and torqued to manufacturer specifications, often 10-12 ft-lbs for battery terminals.
2. Main Negative (-): This heavy-gauge Black wire typically connects to the input side of the On-Board Computer (OBC) or, in simpler systems, directly to the main negative post of the battery bank. On Club Car IQ systems, this negative path through the OBC is crucial for charge termination.
3. Sense/Control Line: Lighter gauge (e.g., 16-18 AWG) wires, often Blue or White, are used for communication between the charger, charger port, and OBC. These lines enable the charger to sense battery voltage, monitor temperature, or signal the OBC to disconnect drive power during charging. Ensure these connections are firm and insulated to prevent intermittent signals.
On-Board Computer (OBC) Wiring:
The OBC is the brain of your golf cart’s charging system, particularly in modern 48-volt Club Car and some EZ-Go models. It manages charge cycles, prevents overcharging, and controls the main solenoid during charging.
1. Charger Port Input: The heavy-gauge Black negative wire from the charger port connects directly to the OBC’s negative input terminal.
2. Battery Bank Negative Output: The OBC’s negative output terminal connects directly to the main negative post of the battery bank. The OBC effectively acts as a switch in the main negative charging circuit.
3. Solenoid Control Wires: Two lighter-gauge wires from the OBC connect to the main solenoid’s small control terminals. When the charger is connected and the OBC detects valid input, it typically signals the solenoid to open (de-energize) to prevent the cart from being driven while charging. For a deeper dive into solenoid operation, refer to our comprehensive article on golf cart solenoid troubleshooting.
4. Controller Interlock: In some systems, the OBC may have a direct connection to the motor controller to disable it during charging, preventing accidental movement.
Battery Bank Connections:
The battery bank provides the energy storage for your golf cart. Correct wiring is paramount for both 36-volt and 48-volt systems.
1. Series Connection: Golf cart batteries are almost universally connected in series to achieve the desired system voltage. For a 36-volt system, six 6-volt batteries are connected positive-to-negative sequentially. For a 48-volt system, either six 8-volt or four 12-volt batteries are used.
2. Main Positive and Negative: Identify the two terminals at the ends of the series string that represent the total positive and total negative of the battery bank. These are where the heavy-gauge cables from the charger port and OBC will connect.
3. Terminal Maintenance: Ensure all battery terminals are clean, free of corrosion, and securely fastened. Loose or corroded connections can lead to excessive resistance, heat buildup, and inefficient charging, potentially shortening battery life. Always use appropriate torque specifications, typically 10-12 ft-lbs for standard automotive battery terminals, as indicated by battery manufacturers. For more on extending battery life, consult our guide on golf cart battery maintenance.
Main Solenoid Wiring:
While not directly involved in charging current flow, the main solenoid acts as a critical safety interlock.
1. Control Terminals: The two small terminals on the solenoid receive power from the key switch, forward/reverse switch, and often an interlock signal from the OBC. During charging, the OBC typically interrupts the power to these small terminals, preventing the solenoid from engaging, thereby disabling the drive system.
2. Heavy-Gauge Terminals: These larger terminals carry the main high-amperage current for the motor controller and motor. Ensure these connections are also clean and properly torqued, typically 18-22 ft-lbs.
Motor Controller Wiring (Charging Context):
The motor controller manages power delivery to the golf cart’s motor. During charging, the controller is typically disabled to prevent accidental movement. This lockout is achieved through the OBC’s interlock signal, which may cut power to the controller’s main positive feed or its control inputs. No direct charger wiring connects to the motor controller; its interaction is purely through safety interlocks controlled by the OBC or other system components. For comprehensive troubleshooting of the motor controller, see our resource on golf cart controller diagnostics.
Common Wiring Problems & Fixes
Diagnosing charging issues requires a systematic approach, often tracing back to specific wiring or component failures within the “golf cart charger wiring diagram.” Here are some prevalent problems and their diagnostic solutions for both 36-volt and 48-volt systems.
1. Charger Connects, But No Charge Initiates:
Diagnosis: The charger’s indicator lights fail to show charging activity, and no current flows into the battery bank.
Potential Causes:
Faulty Charger Port: Check for corrosion or bent/broken pins within the charger port. Use a multimeter to verify voltage presence at the charger port’s positive and negative terminals when connected to the battery (with the external charger disconnected). Also check for continuity across the sense/control pins if applicable (e.g., Club Car IQ system often uses a microswitch in the charger receptacle).
OBC Malfunction: In systems with an On-Board Computer, a failed OBC is a common culprit. The OBC is responsible for initiating and terminating the charge cycle. Test for continuity through the OBC’s main negative pass-through circuit. If no continuity, the OBC may be internally open.
Blown Fuse/Circuit Breaker: Inspect all inline fuses or circuit breakers in the charging circuit, particularly those protecting the OBC or the main positive line from the battery.
Fix: Replace the damaged charger port, OBC, or blown fuse. Ensure new components match OEM specifications.
2. Charger Starts But Shuts Off Prematurely/Overcharges:
Diagnosis: The charger begins charging but stops before the batteries are fully charged, or conversely, continues charging indefinitely leading to electrolyte boil-off.
Potential Causes:
OBC/Controller Sense Wire Issue: A damaged or corroded sense wire (e.g., the Blue or White wire from the charger port to the OBC) can provide incorrect voltage readings to the OBC, causing it to prematurely terminate the charge. Conversely, a faulty OBC unable to accurately read battery voltage can lead to overcharging.
Battery Bank Imbalance/Failure: A single bad battery in the series can cause the charger to “see” a lower overall voltage, leading to incomplete charging, or if a cell is shorted, confuse the OBC into overcharging the remaining good batteries. Conduct a load test on individual batteries.
External Charger Malfunction: While this guide focuses on cart wiring, a faulty external charger unit itself can also cause these symptoms.
Fix: Inspect and repair sense wire connections. Test individual batteries and replace any failing units. If the issue persists, the OBC is likely at fault and requires replacement.
3. Slow Charging / Charger Runs Excessively Hot:
Diagnosis: Batteries take significantly longer to charge than usual, or the charger unit and heavy-gauge wiring become unusually hot during the charge cycle.
Potential Causes:
High Resistance Connections: Loose or corroded battery terminals, charger port connections, or main cables (Red/Black) can introduce high resistance. This impedes current flow, generating heat and reducing charging efficiency.
Undersized Wiring: If replacement cables were used that are of a smaller gauge than OEM specifications, they will exhibit higher resistance, leading to heat and slow charging.
Aging Batteries: Older batteries with increased internal resistance will naturally charge slower and heat up more.
Fix: Systematically inspect and clean all heavy-gauge connections. Torque battery terminals to OEM specifications (e.g., 10-12 ft-lbs for 5/16″ posts). Replace any undersized or damaged cables with appropriate gauge wiring (typically 6 AWG or 4 AWG). Consider battery replacement if they are near the end of their service life.
Frequently Asked Questions
Can I bypass the On-Board Computer (OBC) for charging?
While technically possible, bypassing the OBC is strongly discouraged for any 36-volt or 48-volt system. The OBC is a critical safety and battery management component. It monitors battery voltage, temperature, and current to control the charge cycle, preventing both undercharging and dangerous overcharging. Bypassing it can lead to severe battery damage, fire hazards, and voiding of warranties. Always replace a faulty OBC rather than bypassing it.
How do I test the charger port for proper voltage?
To test the charger port, ensure the golf cart is off and the run/tow switch is in the “TOW” position. Use a digital multimeter set to DC voltage. Place the positive probe on the charger port’s main positive pin (usually the largest) and the negative probe on the main negative pin (also large). You should read the nominal voltage of your battery bank (e.g., 36V or 48V). For multi-pin ports, you may also need to check lighter gauge pins for control signals or continuity if specified by your model’s wiring diagram. A lack of voltage indicates a wiring issue between the battery bank and the charger port.
What role does the run/tow switch play in the charging process?
The run/tow switch is a vital safety mechanism. When set to “TOW” or “MAINTENANCE,” it disconnects the main battery power from the controller and other key components, effectively de-energizing the drive system. This is crucial during charging or maintenance to prevent accidental movement and electrical arcing. Many golf cart systems, particularly 48-volt models, will not initiate a charge cycle if the run/tow switch is in the “RUN” position, as a safety interlock.
My charger indicator lights are erratic. What does that mean?
Erratic charger indicator lights often point to an issue with the charger’s communication with the golf cart’s battery bank or OBC. This could be due to loose or corroded connections at the charger port, a failing sense wire providing intermittent signals, or a problem within the battery bank itself (e.g., a significantly imbalanced or failing battery). Some smart chargers also use specific flash codes to indicate diagnostic errors; consult your charger’s manual for a precise interpretation of these codes.
For 48-volt systems, especially newer Club Car Precedent models, the charger port wiring often includes a temperature sensor integrated into the plug itself, which communicates with the OBC to prevent charging if battery temperatures are too extreme. Verifying the integrity of this sensor and its wiring is crucial for preventing thermal events during charging.
Step-by-Step Guide to Understanding the Club Car Ds 48V Charger Wiring Diagram: Troubleshooting Guide 2026
Identify – Identify the specific charger model and golf cart voltage (e.g., 48V Club Car DS) from your diagram.
Locate – Locate the main positive and negative battery terminals on your golf cart’s battery bank.
Reference – Reference the wire color reference table to match charger output wires to correct battery bank connections.
Connect/Route – Connect the charger’s positive output (red) to the battery bank’s main positive and negative (black) to the main negative terminal.
Verify – Verify all connections are secure, free from corrosion, and that polarity is correct using a multimeter before plugging into AC.
Troubleshoot – Troubleshoot charging issues by checking fuses, continuity, and voltage at the charger output and charging port.
Frequently Asked Questions
What voltage is golf cart charger wiring diagram?
Golf cart charger wiring diagrams typically illustrate connections for either 36V or 48V systems, which are the most common. The specific voltage depends on the golf cart’s battery bank configuration, usually comprising six 6V batteries for 36V or six 8V batteries for 48V total output, impacting charger compatibility.
What do the wire colors mean on golf cart charger wiring diagram?
Standard wiring diagrams for golf cart chargers usually denote red for the positive (+) connection from the charger output to the battery bank, and black for the negative (-) connection. Smaller gauge wires may indicate control or interlock circuits, often white or blue, requiring specific connection to the cart’s charging port.
How do I troubleshoot golf cart charger wiring diagram that won’t run?
If your golf cart charger isn’t running, first check AC power input and charger fuse. Then, verify the DC output voltage; it should match or slightly exceed the battery bank’s voltage (e.g., 58V for a 48V system). Inspect the charging port connections for corrosion or loose wires, ensuring the interlock is engaged.
What is the solenoid wiring on golf cart charger wiring diagram?
The solenoid in a golf cart’s charging circuit acts as a high-current switch, often controlled by the charger receptacle’s interlock. The diagram shows heavy gauge wires connecting the solenoid to the battery bank and motor controller, while smaller wires activate the solenoid coil, ensuring power only flows when charging is active or safe.
How many batteries does golf cart charger wiring diagram have?
A typical golf cart charging diagram for a 48V system will show connections to six 8-volt batteries, wired in series to achieve 48V. For a 36V system, it typically illustrates six 6-volt batteries also wired in series. The charger connects across the entire series bank, not individual batteries.
What gauge wire does golf cart charger wiring diagram use?
For main current paths between the charger, charging port, and battery bank, golf cart charger wiring diagrams typically specify heavy-gauge wires, such as 8 AWG or 10 AWG, to handle high charging currents and minimize voltage drop. Control and interlock wires are usually much smaller, like 16 or 18 AWG.
