A Nakto electric bike wiring diagram illustrates the electrical connections between the battery, motor, controller, display, and other components. It details wire color codes, pin assignments for connectors, and identifies ground wire and hot wire paths, crucial for diagnosing faults and ensuring correct electrical flow for system operation.
📌 Key Takeaways
- Always identify the main power (hot wire) and ground wire connections before attempting any wiring changes, typically indicated by thicker red (+) and black (-) wires respectively.
- Accurately referencing the wire color code against the diagram is critical; misconnecting even one wire can cause system failure or damage to the motor controller.
- Ensure all electrical connections are secure and properly insulated to prevent short circuits and moisture intrusion, maintaining optimal voltage flow (typically 36V or 48V for Nakto bikes).
- The most common wiring mistake involves incorrect pin assignment in connectors or loose ground wire connections, leading to intermittent power or non-functional components.
- Seek professional assistance if experiencing persistent electrical issues after basic troubleshooting, especially when dealing with the motor or battery components, to prevent further damage or safety risks.
This comprehensive guide is designed to demystify the electrical architecture of your Nakto electric bike, providing a detailed `nakto electric bike wiring diagram` analysis crucial for advanced diagnostics, repair, and component replacement. Understanding the precise `wire color code`, `pin assignment`, and electrical pathways is paramount for maintaining optimal performance and ensuring rider safety. This article will equip technicians and experienced DIY enthusiasts with the authoritative information needed to accurately interpret electrical schematics and execute correct `terminal block` connections within your e-bike’s system.
WIRE COLOR REFERENCE TABLE
This table provides a standardized reference for common `wire color code` assignments typically found within a Nakto electric bike’s electrical system. Always cross-reference with your specific model’s documentation as variations may exist.
| Wire Color | Function | Pin/Terminal (Example) | Notes |
|---|---|---|---|
| Red (Thick) | Battery Positive (Main `Hot Wire`) | Controller Input, P1 | Primary power supply, often 10-12 `gauge`. |
| Black (Thick) | Battery Negative (`Ground Wire`) | Controller Input, P2 | Common ground for all components. |
| Blue (Thick) | Motor Phase A | Motor Connector, M1 | One of three phase wires for brushless motors. |
| Green (Thick) | Motor Phase B | Motor Connector, M2 | One of three phase wires for brushless motors. |
| Yellow (Thick) | Motor Phase C | Motor Connector, M3 | One of three phase wires for brushless motors. |
| Red (Thin) | 5V Power Supply (Auxiliary `Hot Wire`) | Throttle, PAS, Display Connector, S1 | Powers low-current components, often 20-22 `gauge`. |
| Black (Thin) | 5V Ground (Auxiliary `Ground Wire`) | Throttle, PAS, Display Connector, S2 | Ground for low-current sensors and displays. |
| White/Green (Thin) | Throttle Signal | Throttle Connector, T1 | Variable `voltage` signal (0.8-4.2V) to controller. |
| Brown | Brake Lever Signal (Normally Open) | Brake Connector, B1 | Signals controller to cut motor power. |
| Orange/Yellow | Display Power / Ignition | Display Connector, D1 | Switched `voltage` to activate controller/display. |
| Grey/Purple | PAS Sensor Signal | PAS Connector, PSS1 | Pulse signal indicating pedal rotation. |
STEP-BY-STEP CONNECTION GUIDE
📤 Share
💾 Download
Before commencing any electrical work on your Nakto electric bike, ensure the battery is completely disconnected and removed from the bicycle. This preventative measure is critical to avoid short circuits, component damage, or personal injury. Always refer to your specific `nakto electric bike wiring diagram` and component labels.

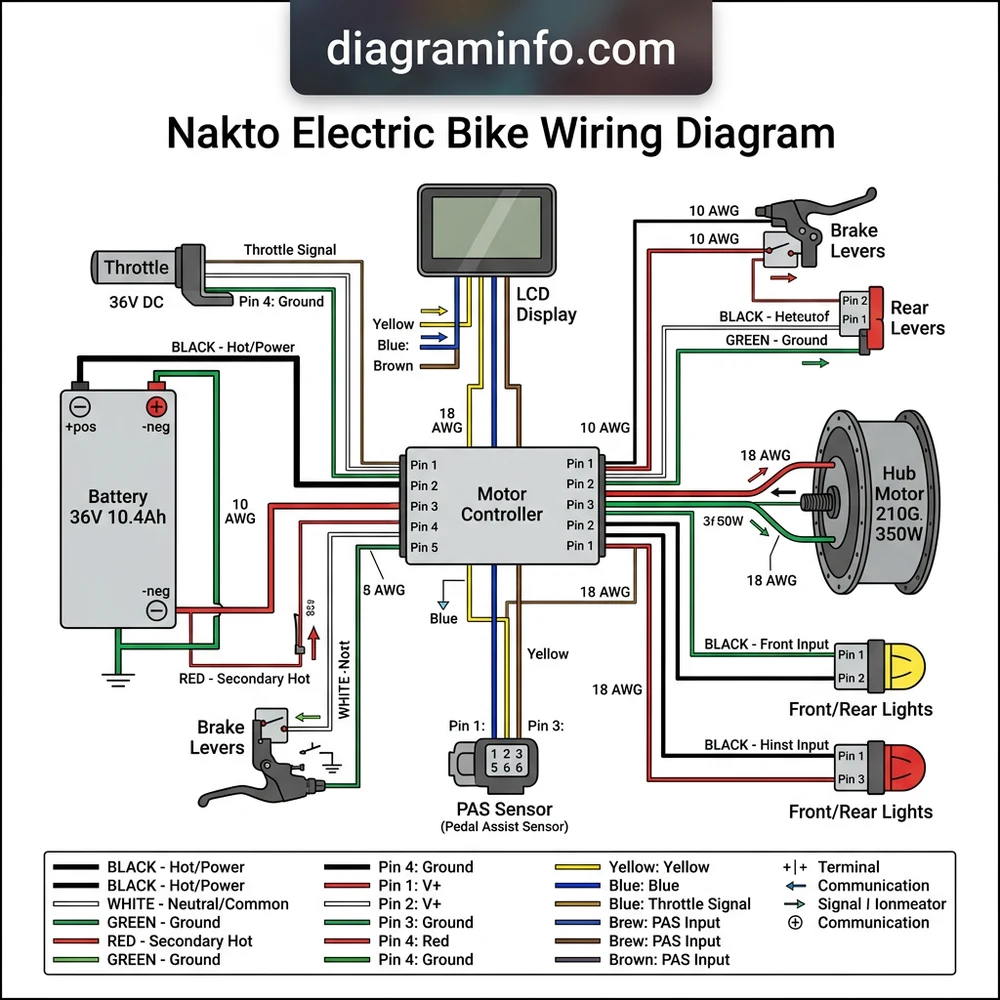

1. Battery to Controller Connection: Locate the primary power input terminals on your e-bike’s motor controller. As shown in the `nakto electric bike wiring diagram`, the thick Red `hot wire` from the battery pack’s positive terminal connects directly to the controller’s main positive input (e.g., P1). Concurrently, the thick Black `ground wire` from the battery’s negative terminal connects to the controller’s corresponding negative input (e.g., P2). Ensure these connections are secure, free from corrosion, and correctly polarized. Incorrect polarity will immediately damage the controller. Always verify the `gauge` of the battery wires matches or exceeds the controller’s requirements to prevent overheating under load.
2. Motor Phase Wire Installation: Connect the three thick phase wires from the motor to the controller. These are typically Blue, Green, and Yellow. Match the motor’s Blue wire to the controller’s M1 `pin assignment`, Green to M2, and Yellow to M3. The exact sequence for optimal motor performance might require a learning function on some controllers; however, the initial connection follows the `wire color code` on your diagram. Ensure each connection is firmly seated within its `terminal block` or waterproof connector. For advanced motor tuning, refer to our comprehensive guide on [E-Bike Controller Programming].
3. Hall Sensor and Speed Sensor Wiring: Within the main motor cable, you will typically find a smaller bundle of thin wires for the Hall sensors (providing motor position feedback) and often a speed sensor. These generally follow a Red (5V `hot wire`), Black (5V `ground wire`), and three distinct signal wires (e.g., White, Brown, Blue) for the Hall sensors. Connect these to the corresponding Hall sensor input port on the controller, ensuring precise `pin assignment` according to the diagram. Mismatched Hall sensor wires will prevent the motor from rotating smoothly or at all.
4. Throttle and Brake Lever Connections: The throttle typically uses a three-wire configuration: Red (5V power), Black (`ground wire`), and White/Green (signal). Connect these to the controller’s dedicated throttle input connector (e.g., T1 for signal). Brake levers usually feature two wires (often Brown and Black) that connect to the controller’s brake cut-off inputs (e.g., B1). These provide a signal to cut motor power when activated. Verify the correct `voltage` output from the throttle using a multimeter before final assembly, typically 0.8V (off) to 4.2V (full throttle).
5. Display and PAS Sensor Integration: Connect the display unit, which typically requires a multi-pin connector providing power (often an Orange/Yellow `hot wire` and a Black `ground wire`), communication lines (e.g., TX/RX for UART/CAN bus), and sometimes a switched `voltage` line for ignition. The Pedal Assist Sensor (PAS) also connects to a dedicated port, usually involving a Red (5V power), Black (`ground wire`), and Grey/Purple (pulse signal) `wire color code`. Ensure all `terminal block` connections are snug and waterproofed where necessary. For detailed troubleshooting of display issues, consult our resource on [E-Bike Display Diagnostics]. Remember to route all wires carefully to prevent pinching or abrasion, which can lead to shorts or signal loss, a common problem discussed in [Advanced E-Bike Cable Management Techniques].
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even for experienced technicians, wiring complexities in a `nakto electric bike wiring diagram` can lead to common pitfalls. Understanding these mistakes and their fixes is crucial for efficient troubleshooting.
1. Reverse Polarity on Battery Connection:
Consequence: Directly applying reversed `voltage` to the controller (connecting the Red battery wire to the controller’s negative and Black to positive) will almost instantaneously damage internal components such as MOSFETs, often resulting in a burnt-out controller. This is one of the most critical errors.
Fix: Always double-check `wire color code` and `pin assignment` with a multimeter before making the final battery connection. Verify the Red `hot wire` carries positive `voltage` relative to the Black `ground wire`. If a new controller is installed, ensure its input `terminal block` labels match the battery output.
Never attempt to power on a system with suspected reverse polarity. The damage is often immediate and irreversible, requiring component replacement.
2. Loose or Corroded Connections:
Consequence: Intermittent power, erratic operation, loss of specific functions (e.g., throttle not responding, display flickering). High resistance at a loose `terminal block` can also generate heat, potentially melting insulation or causing fires.
Fix: Systematically inspect every connection point. Tug gently on wires entering `terminal block` connectors to ensure they are secure. Clean any visible corrosion with electrical contact cleaner and a wire brush, then apply dielectric grease to prevent recurrence. Re-crimp or replace connectors as needed to ensure a low-resistance pathway.
3. Incorrect Wire `Gauge`:
Consequence: Using wires with too small a `gauge` (higher AWG number) for high-current paths (like battery to controller or controller to motor) will result in excessive heat generation, `voltage` drop, reduced motor performance, and potential fire hazards. Conversely, overly thick `gauge` wires can be cumbersome and unnecessary for low-current signal lines.
Fix: Adhere strictly to the OEM-specified `gauge` for primary power lines. For signal wires, using a standard 20-24 `gauge` is generally sufficient. If replacing wires, always match the original `gauge` or go one size thicker (lower AWG number) for high-current applications.
4. Damaged Wire Insulation or Pinch Points:
Consequence: Exposed wire conductors can lead to short circuits, especially if they contact the frame (creating a direct path to the `ground wire`) or other active wires. This can cause fuses to blow, controller damage, or even battery thermal runaway in severe cases.
Fix: Conduct a thorough visual inspection of all wiring, particularly where cables pass through frame openings, near moving parts, or areas prone to abrasion. Repair damaged insulation immediately using heat-shrink tubing or high-quality electrical tape. Route wires cleanly using zip ties and protective sleeves to prevent future damage.
5. Mis-mapped Signal Wires (Hall Sensors, Throttle):
Consequence: If signal wires (e.g., Hall sensor signals, throttle signal) are incorrectly connected or have incorrect `pin assignment`, the motor will either not run, run roughly, or the throttle will not respond.
Fix: Refer to the `nakto electric bike wiring diagram` meticulously. Use a multimeter to verify signal outputs where possible (e.g., throttle `voltage` range, Hall sensor switching). For Hall sensors, if the motor runs roughly, it may indicate one or more Hall signal wires are swapped or faulty, requiring careful permutation testing or sensor replacement.
FAQ
What specific `voltage` range should I expect from the main battery line on my Nakto e-bike?
Nakto electric bikes typically operate on 36V or 48V DC systems. Therefore, you should measure approximately 36V or 48V (fully charged, this might be closer to 42V or 54.6V respectively) across the thick Red `hot wire` and Black `ground wire` coming from the battery pack. Always consult your specific model’s specifications, as using an incorrect `voltage` battery will inevitably damage the controller and potentially other components.
How do I confirm the `wire color code` if my Nakto model’s diagram seems different?
If your specific `nakto electric bike wiring diagram` differs or is unavailable, the most reliable method is to use a digital multimeter. Trace each wire from its source to its destination. For power lines, test for `voltage` relative to the `ground wire`. For signal lines, look for expected `voltage` changes (e.g., throttle signal) or continuity. When in doubt, contact Nakto customer support with your bike’s serial number for model-specific schematics. Avoid making assumptions based solely on generalized `wire color code` tables.
For precise diagnostics, a multimeter with continuity, `voltage` (DC), and resistance measurement capabilities is indispensable. Always test connectors for `pin assignment` and integrity before inserting.
Is it acceptable to splice wires or should I always replace a complete harness?
While replacing a complete wiring harness ensures OEM reliability and aesthetics, careful, high-quality splicing is acceptable for localized repairs, especially for signal wires or auxiliary power lines. For main battery and motor phase wires where high current flows, splicing must be done using proper techniques: soldiering (preferably), crimping with appropriately sized connectors, and sealing with marine-grade heat-shrink tubing to prevent corrosion and ensure maximum conductivity. Poor splices increase resistance, leading to heat and potential failure.
What is the function of the `terminal block` on my Nakto e-bike’s controller?
A `terminal block` (or connector) on your Nakto e-bike’s controller serves as the primary interface for connecting various electrical components like the battery, motor, throttle, display, and sensors. It centralizes all `pin assignment` points, ensuring secure and organized electrical connections. Each pin or terminal within the block is designed for a specific `wire color code` and function, channeling power, ground, and signals throughout the system. Proper seating within these blocks is crucial for system functionality and safety.
According to OEM specifications for most e-bike controllers, the main battery `terminal block` is designed to withstand continuous currents of 20-30A, with burst currents up to 60A. Ensure all connections meet or exceed these current ratings to prevent thermal breakdown.
Step-by-Step Guide to Understanding the Nakto Electric Bike Wiring Diagram: Wiring & Maintenance 2026
Identify – Disconnect the battery and identify all major components: battery, motor, controller, display, throttle, and brake levers.
Locate – Using the Nakto electric bike wiring diagram, locate the specific connectors and wire bundles corresponding to the components you are working with.
Reference – Carefully reference the wire color code and pin assignment chart provided in the diagram to understand each wire’s function (e.g., hot wire, ground wire, signal).
Connect/Route – Following the diagram, securely connect the wires, ensuring correct polarity and pin assignment. Route wires properly to avoid pinching or abrasion.
Verify – Before reconnecting the battery, perform a visual inspection of all connections for security and proper insulation. Use a multimeter to verify continuity and correct voltage where applicable.
Troubleshoot – If components do not function correctly after initial connection, refer to the ‘Common Wiring Mistakes & Troubleshooting’ section to diagnose potential issues like loose connections or incorrect wire color code application.
Frequently Asked Questions
What wire color is for the motor on nakto electric bike wiring diagram?
On a Nakto electric bike wiring diagram, motor phase wires typically come in yellow, green, and blue, corresponding to the motor’s three phases. The main positive hot wire for the motor controller is usually thick red, and the main negative ground wire is thick black. Always verify with the specific diagram for your Nakto model as color codes can vary slightly.
What do the pin numbers mean on nakto electric bike wiring diagram?
Pin numbers on a Nakto electric bike wiring diagram denote specific electrical connections within multi-pin connectors. Each pin corresponds to a particular signal or power line, such as throttle input, brake cut-off, display communication, or battery power. Correct pin assignment is essential for components to function, and incorrect connections can cause malfunctions or damage to the system.
How many wires does nakto electric bike wiring diagram have?
A typical Nakto electric bike wiring diagram involves numerous wires connecting various components. This includes thick power wires (hot wire and ground wire) for the battery and motor, thinner signal wires for the throttle, brakes, display, and possibly PAS (Pedal Assist Sensor), often totaling 10-20 distinct wire runs depending on the bike’s features and complexity.
What are common wiring mistakes with nakto electric bike wiring diagram?
Common wiring mistakes include reversing polarity (connecting hot wire to ground), incorrect pin assignment in connectors, loose connections leading to intermittent power, or failing to insulate exposed wire sections. Overloading circuits by using incorrect gauge wire or not following the specified wire color code can also lead to shorts, component damage, or even fire hazards.
Do I need a specific motor controller for nakto electric bike wiring diagram?
Yes, a Nakto electric bike requires a motor controller specifically designed for its motor type (e.g., brushed or brushless, geared or direct drive) and voltage (e.g., 36V or 48V). The wiring diagram details how this controller integrates into the system, managing power flow from the battery to the motor, interpreting signals from the throttle and sensors, and ensuring efficient operation.
What gauge wire does nakto electric bike wiring diagram require?
The Nakto electric bike wiring diagram typically specifies different wire gauges based on current requirements. Thicker wires (e.g., 10-14 AWG) are used for high-current paths like battery to controller and controller to motor (hot wire and ground wire). Thinner wires (e.g., 18-24 AWG) are used for low-current signal lines, such as throttle, display, and brake cut-off sensors, to prevent overheating and ensure efficient power delivery.
