The Ford F-150 door lock latch assembly is mounted inside the rear edge of the door shell. It integrates a mechanical latch mechanism, exterior/interior release control rods, and a 4-pin electric actuator motor (power/ground, lock/unlock switches). Wiring typically includes a Grey/Violet signal line and a Black/Blue ground for actuator control.
📌 Key Takeaways
- The power door lock actuator operates on 12V DC, drawing approximately 2-5 amps during momentary lock/unlock pulses.
- Critical mechanical control includes the exterior handle linkage rod, interior handle cable, and lock cylinder rod attached to plastic retaining clips.
- Torque the three T27 or T30 Torx latch mounting bolts to 7-9 Nm (62-80 in-lbs) during reinstallation.
- The primary failure mode is frozen latch linkages, broken plastic retainer clips, or a failed internal actuator motor commutator.
- Mechanical linkage alignment and clip replacement are straightforward DIY tasks, but electronic body control module (BCM) fault tracing may require advanced diagnostic tools.
Navigating the complex mechanical and electrical configuration of the modern Ford F-150 door security network requires a precise understanding of its internal latch components. Whether servicing a standard 12th-generation truck or a modern 14th-generation vehicle equipped with Intelligent Access keyless entry, consulting an accurate blueprint of the door locking mechanism is essential for efficient field diagnosis. The integrated lock motor, door-ajar microswitch, and mechanical control linkages form a tightly packaged module inside the door shell. The following technical manual breaks down the physical component layout, wiring schematics, connector pinout standards, and electrical diagnostics necessary to troubleshoot and replace the door latch assembly effectively.

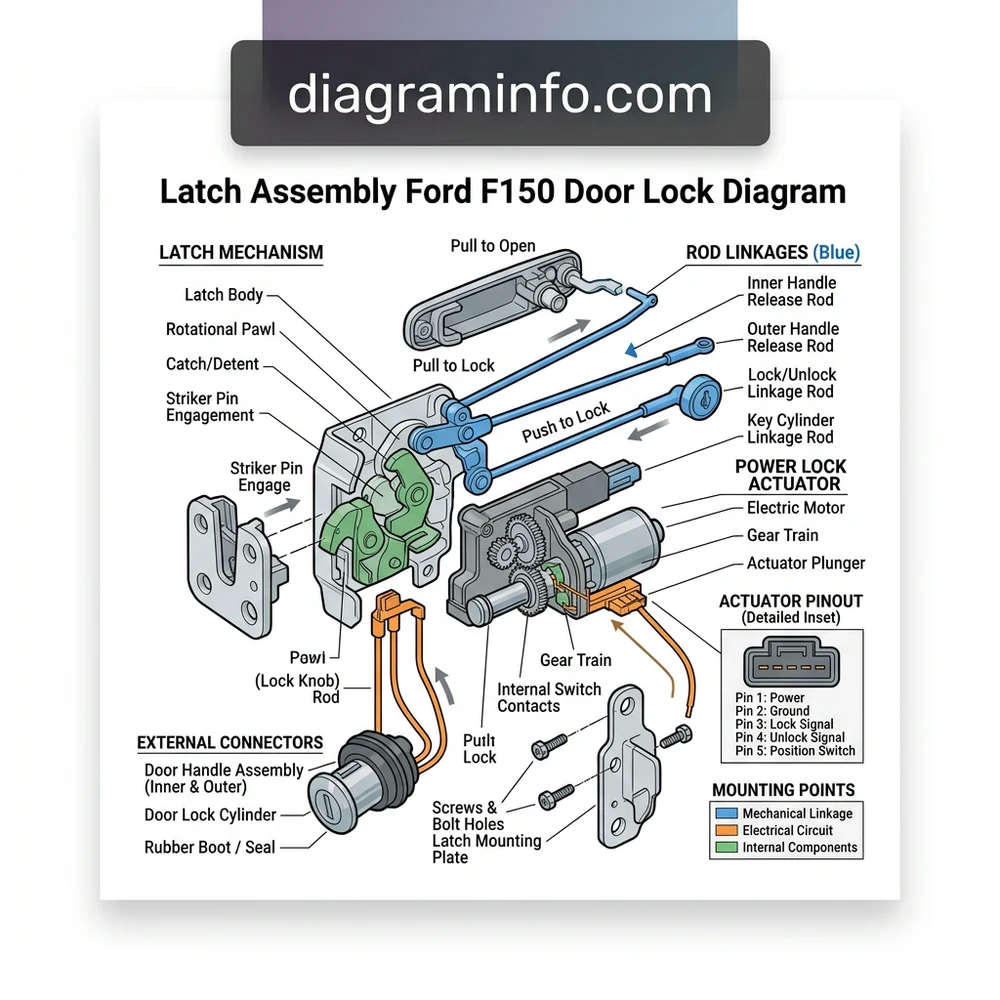

Anatomy of the Latch Assembly Ford F150 Door Lock Diagram
The Ford F-150 door latch system combines mechanical actuation with electronic motor drive controls within a single sealed composite housing. Understanding how these sub-components interface helps technicians isolate mechanical binding from internal electrical switch failures.
Mechanical Linkages and Cable Assembly Structure
The physical actuation layout relies on a dual-cable architecture connected directly to the inner and outer handle assemblies. The interior release handle pulls a high-tension steel cable sheathed in a polymer lining to release the internal retention pawl. The exterior door handle utilizes an adjustable control rod or secondary cable, depending on the model year, which connects directly to the exterior release lever arm on the latch housing. When the latch engages the door pillar striker bolt, a hardened steel primary jaw rotates and locks into a double-catch position. This jaw is wrapped in self-lubricating nylon to suppress cabin acoustic vibration and reduce operational wear during repeated door slam cycles.
Power Lock Actuator Motor and Integrated Microswitches
Modern F-150 latch modules house a reversible direct-current (DC) motor inside an IP67-rated weather-sealed casing. When triggered by the central locking system, the motor turns a worm gear array to push or pull a lock slider cam. This mechanical cam shifts the internal leverage pivot, disconnecting the handle release levers from the release pawl when locked. The internal structure also integrates crucial sensing switches:
- Door Ajar Switch: A normally-open microswitch that closes to ground when the primary latch jaw opens past the first safety detent.
- Lock/Unlock Status Switch: Provides continuous contact feedback to the vehicle monitoring computer to confirm whether the mechanical deadbolt is thrown, enabling features like auto-relocking and security system arming.
Factory OEM Part Reference: FL3Z-1521813-A (Front Left Latch Assembly). Door Latch Retaining Torx Screws (3x T30): Torque to 9 Nm (80 lb-in). Exterior Handle Bracket Bolt (8mm): Torque to 8 Nm (71 lb-in). Operating Voltage Range: 9.0V DC to 16.0V DC. Peak Current Draw: 4.2 Amps at 12.6V DC.
| Component Name | Primary Function | Common Failure Mode |
|---|---|---|
| Bi-Directional DC Motor | Drives worm gear to shift locking pivot cam | Commutator brush wear, high resistance shorting |
| Door Ajar Microswitch | Monitors door jaw closure status for BCM logic | Contact corrosion causing false “Door Ajar” dash warnings |
| Inner Release Sheath Cable | Transfers interior handle pull to latch pawl | Plastic retaining end-clip fracture causing lever slack |
| Primary Catch Jaw | Secures door to B-pillar/C-pillar striker pin | Nylon coating degradation leading to latch misalignment |
Reading the Ford F150 Door Lock Latch System Wiring Schematic
Diagnosing electrical interruptions within the lock system requires analyzing the schematic routing between the door shell harness, inline body connectors, and the vehicle control modules. For related component teardowns, see our guide on the F-150 power window regulator assembly layout.
Tracing Power Feed and Reversible Ground Circuits
Ford utilizes a polarity-reversing driver system to operate the lock motor in two directions. Rather than using separate power lines for locking and unlocking, the control module swaps positive voltage and ground polarity across two dedicated control wires during a 350-millisecond pulse window.
- Lock Cycle: The control module applies +12V DC to the Lock Drive circuit (typically Gray/Brown wire) while grounding the Unlock Drive circuit (typically Blue/Green wire).
- Unlock Cycle: The control module reverses polarity, sending +12V DC down the Unlock Drive circuit while maintaining the Lock Drive line at chassis ground.
This reversible circuit setup means that an open circuit on either wire renders both locking and unlocking functions completely inoperative for that specific door assembly.
Pinout Configuration Across Recent F-150 Generations
While wire color codes fluctuate across model years, the pin layout on the primary 6-pin latch harness connector follows a standardized structure. Understanding pin numbering prevents wiring errors during harness repair:
- Pin 1 (Lock Motor Supply): Receives +12V reverse-polarity pulse for lock command.
- Pin 2 (Unlock Motor Supply): Receives +12V reverse-polarity pulse for unlock command.
- Pin 3 (Door Ajar Sense Line): Low-current signal wire connected directly to the sensing module. Pulls to ground when door opens.
- Pin 4 (Chassis Ground Reference): Provides clean ground path for microswitch logic circuits.
- Pin 5 (Key Cylinder Disarm Switch): Driver door only; signals physical key rotation state to disarm factory anti-theft systems.
- Pin 6 (Intelligent Access Proximity Reference): Used on high-series trims to transmit proximity handle switch data.
Signal Logic and Body Control Module Integration
The latch assembly does not actuate independently; it relies on command inputs from the Body Control Module (BCM). The BCM monitors door handle sensors, remote keyless entry signals, and door keypad inputs. If the door ajar microswitch continuously reads shorted to ground, the BCM logic engine will disable autolock routines, sound the horn double-chirp when pressing lock on the key fob, and leave interior cabin lighting energized. For issues with keyless entry integration, refer to our manual on Ford intelligent access keyless entry troubleshooting.
Diagnosing Faults in the Latch Assembly Ford F150 Door Lock Diagram
Isolating door latch failures efficiently requires systematic electrical measurements and mechanical checks before replacing expensive modules.
Electrical Continuity and Voltage Drop Testing
When an actuator fails to respond to lock switches, verify power delivery at the door jamb inline harness connector before removing the interior trim panel:
- Backprobe the Lock and Unlock feed circuits at the door latch pigtail connector using a Digital Multimeter (DMM) set to DC Volts or a high-impedance LED test light.
- Trigger the lock switch on the driver door armrest. A brief 12-volt pulse should appear on the meter display.
- If voltage is present but the actuator fails to cycle, perform a static resistance check across Pin 1 and Pin 2 of the disconnected latch module. Standard coil resistance should read between 2.0 and 8.0 ohms. An infinite reading (OL) indicates an open internal motor winding.
- If voltage is absent, perform a voltage drop test along the harness through the flexible rubber boot at the door jamb. Wire fatigue and broken copper strands inside this hinge flex area account for over 60% of door power loss conditions.
Door cavity interiors contain high-sensitivity pressure sensors utilized for side-curtain airbag deployment logic. Disconnect the vehicle primary 12V battery and wait at least 1 minute before reaching inside the door shell structure with metal tools to prevent inadvertent wire shorting near airbag harness routing paths.
Mechanical Binding and Cable Slack Failures
If the electric motor functions visibly but the door fails to unlatch from inside or outside, the failure point is typically mechanical linkage slack or broken retention clips. Remove the inner door trim panel and inspect the release cable end fittings. If the plastic retaining ferrule snaps off its stamped metal bracket, pulling the handle flexes the cable housing rather than moving the release lever arm, keeping the latch jaw closed.
Ford Technical Service Bulletins (TSB 19-2319 / TSB 20-2131) address freezing door latches on 2015-2020 F-150 models. Water bypasses the outer window belt weatherstrips, dripping onto the mechanical latch cables and freezing inside the cable jacket. Resolution requires installing updated cable rain shields and applying low-temperature silicone grease to the internal latch release pawl.
Ford F150 Door Lock Latch Overview and Frequently Asked Questions
Why does my F-150 display “Door Ajar” on the dash when the door is closed?
This condition occurs when the door ajar microswitch inside the latch housing becomes stuck in the closed position due to mechanical wear, carbon buildup, or latch alignment sagging. Spraying electrical contact cleaner directly into the latch mechanism while cycling the latch manually can temporarily clean the contacts, but permanent resolution usually requires replacing the integrated latch module.
Can I replace just the actuator motor without buying the complete latch assembly?
On 2009 and newer Ford F-150 models, the lock actuator motor, microswitches, and mechanical latching jaws are sealed within a single riveted housing assembly. The internal sub-components are not sold separately by OEM suppliers, making complete latch module replacement mandatory when the actuator motor fails.
What torque specification should be applied to the door latch retaining bolts?
The three T30 Torx mounting screws securing the latch to the outer door edge must be torqued precisely to 9 Nm (80 lb-in). Over-tightening these bolts distorts the stamped aluminum or steel sheet metal of the door shell, causing the internal mechanical release pawl to bind.
How do I clear persistent door-ajar diagnostic trouble codes after fixing the latch?
Once you install a new latch assembly and restore correct continuity, you can clear soft codes from the control system using a professional diagnostic scan tool connected to the OBD-II port, or by performing a battery hard-reset procedure. Advanced diagnostic procedures are detailed in our guide on Ford F-150 Body Control Module programming.
Step-by-Step Guide to Understanding the Latch Assembly Ford F150 Door Lock Diagram
Identify – Inspect the diagram layout for release rod attachment points, electrical pin locations, and mounting bolt positions.
Locate – Position the latch assembly inside the rear edge of the interior door cavity behind the water vapor barrier.
Reference – Use the configuration diagram to match linkage rods and cables to their corresponding color-coded retaining clips.
Connect/Route – Snap mechanical rods into plastic clips, route the interior handle cable, and seat the 4-pin electrical connector firmly.
Verify – Perform physical latch closure tests with a screwdriver while operating interior/exterior handles and cycling 12V power lock buttons.
Troubleshoot – Test for 12V pulses at the actuator harness using a multimeter if the lock motor fails to respond.
