Designing a reliable facility requires more than just high-end servers; it demands a robust electrical infrastructure that ensures 24/7/365 availability. A comprehensive data center power distribution diagram serves as the essential blueprint for ensuring continuous operation and maximizing uptime. Whether you are building a new facility, performing an audit, or upgrading an existing system, understanding the layout and configuration of power flow is critical for operational success. This guide provides an in-depth overview of the system structure, identifying each key component and explaining how to interpret a schematic to maintain a resilient and efficient environment. By the end of this article, you will have a professional-grade understanding of how power moves from the utility grid down to the individual server rack.
A data center power distribution diagram is a hierarchical map. It typically starts with high-voltage utility feeds at the top and narrows down to low-voltage equipment at the bottom, following the physical flow of electrons through the facility.
Understanding the Main Diagram Components

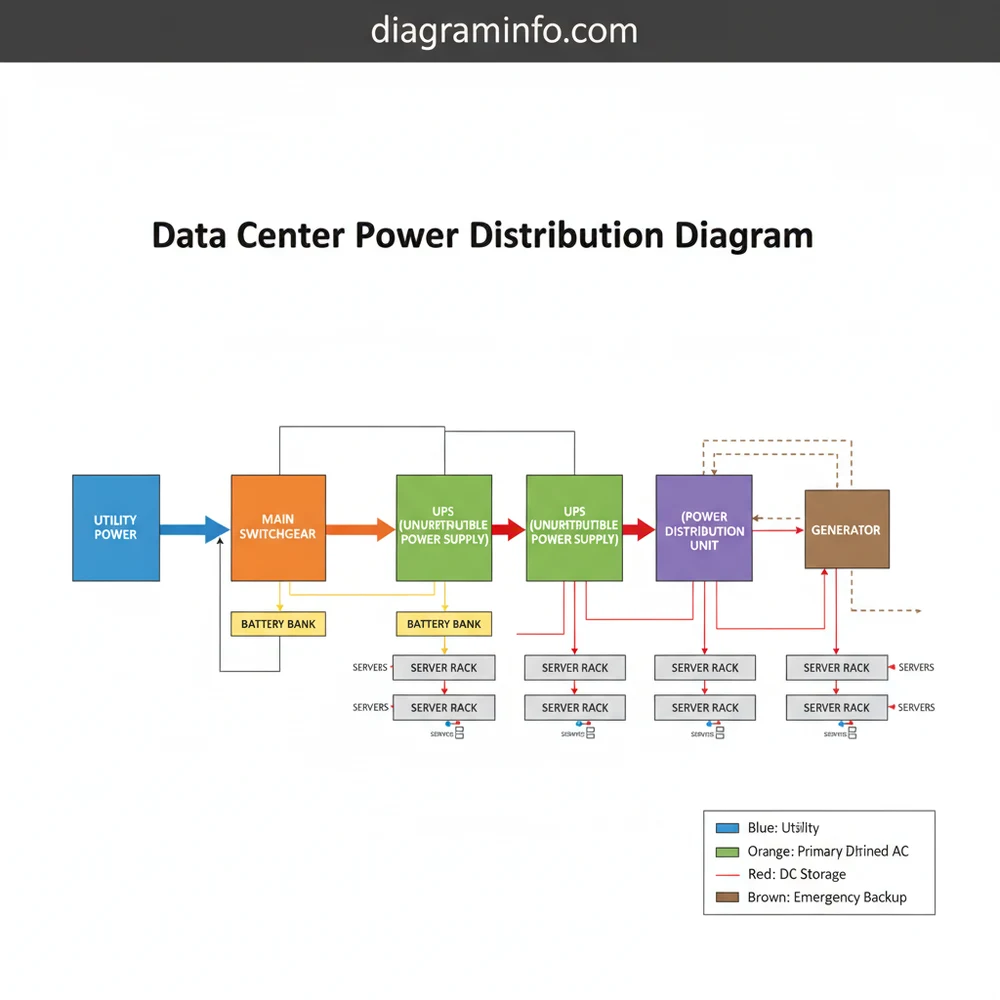

A professional data center power distribution diagram is a complex schematic that illustrates the journey of electricity through various stages of conditioning and protection. The structure is typically divided into three main zones: the Entrance/Utility zone, the Conditioning zone (UPS), and the Distribution zone.
At the highest level of the overview, we find the Utility Feed and the Generator Plant. These are usually connected via an Automatic Transfer Switch (ATS). In a standard configuration, the ATS monitors the utility health; if voltage drops or a phase is lost, it signals the generators to start and switches the load. The diagram represents this with a “logic gate” symbol, showing two inputs and one output.
Moving downstream, the electricity enters the Uninterruptible Power Supply (UPS) system. This is the heart of the system configuration. In the schematic, you will see the UPS represented as a block containing a rectifier (converting AC to DC to charge batteries) and an inverter (converting DC back to clean AC for the load). Many modern blueprints also include a Maintenance Bypass, which allows technicians to service the UPS without dropping the load to the servers.
The final stage of the layout involves the Power Distribution Units (PDUs) and Remote Power Panels (RPPs). These components are responsible for stepping down the voltage (e.g., from 480V to 208V or 120V) and branching the power into smaller circuits. On a technical schematic, these look like a series of branching lines emanating from a single busbar, leading eventually to the Rack PDUs (rPDUs) located inside the server cabinets.
Step-by-Step Guide: How to Read and Implement the Diagram
Interpreting a data center power distribution diagram requires a systematic approach. You cannot simply look at a single component; you must follow the “path of the electron” to understand how redundancy and failovers are built into the system. Use the following steps to master the reading of any power blueprint.
Step 1: Locate the Primary and Secondary Feeds
Start at the very top of the schematic. Look for symbols representing the Utility Transformer and the Backup Generator. In high-availability environments (Tier III or IV), you will likely see two separate utility feeds (Feed A and Feed B). Identifying these sources tells you the maximum capacity of the facility and the level of redundancy at the entrance.
Step 2: Identify the Transfer Switches
Trace the lines from the power sources until they meet. This intersection is the ATS (Automatic Transfer Switch) or an STS (Static Transfer Switch). The diagram will show which source is “Normal” and which is “Emergency.” Understanding this connection is vital for troubleshooting why a generator failed to take the load during a utility outage.
Step 3: Analyze the UPS Configuration
The UPS section of the diagram often contains the most detail. Look for the “N+1” or “2N” labels. An N+1 system means there is one extra module for backup, while a 2N system means there are two completely independent power paths. If the diagram shows two parallel lines that never touch until the server rack, you are looking at a high-resiliency 2N layout.
Never assume a diagram is up to date during live maintenance. Always verify the “As-Built” status against the physical equipment. Operating on a circuit based on an outdated schematic can lead to accidental downtime or electrical injury.
Step 4: Trace the Voltage Transformation
Identify where transformers are located. Most large data centers distribute power at 480V to minimize line loss. However, IT equipment typically runs on lower voltages. The diagram will use a symbol (often two overlapping circles) to indicate where a transformer is stepping down the voltage. Note the “K-rating” of these transformers if listed, as this indicates their ability to handle the “dirty” harmonic power generated by server power supplies.
Step 5: Inspect the Rack-Level Distribution
Follow the lines to the PDUs and finally to the individual racks. In a 2N environment, each rack will receive two separate feeds (often color-coded Red and Blue). The diagram should show these feeds originating from different UPS systems. This ensures that even if an entire UPS plant fails, the servers continue to run on the alternate path.
Step 6: Verify the Load Monitoring Points
Modern diagrams include “M” symbols at various junctions. These represent monitoring points where sensors measure current, voltage, and power factor. Identifying these points on your schematic helps you know where to look in your DCIM (Data Center Infrastructure Management) software when assessing real-time capacity.
Common Issues & Troubleshooting with Diagrams
📤 Share
💾 Download
A data center power distribution diagram is your primary diagnostic tool when things go wrong. Without it, finding a fault in a facility with miles of cabling is nearly impossible.
- ✓ Phase Imbalance: If one phase of a three-phase system is carrying significantly more load than others, it can cause heat buildup and premature breaker trips. The diagram helps you identify which PDUs are tied to which phases so you can redistribute the load.
- ✓ Harmonic Distortion: Switching power supplies in servers can create “noise” on the line. If you notice equipment behaving erratically, use the blueprint to check if high-efficiency isolation transformers are correctly placed in the path.
- ✓ Single Points of Failure: Often, a system is thought to be redundant, but a schematic reveal that both “A” and “B” feeds actually pass through a single common busbar or switch. Troubleshooting these “hidden” bottlenecks is a key use of a thorough diagram.
If you encounter a “cascading failure” where one breaker trip causes others to follow, the diagram allows you to perform a Selective Coordination study. This determines if the downstream breakers are faster than the upstream ones, ensuring that a fault in one rack doesn’t take out an entire row.
Tips & Best Practices for Power Management
Maintaining a healthy data center requires proactive management of the electrical system. Efficiency and safety should be your top priorities when implementing the designs found in your data center power distribution diagram.
Implement color-coding for all physical cabling that matches your diagram. For example, use blue cables for the ‘A’ feed and red for the ‘B’ feed. This simple step reduces human error during emergency maintenance by 80%.
1. Prioritize Modular Components: When looking at your system configuration, consider using modular UPS and PDU units. These allow you to scale your capacity as your data center grows, without needing to rewrite your entire electrical schematic or perform dangerous “hot-work” installations.
2. Regular Thermal Imaging: Every six months, use an infrared camera to inspect the physical components listed on your blueprint. Loose connections or failing breakers will show up as “hot spots” long before they fail. Use the diagram to log these temperatures and track the health of specific circuits over time.
3. Optimize PUE (Power Usage Effectiveness): Use your distribution layout to identify where energy is being wasted. Large transformers that are under-loaded (running at less than 20% capacity) are often inefficient. By consolidating loads as shown on your RPP and PDU schedules, you can improve your facility’s overall efficiency and lower utility costs.
4. Quality Component Selection: Ensure that all breakers, switches, and cables meet or exceed the specifications in your blueprint. Using “budget” breakers in a high-density environment often leads to “nuisance tripping,” where the breaker shuts off under normal (but high) load conditions.
In conclusion, a well-maintained data center power distribution diagram is not just a piece of paper; it is the fundamental logic that keeps the digital world spinning. By understanding how to read the components, following a structured approach to interpretation, and applying best practices in maintenance, you can ensure that your facility remains a pillar of reliability. Always keep your diagrams updated as your layout evolves, ensuring that your roadmap to power remains accurate for the life of the data center.
