Trailer Wiring Diagram 5 Pin: Easy Setup Instructions
A 5-pin trailer wiring diagram illustrates the connections for ground, tail lights, left and right turn signals, and a fifth blue wire for surge brake lockouts or reverse lights. Use it to identify each hot wire and ensure the common terminal is grounded properly to prevent electrical shorts during towing.
📌 Key Takeaways
- The fifth pin is typically used for hydraulic surge brake lockouts.
- Identifying the white ground wire is the most critical first step.
- Always use a circuit tester to verify each hot wire before final installation.
- Ensure the common terminal has a clean, metal-to-metal connection.
- Use this diagram when upgrading from a 4-pin to a 5-pin system for boat trailers.
When you are preparing to tow a boat, utility trailer, or camper, ensuring your electrical system is perfectly synced with your vehicle is a matter of both safety and legal compliance. A clear trailer wiring diagram 5 pin is an indispensable tool for any DIY enthusiast looking to upgrade from a standard 4-pin setup or repair a damaged harness. While 4-pin connectors are common for basic lighting, the 5-pin configuration adds a crucial fifth circuit, typically used for reverse lights or hydraulic surge brake lockouts. Having the correct diagram prevents blown fuses, protects your vehicle’s sensitive electronics, and ensures that your trailer signals remain visible to other drivers. In this guide, you will learn exactly how to map each wire, identify the correct gauge for your load, and troubleshoot common connection failures.
Decoding the 5-Pin Trailer Wiring Layout
Understanding a trailer wiring diagram 5 pin requires more than just looking at a series of colors; it requires understanding the specific function of each terminal. The 5-pin connector is essentially a 4-pin flat connector with an additional blue wire. This configuration is most commonly found on boat trailers where the fifth wire connects to the backup lights or a solenoid that disables the surge brakes when the vehicle is in reverse. This prevents the trailer brakes from locking up while you are trying to back down a boat ramp or into a driveway.
In the world of trailer electronics, the wiring follows a standardized color-coding system. However, physical connectors can vary between the “flat” style and the “round” style. In a flat 5-pin connector, the pins are arranged in a row, while a round 5-pin connector arranges them in a circular pattern, often utilizing a brass screw to secure each wire to its respective common terminal.
While AC electrical systems use a neutral wire to return current, DC trailer systems use a ground wire (typically white) connected directly to the trailer frame or the vehicle chassis to complete the circuit.
The five wires are typically categorized as follows:
- ✓ White (Ground): The common terminal for the entire system; it must be securely fastened to the metal frame.
- ✓ Brown (Tail/Running Lights): Supplies constant voltage to the trailer’s marker and tail lamps.
- ✓ Yellow (Left Turn/Brake): Carries the signal for the left-side directional and stop lights.
- ✓ Green (Right Turn/Brake): Carries the signal for the right-side directional and stop lights.
- ✓ Blue (Reverse/Auxiliary): Often called the traveler wire in certain contexts, it sends power to reverse lights or the brake solenoid.

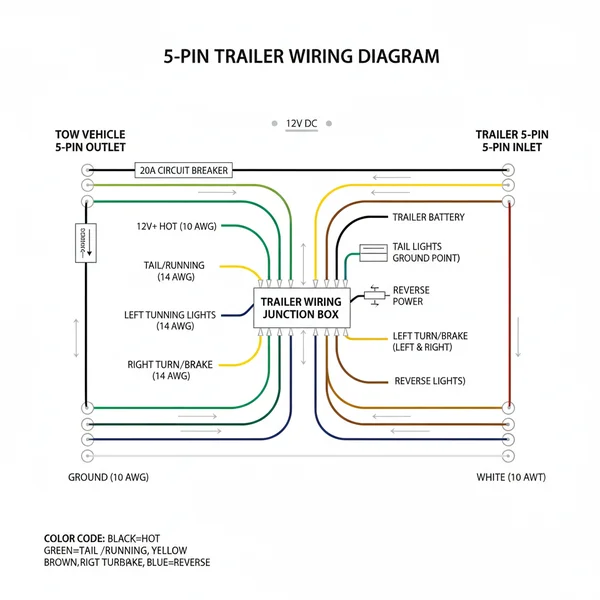

graph TD
A[Vehicle Plug] --> B{5-Pin Connector}
B -- White --> C[Ground/Frame]
B -- Brown --> D[Tail & Marker Lights]
B -- Yellow --> E[Left Turn & Brake]
B -- Green --> F[Right Turn & Brake]
B -- Blue --> G[Reverse Lights/Surge Solenoid]
style C fill:#fff,stroke:#333
style D fill:#8B4513,stroke:#fff,color:#fff
style E fill:#FFFF00,stroke:#333
style F fill:#008000,stroke:#fff,color:#fff
style G fill:#0000FF,stroke:#fff,color:#fff
Step-by-Step Installation and Wiring Guide
Setting up your 5-pin system correctly ensures that your lights don’t flicker and your brakes don’t lock unexpectedly. Follow these steps to interpret the trailer wiring diagram 5 pin and execute a professional-grade installation.
Step 1: Gather Your Tools and Materials
Before starting, ensure you have a high-quality wire stripper, a crimping tool, heat-shrink tubing, and a multimeter to test voltage. Check your wire gauge; typically, 16-gauge is sufficient for signal wires, but 14-gauge is recommended for the ground and auxiliary wires to minimize resistance over long distances.
Step 2: Prepare the Mounting Location
Position your connector on the vehicle and trailer so that there is enough slack for sharp turns but not so much that the harness drags on the ground. Use zip ties or plastic looms to protect the wires from road debris.
Step 3: Connect the Ground Wire (White)
The ground wire is the most critical component. Unlike a home neutral wire, the trailer ground must have a clean, metal-to-metal connection. If using a round connector, secure this to the designated common terminal using the brass screw. If using a flat connector, screw the white wire terminal directly into the trailer tongue after sanding away any paint or rust.
Step 4: Map the Lighting Circuits
Connect the Brown wire to the tail light circuit. Then, connect the Yellow wire to the left signal and the Green wire to the right signal. In many modern vehicles, the hot wire for these signals is integrated into a factory tow package, making this a simple plug-and-play operation.
Step 5: Integrate the Reverse/Auxiliary Line (Blue)
Locate the reverse light circuit on your vehicle. This wire becomes “hot” only when the vehicle is in reverse. Tap into this wire and connect it to the blue pin on your 5-pin harness. This acts as the traveler wire, carrying the reverse signal from the front of the vehicle to the rear solenoid or lights.
Never attempt to test trailer wiring by looking at the lights alone. Use a circuit tester or multimeter to verify the voltage at each pin. A bad ground can cause “back-feeding,” where power travels through the wrong circuit, potentially damaging your vehicle’s engine control unit (ECU).
Step 6: Insulate and Protect
Once all wires are connected to their respective terminals, use heat-shrink tubing or electrical tape to seal the joints. Moisture is the enemy of trailer wiring; any exposed copper will corrode quickly, especially on boat trailers exposed to salt water.
Step 7: Final Testing
With the trailer hitched, have a partner walk around the trailer while you operate the lights, turn signals, and brakes. Finally, shift the vehicle into reverse to ensure the backup lights or surge brake solenoid activates correctly.
Troubleshooting Common 5-Pin Wiring Issues
Even with a perfect trailer wiring diagram 5 pin, issues can arise due to wear and tear or environmental factors. If your lights are dim or non-functional, the ground wire is the first place to look. A weak ground often causes lights to flash intermittently or causes one circuit (like the turn signal) to dim the tail lights when activated.
Another frequent problem is a blown fuse in the tow vehicle. Many manufacturers provide separate fuses for trailer lighting to protect the main vehicle hot wire circuits. If you lose power to only one side of the trailer, check the vehicle’s fuse box under the hood or dashboard.
If your trailer brakes lock up while backing up, the blue wire is likely disconnected or not receiving voltage. Use a multimeter to check the blue terminal while the vehicle is in reverse (with the parking brake engaged!).
Corrosion inside the plug is also a major culprit. If your connector uses a brass screw, these can loosen over time due to vibration. Periodically open round connectors to ensure the common terminal and signal wires are still tightly seated. If you see green “crust” on the copper, it’s time to strip the wire back and make a fresh connection.
Best Practices for Long-Term Maintenance
To keep your trailer wiring in top shape, consistency is key. Always use the correct wire gauge; using wire that is too thin can lead to overheating and a drop in voltage, which makes your lights appear dim.
1. Use Dielectric Grease: Apply a small amount of dielectric grease to the pins of your connector before every trip. This non-conductive grease blocks moisture and prevents oxidation, ensuring that the voltage flows freely across the connection.
2. Secure Your Harness: Ensure the wires are not hanging low enough to snag on a speed bump or road debris. Use heavy-duty zip ties or UV-resistant wire loom to bundle the wires together.
3. Choose Quality Components: When buying a new 5-pin harness, look for one with tinned copper wires. Tinned wire is significantly more resistant to corrosion than standard copper, making it ideal for marine environments.
4. Regular Inspection: Once a season, inspect the entire length of the wiring for frayed insulation. Mice and other rodents often find trailer wiring to be an appealing snack while trailers are in storage.
By following a detailed trailer wiring diagram 5 pin and adhering to these maintenance tips, you ensure that your towing experience is smooth and hazard-free. Whether you are backing a boat into the water or hauling equipment across state lines, a properly wired 5-pin system provides the extra layer of functionality and safety needed for modern towing. Proper grounding at the common terminal, selecting the right gauge, and protecting your hot wire connections will save you time and money in the long run, preventing the need for costly professional repairs.
