125cc Pit Bike Wiring Diagram Kick Start: Wiring & Maintenance 2026
For a 125cc pit bike kick start, key connections involve the CDI, stator, kill switch, and ignition coil. Typically, the black/red wire from the stator powers the CDI, blue/white is the trigger, green is ground, and black/white goes to the kill switch. Ensure all connections are secure and corrosion-free for reliable starting.
📌 Key Takeaways
- Stator output for ignition is typically AC (alternating current), usually a black/red wire, and provides power directly to the CDI unit.
- Proper grounding (green wires) is critical for all 125cc pit bike electrical systems; a poor ground wire connection can lead to no spark or intermittent misfires.
- Verify all connections for secure fit and corrosion protection; loose or corroded terminals are a primary cause of starting issues and electrical failures.
- CDI unit failures (resulting in no spark) are common; always check power input, trigger signal, and ground wire connections before replacing the unit.
- If troubleshooting spark issues persists after checking basic connections and components, such as stator output and coil resistance, professional diagnosis is recommended.
Navigating the electrical system of a 125cc pit bike, especially one designed for kick-start operation, demands a precise understanding of its wiring architecture. This comprehensive guide provides a detailed 125cc pit bike wiring diagram kick start explanation, essential for any mechanic or enthusiast performing diagnostics, component replacement, or custom electrical modifications. A clear wiring diagram is not merely a reference; it is an indispensable tool for identifying the function of each wire color code, confirming pin assignment, and ensuring correct voltage distribution. Mastery of these connections is critical for reliable ignition, consistent charging (if applicable), and overall operational integrity, preventing common electrical failures and maximizing your pit bike’s performance.
WIRE COLOR REFERENCE TABLE
| Wire Color | Function | Typical Pin/Terminal | Notes |
|---|---|---|---|
| Black/Red (B/R) | AC Ignition Power Input | CDI (Input) | High voltage AC from stator’s ignition coil. Crucial for AC CDI systems. |
| Blue/White (Bl/W) | Pulse Generator (Pickup Coil) Signal | CDI (Input) | Low voltage AC signal for ignition timing. |
| Green (G) | Ground Wire | CDI, Ignition Coil, Regulator/Rectifier, Stator, Frame | Common earth connection for most components. Essential for circuit completion. |
| Black/Yellow (B/Y) | Ignition Coil Output | CDI (Output) to Ignition Coil (+) | High voltage pulse to trigger spark at the plug. |
| Green/White (G/W) or Black/White (B/W) | Kill Switch Input | CDI (Input) | Connects CDI to ground via kill switch, disabling ignition. |
| Yellow (Y) | AC Lighting/Charging (Stator Output) | Regulator/Rectifier (Input) | AC power generated by stator, typically for lights or charging. |
| White (W) | AC Lighting/Charging (Stator Output) | Regulator/Rectifier (Input) | Often paired with Yellow for a two-phase AC output. |
| Red (R) | DC Power Output | Regulator/Rectifier (Output) to Battery/Main Harness | Regulated hot wire DC voltage, typically 12V. |
| Orange (O) | Switched DC Power (Lights/Accessories) | Key Switch (Output) or Accessory Relay | Provides DC power when ignition is on. |
STEP-BY-STEP CONNECTION GUIDE
Adhering to the manufacturer’s wire color code and pin assignment is paramount for the proper function of your 125cc pit bike’s electrical system. This guide assumes a common AC-fired CDI ignition system, typical for many kick-start models. Always cross-reference with your specific model’s documentation as variations can exist. Refer to the diagram provided above for visual confirmation of each connection point and terminal block configuration.
- Stator Assembly Connections: Begin by connecting the stator’s output wires. The Black/Red (B/R) hot wire, originating from the stator’s ignition charge coil, must connect to the corresponding Black/Red (B/R) input terminal on your CDI unit. Simultaneously, the Blue/White (Bl/W) wire from the stator’s pulse generator connects to the Blue/White (Bl/W) input on the CDI. The Green (G) ground wire from the stator assembly should be securely fastened to a dedicated frame ground point or a common grounding harness, ensuring a low-resistance path for the entire electrical system.
- CDI Unit Integration: With the stator inputs secured, connect the CDI outputs. The Black/Yellow (B/Y) wire, carrying the ignition pulse, must be routed directly to the positive (+) terminal of the ignition coil. The Green (G) terminal on the CDI unit is the primary ground wire; ensure this is connected to a robust frame ground point, often shared with other components. For the kill switch function, connect the Green/White (G/W) or Black/White (B/W) wire from the CDI to the corresponding terminal on your kill switch. This wire grounds the CDI to halt ignition when activated.
- Ignition Coil to Spark Plug: The negative (-) terminal of the ignition coil (often identified by its internal winding connection to the coil body) should be grounded directly to the frame using a short, robust Green (G) wire. Ensure this ground wire connection is clean and tight to facilitate efficient spark generation. Attach the high-tension lead from the ignition coil securely to the spark plug cap, then firmly to the spark plug itself. Manufacturer specifications indicate a tight, weather-sealed connection here to prevent voltage leakage.
- Regulator/Rectifier Connections (if present): For models with lighting or a small battery, connect the Yellow (Y) and White (W) AC output wires from the stator to the corresponding input terminals on the regulator/rectifier unit. The Red (R) hot wire from the regulator/rectifier’s output should lead to the main wiring harness, supplying regulated 12V DC. This line often feeds the key switch or directly to lighting circuits. The Green (G) wire from the regulator/rectifier is its essential ground wire; secure it to the frame.
- Ancillary Components & Grounding: Connect any additional components such as headlights or taillights. The positive feed for these will typically come from the Red (R) or Orange (O) regulated DC line, while their individual Green (G) wires must connect to a common ground wire point on the frame. Verify all terminal block connections are fully seated and free from corrosion. According to OEM specifications, utilize appropriate wire gauge for any modifications or replacements to ensure current capacity and prevent overheating.
For optimal conductivity and to prevent voltage drop, ensure all ground wires utilize star washers and are attached to clean, unpainted metallic surfaces on the frame. Inconsistent grounding is a primary cause of intermittent electrical faults in small engines. Consider a dedicated main ground buss bar for complex accessory installations.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Electrical issues on 125cc pit bikes often stem from common installation errors or component failures. Understanding these pitfalls and their remedies is crucial for efficient troubleshooting.
- Incorrect CDI Type (AC vs. DC): A prevalent mistake is installing a DC-powered CDI in an AC-fired system or vice-versa. An AC CDI (common in kick-start bikes) receives ignition power directly from the stator via a Black/Red wire, typically producing a higher voltage AC signal. A DC CDI requires constant 12V DC (often Red or Black switched power). Using the wrong type will result in no spark.
Fix: Verify your existing CDI type by identifying the presence and function of the Black/Red wire (AC source) or a switched 12V DC input (DC source). Replace with the correct type. Refer to this CDI troubleshooting guide for detailed diagnostics. - Poor Ground Connections: Inadequate or corroded ground wire connections are a leading cause of intermittent spark, dim lights, or complete electrical failure. A weak ground effectively introduces resistance into the circuit, dropping the available voltage and current.
Fix: Inspect all Green (G) wires connected to the frame, engine, and components (CDI, ignition coil, regulator/rectifier). Clean contact points thoroughly, ensuring bare metal-to-metal contact. Use dielectric grease to prevent future corrosion. Confirm continuity to the main chassis with a multimeter. - Mis-matched Pin Assignment or Wire Color Code: Despite diagrams, some aftermarket components or older models may have slightly varied pin assignment or wire color code conventions. Connecting the Black/Red to the Blue/White, for instance, will prevent ignition.
Fix: Always consult the specific component’s instruction sheet if available. If not, use a multimeter to trace wire functions. For example, test for AC voltage on the Black/Red wire from the stator when cranking, and for resistance on the Blue/White pulse coil wire. Double-check all connections against the provided diagram, paying close attention to the terminal block arrangement. - Incorrect Wire Gauge: Using an insufficient gauge wire for higher current circuits (like main power feeds to a regulator/rectifier or lights) can lead to excessive resistance, overheating, and potential wire meltdown or fuse blows.
Fix: For main power and ground wires, a minimum of 16 AWG is generally recommended, with 14 AWG preferred for longer runs or higher-draw accessories. Ignition and signal wires (like CDI inputs) can typically be 18-20 AWG. Always select a wire gauge that exceeds the expected current draw by at least 25% for safety and reliability. - Loose or Corroded Terminals: Vibrations inherent in pit bike operation can loosen connections, and exposure to elements causes corrosion. Both lead to increased resistance and intermittent electrical contact.
Fix: Periodically inspect all connectors and terminals. Use contact cleaner for corrosion, and ensure all spade connectors, bullet connectors, and crimps are tight and fully seated. Consider using heat-shrink tubing or waterproof connectors in exposed areas to mitigate environmental damage.
Always disconnect the spark plug lead and ensure the engine is cool before working on any electrical components. Exercise extreme caution when handling ignition components, as the high voltage output can cause severe electrical shock. Wear appropriate personal protective equipment.
FAQ
Can I convert my AC-fired kick-start pit bike to a DC-fired system?
While technically feasible, converting an AC-fired kick-start pit bike to a DC-fired system involves significant modifications. It requires replacing the AC CDI with a DC CDI, installing a battery and a compatible regulator/rectifier capable of charging it, and often modifying the stator to provide sufficient charging output. This can be complex and may require a new wiring harness to manage the constant 12V DC supply needed for the DC CDI, lights, and other accessories. It is generally not a direct swap and often requires careful consideration of the entire electrical load.
My 125cc pit bike has no spark; what are the most common culprits?
No spark issues on a 125cc pit bike with a kick-start often point to a few key areas. First, verify the kill switch is not engaged and its wiring is intact. Second, inspect all ground wire connections, especially for the CDI and ignition coil. Third, test the stator’s ignition charge coil (Black/Red wire) and pulse generator (Blue/White wire) for appropriate resistance and AC voltage output during cranking. Finally, a faulty CDI unit or ignition coil could be the cause. For detailed testing procedures, refer to our guide on pit bike stator testing.
What does “AC-fired” mean for a pit bike’s ignition system?
“AC-fired” refers to an ignition system where the CDI (Capacitor Discharge Ignition) unit draws its primary power directly from a dedicated coil within the stator, producing alternating current (AC). This AC voltage is then converted and stored within the CDI’s capacitor to be discharged to the ignition coil at the precise moment. This design is common in simpler, kick-start-only pit bikes as it eliminates the need for a battery to power the ignition system, allowing the bike to run without an external 12V DC source.
What wire gauge should I use for replacement wires in my pit bike’s electrical system?
Selecting the correct wire gauge is crucial for safety and performance. For the main power leads (like the Red hot wire from the rectifier or main frame ground wire), 14-16 AWG is generally appropriate to handle the current without excessive resistance or heat generation. For ignition trigger wires (like the Blue/White pulse wire) and kill switch wires (Green/White), 18-20 AWG is sufficient as these carry very low current signals. Always err on the side of slightly thicker wire if unsure, as oversized wire causes no harm, while undersized wire can lead to electrical failure.
How do I test the voltage regulator/rectifier on my 125cc pit bike?
To test the voltage regulator/rectifier, you will need a multimeter. First, check the AC input from the stator: with the engine running, measure the AC voltage between the Yellow and White wires (or Yellow and ground, White and ground if a single-phase system) coming from the stator. You should see increasing AC voltage with RPM, typically 20-70V AC. Then, check the DC output: with the regulator/rectifier connected, measure the DC voltage between the Red (DC output) and Green (ground wire). It should provide a stable 12-14.5V DC output as RPM increases. If the output is unregulated (too high or too low) or absent, the unit is likely faulty. For more detailed diagnostics, consult a specific guide on regulator/rectifier testing.

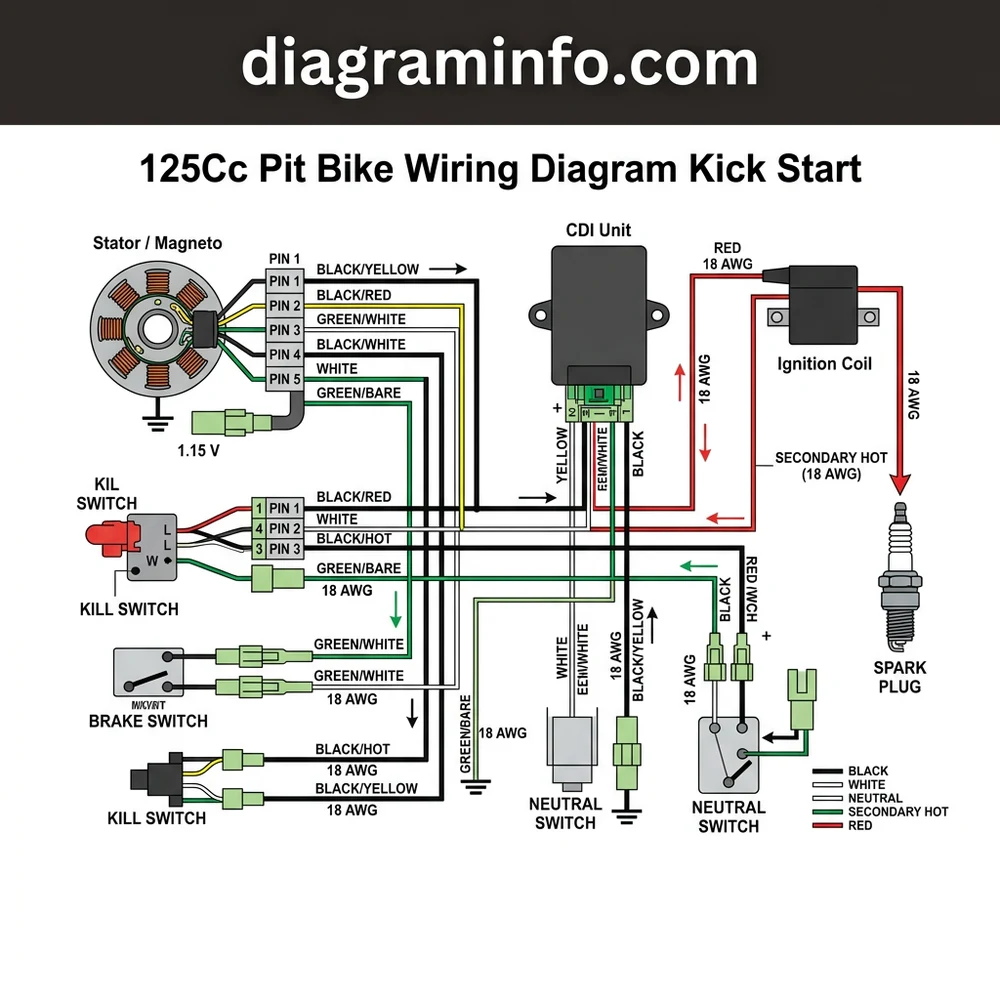

Step-by-Step Guide to Understanding the 125Cc Pit Bike Wiring Diagram Kick Start: Wiring & Maintenance 2026
Identify – Locate your pit bike’s specific 125cc wiring diagram, focusing on the ignition and kick start components such as the stator, CDI unit, ignition coil, and kill switch assembly.
Locate – Physically identify the corresponding components on your pit bike, tracing existing wire harnesses to understand their current routing and connections to the main electrical system.
Reference – Use the diagram’s wire color code table to match each wire to its designated function (e.g., ground wire, hot wire, trigger signal) and understand pin assignment for multi-pin connectors.
Connect/Route – Carefully connect or re-route wires according to the diagram, ensuring each wire is securely attached to its correct pin or terminal, avoiding tension, chafing, or sharp bends.
Verify – Conduct continuity checks with a multimeter on critical circuits (e.g., ground path, kill switch operation) and perform a spark test at the plug to confirm successful ignition system operation after connections are made.
Troubleshoot – If issues persist (e.g., no spark, inconsistent starting), re-examine all connections for looseness or corrosion, test component resistance values as per manufacturer specs, and systematically check for open circuits or short circuits using the diagram as your guide.
Frequently Asked Questions
What wire color is the ignition coil feed on 125cc pit bike wiring diagram kick start?
Typically, the black/yellow wire from the CDI unit connects to the ignition coil’s positive terminal on a 125cc pit bike. This hot wire carries the high-voltage pulse needed to fire the spark plug. Always confirm with your specific pit bike’s wiring diagram for precise identification as wire colors can vary slightly by manufacturer.
What do the pin numbers mean on 125cc pit bike wiring diagram kick start?
Pin numbers on a 125cc pit bike wiring diagram usually refer to specific terminals on multi-pin connectors, such as those found on the CDI unit or stator. They dictate the exact assignment of each wire, ensuring proper signal flow for functions like ignition timing (trigger wire), power input, and grounding. Consulting the diagram’s legend is essential for accurate pin assignment identification.
How many wires does 125cc pit bike wiring diagram kick start have?
A basic 125cc pit bike kick start ignition system typically involves around 5-7 wires connected to the CDI unit. These include input from the stator (power and trigger), output to the ignition coil, connections for the kill switch, and a dedicated ground wire. Additional wires might exist for lights or auxiliary systems, but the core ignition wiring is relatively simple.
What are common wiring mistakes with 125cc pit bike wiring diagram kick start?
Common wiring mistakes include incorrect ground wire connections, reversed polarity for certain components like the kill switch, and loose or corroded terminals. Miswiring the kill switch to an always-grounded circuit or connecting the stator’s AC output directly to inappropriate DC components are also frequent errors that can lead to no-spark conditions or component damage. Always double-check wire color code.
Do I need a rectifier/regulator for 125cc pit bike kick start ignition?
For a purely kick-start ignition system on a 125cc pit bike, a rectifier/regulator is not strictly necessary for the ignition itself, as the CDI typically uses AC power directly from the stator. However, if your pit bike has lights, an electric start, or charges a battery, then a rectifier/regulator is essential to convert the AC power from the stator to stable DC and manage voltage. Always verify your specific setup.
What gauge wire does 125cc pit bike wiring diagram kick start require?
For a 125cc pit bike’s ignition system, typically 18-20 gauge wire is sufficient for signal and low-current power circuits like the trigger and kill switch wires. For the main power feed from the stator or to the ignition coil, 16-18 gauge might be used, ensuring adequate current flow and minimizing voltage drop. Always use high-quality, heat-resistant automotive wire appropriate for engine bay conditions.
