4l60e 5.3 Chevy Transmission Cooler Lines: Diagram Guide
The 4l60e 5.3 Chevy transmission cooler lines route fluid from the bottom case fitting to the radiator’s lower port. Fluid returns through the upper radiator port to the transmission’s top fitting. Correct identification prevents overheating, ensuring the transmission stays within the operating temperature range recommended by the manufacturer.
📌 Key Takeaways
- The bottom transmission port is the outlet, while the top is the return
- Proper line routing prevents transmission overheating and fluid degradation
- Always use a flare nut wrench to avoid stripping the line fittings
- Check fluid levels and look for leaks immediately after installation
- Use this diagram when replacing rusted lines or adding an external cooler
Navigating the complexities of your vehicle’s cooling system is essential for longevity, especially when dealing with the high-demand 4L60E transmission. If you are working on a 5.3L Vortec-equipped truck or SUV, understanding the 4l60e 5.3 chevy transmission cooler lines diagram is the difference between a smooth-shifting ride and a catastrophic gearbox failure. This guide provides a detailed visual and technical breakdown of the fluid path, ensuring you can identify inlet and outlet ports, trace routing through the engine bay, and perform maintenance with professional precision. You will learn the specific orientation of the lines, how to troubleshoot flow restrictions, and the critical role the cooling circuit plays in transmission health.
The 4L60E transmission, when paired with the 5.3L engine, features a specific hydraulic cooling circuit designed to move heat away from the internal clutches and torque converter. On the passenger side of the transmission case, you will find two threaded or quick-connect ports arranged vertically. The primary 4l60e 5.3 chevy transmission cooler lines diagram identifies the bottom port as the “Feed” or “Out” line. This is where high-temperature fluid exits the transmission under pressure to begin its journey to the radiator. The top port is the “Return” or “In” line, which receives the cooled fluid back into the transmission sump to lubricate and cool the internal components.
The routing of these lines is strategic. From the transmission, the lines run forward along the passenger side of the engine block, secured by clips to prevent vibration damage. As they move toward the front of the vehicle, they pass near the starter motor and under the engine mount area. In the engine bay, they must remain clear of the accessory belt and various pulleys to avoid catastrophic abrasion. Once they reach the radiator, the fluid enters an internal cooling tank. In most 5.3L Chevy configurations, the hot fluid enters the top of the radiator’s side tank and exits through the bottom, ensuring maximum heat exchange as the coolant flow within the radiator absorbs the thermal energy. If your vehicle is equipped with a heavy-duty towing package, the lines may further route through an auxiliary external air-to-oil cooler located in front of the AC condenser.

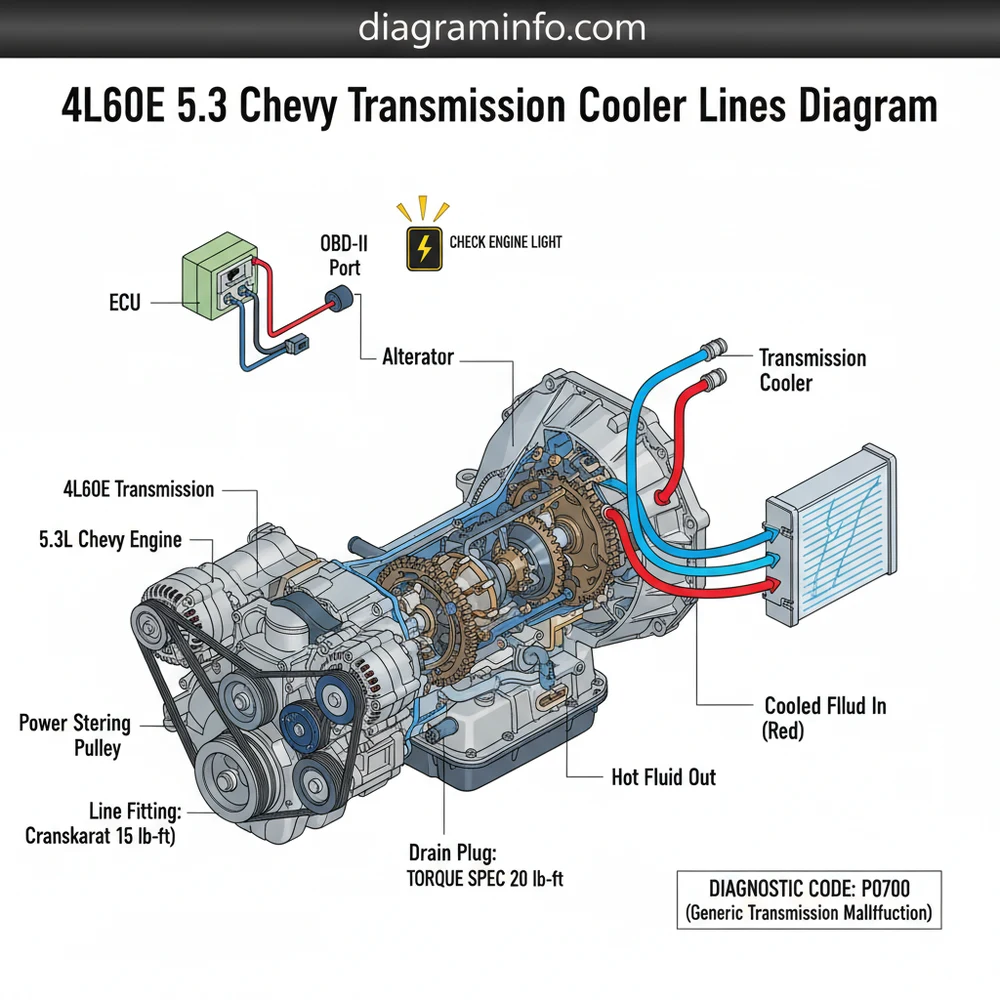

[DIAGRAM_PLACEHOLDER: 4L60E 5.3L Transmission Cooler Line Flow]
A visual representation showing the Transmission Case (Passenger Side) with the Bottom Port (Output) leading to the Radiator Top Fitting, and the Radiator Bottom Fitting returning to the Transmission Top Port (Input). Diagram includes labels for the 5.3L engine block, radiator, and optional auxiliary cooler.
On the 4L60E transmission, the lower fitting is ALWAYS the pressure outlet (to the cooler), and the upper fitting is the return (from the cooler). Reversing these can lead to inefficient cooling and increased wear on the rear lubrication circuit.
Interpreting the 4l60e 5.3 chevy transmission cooler lines diagram and applying it to a physical repair requires a methodical approach. Whether you are replacing rusted steel lines or upgrading to braided hoses, follow these steps to ensure a leak-free installation and proper coolant flow.
- ✓ Step 1: Vehicle Preparation and Safety – Elevate the vehicle using a lift or jack stands. Ensure the engine is cool to the touch. Since you will be working near the exhaust manifold and the timing chain cover area, safety gear is non-negotiable. Disconnect the negative battery terminal as a precaution when working near the starter.
- ✓ Step 2: Identify the Ports – Locate the two ports on the passenger side of the transmission. Use the diagram to confirm the bottom port is your starting point for the “hot” line. If you are replacing lines, use a line wrench (flare nut wrench) to avoid rounding off the fittings.
- ✓ Step 3: Disconnect the Quick-Connects – Most 5.3L Chevy trucks use “J-clips” or “E-clips” at the radiator and transmission. Use a small pick tool to remove the wire clip, then gently pull the line out. Be prepared for fluid drainage; have a catch pan ready.
- ✓ Step 4: Trace the Routing Path – Follow the old lines toward the front. Note where they are clipped to the frame or engine block. Ensure the new lines do not touch the timing chain cover or any sharp edges of the frame. The path must stay clear of the accessory belt to prevent the lines from being sawn through by a spinning pulley.
- ✓ Step 5: Install the New Lines – Thread the fittings into the transmission case by hand first to avoid cross-threading. Once finger-tight, use a torque wrench to meet the torque spec of approximately 18-22 foot-pounds. Over-tightening can crack the transmission case, which is a very costly mistake.
- ✓ Step 6: Connect to the Radiator – Push the lines into the radiator fittings until you hear a “click.” Re-install the wire clips and pull back slightly on the line to ensure it is locked in place. If using an auxiliary cooler, follow the diagram’s “series” path: Transmission Out -> Radiator In -> Radiator Out -> Aux Cooler In -> Aux Cooler Out -> Transmission Return.
- ✓ Step 7: Fluid Level Check and Leak Test – Start the engine and move the shifter through all gears while stationary. Check the transmission dipstick. Add fluid as needed. Inspect all connection points identified in your diagram for signs of weeping or active leaks.
- ✓ Step 8: Final Inspection – Use an OBD-II scanner to ensure no transmission-related diagnostic code has been triggered during the process.
Never operate the transmission if the lines are kinked or restricted. A lack of fluid flow to the return port will starve the rear geartrain of lubrication, causing total failure within miles. Always verify flow direction using the diagram before final assembly.
When the cooling system fails, the vehicle’s ECU will often be the first to know. A common issue with the 4L60E is the “TCC Slip” or overheating. If the check engine light illuminates, use an OBD-II tool to check for a diagnostic code such as P0218 (Transmission Over Temperature) or P0741 (Torque Converter Clutch Circuit Performance). These codes often point to a flow restriction in the cooler lines or a clogged internal radiator cooler.
Another frequent problem is leaking at the quick-connect fittings. Over time, the internal O-rings harden and fail. If you notice a red puddle under the front bumper or the passenger side of the bellhousing, your cooler lines are the likely culprit. Using the 4l60e 5.3 chevy transmission cooler lines diagram helps you pinpoint whether the leak is on the high-pressure “feed” side or the low-pressure “return” side, which is critical for determining the urgency of the repair. If you see bubbles in the transmission fluid (foaming), it may indicate that air is being sucked into the return line through a pinhole leak.
If you frequently tow or live in a hot climate, consider bypassing the radiator’s internal cooler entirely and using a large dedicated external plate-and-fin cooler. This prevents “strawberry milkshake” engine failure, where a ruptured internal radiator tank mixes coolant with transmission fluid.
To maintain a healthy 4L60E, periodic inspection of the cooler lines is mandatory. During every oil change, take a moment to look at the lines where they pass the accessory belt and steering components. Rubbing is a common cause of sudden fluid loss. Ensure all plastic retaining clips are intact; if they are missing, the lines can vibrate and fatigue, leading to cracks near the flare nuts.
When replacing components, always stick to the torque spec provided by the manufacturer. Aluminum transmission cases are unforgiving; a stripped thread in the case usually requires a “Heli-coil” repair or a complete case swap. Furthermore, if you find metal shavings in the fluid when disconnecting the lines, this is a sign of internal transmission wear. In such cases, the radiator cooler must be flushed with a specialized solvent or replaced entirely, as trapped debris will migrate back into the newly repaired transmission and cause premature failure.
Finally, keep your ECU updated. Some factory tunes for the 5.3L Chevy allow for higher transmission temperatures before the fans kick in. Adjusting these parameters or installing a “Corvette Servo” can complement your cooling system repairs by reducing clutch slippage and heat generation. By following the 4l60e 5.3 chevy transmission cooler lines diagram and maintaining proper fluid flow, you ensure your Chevy remains on the road for hundreds of thousands of miles. Through diligent monitoring of diagnostic codes and physical line integrity, you can catch minor leaks before they become major mechanical disasters.
Step-by-Step Guide to Understanding the 4L60E 5.3 Chevy Transmission Cooler Lines: Diagram Guide
Identify the transmission ports on the passenger side of the 4l60e case.
Locate the corresponding inlet and outlet ports on the radiator and optional auxiliary cooler.
Understand how fluid flows from the bottom port to the radiator and returns via the top.
Connect the new lines and apply the correct torque spec to all fittings to prevent leaks.
Verify that the fluid level is correct using the dipstick after starting the engine.
Complete the repair by checking for leaks and using a scanner to ensure the ECU is happy.
Frequently Asked Questions
Where are the 4l60e transmission ports located?
The ports are located on the passenger side of the transmission case. The top port serves as the return line from the radiator, while the bottom port is the pressure outlet heading toward the cooler. Correct identification is vital for maintaining fluid flow and preventing heat buildup in the system.
What does the transmission cooler lines diagram show?
The diagram illustrates the path of transmission fluid from the 4l60e case through the cooling system and back. It highlights the distinction between the pressure out and return in ports, which is essential when installing aftermarket auxiliary coolers or replacing damaged factory lines to ensure proper heat dissipation.
How many connections does the cooler system have?
The standard setup features four primary connections: two at the transmission case and two at the radiator. If an auxiliary cooler is added, the number of connections increases. Each fitting must be tightened to the correct torque spec to prevent fluid leaks and maintain consistent operating pressure.
What are the symptoms of bad cooler lines?
Common symptoms include fluid puddles under the vehicle, slipping gears, and a check engine light. If fluid levels drop significantly, the OBD-II system may trigger a diagnostic code like P0700 or P0894, indicating transmission performance issues or overheating detected by the vehicle’s ECU.
Can I replace these transmission lines myself?
Yes, replacing cooler lines is a common DIY task. You will need to safely jack up the vehicle and use flare nut wrenches to avoid stripping the fittings. It is a straightforward process that saves money while preventing catastrophic transmission failure caused by old, leaking, or corroded lines.
What tools do I need for this task?
You will need a set of flare nut wrenches, a drain pan for excess fluid, and a torque wrench for the fittings. Additionally, an OBD-II scanner is helpful to clear any diagnostic code that may have appeared due to low fluid levels or overheating during the component failure.
