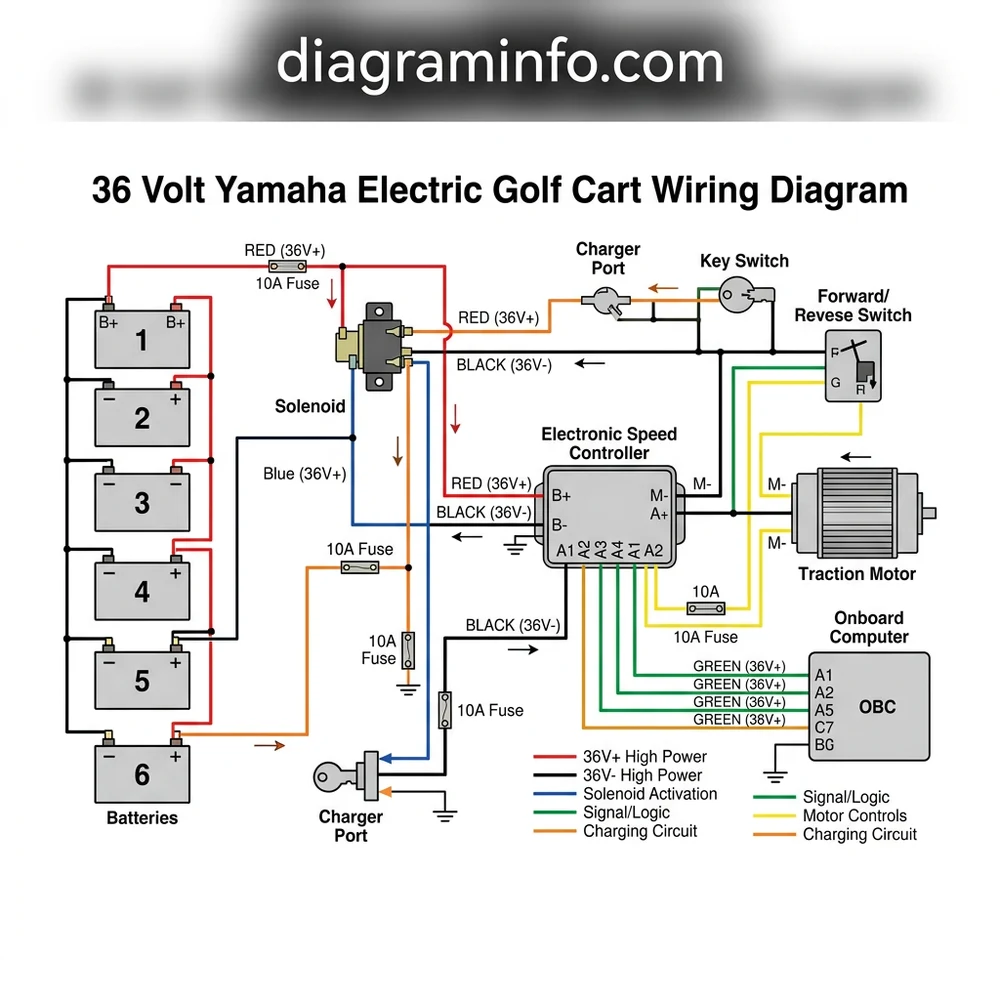

Yamaha 36V Electric Golf Cart Wiring Diagram: Repair Guide 2026

Navigating the intricate electrical architecture of a 36 volt Yamaha electric golf cart demands precise understanding and adherence to manufacturer specifications. This comprehensive guide provides a detailed breakdown of the wiring systems found in typical 36V Yamaha models, focusing on terminal identification, wire color coding, and proper connection sequences. Whether you are performing routine maintenance, troubleshooting an electrical fault, or upgrading components, mastering this wiring schematic is crucial for safe and efficient operation. This article is tailored for technical professionals and experienced DIYers, providing the authoritative information necessary to maintain your Yamaha electric golf cart’s electrical integrity.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

WIRE COLOR REFERENCE TABLE

Understanding the color codes for your 36 volt Yamaha electric golf cart’s wiring harness is fundamental to accurate diagnostics and repair. While some variations may exist across different model years (e.g., G8, G9, G14, G16, G19), the following table outlines the most common wire colors and their associated functions. Always cross-reference with your specific model’s service manual for definitive accuracy.

COMPONENT CONNECTION GUIDE

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Accurate wiring of each component is paramount for the operational integrity of your 36 volt Yamaha electric golf cart. This guide details the essential connections for the main power components, ensuring proper current flow and control. Refer to the diagram above as you trace these connections.

Battery Bank Wiring

The heart of your 36 volt system is the battery bank, typically composed of six 6-volt deep-cycle lead-acid batteries wired in series.

1. Series Connections: Connect the positive terminal of one battery to the negative terminal of the next using short, heavy-gauge cables. Continue this sequence until all six batteries are linked, forming a single 36-volt circuit.
2. Main Negative Cable: From the remaining open negative terminal of the first battery in the series (often the battery closest to the controller), connect a heavy-gauge (e.g., 2 AWG or 4 AWG) black cable directly to the B- terminal on the speed controller. Ensure this connection is clean and tightly torqued to manufacturer specifications, typically 90-110 in-lbs for lead-acid terminals.
3. Main Positive Cable: From the remaining open positive terminal of the last battery in the series, connect a heavy-gauge red cable to one of the large terminals on the main solenoid.

Solenoid Wiring

The solenoid acts as a high-current relay, switching the main battery power to the speed controller.

1. Main Power In: Connect the heavy-gauge red cable from the positive terminal of the battery bank to one of the large terminals on the solenoid.
2. Main Power Out: Connect a second heavy-gauge red cable from the other large terminal of the solenoid to the B+ terminal on the speed controller.
3. Activation Circuit (Small Terminals):
   • One small terminal receives switched 36V positive power (e.g., thin red or brown wire) from the key switch, forward/reverse switch, and pedal micro-switch. This signal energizes the solenoid coil.
   • The other small terminal connects to ground, often through the On-Board Computer (OBC) or directly to the controller’s main negative, depending on the model. This path typically uses a thin black or white wire and provides the negative trigger for activation.

Speed Controller Wiring

The speed controller (e.g., Curtis, GE) regulates power to the motor based on throttle input.

1. B+ Terminal: Connect the heavy-gauge red cable from the solenoid’s “output” large terminal.
2. B- Terminal: Connect the heavy-gauge black cable from the battery bank’s main negative terminal.
3. M- Terminal: Connect the heavy-gauge blue cable that leads directly to the motor’s A2 terminal.
4. Throttle Input (ITS): A three-wire harness typically connects the controller to the Inductive Throttle Sensor (ITS) under the pedal. The wires (e.g., green/white, blue/yellow, black/green) carry power, ground, and the variable signal from the throttle sensor. Correct pin orientation is critical; consult your controller’s specific pinout.
5. Forward/Reverse Switch Inputs: Depending on the controller and F/R switch type, specific wires (e.g., white, yellow) connect from the F/R switch to designated terminals on the controller (often labeled F1, F2, R1, R2 or similar) to dictate motor direction.
6. Run/Tow Switch: A two-wire connection (e.g., white/red) often links the Run/Tow switch to the controller’s auxiliary power input. This switch provides a safe method to de-energize the controller during maintenance or towing, preventing accidental operation.

Motor Wiring (Series Wound)

Most 36 volt Yamaha carts utilize series-wound DC motors.

1. A1 (Armature Field 1): Connect a heavy-gauge yellow cable from the F/R switch to the A1 terminal on the motor.
2. A2 (Armature Field 2): Connect a heavy-gauge blue cable from the controller’s M- terminal to the A2 terminal on the motor.
3. S1 (Field Coil 1): Connect a heavy-gauge black cable from the F/R switch to the S1 terminal on the motor.
4. S2 (Field Coil 2): Connect a heavy-gauge black cable from the S2 terminal on the motor to the main battery negative cable, or a common ground point. The specific configuration of S1/S2 can vary slightly with the F/R switch type (drum vs. electronic).

Charger Port Wiring

The charger port integrates with the On-Board Computer (OBC) to control charging and act as a safety interlock.

1. Main Positive: A heavy-gauge red wire connects from the charger receptacle’s positive terminal directly to the main battery bank’s positive.
2. Main Negative: A heavy-gauge black wire connects from the charger receptacle’s negative terminal to the OBC.
3. Interlock Signal: A thinner wire (often orange) from the charger receptacle connects to the OBC. When a charger is plugged in, this signal tells the OBC to disable the solenoid’s negative activation path, preventing the cart from moving while charging.

COMMON WIRING PROBLEMS & FIXES

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Even with meticulous wiring, electrical issues can arise in a 36 volt Yamaha golf cart. Here are some common problems, their diagnostic steps, and recommended fixes, tailored for a technical audience.

1. No Power / No Solenoid Click

Problem: The cart is completely dead, and you hear no click from the solenoid when the pedal is pressed.
Diagnosis: This indicates a break in the main power circuit or the solenoid activation circuit.

• Step 1: Verify battery pack voltage. With a multimeter, measure across the entire 36 volt battery bank. A reading below 36V (e.g., 35.0V) indicates a discharged or faulty battery pack.
• Step 2: Check main fuses. Some Yamaha models have a main fuse near the battery pack or controller.
• Step 3: Test for 36V at the solenoid’s large terminals. You should have full battery voltage at both large terminals when the solenoid is not activated (pedal not pressed). If not, trace the main positive cable from the battery to the solenoid.
• Step 4: Check solenoid activation circuit. With the key ON, Run/Tow switch on RUN, F/R in position, and pedal pressed:
  • Measure for 36V DC between the two small terminals of the solenoid. If voltage is present, the solenoid coil is receiving power. If not, troubleshoot the key switch, F/R switch, Run/Tow switch, or pedal micro-switch.
  • If 36V is present but no click, the solenoid is likely faulty.

Fix: Replace faulty batteries, blown fuses, failed switches, or the solenoid as diagnosed. Ensure all connections are clean and tight.

2. Cart Moves, But No Throttle Response / Intermittent Speed

Problem: The solenoid clicks, but the motor does not respond to throttle input, or speed is erratic.
Diagnosis: This often points to issues with the throttle sensor (ITS) or the speed controller.

• Step 1: Inspect the Inductive Throttle Sensor (ITS) wiring. Check for loose, corroded, or damaged wires on the three-pin connector leading from the ITS to the controller.
• Step 2: Test ITS output. Refer to OEM specifications for your model (e.g., Yamaha G19 ITS typically outputs 10V DC for power and ground, with a varying signal wire). With the key ON and F/R in a direction, measure the voltage on the signal wire (e.g., green/white) as the pedal is depressed. It should smoothly increase from ~0.5V to ~3.5V (values are model-specific). An erratic reading or no change indicates a faulty ITS or wiring.
• Step 3: Check controller error codes. Many controllers have diagnostic LEDs that flash codes indicating specific faults (e.g., throttle fault, undervoltage). Consult your controller’s manual for interpretation.

Fix: Replace the ITS if diagnosed as faulty. Repair or replace damaged wiring. If the ITS and wiring are good, the speed controller may be failing. For more in-depth controller diagnostics, refer to specific service manuals or technical resources.

3. Charger Port Not Engaging / Cart Not Charging

Problem: The charger light remains off, or the charger indicates an error, and the batteries are not receiving a charge.
Diagnosis: This typically involves the charger port, On-Board Computer (OBC), or their associated wiring.

• Step 1: Check for voltage at the charger port. With a multimeter, measure voltage across the two main terminals inside the charger port (not the small interlock wire). You should read full battery pack voltage (36V DC). If not, trace the heavy-gauge wires back to the battery pack.
• Step 2: Verify OBC interlock signal. When the charger is not plugged in, the orange interlock wire from the charger port should not be completing the solenoid ground path. When plugged in, the OBC uses this signal to disable the cart.
• Step 3: Inspect the OBC itself. Look for signs of corrosion or physical damage. Some OBCs have an internal fuse.
• Step 4: Test charger functionality. Try another known-good charger if available to rule out charger failure.

Fix: Clean or replace corroded charger port terminals. Repair any broken wires leading to the charger port or OBC. Replace the OBC if it’s determined to be faulty.

FAQ

What is the difference between a 36 volt and a 48 volt Yamaha electric golf cart wiring system?

The fundamental difference lies in the number of batteries and the voltage rating of the components. A 36 volt system typically uses six 6-volt batteries in series, while a 48 volt system uses either six 8-volt batteries or four 12-volt batteries in series. This voltage difference necessitates distinct controllers, solenoids, and sometimes motors, all rated for the specific operating voltage. While wiring principles remain similar (series connections, power paths), the component ratings and sometimes wire gauges will differ significantly. Attempting to use 36V components in a 48V system (or vice-versa) can lead to immediate failure or reduced performance.

Can I upgrade my 36 volt Yamaha golf cart to a 48 volt system?

Technically, it is possible, but it requires a comprehensive conversion. This is not merely a wiring change. You would need to replace the entire battery bank, the speed controller, the main solenoid, and potentially the motor if it’s not rated for 48V. Additionally, the charger port and on-board computer (OBC) would need to be upgraded to handle the higher voltage. Such a conversion demands significant technical expertise and a substantial budget. It’s crucial to ensure all replacement components are compatible and correctly wired for the new 48 volt system. For detailed conversion guidance, consult specialized resources.

How do I test the run/tow switch wiring on my Yamaha 36 volt golf cart?

The run/tow switch is a critical safety component that isolates power from the controller. To test its wiring:

1. Place the switch in the “TOW” position. The cart should be completely inoperable, even with the key on and pedal pressed.
2. Place the switch in the “RUN” position. The cart’s electrical system should now be active, allowing the solenoid to click and the motor to operate with pedal input.
3. With a multimeter, measure for 36V DC on the output side of the switch when in the “RUN” position, and 0V when in “TOW.” This confirms the switch is correctly interrupting the controller’s main power or control signal. A consistent voltage in “TOW” or no voltage in “RUN” indicates a faulty switch or wiring issue.

What role does the On-Board Computer (OBC) play in 36 volt Yamaha wiring?

The On-Board Computer (OBC) on many 36 volt Yamaha golf carts serves several critical functions beyond just monitoring charging. Its primary roles include:

• Charge Interlock: It prevents the cart from operating while the charger is plugged in by interrupting the solenoid’s negative activation path. This is a vital safety feature.
• Solenoid Control: In some models, the OBC provides the ground signal for the main solenoid to activate, acting as a master control for the drive system.
• Battery Management: It communicates with the charger, determining when the battery pack is fully charged and terminating the charging cycle to prevent overcharging.

A malfunctioning OBC can lead to common issues such as “no solenoid click,” “cart not charging,” or “cart runs but won’t charge.” Always refer to your specific Yamaha model’s service manual for exact OBC wiring and diagnostic procedures.
