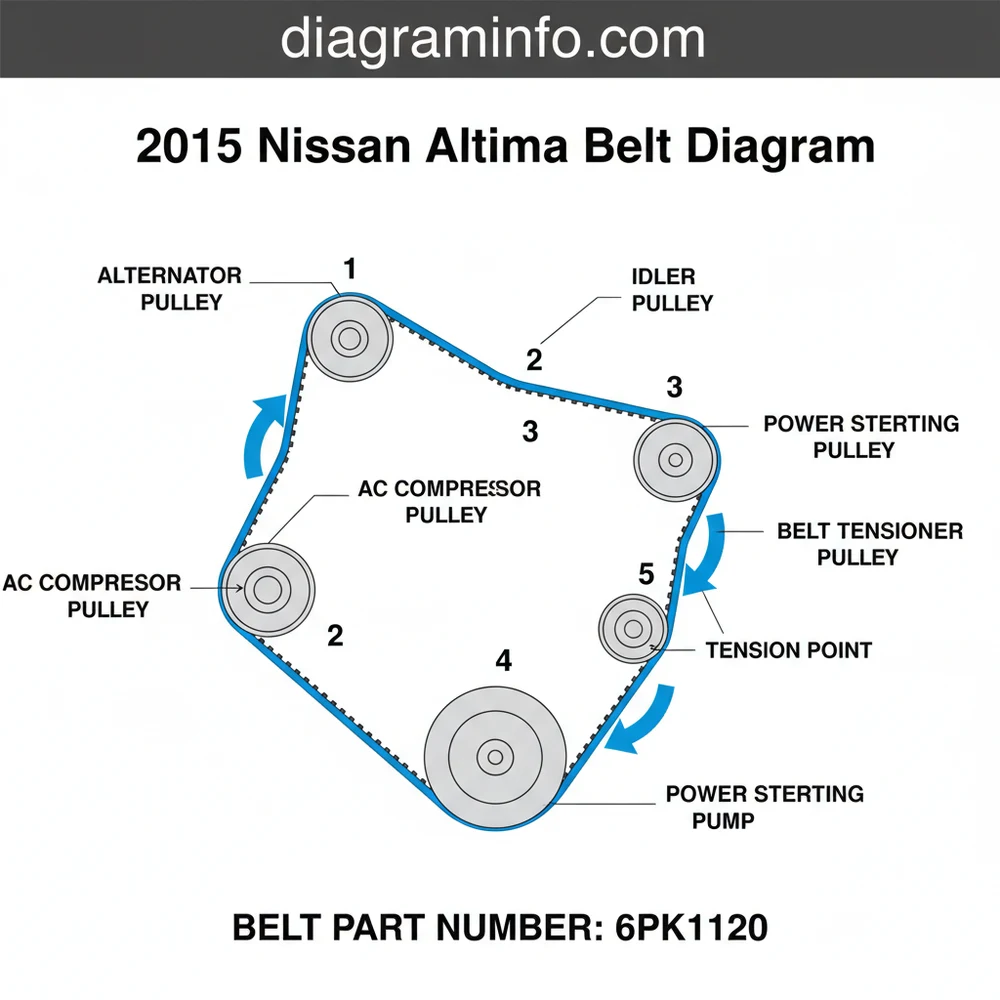

2015 Nissan Altima Belt Diagram 2026: Proper Routing Guide
The 2015 nissan altima belt diagram shows component layout, connection points, and routing paths. Use it to identify parts, diagnose issues, and follow correct installation or repair procedures.
📌 Key Takeaways
- Understanding the 2015 nissan altima belt diagram is essential for proper implementation
- Each component has a specific role and connection point
- Following safety guidelines prevents common mistakes
- This diagram serves as a reference for practical applications
- Regular review helps maintain accurate understanding
The serpentine belt on your 2015 Nissan Altima is a critical component, responsible for driving essential engine accessories such as the alternator, air conditioning compressor, and water pump. Understanding the precise routing of this belt is paramount for any maintenance or replacement procedure. An incorrectly routed or improperly tensioned belt can lead to rapid component wear, system malfunction, and potential engine damage. This comprehensive guide provides the definitive routing diagram, essential part numbers, and practical insights specifically for the 2015 Nissan Altima, ensuring accurate service for technicians and experienced DIYers.
While the core belt routing for the 2015 Nissan Altima remains largely consistent across its available engine configurations (2.5L QR25DE and 3.5L VQ35DE), specific belt lengths and component placements, particularly idler pulley positions, can vary slightly. Always consult the vehicle’s service manual or the sticker under the hood for engine-specific details. This article provides general guidance applicable to both, with specific part numbers for clarity.
Belt Part Numbers
Selecting the correct serpentine belt is crucial for optimal performance and longevity. Using an OEM (Original Equipment Manufacturer) belt or a high-quality aftermarket equivalent that meets or exceeds OEM specifications is highly recommended. The following table details the appropriate belt specifications and part numbers for the 2015 Nissan Altima’s common engine configurations. Always verify these numbers against your vehicle’s specific VIN or service manual, as regional variations or mid-year production changes can occur.
| Engine Type | OEM Part # | Belt Dimensions (Ribs x Length) | Compatible Models (Years) |
|---|---|---|---|
| 2.5L QR25DE I4 | 11720-3TA0A (or 11720-3TA0B) | 7PK1795 (7 Ribs x 1795mm) | Nissan Altima (2013-2018) |
| 3.5L VQ35DE V6 | 11720-JK20A | 7PK2100 (7 Ribs x 2100mm) | Nissan Altima (2007-2018), Maxima (2009-2014) |
The “7PK” designation indicates 7 ribs on the belt. The length in millimeters is critical. Aftermarket belts often use slightly different length conventions (e.g., K070707 for 70.7 inches, which is approximately 1795mm). Always cross-reference with multiple sources to ensure accuracy, especially when substituting OEM parts.
Step-by-Step Routing Instructions
Properly routing the serpentine belt on your 2015 Nissan Altima is a methodical process that requires careful attention to the pulley diagram. Before beginning, ensure the engine is off and cool. Disconnect the negative battery terminal to prevent accidental starts. Reference the “ above for visual confirmation of each step.
Never attempt to service the serpentine belt with the engine running or while it is hot. Moving engine components pose severe injury risks. Ensure sufficient lighting and stable footing.
For the 2.5L QR25DE and 3.5L VQ35DE engines, the routing path generally follows this sequence:
1. Release Tension: Locate the automatic belt tensioner. This component typically has a square drive hole (often 3/8″ or 1/2″) designed for a breaker bar or ratchet. Insert the tool into this square drive and rotate the tensioner clockwise (or counter-clockwise, depending on engine layout) to release the belt tension. This will compress the internal spring, allowing slack in the belt.
2. Remove Old Belt: While holding the tensioner in the released position, carefully slip the old belt off one of the easier-to-access pulleys, such as the alternator or idler pulley. Once slack, remove the belt entirely from all pulleys. Inspect the old belt for wear patterns, which can indicate pulley misalignment or other issues.
3. Identify Pulleys: Before installing the new belt, familiarize yourself with the key components:
Crankshaft Pulley (A): The largest pulley at the bottom, directly connected to the engine’s crankshaft. This is the primary driver.
Alternator (B): Usually located near the top of the engine, responsible for charging the battery and powering electrical systems.
A/C Compressor (C): Typically situated towards the bottom front of the engine, responsible for the air conditioning system.
Water Pump (D): Often located near the top-center or side of the engine, circulating coolant.
Idler Pulley(s) (E): Smooth, grooved pulleys that guide the belt and do not drive accessories. Your Altima may have one or two depending on the engine.
Automatic Belt Tensioner (F): A spring-loaded pulley that maintains constant tension on the belt.
4. Initial Placement on Non-Tensioner Pulleys: Begin by routing the new belt around the crankshaft pulley (A) first. This establishes the primary anchor point.
5. Route Around Fixed Pulleys: Systematically route the belt around the alternator (B), A/C compressor (C), and water pump (D). Ensure the ribs of the belt align perfectly with the grooves of each pulley.
6. Incorporate Idler Pulley(s): Next, guide the belt around any idler pulley(s) (E). Pay close attention to whether the belt rides on the ribbed or smooth side of the idler, as depicted in the “. Incorrect routing here is a common error.
7. Final Placement at Tensioner: The last pulley to route the belt around should be the automatic belt tensioner (F).
8. Re-tension the Belt: Once the belt is fully seated on all other pulleys, use your breaker bar or ratchet to again rotate the tensioner to its released position. Carefully slip the belt over the tensioner pulley. Slowly release the tensioner, allowing it to apply pressure to the belt.
9. Verify Routing and Seating: Crucially, double-check that the belt is correctly seated in every groove of every pulley. Rotate the engine by hand (if possible, by turning the crankshaft bolt clockwise with a socket, but often not necessary if you rotate the belt by hand) or visually inspect the entire path multiple times. Misalignment by even one rib will lead to rapid belt failure and potential damage.
10. Reconnect Battery & Test: Reconnect the negative battery terminal. Start the engine and listen for any abnormal squealing, chirping, or flapping noises. Observe the belt’s operation for a few minutes. If the belt seems to be tracking correctly and there are no unusual sounds, the procedure was successful.
For detailed instructions on diagnosing specific Altima engine issues, refer to our guide on [Nissan Altima QR25DE Engine Diagnostics](https://example.com/nissan-altima-qr25de-engine-diagnostics).
Tension & Adjustment Notes
The 2015 Nissan Altima, like most modern vehicles, utilizes an automatic belt tensioner for its serpentine belt. This mechanism is designed to maintain constant, optimal tension on the belt throughout its lifespan and under varying engine conditions. This eliminates the need for manual adjustment, which was common in older systems.
According to manufacturer specifications, the automatic tensioner should keep the belt within a specific deflection range, typically 3/8″ to 1/2″ at the longest span with 10-20 lbs of force. However, visual inspection of the tensioner’s indicator mark (if present) is usually sufficient to determine its health. If the indicator is outside the specified range, the tensioner itself may be worn and require replacement, not adjustment.
How to Check Tension (Automatic System):
1. Visual Inspection: Examine the tensioner assembly. Many automatic tensioners have an indicator mark or arrow on the tensioner body that aligns with a specific reference point. If these marks are outside the factory-specified alignment, it suggests the tensioner spring is weak or the tensioner pivot is seizing.
2. Belt Condition: A properly tensioned belt should feel firm, with minimal sag. Excessive looseness often points to a failing tensioner, not an adjustable issue.
3. Noise: A squealing or chirping belt often indicates insufficient tension or a worn belt. While a new belt might temporarily quiet it, if the tensioner is faulty, the noise will quickly return.
Common Tension Issues and Troubleshooting:
Squealing/Slipping Belt: The most common symptom. This can be caused by:
Worn Belt: Cracks, glazing, or missing ribs reduce grip. Replace the belt.
Failing Automatic Tensioner: The spring loses tension over time, or the pivot point corrodes, preventing smooth operation. The tensioner needs replacement.
Misaligned Pulley: Though less common, a bent or misaligned accessory pulley can cause the belt to slip or track improperly. This requires further diagnosis of the accessory component itself.
Contamination: Oil, coolant, or power steering fluid on the belt can cause slippage. Identify and repair the leak, then clean or replace the belt.
Belt Rattle/Flapping: This typically indicates insufficient tension, almost always due to a failing automatic tensioner. The tensioner’s dampening mechanism might also be worn, leading to excessive oscillation.
* Premature Belt Wear: If a belt wears out quickly, it could be due to a continuously under-tensioned condition (failing tensioner) or an over-tensioned condition (if a manual adjustment was somehow forced, which is not applicable to the Altima’s auto-tensioner, but could be a symptom of a seized pulley).
Understanding the function of various engine accessories, such as the alternator and A/C compressor, is crucial. Explore our article on [Automotive Accessory Drive Systems Explained](https://example.com/automotive-accessory-drive-systems-explained) for deeper insight.
Never attempt to “adjust” an automatic belt tensioner. If the tension is incorrect, the tensioner itself is faulty and requires replacement. Attempting to force adjustment can damage the tensioner or associated mounting points.
FAQ
What is the typical lifespan of a 2015 Nissan Altima serpentine belt?
The lifespan of a serpentine belt can vary significantly based on driving conditions, maintenance, and the quality of the belt. Manufacturer recommendations often suggest inspection every 30,000 to 50,000 miles, with replacement typically advised between 60,000 to 100,000 miles or every 5-7 years. However, a thorough visual inspection for cracks, fraying, glazing, or missing ribs should be performed regularly. Any signs of wear or noise warrant immediate attention.
How do I know if my serpentine belt needs replacement, even if it’s not at the mileage interval?
Beyond mileage, several symptoms indicate a failing serpentine belt. The most common is a squealing or chirping noise, especially upon cold starts or during acceleration, which suggests slippage. Other signs include visible cracks, fraying edges, glazing (a shiny, smooth appearance on the ribbed side), or chunks missing from the belt. If any accessories (like the alternator or A/C compressor) stop working, or your battery light illuminates, the belt may have broken entirely.
Can a failing belt tensioner cause the same symptoms as a bad serpentine belt?
Absolutely. A failing automatic belt tensioner is a very common cause of serpentine belt issues. If the tensioner’s internal spring weakens or its pivot mechanism seizes, it will fail to apply the correct tension to the belt. This can lead to belt slippage, characterized by squealing, premature belt wear, and even rattling noises from the tensioner itself. Often, replacing a noisy belt without addressing a faulty tensioner will only provide a temporary fix.
Is it necessary to use an OEM belt for my 2015 Nissan Altima, or are aftermarket options acceptable?
While OEM belts are designed to precise manufacturer specifications and are a guaranteed fit, high-quality aftermarket belts from reputable brands (e.g., Gates, Dayco, Continental) are often excellent alternatives. These brands frequently supply belts to car manufacturers directly and may offer comparable performance and durability at a potentially lower cost. It is crucial to ensure any aftermarket belt matches the exact dimensions (number of ribs and length) and construction type of the original, as minor discrepancies can lead to fitment issues or accelerated wear.
What other components should be inspected when replacing the serpentine belt?
When replacing the serpentine belt, it’s an opportune time to inspect all associated pulleys and components. Check the automatic belt tensioner for proper operation, smooth movement, and the absence of excessive play or noise. Spin idler pulleys, the alternator pulley, and the A/C compressor pulley by hand to check for smooth rotation and any grinding or whirring noises, which could indicate failing bearings. Also, inspect for any fluid leaks (oil, coolant, power steering fluid) that might contaminate the belt and cause premature wear. Proper maintenance extends component life. Learn more about optimal [Vehicle Maintenance Schedules for Nissan Models](https://example.com/nissan-vehicle-maintenance-schedules).
Frequently Asked Questions
What is a 2015 nissan altima belt diagram?
A 2015 nissan altima belt diagram is a visual representation showing how components connect and interact with each other.
How do I read a 2015 nissan altima belt diagram?
Start from the main component and follow the connections to understand relationships between parts.
What are the main parts?
The main parts include the core component and its connected elements as shown in the diagram.
