Engine Hour Meter Wiring Diagram 2026: Installation Setup

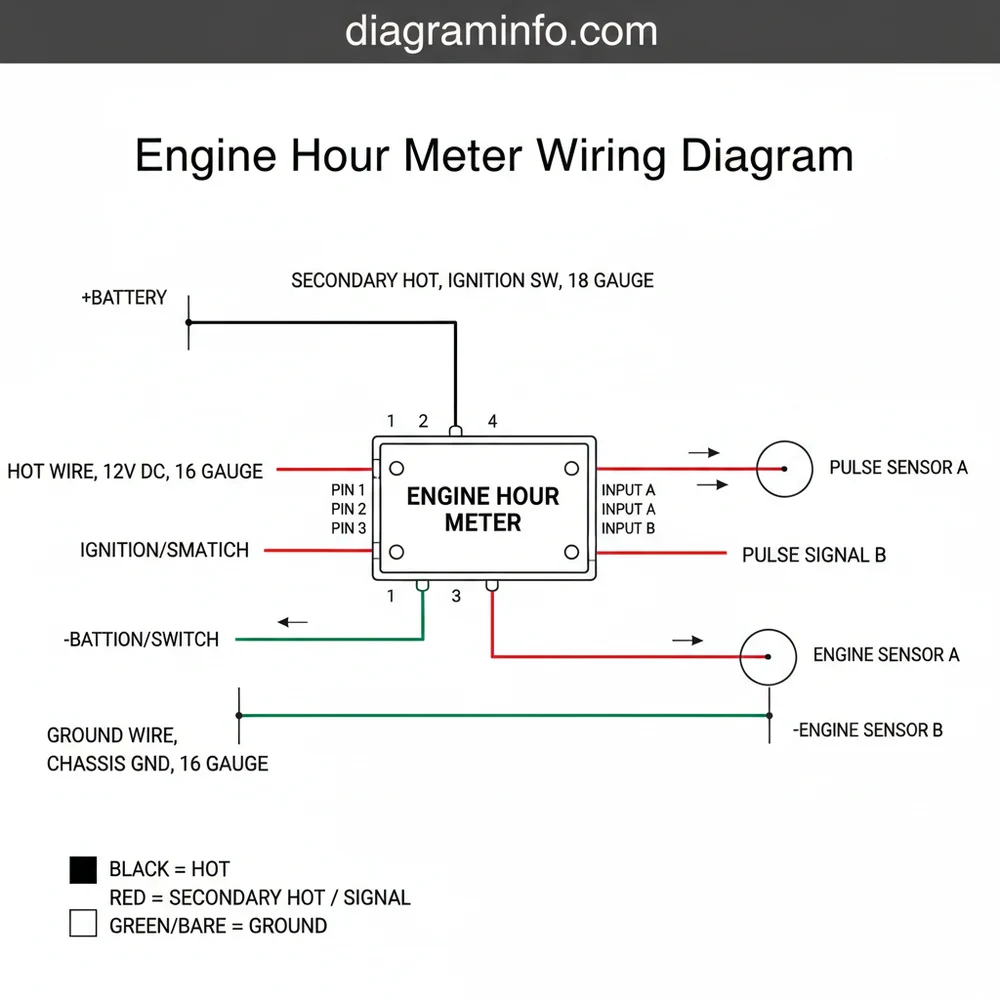

Accurate engine hour tracking is paramount for adhering to critical maintenance schedules, warranty compliance, and assessing equipment longevity. For technicians and experienced equipment owners, understanding the precise electrical connections for an engine hour meter is not merely helpful—it’s essential for ensuring reliable data acquisition. This detailed guide and accompanying engine hour meter wiring diagram demystify the installation process, focusing on correct wire identification, pin assignments, and proper circuit integration to prevent electrical faults and guarantee optimal performance.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

WIRE COLOR REFERENCE TABLE

The following table outlines common wire color codes and their functions for a typical DC engine hour meter installation. While these are widely accepted conventions, always cross-reference with the hour meter manufacturer’s instructions and your vehicle/equipment’s wiring schematic. This reference is crucial for correct pin assignment and ensuring the gauge receives the appropriate voltage and signal.

STEP-BY-STEP CONNECTION GUIDE

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

This guide details the procedure for correctly wiring an engine hour meter, ensuring a reliable and accurate installation. Adherence to these steps, combined with consulting the specific diagram for your unit, is critical.

1. Prioritize Safety: Before initiating any wiring procedures, disconnect the negative terminal of the vehicle or equipment’s battery. This critical step eliminates the risk of accidental shorts or electrical shock during installation. Always wear appropriate personal protective equipment.
2. Mount the Hour Meter: Choose a secure, visible, and protected location for the hour meter. Ensure the mounting area provides adequate clearance for wiring and is free from excessive vibration, heat, or moisture. Use the manufacturer-supplied template for a precise cut-out, if applicable, and secure the gauge firmly.
3. Connect the Ground Wire (Black): Locate a suitable chassis ground point. This should be a clean, unpainted metallic surface directly connected to the equipment’s frame or the negative battery terminal. Strip approximately 0.5 inches (12-13mm) of insulation from the black ground wire and crimp on an appropriately sized ring terminal. Securely attach this ground wire (typically to Pin 2 or ‘GND’ on the hour meter) to the chosen ground point using a self-tapping screw or an existing bolt. According to OEM electrical system best practices, a robust ground connection is fundamental for stable voltage and accurate readings.
4. Connect the Switched Power Wire (Red): Identify an ignition-switched 12V or 24V power source (hot wire) that is active only when the engine is running or the ignition is on. This is typically found within the fuse block, using an ‘add-a-circuit’ fuse tap, or directly from a terminal block supplying switched power. Ensure the chosen circuit is adequately fused, or add an inline fuse with a rating specified by the hour meter manufacturer (e.g., 1A-2A). Using a multimeter, verify the voltage at your chosen power source. Connect the red power wire (typically to Pin 1 or ‘IGN’) to this fused source. The wire gauge for this connection should match the hour meter’s requirements, typically 18-22 AWG, to prevent voltage drop over longer runs. For an in-depth understanding of `wire gauge selection`, refer to our specialized article on Automotive Wire Gauge Selection.
5. Connect the Engine Signal Input Wire (White or Blue): This is the most variable connection. The signal wire (typically Pin 3 or ‘SIG’) needs to connect to a source that accurately reflects engine operation.
   • Alternator ‘W’ Terminal: On many diesel engines, connect to the alternator’s ‘W’ (stator/AC output) terminal, which provides a frequency proportional to engine RPM.
   • Ignition Coil Primary: For gasoline engines, connect to the negative primary side of the ignition coil. This captures ignition pulses.
   • Oil Pressure Switch: Some hour meters can be wired to ground through an oil pressure switch. When engine oil pressure is present, the switch closes, providing a ground signal to the hour meter’s signal input. Ensure your meter explicitly supports this method.
   • Fuel Injector Pulse: Less common for hour meters, but some advanced units can detect injector pulses.

   Consult your engine’s OEM service manual or the hour meter’s instructions to determine the correct signal source and type for accurate operation.

6. Connect Illumination (Yellow – Optional): If your hour meter features a backlight (Pin 4 or ‘ILL’), connect the yellow wire to a dedicated dashboard illumination circuit. This will allow the meter’s display to light up concurrently with your vehicle’s instrument panel lighting.
7. Verify All Connections: Before restoring power, meticulously inspect every connection. Ensure all terminals are secure, crimps are solid, and there are no exposed wire strands that could cause a short circuit. Double-check wire color codes against the diagram and manufacturer’s instructions.
8. Restore Power and Test: Reconnect the battery’s negative terminal. Turn the ignition to the ‘ON’ position (or start the engine if required for the signal source). Observe the hour meter. It should power on, and if the engine is running and the signal is correctly wired, it should begin incrementing hours.

COMMON WIRING MISTAKES & TROUBLESHOOTING

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Even for experienced technicians, wiring an engine hour meter can present challenges. Addressing common pitfalls proactively saves significant diagnostic time. Refer to the diagram for visual guidance while troubleshooting.

1. Incorrect Power Source (Constant vs. Switched):
   • Mistake: Connecting the red hot wire to a constant 12V/24V source rather than an ignition-switched source.
   • Consequence: The hour meter will constantly record, even when the engine is off, or it will drain the battery (parasitic draw). Conversely, if connected to a signal that loses power during cranking, the meter might reset or not power on reliably.
   • Fix: Use a multimeter to identify a true ignition-switched circuit within the fuse panel or terminal block. It should show battery voltage with the ignition on and 0V with the ignition off.
2. Poor Ground Connection:
   • Mistake: Attaching the black ground wire to a painted surface, a corroded point, or a loose connection.
   • Consequence: Intermittent operation, erratic readings, or no power to the meter at all. A poor ground limits current flow, causing voltage fluctuations.
   • Fix: Ensure the ground wire is connected to a clean, bare metal surface on the chassis or directly to the battery’s negative terminal. Sand any paint or rust from the connection point and ensure the terminal is securely fastened.
3. Incorrect or Missing Engine Signal Input:
   • Mistake: Connecting the white/blue signal wire to the wrong source, or the source does not provide the correct type of signal (e.g., trying to use a constant 12V from an oil pressure sender rather than its switched ground output).
   • Consequence: The hour meter powers on but fails to record engine hours, or records inaccurately (e.g., too fast/slow).
   • Fix: Verify the required signal type from the hour meter manufacturer’s specifications. If using the alternator ‘W’ terminal, confirm the alternator is actually equipped with one. If connecting to an ignition coil, ensure it’s the primary negative side. For oil pressure switches, confirm it’s a grounding type signal and the hour meter supports it. You may need an alternator output tester for advanced diagnostics.
4. Inadequate Wire Gauge:
   • Mistake: Using wire that is too thin (high gauge number) for the length of the run or the minimal current draw, especially over long distances.
   • Consequence: While hour meters typically draw low current, an undersized wire can lead to voltage drop, potentially affecting the accuracy or longevity of the meter, particularly in 24V systems or those with longer wire runs.
   • Fix: Always use at least 18-22 AWG wire, as specified by the manufacturer. For installations with longer wire runs (e.g., over 10-15 feet), consider using a slightly thicker gauge (e.g., 16 AWG) to minimize voltage drop.

FAQ

What voltage does my engine hour meter require?

Most automotive and equipment hour meters operate on either a 12V DC or 24V DC electrical system. It is absolutely critical to verify the specific voltage requirements printed on the hour meter itself or in its accompanying documentation. Connecting a 12V meter to a 24V system, or vice-versa, will result in immediate damage to the unit.

Can I connect an hour meter to an oil pressure switch?

Yes, some engine hour meters are designed to be activated by an oil pressure switch. In this configuration, the hour meter’s signal wire (white or blue) is connected to the output of a normally open oil pressure switch, which grounds the circuit once sufficient oil pressure is built, indicating the engine is running. Ensure your specific hour meter model explicitly supports this input type for accurate operation.

How do inductive hour meters differ in wiring from direct-wired models?

Inductive hour meters, often seen on small engines, are fundamentally different. They typically do not require direct power or ground connections to the vehicle’s electrical system. Instead, a signal wire is simply wrapped several times around a spark plug wire or fuel injector line. The meter senses the electromagnetic field generated by engine pulses to record hours. This eliminates complex wiring but means they are often battery-powered and have a finite operational life.

What wire gauge should I use for hour meter installation?

For most standard engine hour meters, an 18-gauge to 22-gauge automotive wire (AWG) is sufficient. These devices typically have very low current draws (often less than 0.1 Amps). However, always refer to the hour meter manufacturer’s recommendations. If you have unusually long wire runs (e.g., over 10-15 feet), consider using a slightly heavier gauge wire (e.g., 16 AWG) to prevent any potential voltage drop, particularly for the hot wire connection.

My hour meter has power but isn’t recording hours. What could be wrong?

If your hour meter powers on but doesn’t increment hours, the issue almost certainly lies with the engine signal input (white or blue wire, Pin 3). Double-check the connection point on the engine (alternator ‘W’ terminal, ignition coil, oil pressure switch, etc.) to ensure it’s secure and that the signal source is active when the engine is running. Use a multimeter to verify that the expected signal (e.g., fluctuating voltage or a grounding signal) is present at the meter’s signal input pin when the engine is operating.

Frequently Asked Questions
