The accurate understanding and application of the 2006 Scion xB belt diagram are critical for maintaining the operational integrity of your vehicle’s accessory systems. This article details the serpentine belt routing for the 1NZ-FE engine, a single belt responsible for driving essential components such as the alternator, water pump, and air conditioning compressor. Precise belt routing ensures optimal power transmission, prevents premature component wear, and mitigates potential system failures that can arise from incorrect installation or tension. Proper adherence to the manufacturer’s specified `belt routing path` is paramount for vehicle reliability.
BELT PART NUMBERS
Selecting the correct serpentine belt for your 2006 Scion xB is crucial for reliable operation and longevity. Utilizing the OEM part number or a direct aftermarket equivalent that matches specified dimensions is highly recommended. The 1NZ-FE engine employed in the Scion xB requires a specific `belt size` to ensure proper tension and engagement with all pulleys.
| Belt Type | OEM Part # | Dimensions (Ribs x Length) | Compatible Models (Examples) |
|---|---|---|---|
| Serpentine Drive Belt | Toyota 90916-02598 | 6PK1905 (6 Ribs x 1905mm) | 2004-2006 Scion xB (1NZ-FE), Toyota Echo, Toyota Yaris (1NZ-FE) |
| Alternate OEM / Aftermarket Ref. | Toyota 90916-A2002 | 6PK1905 (6 Ribs x 1905mm) | Direct cross-reference for specific market regions or production years. Always verify. |
While 6PK1905 is the most common specification for the 2006 Scion xB, minor year-to-year variations or accessory configurations can sometimes lead to slight discrepancies. Always verify the specific `OEM belt` part number for your vehicle using its VIN to ensure compatibility before purchase. Consult the factory service manual for absolute certainty.
STEP-BY-STEP ROUTING INSTRUCTIONS

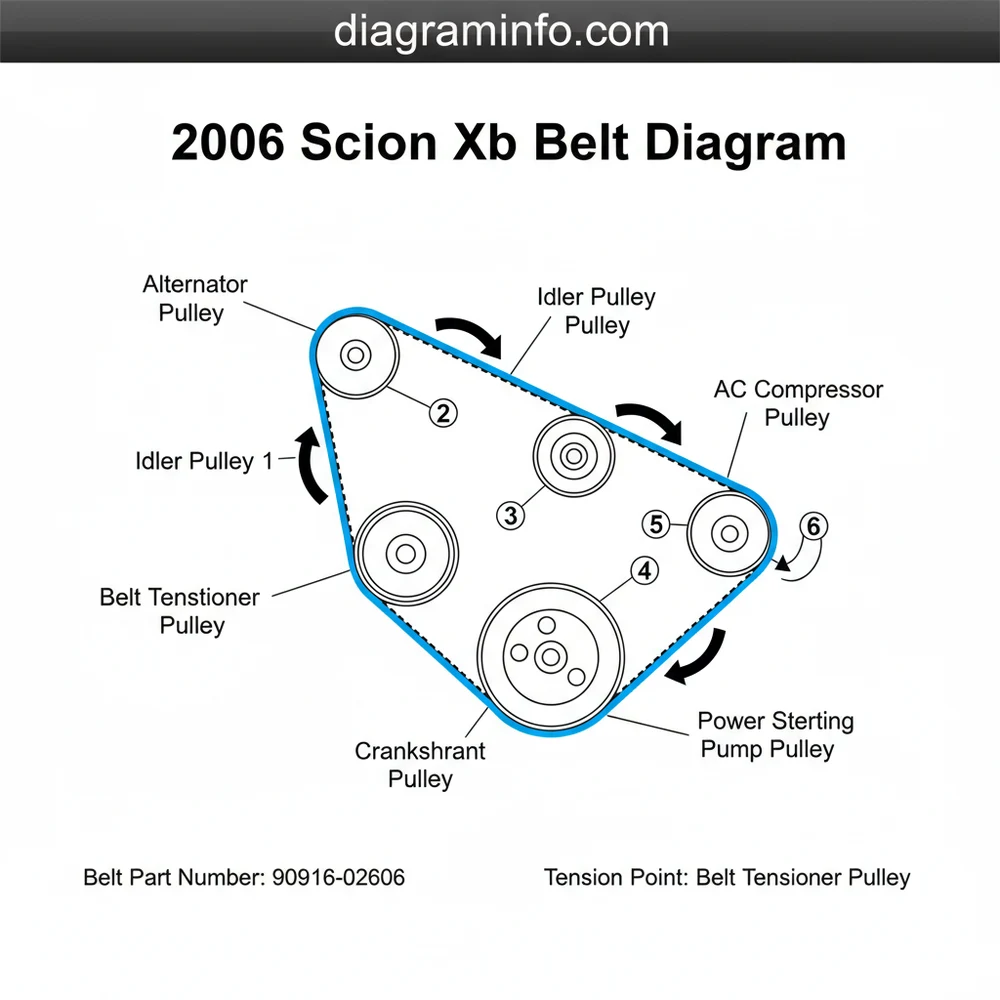

Understanding the specific `belt routing path` for your 2006 Scion xB’s 1NZ-FE engine is crucial for correct installation and to prevent accessory malfunction. This sequence ensures proper rotational direction for all components and adequate tension. Refer to the diagram above for visual confirmation of each pulley’s position and the belt’s trajectory. This process typically requires releasing the tensioner before routing the new belt.
- Preparation: Before commencing, ensure the engine is off and cool. Access to the serpentine belt typically involves removing splash shields or undertrays. Identify all pulleys: Crankshaft Pulley, Water Pump Pulley, Alternator Pulley, A/C Compressor Pulley, Idler Pulley, and the `Belt Tensioner` Pulley.
- Tensioner Release: Locate the automatic `belt tensioner` (often on the upper right side of the engine when viewed from the front). Using a suitable wrench or breaker bar (typically 19mm or 14mm, consult your vehicle’s specific manual), rotate the tensioner pulley arm clockwise to release tension from the belt. This movement compresses the internal spring, allowing the old belt to be removed or the new belt to be installed.
- Belt Removal (If Applicable): While holding the tensioner arm in the released position, carefully slide the old belt off the pulleys, starting with the `idler pulley` or the smooth A/C pulley, which often has less grip.
- Crankshaft Pulley (Lower Center): Begin routing the new belt by placing it around the crankshaft pulley, the largest pulley located at the bottom center of the engine. Ensure the V-grooves of the belt align with the grooves on the pulley.
- A/C Compressor Pulley (Lower Right): From the crankshaft, route the belt upwards and to the right, engaging it around the A/C compressor pulley. This pulley is typically grooved, so ensure proper alignment.
- Idler Pulley (Upper Right/Middle): Continue the belt’s path from the A/C compressor, guiding it over the smooth `idler pulley`. The belt should make contact with the smooth back side of this pulley. This is a common point for `pulley diagram` errors if not paid close attention.
- Alternator Pulley (Upper Left): Route the belt from the idler pulley across the top of the engine to the alternator pulley, which is grooved. Ensure the belt grooves align.
- Water Pump Pulley (Middle Left): From the alternator, drop the belt down to the water pump pulley, which is also grooved. This pulley is critical for engine cooling.
- Tensioner Pulley (Final Routing): With the `belt tensioner` still held in the released position, route the remaining section of the belt over or under its grooved pulley (depending on the specific tensioner design, referring to your `2006 Scion xB belt diagram` is essential here). This is the last pulley to engage.
- Release and Verify: Slowly release the tensioner arm, allowing it to apply tension to the new belt. Double-check that the belt is correctly seated in all grooves on every pulley. Inspect the `belt routing path` for any twists or misalignments. A properly routed belt will appear straight and snug on all pulleys.
Never attempt to route or adjust the serpentine belt with the engine running. Accidental engagement of the belt or contact with rotating components can result in severe personal injury. Always disconnect the negative battery terminal before extensive work to prevent accidental starter engagement.
TENSION & ADJUSTMENT NOTES
The 2006 Scion xB, equipped with the 1NZ-FE engine, utilizes an automatic `belt tensioner` system. This means that manual `belt adjustment` is generally not required, as the spring-loaded mechanism is designed to maintain consistent tension on the serpentine belt throughout its lifespan. This system constantly compensates for minor belt stretch and pulley variations.
While the tensioner is automatic, its operational range is defined. A new `OEM belt` should typically result in the tensioner arm being within approximately 1/3 to 2/3 of its total travel range. Consult the factory service manual for exact tensioner arm alignment marks, if present.
Checking Tension:
To assess the health of your `belt tensioner` and the overall tension, perform a visual inspection:
Belt Condition: Look for cracks, fraying, glazing, or missing ribs on the `belt routing path`. These are indicators of a worn belt that may be losing tension capability.
Tensioner Arm Position: Observe the tensioner arm’s position. If it’s near the end of its travel (either fully extended or fully retracted), it may indicate a worn belt that’s stretched beyond its limits, or a failing tensioner.
Belt Squeal: A persistent squealing noise, especially during cold starts or when accessories (like A/C) engage, is a primary symptom of insufficient `belt tension`. While a worn belt is often the culprit, a failing tensioner can also cause this.
Tensioner Play: With the engine off, attempt to move the tensioner pulley by hand. Excessive play, grinding noises, or resistance indicates a failing `idler pulley` or tensioner bearing.
Common Tension Issues:
1. Squealing Belt: The most common sign of improper tension. This is usually due to an old, stretched belt or a `belt tensioner` that no longer applies adequate force. Replacing both the belt and the tensioner assembly is often the most effective solution, especially if the tensioner exhibits signs of wear.
2. Premature Belt Wear: If the belt is too loose, it can slip, causing friction and heat, leading to premature wear. Conversely, a seized or over-tensioned (though rare with an automatic system, usually due to a faulty tensioner) tensioner can also stress the belt and pulley bearings.
3. Accessory Malfunction: Insufficient tension can lead to slippage on specific pulleys, reducing the efficiency of the alternator (leading to charging issues), A/C compressor (reduced cooling), or water pump (engine overheating).
If you suspect your `belt tensioner` is failing, it’s generally recommended to replace the entire assembly (tensioner body, arm, and pulley) rather than just the pulley itself, as the internal spring mechanism can weaken over time. For more detailed troubleshooting on accessory drive systems, you can refer to our guide on `Scion xB Accessory Drive System Diagnosis`.
FAQ
What are the common symptoms of a failing serpentine belt on a 2006 Scion xB?
Common symptoms include a persistent squealing noise, particularly on cold starts or when accelerating; visible cracks, fraying, or glazing on the belt itself; an illuminated battery light (indicating alternator slippage or failure); or reduced performance from accessories like the air conditioning or power steering (though the 2006 xB has electric power steering, so no belt-driven pump for that specific function). If you notice any of these, it’s time to inspect your `2006 Scion xB belt diagram` and the belt’s condition.
How often should the serpentine belt be inspected and replaced on a 2006 Scion xB?
Toyota generally recommends inspecting the serpentine belt every 30,000 miles or 30 months, and replacing it as needed based on condition. Most technicians advise replacement between 60,000 to 100,000 miles, depending on driving conditions and climate. Regular inspection is key, as a `belt routing path` subject to extreme temperatures or contaminants may degrade faster. Consult your owner’s manual or the Toyota factory service schedule for precise intervals.
Can a misaligned idler pulley or tensioner pulley cause issues?
Absolutely. A misaligned `idler pulley` or `belt tensioner` pulley can lead to excessive belt wear on one side, abnormal noise (grinding or squealing), and potentially cause the belt to ride off the pulley entirely. This is often due to a worn bearing within the pulley or the tensioner assembly itself. When reviewing your `pulley diagram`, always check for correct alignment and free rotation of all components. Worn pulleys contribute to belt failure just as much as a worn belt.
What does “6PK1905” mean for a serpentine belt?
The designation “6PK1905” provides specific details about the `belt size` and construction. “6” indicates the number of ribs or grooves on the belt. “PK” signifies that it’s a standard V-ribbed automotive belt (poly-V). “1905” denotes the effective length of the belt in millimeters. This `belt part number` nomenclature is crucial for ensuring you purchase the correct replacement belt for your 2006 Scion xB and helps confirm it matches the `OEM belt` specifications.
Are there different serpentine belt diagrams for different trim levels of the 2006 Scion xB?
For the 2006 Scion xB, the `2006 Scion xB belt diagram` for the serpentine belt should be consistent across all trim levels, as they all utilized the same 1.5L 1NZ-FE engine with the identical accessory drive configuration. Variations in `belt routing path` typically only occur if an aftermarket accessory (like a supercharger) has been installed, or if the vehicle’s engine or major accessory components differ. Always confirm against the vehicle’s actual engine and accessory setup. For a deeper dive into common Scion xB maintenance, explore our guide on `Scion xB Common Maintenance Tasks`.
