Starting a garage construction or renovation project requires more than just lumber and nails; it demands a high level of precision and structural integrity. One of the most critical phases in this process is the initial framing, as it dictates how well the garage door will fit, seal, and operate over time. Without an accurate rough garage door framing diagram, even the most experienced DIYer can run into issues with misaligned tracks, sagging headers, or inadequate headroom. This guide is designed to provide you with a comprehensive schematic and blueprint of the entire framing system. You will learn about the individual components that make up the rough opening, how to calculate dimensions for standard and custom doors, and the best practices for ensuring a square and sturdy configuration. By understanding the underlying structure through a detailed layout overview, you can avoid costly mistakes and ensure your garage door system remains functional for decades.

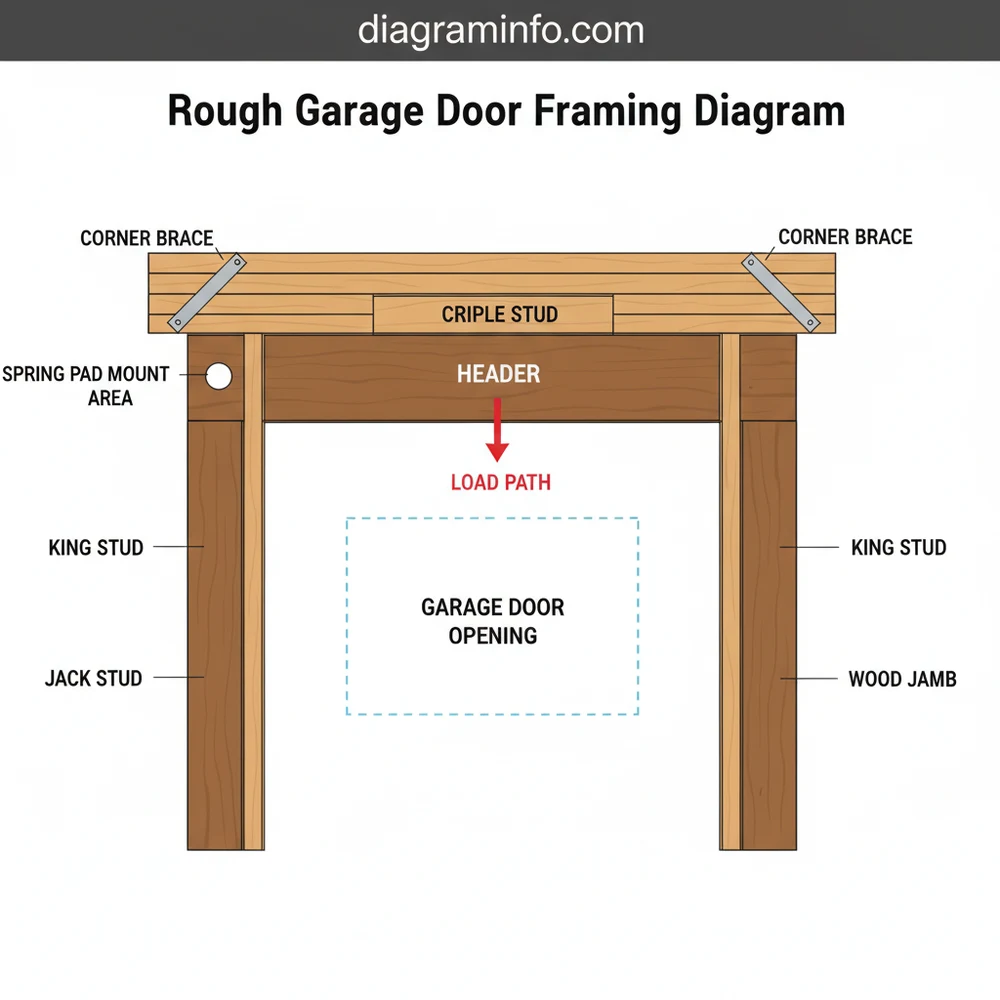

The core of any garage wall is its structural skeleton, and the opening for the door is the most complex part of that skeleton. A rough garage door framing diagram illustrates the specific arrangement of vertical and horizontal members designed to support the weight of the roof while providing a stable mounting surface for the door tracks and hardware. When looking at a schematic, you will primarily see the king studs, jack studs, the header, and the cripple studs. The king stud is the full-length vertical member that runs from the bottom plate to the top plate of the wall. Attached directly to the inner side of the king stud is the jack stud, also known as a trimmer. The jack stud is shorter because its primary purpose is to support the ends of the header, which is the heavy horizontal beam that spans the top of the opening.

The header is perhaps the most critical component in the configuration, as it carries the load from the roof or the floor above and transfers it down through the jack studs to the foundation. In many modern blueprints, you will see a double or triple header made of dimensional lumber or an engineered beam like an LVL (Laminated Veneer Lumber). Above the header are the cripple studs, which fill the gap between the header and the top plate, maintaining the wall’s structural spacing. The rough opening itself is intentionally sized slightly larger than the actual door to allow for the installation of finished 2×6 jambs and to account for any minor leveling adjustments. A standard blueprint usually suggests making the rough opening 2 inches wider and 1.5 to 2 inches taller than the door you intend to install, though this can vary based on the specific door model and the thickness of your finished flooring.

Interpreting a rough garage door framing diagram and translating it into a physical structure requires a systematic approach. Follow these steps to ensure your framing is accurate and meets building codes:

1. Calculate Your Dimensions: Before picking up a saw, identify the size of the garage door you are installing. If you have a standard 9-foot by 7-foot door, your rough opening width should be 9 feet and 2 inches. The extra 2 inches allow for a 1.5-inch thick 2×6 jamb on each side, plus a small fraction of an inch for shimming. For the height, if the door is 7 feet tall, the rough opening should be 7 feet 1.5 inches to accommodate the top jamb and ensure the door has enough clearance from the floor.

2. Prepare the Wall Plates: Lay out your top and bottom plates on the garage floor. Mark the center of the door opening first, then measure outward to mark the locations for your king studs and jack studs. This ensures the door is perfectly centered within the wall section. Remember that the bottom plate will eventually be cut out within the opening area, but keeping it intact during the initial framing helps keep the wall straight.

3. Install King and Jack Studs: Nail your king studs into position first. Once the king studs are secured between the top and bottom plates, nail the jack studs to the inside of the king studs. The height of the jack stud should be exactly the height of your intended rough opening. These jack studs act as the “shoulders” that the header will sit on, so they must be cut to an identical length to keep the header level.

4. Construct and Set the Header: Depending on the span (the width of the door), your header might consist of two 2x10s or 2x12s sandwiched with a piece of 1/2-inch plywood in between to match the 3.5-inch width of a standard 2×4 wall. Lift the header into place so it rests firmly on the top of the jack studs and is nailed into the king studs. For double-car garages, this component is extremely heavy and may require a lift or multiple people to set safely.

5. Add Cripple Studs: Place cripple studs above the header at the same 16-inch or 24-inch “on-center” spacing used in the rest of the wall. These transfer the load from the top plate down to the header. Ensure they are plumb and securely nailed to prevent any future sagging.

6. Plumb and Square the Opening: Use a level to check that the jack studs are perfectly vertical (plumb). Then, measure diagonally from the top-left corner to the bottom-right corner, and from the top-right to the bottom-left. If the two measurements are identical, your opening is perfectly square. This is the most crucial step for a smooth garage door installation.

7. Verify Headroom and Side Room: Check that you have at least 12 inches of “headroom” (the space between the bottom of the header and the ceiling) for standard torsion spring systems. Additionally, ensure you have at least 3.75 to 4 inches of “side room” on the interior side of the king studs to mount the vertical tracks.

8. Cut the Bottom Plate: Once the wall is standing, braced, and anchored to the foundation, use a reciprocating saw to cut the bottom plate out of the door opening. This leaves a clean, flush transition for the door to meet the concrete floor.

Even with a detailed rough garage door framing diagram, several common issues can arise during the construction process. The most frequent problem is an “out-of-square” opening. This usually happens if the foundation is not perfectly level or if the wall shifted while being raised. If the opening is not square, the garage door will not seal properly against the weatherstripping, leading to drafts and moisture intrusion. You can identify this early by checking your diagonal measurements; if they differ by more than 1/4 inch, you must adjust your bracing before proceeding.

Another common issue is inadequate headroom. Many modern homes use high ceilings, but if the header is placed too high without consideration for the door’s track system, you may need a “high-lift” kit or a specialized “low-headroom” track. Conversely, if the header is too low, the door may not fully clear the opening when raised, which is a significant safety hazard for taller vehicles. Always look for warning signs like cracked studs or a bowing header, which indicate that the weight of the roof is too heavy for the current lumber configuration. If you notice structural movement after the door is installed, seek professional help immediately to shore up the header.

To ensure the highest quality result, there are several best practices that professional framers use to supplement a standard rough garage door framing diagram. First, always use “triple-stud” configurations for very wide or heavy doors. Adding an extra jack stud on each side provides a much larger bearing surface for the header and prevents the studs from crushing under the load over time. Second, when installing the 2×6 finished jambs, use galvanized nails or screws to prevent rusting, especially since garage doors are frequently exposed to rain and snow.

For maintenance and longevity, ensure that the header is wrapped in a moisture barrier or flashing before the exterior siding is applied. This prevents water from seeping into the framing, which is a common cause of header rot. Additionally, if you plan on installing a heavy carriage-house style door, consider using an engineered header regardless of what the minimum code requires; the reduced deflection will keep the door operating smoothly.

• ✓ Use LVL beams for spans over 10 feet to prevent long-term sagging.
• ✓ Leave exactly 3.75 inches of side room for standard track brackets.
• ✓ Ensure the header is level using a laser level for the best accuracy.
• ✓ Double-check the floor’s slope; if the floor drops significantly, the rough opening height must be adjusted.
• ✓ Always install a center “spring pad” (a 2×6 block) on the wall above the header for mounting the torsion spring.

In summary, mastering the rough garage door framing diagram is the foundation of a successful garage build. By meticulously following the schematic, identifying each critical component like king studs and headers, and verifying your measurements against the rough opening requirements, you ensure a professional-grade installation. While the process requires careful attention to detail and a bit of heavy lifting, the result is a structurally sound opening that will support your garage door system reliably for many years. Always prioritize safety, use high-quality materials, and don’t hesitate to consult a structural engineer for complex configurations or wide spans. With this comprehensive overview, you are now equipped to tackle your framing project with confidence and precision.
