Yamaha Golf Cart 48V Rear End Diagram: Component Breakdown 2026
The Yamaha golf cart rear end diagram details connections for the motor, controller, and solenoid. Key wiring includes heavy gauge cables for the battery bank (typically red for positive, black for negative), and lighter gauge control wires (e.g., blue for solenoid activation, yellow for controller signals). Verify main positive/negative terminals and accessory connections.
📌 Key Takeaways
- Most Yamaha golf carts utilize either 36-volt (six 6V batteries) or 48-volt (six 8V or four 12V batteries) systems, crucial for component selection.
- Always disconnect the main battery pack negative cable before performing any work on the Yamaha golf cart rear end diagram components to prevent electrical shock.
- Confirm all battery and motor terminal connections are clean, tight, and torqued to manufacturer specifications (typically 10-12 ft-lbs) to prevent overheating.
- The solenoid is a frequent failure point in the rear end system; test for a proper ‘click’ and voltage pass-through before suspecting the controller or motor.
- Consult a certified technician for complex diagnostic issues involving controller programming, motor failure, or persistent problems, as specialized tools and expertise may be required.
This article delves into the intricate electrical architecture of the Yamaha golf cart, focusing specifically on the rear end wiring essential for propulsion and power management. Whether you operate a 36-volt system found in older G-series models or the more prevalent 48-volt system in Drive and Drive2 platforms, understanding the precise connections of the solenoid, controller, motor, and on-board charger (OBC) is paramount for diagnosis and repair. This comprehensive guide, complemented by a detailed Yamaha golf cart rear end diagram, equips technicians and seasoned DIY enthusiasts with the knowledge to maintain and troubleshoot these critical systems.

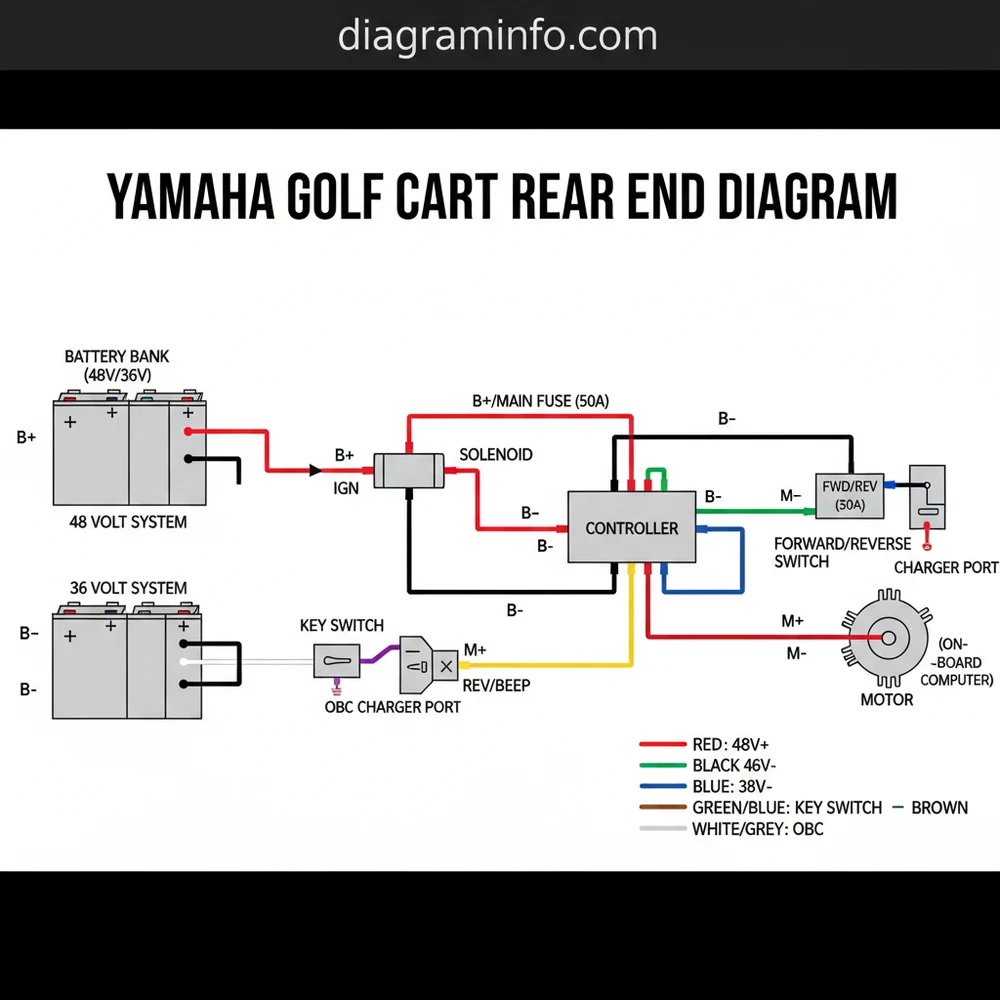

This illustrative Yamaha golf cart rear end diagram provides a foundational overview of the electrical pathways. It outlines the primary power circuits from the battery bank through the main solenoid, motor controller, and drive motor, alongside control circuits for switches and auxiliary components. Pay close attention to the designated wire colors and their corresponding functions, as these are critical for accurate component identification and tracing. Note that while core principles remain consistent, specific wire colors and harness configurations may exhibit minor variations between Yamaha G-series, Drive, and Drive2 models, and between 36V and 48V systems. Always cross-reference with the specific service manual for your cart’s model year.
For optimal diagnostic efficiency, always disconnect the main battery pack before attempting any wiring alterations or component replacements. Verifying continuity with a multimeter is often more reliable than visual inspection alone, especially for internal component failures.
WIRE COLOR REFERENCE TABLE
Understanding the standardized (where applicable) wire color codes is crucial for interpreting any Yamaha golf cart rear end diagram. This table provides a general reference; however, always consult your specific model’s service manual as variations exist, particularly across different production years and between 36 volt system and 48 volt system configurations.
| Wire Color | Function | Connects To | Notes |
|---|---|---|---|
| RED (Thick) | Main Battery Positive (+) | Solenoid (Large Terminal), Charger Port | Primary power input to solenoid. |
| BLACK (Thick) | Main Battery Negative (-) | Controller (B-), Motor (A2/S2), Charger Port | Primary ground path. |
| BLUE | Solenoid Activation / Controller Input | Solenoid (Small Terminal), Controller (B+ switched) | Often switched positive from key switch/pedal. |
| YELLOW | Throttle Input / Speed Sensor | Controller, Pedal Box, Motor Speed Sensor | Carries throttle signal to controller; may be multi-pin harness. |
| GREEN | Forward/Reverse Switch Signal | Controller, F/R Switch | Varies with switch position. |
| WHITE | Run/Tow Switch / Auxiliary Power | Controller, Run/Tow Switch, Lighting circuits | Enables or disables main control circuit. |
| ORANGE | Motor Field/Armature (Specific Models) | Controller (M-), Motor (A1) | Direct connection for series motors. |
| BROWN | OBC/Controller Interlock | On-Board Charger, Controller | Prevents cart operation during charging. |
| GREY | Controller Output to Motor (Series) | Controller (M+), Motor (S1/A1) | Power output from controller to motor. |
| PURPLE | Key Switch Output | Solenoid Coil, Controller (key switch input) | Switched positive to activate system. |
Working with high-voltage golf cart systems (especially 48-volt systems) poses significant electrical hazards. Always wear appropriate personal protective equipment, including insulated gloves and eye protection. Ensure the Run/Tow switch is in the “Tow” position and the main battery bank is disconnected before servicing.
COMPONENT CONNECTION GUIDE
Accurate component wiring is paramount for the safe and reliable operation of any Yamaha golf cart. This section outlines the critical connections for the solenoid, motor controller, On-Board Charger (OBC), and drive motor, referencing the principles illustrated in the Yamaha golf cart rear end diagram.
Solenoid Wiring:
The solenoid acts as the main contractor, connecting the high-amperage battery power to the motor controller. It has two large terminals for main power flow and two small terminals for the activation coil.
1. Large Terminals: One large terminal connects directly to the positive (+) post of the battery bank (typically via a heavy-gauge RED cable). The other large terminal connects to the B+ terminal of the motor controller (often via another heavy-gauge cable, sometimes BLUE or WHITE). Ensure these connections are clean and tight, as loose connections can cause arcing and heat.
2. Small Terminals (Coil): One small terminal receives switched positive voltage (typically from the key switch, pedal microswitch, and forward reverse switch logic, often a PURPLE or BLUE wire) when the cart is instructed to move. The other small terminal connects to ground (-) or to the controller for ground switching. Manufacturer specifications indicate a typical coil resistance between 10-15 ohms for a 36V solenoid, and 180-200 ohms for a 48V solenoid. If the solenoid clicks but no power reaches the controller, verify voltage across the large terminals while activated.
Controller Wiring:
The motor controller is the “brain” of the propulsion system, converting battery voltage into variable power for the motor. Modern Yamaha golf carts primarily use AC or DC SepEx (separately excited) controllers, which have multiple terminals beyond the basic B+, B-, M+, M- of older series controllers.
1. Main Power Inputs (B+, B-): The B+ terminal receives power from the output side of the main solenoid. The B- terminal connects directly to the main battery bank negative (often a thick BLACK cable).
2. Motor Outputs (U, V, W for AC; A1, A2, S1, S2 for DC SepEx): For AC systems (e.g., Yamaha Drive2), these are typically three heavy-gauge cables connecting directly to the AC motor. For DC SepEx systems (e.g., Yamaha Drive), S1 and S2 are field windings, while A1 and A2 are armature windings. The controller modulates current to these windings to control motor speed and direction.
3. Control Inputs: This typically involves a multi-pin connector harness.
Throttle Input: Receives a variable voltage signal (e.g., 0-5V) from the pedal position sensor (often YELLOW or ORANGE wires).
Forward Reverse Switch Input: Signals the controller to change motor direction (often GREEN wires).
Run/Tow Switch Input: Disables/enables the controller (often a WHITE wire).
Key Switch Input: Supplies switched power to wake up the controller (often a PURPLE or BLUE wire).
Speed Sensor Input: Provides feedback from the motor’s speed sensor for closed-loop control.
OBC/Interlock Input: Signals from the On-Board Charger (OBC) to prevent operation while charging (often a BROWN wire).
On-Board Charger (OBC) Wiring:
The OBC manages the charging process and communicates with the controller.
1. Input (AC): This connects to the charger port for connection to the external AC charger.
2. Output (DC): Connects to the main battery bank via the charger port receptacle (typically heavy gauge RED and BLACK cables).
3. Interlock/Sense Wires: These typically connect to the controller (often a BROWN wire) and sometimes a specific battery terminal (e.g., the pack negative or a specific cell for voltage sensing). This interlock system ensures the cart cannot be driven while charging and can sometimes prevent charging if the battery bank is severely discharged or overcharged. A thorough understanding of [Golf Cart Charging System Diagnostics] complements this wiring knowledge, ensuring your OBC functions optimally.
Motor Wiring:
The electric drive motor is the final component in the propulsion chain.
1. Series Motors: Older Yamaha models (e.g., some G-series) used series wound motors. They have two large terminals for the armature (A1, A2) and two for the field (F1, F2). These connect to the controller’s M+ and M- terminals in specific configurations, sometimes with internal crossovers for direction reversal.
2. Separately Excited (SepEx) Motors: Common in Yamaha Drive models. These have separate armature (A1, A2) and field (S1, S2) windings. The controller directly controls current to both windings independently for precise speed and torque management.
3. AC Motors: Found in Yamaha Drive2. These are three-phase AC motors with three main input terminals (U, V, W) connecting directly to the AC controller. These systems also typically include a motor speed sensor.
For critical high-current connections, Yamaha OEM specifications recommend torque settings of 11-13 ft-lbs (15-18 Nm) for large battery and motor terminals. Utilize properly sized battery cables (e.g., 4-gauge for 36V, 2-gauge or 0-gauge for 48V systems) to minimize voltage drop and heat generation under load.
COMMON WIRING PROBLEMS & FIXES
Diagnosing electrical issues in a Yamaha golf cart often requires a systematic approach, beginning with a thorough understanding of the Yamaha golf cart rear end diagram. Here are common problems and their effective solutions:
1. Cart Does Not Move / No Solenoid Click:
Diagnosis: This usually indicates a lack of power to the solenoid coil or a faulty solenoid. Check the main battery bank voltage; ensure it’s above the minimum threshold (e.g., 36V for a 36 volt system, 48V for a 48 volt system). Verify the Run/Tow switch is in the “Run” position. Test for voltage at both small terminals of the solenoid when the key is on and pedal is pressed. One small terminal should have pack voltage, and the other should be switching to ground (or receiving ground from the controller).
Fix: If no voltage at the small terminals, trace the control circuit from the key switch, F/R switch, pedal microswitch, and Run/Tow switch. Replace any faulty switches or microswitches. If voltage is present at the small terminals but no click, the solenoid coil is likely open; replace the solenoid. If it clicks but no main power passes, the solenoid’s main contacts are fused or pitted; replace the solenoid.
2. Cart Moves, But Is Sluggish / Lacks Power:
Diagnosis: Often points to voltage drop under load, poor battery condition, or a compromised motor controller. First, inspect all heavy-gauge cables (battery, solenoid, controller, motor) for corrosion, fraying, or loose connections. Perform a load test on each battery in the battery bank. Check for excessive heat at cable terminals, motor, or controller. Measure pack voltage at the controller’s B+ and B- terminals while driving under load; significant drop (more than 2-3V) indicates a problem.
Fix: Clean and tighten all high-current connections. Replace corroded or undersized battery cables. If individual batteries fail a load test, replace the entire battery bank. If cables and batteries are sound, the motor or controller may be failing. For detailed instructions on battery maintenance, refer to our guide on [Battery Care Best Practices].
3. Charger Plugged In, But Batteries Don’t Charge:
Diagnosis: This issue commonly involves the charger port, OBC, or a blown fuse/circuit breaker. Check for continuity between the charger port and the battery bank. Inspect the charger port for damage or corrosion. Verify the OBC’s interlock circuit is not falsely open. Many Yamaha models (especially 48-volt system) have a fuse or circuit breaker near the charger port or OBC; check its condition.
Fix: Clean or replace the charger port. Reset or replace any tripped circuit breakers or blown fuses. If the charger is receiving AC but not outputting DC, and the OBC is not communicating, the OBC itself may be faulty and require replacement. According to OEM specifications, the OBC must be correctly wired to the battery bank and controller to function.
4. Forward Reverse Switch Malfunction (Cart Stuck in One Direction or No Movement):
Diagnosis: The forward reverse switch sends signals to the controller to determine motor direction. Issues can arise from worn contacts, faulty wiring to the switch, or a problem within the controller’s directional logic. With the Run/Tow switch in “Tow” and main power disconnected, use a multimeter to check for continuity across the F/R switch contacts in both forward and reverse positions, as depicted in your Yamaha golf cart rear end diagram.
Fix: If the switch contacts are dirty or worn, they can often be cleaned, but replacement is usually the more reliable long-term solution. Inspect the wiring harness connecting the F/R switch to the controller for breaks or corrosion. If the switch and wiring are confirmed good, the fault may lie within the controller’s logic circuit, potentially necessitating controller replacement. Understanding the nuances of [Yamaha Controller Upgrade Options] can further enhance performance and address such issues.
5. Intermittent Power Loss / Cart Shuts Off Randomly:
Diagnosis: This frustrating problem often stems from loose connections, faulty microswitches, or an overheating controller/motor. Begin by meticulously checking every connection in the main power circuit, including battery terminals, solenoid, controller, and motor. Inspect the pedal microswitch, Run/Tow switch, and key switch for intermittent contact. Monitor the controller’s temperature during operation.
Fix: Tighten all connections. Replace any microswitches or main switches that show inconsistent operation. If the controller is overheating, ensure proper ventilation, verify the motor is not drawing excessive current (e.g., due to binding brakes or worn bearings), and consider if the controller is undersized for the application. A thermal shutdown by the controller is a protective measure, not a fault in itself, but indicates an underlying issue causing overcurrent or excessive heat.
FAQ
What is the difference between a 36 volt system and a 48 volt system in Yamaha golf carts?
The primary difference lies in the total voltage supplied by the battery bank and the components designed to operate at that voltage. A 36-volt system typically uses six 6-volt batteries, while a 48-volt system often uses six 8-volt batteries or four 12-volt batteries. The controller, solenoid, and charger must be matched to the specific voltage system. 48-volt systems generally offer more power, efficiency, and run time, which is why they are standard in newer Yamaha Drive and Drive2 models.
How do I test my Yamaha golf cart solenoid?
To test the solenoid, first ensure the cart is off and in “Tow” mode. Use a multimeter set to DC voltage. Place the negative probe on the main battery negative. Touch the positive probe to each of the two small terminals on the solenoid. When the key is on and the pedal is pressed, one small terminal should read full pack voltage, and the other should read near zero volts (indicating it’s connected to ground by the controller). If these readings are correct, the coil is being energized. Next, test the large terminals: with the coil energized, you should read full pack voltage across both large terminals (indicating continuity) or between the battery side large terminal and controller side large terminal. If the coil is energized but no power passes through the large terminals, the main contacts are faulty, and the solenoid needs replacement.
What does the Run/Tow switch do in a Yamaha golf cart?
The Run/Tow switch is a crucial safety and maintenance feature. In the “Run” position, the cart’s electrical system is active, allowing it to operate. In the “Tow” position, it completely disconnects power to the controller and often to other critical components, essentially shutting down the high-voltage system. This is vital when towing the cart, performing maintenance, or storing it for extended periods to prevent accidental activation and protect electronics during battery work or welding on the frame.
Can I upgrade my Yamaha golf cart from a 36-volt system to a 48-volt system?
While technically possible, upgrading from a 36-volt to a 48-volt system is a significant undertaking that requires replacing multiple components. You would need new batteries (to achieve 48V), a 48V motor controller, a 48V solenoid, and potentially a 48V motor if your current motor is not rated for the higher voltage. You would also need a 48V charger and a compatible charger receptacle/OBC. This is a complex modification best performed by experienced technicians and is often more costly than the performance benefits justify for older carts.
Where can I find my specific Yamaha golf cart wiring diagram for my model year?
The most accurate and comprehensive wiring diagrams for your specific Yamaha golf cart model and year can be found in the Official Yamaha Golf Car Service Manuals. These manuals provide detailed schematics, component locations, and troubleshooting flowcharts. They are often available for purchase directly from Yamaha dealerships or through reputable online parts suppliers. Online forums and enthusiast communities may also share diagrams, but always cross-reference them with official documentation to ensure accuracy for your exact model.
Step-by-Step Guide to Understanding the Yamaha Golf Cart 48V Rear End Diagram: Component Breakdown 2026
Identify – Identify your specific Yamaha golf cart model, year, and system voltage (36V or 48V) to ensure diagram accuracy.
Locate – Locate the main battery bank within the rear end and disconnect the negative terminal first to ensure safety.
Reference – Reference the provided Yamaha golf cart rear end diagram to precisely identify components like the motor, controller, and solenoid connections.
Connect/Route – Carefully trace and verify all wire connections, ensuring heavy gauge battery bank cables are properly routed and secured to their respective terminals.
Verify – Use a multimeter to verify continuity, voltage, and proper functionality of critical components such as the solenoid activation circuit and controller outputs.
Troubleshoot – If issues persist, re-check all connections, consult the common wiring problems section for typical failures, or seek professional diagnostic assistance.
Frequently Asked Questions
What voltage is yamaha golf cart rear end diagram?
Yamaha golf carts commonly use either 36-volt (six 6V batteries) or 48-volt (six 8V or four 12V batteries) systems. The specific voltage is crucial for selecting correct components like controllers, solenoids, and chargers, ensuring system compatibility and optimal performance for your rear end setup.
What do the wire colors mean on yamaha golf cart rear end diagram?
While specific colors vary by model year, typically heavy red wires indicate positive battery flow, and black indicates negative. Lighter gauge wires, like blue or yellow, often control the solenoid, controller inputs, or accessory circuits in the rear end wiring. Always reference the specific diagram for your cart’s exact color code.
How do I troubleshoot yamaha golf cart rear end diagram that won’t run?
First, check the battery bank voltage and continuity. Then, test the solenoid for clicks and voltage pass-through when activated. Inspect controller wiring for loose connections or burns. A faulty microswitch, often located near the accelerator pedal or F/R switch, can also prevent the controller from activating the motor.
What is the solenoid wiring on yamaha golf cart rear end diagram?
The solenoid wiring on a Yamaha golf cart’s rear end typically involves two large terminals for the main battery/controller current flow and two smaller terminals for activation. One small terminal connects to battery positive (often through a fuse), and the other to the controller or key switch, which provides a ground path to activate the coil, closing the main circuit.
How many batteries does yamaha golf cart rear end diagram have?
A Yamaha golf cart’s rear end wiring connects to either six 6-volt batteries for a 36-volt system, or four 12-volt batteries or six 8-volt batteries for a 48-volt system. The battery bank configuration determines the overall system voltage and directly impacts the motor and controller operation within the diagram.
What gauge wire does yamaha golf cart rear end diagram use?
Yamaha golf cart rear end diagrams typically specify heavy-gauge cables (e.g., 4-gauge or 2-gauge) for the main battery bank, motor, and controller connections to handle high current efficiently. Lighter gauge wires (e.g., 16-18 gauge) are used for control circuits like the solenoid activation or accessory power.
