Tekonsha Brake Controller Wiring Diagram: Easy Setup Guide

Installing a trailer brake controller is one of the most critical upgrades for any towing vehicle, ensuring that your trailer stops in sync with your truck. Understanding a tekonsha brake controller wiring diagram is the first step toward a successful DIY installation that guarantees safety on the road. Without a clear map of the electrical connections, you risk damaging your vehicle’s sensitive electronics or, worse, experiencing a brake failure while hauling a heavy load. This guide provides a comprehensive breakdown of the wiring schematics, color codes, and terminal connections required to get your system up and running. You will learn how to identify each wire’s function, the tools necessary for the job, and how to troubleshoot the system to ensure consistent voltage delivery to your trailer brakes.

Understanding the Tekonsha Brake Controller Wiring Diagram

The core of any Tekonsha installation lies in the four-wire harness that exits the back of the unit. While different models—such as the P2, P3, or Voyager—may have different interfaces, the underlying wiring logic remains consistent. A standard tekonsha brake controller wiring diagram illustrates how the controller intercepts the signal from your brake pedal and translates it into a modulated electrical output for the trailer.

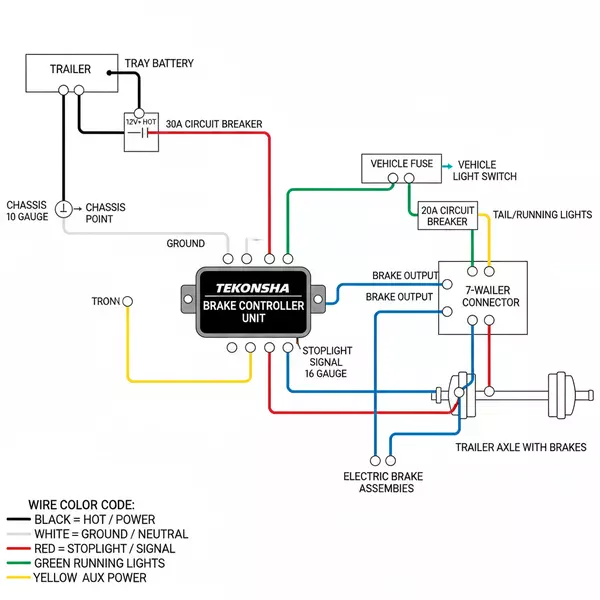

The diagram is typically broken down into four distinct circuits, each color-coded for easy identification. The Black Wire is the hot wire, which provides 12-volt power directly from the battery. The White Wire serves as the ground wire, completing the circuit back to the negative terminal. The Red Wire is the input signal, connected to the cold side of the brake light switch, which tells the controller when you have pressed the pedal. Finally, the Blue Wire is the output, carrying the variable voltage to the trailer connector at the rear of the vehicle.

In some advanced installations or older vehicle retrofits, you might hear terms like “traveler wire” or “common terminal.” While these are more frequent in residential AC wiring (where a traveler wire connects two 3-way switches), in the context of automotive braking, the “traveler” logic is essentially replaced by the blue output wire. Similarly, while a household outlet might use a brass screw for the hot connection and a neutral wire for the return, automotive systems rely on a chassis ground and high-quality copper crimp connectors to maintain 12V DC integrity.

Step-by-Step Installation Guide

Following the tekonsha brake controller wiring diagram requires a methodical approach. Before you begin, gather a digital multimeter, wire strippers, high-quality crimping tools, and the appropriate gauge of wire (typically 12-gauge for power and ground, and 16-gauge for the signal wire).

1. Disconnect the Battery: Safety is paramount. Disconnect the negative battery cable to prevent accidental shorts while you are tapping into the vehicle’s power supply.
2. Mount the Controller: Choose a location within reach of the driver but away from the knees. Use the provided bracket and screws. Most Tekonsha units can be mounted at various angles, but they must be leveled side-to-side relative to the vehicle.
3. Identify the Brake Switch Wire: This is the most technical step. Use your multimeter to find the wire on the brake pedal switch that only shows voltage when the pedal is depressed. This is the “cold side” of the switch. Connect the Red Wire from the controller to this point.
4. Run the Hot Wire (Black): Route a 12-gauge wire from the controller, through the firewall, to the vehicle battery. Install a 20A or 30A circuit breaker in-line near the battery. Connect this to the positive terminal. This is your primary “hot” feed.
5. Establish the Ground (White): Connect the white wire to a clean, unpainted metal surface on the chassis or directly to the negative battery terminal. A solid ground is essential to prevent “hunting” or erratic braking behavior.
6. Route the Output Wire (Blue): Run a 12-gauge wire from the controller’s blue wire all the way to the back of the vehicle. This connects to the #2 terminal on a standard 7-way round trailer plug.
7. Final Connections and Testing: Reconnect the battery. The controller should light up. Plug in your trailer and use the manual override lever to ensure the trailer brakes engage without the truck’s brakes being applied.

Common Issues & Troubleshooting

Even with a perfect tekonsha brake controller wiring diagram, issues can arise due to environmental factors or aging components. One of the most common problems is a “Disconnected” or “No Trailer” message. This usually indicates a break in the blue wire circuit or a poor connection at the trailer plug.

If you notice that the brakes are weak, check the voltage at the trailer plug using a multimeter while someone else operates the manual override. If you see significantly less than 12V, you likely have a high-resistance connection or an insufficient wire gauge. Unlike a home circuit where a neutral wire might be loose at a common terminal, automotive issues are frequently caused by corrosion at the ground point.

Another frequent problem is the “Short Circuit” warning. This often happens if the blue output wire rub against the frame or if the magnets inside the trailer brakes have worn through their insulation. By referring back to your diagram, you can isolate each wire and test for continuity to ground to find the leak.

Tips & Best Practices for Wiring Success

To achieve a professional-grade installation that lasts for years, follow these industry best practices:

• ✓ Use Heat-Shrink Connectors: Especially for connections under the vehicle or near the battery, heat-shrink butt connectors prevent moisture from corroding the copper.
• ✓ Wire Loom is Your Friend: Protect your long wire runs with plastic convoluted tubing (wire loom). This prevents the insulation from chafing against the frame.
• ✓ Dielectric Grease: Apply a small amount of dielectric grease to the terminals of your 7-way plug to prevent oxidation.
• ✓ Check Your Gauge: For long trailers, consider upgrading to 10-gauge wire for the blue and white wires to reduce voltage drop over the distance.

When selecting components, avoid using generic “vampire” or “T-tap” connectors for the hot wire or ground wire. These connectors cut into the wire strands and create a weak point that can vibrate loose or overheat. Instead, use a proper solder joint or a high-quality crimp with a dedicated tool. While a homeowner might use a brass screw to secure a wire in a junction box, the vibration of a moving vehicle requires a much more secure mechanical bond.

Properly interpreting a tekonsha brake controller wiring diagram ensures that your towing experience is smooth and controlled. By understanding the role of each wire—from the stoplight signal to the battery feed—you empower yourself to maintain and troubleshoot your own rig. Whether you are navigating steep mountain passes or stop-and-go city traffic, a well-wired brake controller is your best defense against trailer sway and increased stopping distances. Always double-check your connections, test the voltage regularly, and refer to your specific model’s manual for any unique settings. With the right preparation and attention to detail, your Tekonsha installation will provide reliable service for thousands of miles.
