Fuel Pump Connector Diagram

If your car isn’t starting, it may be the fuel pump connector. This part is responsible for delivering fuel to the engine, and if it’s not working properly, your car won’t run. To check if the fuel pump connector is the problem, you can use a multimeter to test for continuity.

If there is no continuity, then the connector needs to be replaced.

If you’re having trouble with your fuel pump, one of the first things you’ll want to check is the connector. This diagram will help you understand how the connector works and how to troubleshoot it if there are any problems.

Fuel Pump Connector Diagram

Credit: www.v8miata.net

What Color is the Fuel Pump Wire?

Assuming you are asking about the color of the wire that powers the fuel pump on a car, the answer is typically going to be red. This is because red is almost always used for hot wires, or wires that carry power.

How Do You Replace a Fuel Pump Wiring Harness?

If your car is like most, the fuel pump wiring harness is located under the rear seat. Gasoline is flammable, so it’s important to disconnect the battery before starting this project. 1) Disconnect the negative terminal of your car battery.

This will prevent any sparks while you’re working on the fuel pump wiring harness. 2) Find and remove the access panel to the fuel pump. On most cars this will be located under the back seat.

3) Disconnect the wires from the old fuel pump wiring harness and connect them to the new one. It’s important to match up the correct wires, or your new fuel pump may not work correctly. 4) Install any new fuses that came with your new fuel pump wiring harness, and then replace the access panel and screw it in place.

5) Reconnect your car battery and start your engine. Your new fuel pump should be working properly now!

How Do You Test a Fuel Pump Connector?

When testing a fuel pump connector, you will need a few tools and supplies. First, you will need a multimeter. Next, you will need to disconnect the negative battery terminal.

Once the negative battery terminal is disconnected, you will need to locate the fuel pump relay. The fuel pump relay is usually located in the engine bay near the fuses and relays. With the engine off, remove the relay from its socket and test it for continuity between the two terminals on the bottom of the relay.

If there is no continuity, then replace the relay. If there is continuity, then proceed to testing the voltage at the fuel pump connector. To test for voltage at the fuel pump connector, first connect one lead of your multimeter to ground (any metal surface on the car that is not electrically charged).

Next, insert probes into both sides ofthefuelpumpconnector(intothetwooutsideprongs).Withthekeyinposition2 or 3 , but not turned to start ,testfor12VoltsDCacrossbothsidesoftheconnector—you should see around 12 Volts DC . If you don’t see this reading ,thencheckfusesandrelaybeforereplacingfuelpump .

Where Does the Fuel Pump Connect To?

A fuel pump is a mechanical device that moves fuel from the fuel tank to the carburetor or engine. It is usually located near the front of the vehicle, near the engine. The fuel pump has a small electric motor that turns a gear inside the pump.

This gear pumps the fuel through a small tube to the carburetor or engine.

Fuel Pump Connector Issue Tips 1AAuto.com

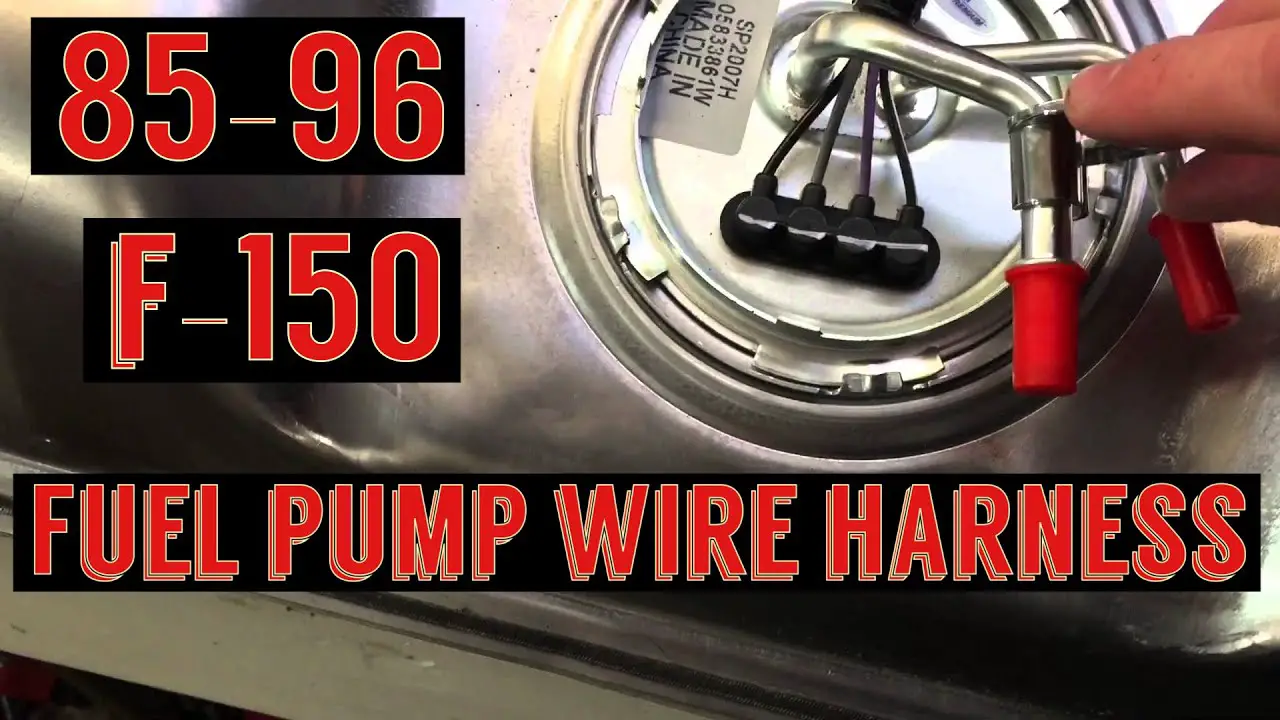

Fuel Pump Wiring Harness Connectors

If you’re having trouble starting your car or it’s stalling frequently, it might be time to check your fuel pump wiring harness. Fuel pump wiring harness connectors can deteriorate over time, causing all sorts of problems. In this blog post, we’ll go over everything you need to know about fuel pump wiring harnesses, including how to tell if yours is faulty and what you can do to fix it.

What is a Fuel Pump Wiring Harness? A fuel pump wiring harness is a series of wires that connects the fuel pump to the battery and other electrical components in the car. The purpose of the harness is to deliver power to the fuel pump so that it can do its job.

Over time, however, these wires can become frayed or otherwise damaged, which can lead to all sorts of issues. How Do I Know if My Fuel Pump Wiring Harness is Faulty? There are a few symptoms that may indicate that your fuel pump wiring harness is faulty:

1. Car won’t start – If your car won’t start at all, it could be due to a problem with thefuel pump wiring harness. When the wires are damaged, they may not be ableto deliver enough power to the fuel pump, preventing it from running altogether. 2. Car stalls frequently – If your car starts but then stalls soon after (particularly ifit happens when you’re trying to accelerate), this could also be a signof damage to the fuel pump wiring harness.

Once again, damaged wiresmay not be able provide enough power for the fuel pump, causingthe engine to stall. 3. Check engine light comes on – In some cases, a faulty fuelpump wiringharness may trigger the check engine light on your dashboard.(However, it’s worth noting that there are many other things thatcan cause the check engine light to come on as well).

4 . Engine sputters – If you notice that your engine issputtering or hesitating while you’re driving , this could meanthat there’s an issue with how much gasoline is reachingthe combustion chamber . And since th efuel pumphas t o work in order t o get gasolineto th eengine ,a problemwith th ewiring harnes scould bethe root causeof thi ss ymptom .

Fuel Pump Connector Clip

If your car has been having fuel pump issues, it may be time to replace the fuel pump connector clip. This part is responsible for connecting the fuel pump to the rest of the vehicle’s electrical system. Over time, this clip can become corroded or damaged, causing problems with the fuel pump.

Replacing the connector clip is a relatively easy process and can be done at home with a few tools. To start, you’ll need to disconnect the battery and remove the gas cap. Next, locate the fuel pump connector clip – it will be on or near the fuel tank.

Use a screwdriver or pliers to disconnect the old clip and then connect the new one in its place. Once everything is reconnected, start up your car and take it for a spin to make sure everything is working properly. If all goes well, you’ve successfully replaced your fuel pump connector clip!

In Tank Fuel Pump Wiring

An in-tank fuel pump is a type of fuel pump that is mounted inside the fuel tank. In-tank fuel pumps are typically used in vehicles with carbureted engines, though they can also be used in vehicles with injected engines. In-tank fuel pumps are usually mounted on or near the bottom of the fuel tank so that they can be submerged in fuel.

In-tank fuel pumps typically have a higher flow rate than other types of fuel pumps, making them ideal for use in high performance applications. In addition, in-tank fuel pumps are less likely to overheat than other types of fuel pumps since they are constantly cooled by the surrounding fuel. While in-tank fuel pumps offer many advantages, they do have one potential downside.

Since they are mounted inside thefuel tank, if the pump fails it can causeFuel to leak into the engine compartment which could lead to a fire. For this reason, it is important to choose an in-tankfuel pump from a reputable manufacturer and to have it properly installed by a qualified technician.


If you’re having trouble with your fuel pump connector, this diagram should help you out. The diagram shows how the connector is supposed to be hooked up, and it should give you a good idea of where to start troubleshooting if something isn’t working right.
