Well Pump Pressure Switch Wiring Diagram: Easy Setup Guide
A well pump pressure switch wiring diagram illustrates the connection between the power supply and the pump motor. Typically, the hot wire and neutral wire (or two hot wires for 230V) connect to the ‘Line’ terminals, while the motor leads attach to the ‘Load’ terminals. Ensure the ground wire is properly secured to prevent electrical hazards.
📌 Key Takeaways
- Visualizing the circuit between the power source and the pump is essential for safe operation.
- Correctly identifying the ‘Line’ and ‘Load’ terminals prevents motor damage.
- Always turn off the circuit breaker and verify power is off before handling any wires.
- Ensure all connections are tight and the ground wire is properly bonded to the casing.
- Use this diagram when installing a new system or replacing a faulty pressure switch.
When your home depends on a private well, the pressure switch acts as the brain of the entire water delivery system. It is the component responsible for telling the pump when to start and when to stop based on the water pressure inside your tank. If you are facing a pump failure or installing a new system, having a clear and accurate well pump pressure switch wiring diagram is essential for a safe and functional setup. This guide will walk you through the complexities of wire colors, terminal connections, and voltage requirements. By the end of this article, you will understand how to properly identify hot, neutral, and ground connections to ensure your water system operates reliably and meets standard electrical codes.
Most residential well pumps operate on either 115V or 230V circuits. Always verify your pump’s voltage requirements and match them with a correctly rated pressure switch before beginning the wiring process.
Understanding the Well Pump Pressure Switch Wiring Diagram
A standard well pump pressure switch wiring diagram typically illustrates a four-terminal configuration, often arranged in two pairs. These switches are designed to handle double-pole, single-throw (DPST) operations, meaning they can disconnect both “hot” legs of a 230V circuit simultaneously for safety. The physical layout of the switch is divided into two primary sides: the “Line” side and the “Load” side. The Line side refers to the incoming power from your home’s electrical panel, while the Load side refers to the outgoing power that travels directly to the well pump or the pump control box.
In a visual breakdown of the diagram, you will notice four main screw terminals and two ground screws. The two outside terminals are generally the Line terminals, while the two inside terminals are the Load terminals. However, this can vary slightly by manufacturer, so it is crucial to look for the embossed labels on the plastic housing near the screws. You will often see labels like “L1” and “L2” for incoming power and “T1” and “T2” (or “M1” and “M2”) for the motor connections. The brass screw terminals are typically reserved for the hot wire connections because brass is an excellent conductor that resists corrosion in the potentially damp environments where pressure tanks are located.

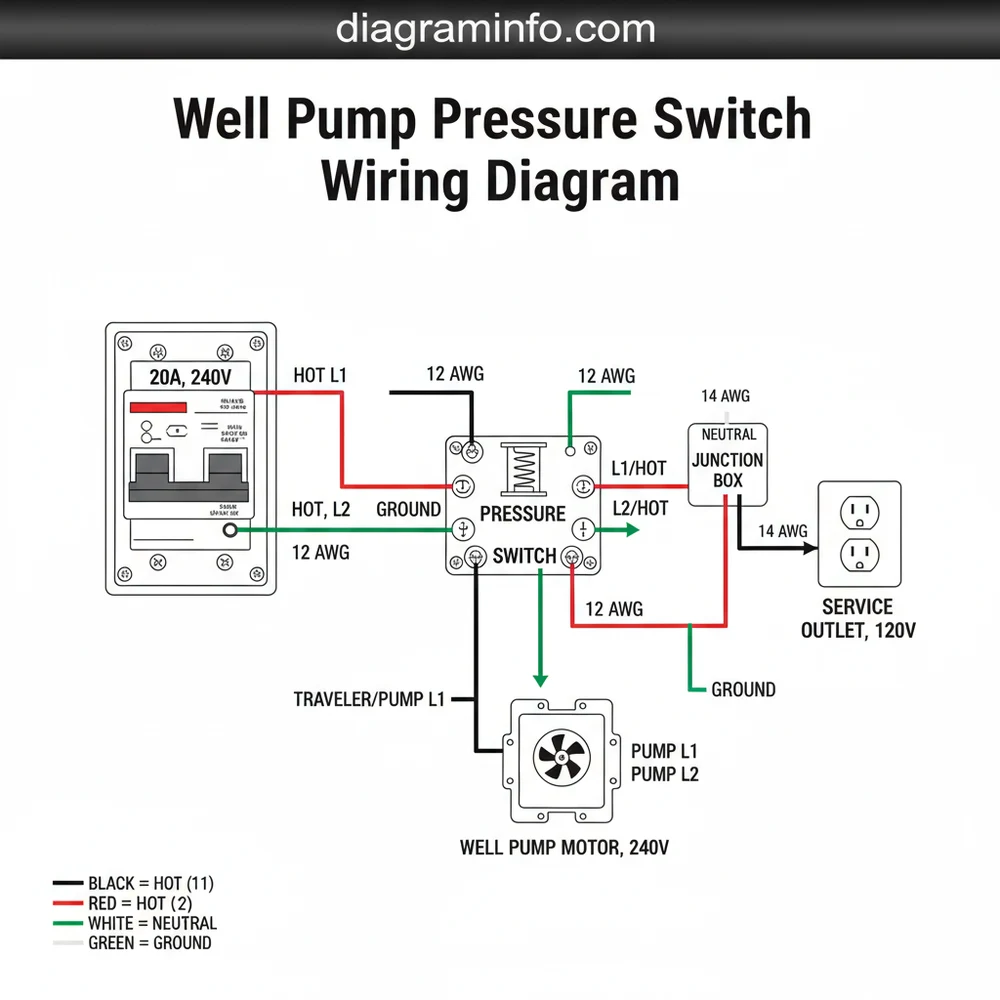

[DIAGRAM_PLACEHOLDER – A detailed wiring diagram showing the connection between the service panel, the pressure switch (identifying L1, L2, T1, T2 terminals), and the well pump motor, including ground wire paths and color-coded hot and neutral wires.]
Color-coding is another vital aspect of interpreting the diagram. For a 230V system, you will typically deal with two hot wires (usually black and red) and a ground wire (green or bare copper). In a 115V system, you will have one hot wire (black), one neutral wire (white), and a ground. If you are working with a three-wire submersible pump, the diagram becomes more complex as it involves a control box where a traveler wire or start wire is utilized to engage the pump’s starting capacitor. Understanding these variations ensures you don’t accidentally cross-wire the system, which could lead to a short circuit or pump motor burnout.
Anatomy of the Terminals and Electrical Specifications
To follow a wiring diagram accurately, you must first identify the physical components of the switch. Each terminal serves a specific purpose in the circuit. The common terminal in many electrical components refers to the point where multiple circuits connect, but in a pressure switch, we focus on the distinction between Line and Load. The Line terminals (L1 and L2) are where the voltage enters the switch. If your system is 230V, both L1 and L2 will carry 115V relative to the ground, combining for a total of 230V. If your system is 115V, L1 will be the hot wire and L2 will be the neutral wire.
The gauge of the wire used in your installation is just as important as the connections themselves. Using a wire that is too thin (too high a gauge number) can cause a voltage drop, leading to the motor overheating. For most residential pumps, 12-gauge or 10-gauge wire is standard. 12-gauge wire is typically rated for up to 20 amps, while 10-gauge is rated for up to 30 amps. Always refer to your pump’s amperage rating on its nameplate and the distance from the power source to determine the appropriate wire size. A longer distance requires a thicker wire to prevent power loss.
Never attempt to wire a pressure switch with the power on. Turn off the dedicated breaker at the main service panel and use a non-contact voltage tester to confirm the wires are dead before touching any terminals.
Step-by-Step Guide to Wiring Your Pressure Switch
Once you have a firm grasp of the well pump pressure switch wiring diagram, you can begin the installation. Follow these steps carefully to ensure a secure and code-compliant connection.
- ✓ Step 1: Preparation and Safety. Disconnect all power to the pump circuit. Remove the plastic cover of the pressure switch by loosening the center nut. Inspect the interior to ensure there is no debris or moisture inside the housing.
- ✓ Step 2: Install Strain Reliefs. Insert the incoming power cable and the outgoing pump cable through the openings in the bottom or sides of the switch. Use UL-approved strain relief connectors to secure the cables. This prevents the wires from pulling loose from the terminals over time.
- ✓ Step 3: Connect the Ground Wires. Safety is paramount. Locate the green ground wire from both the power source and the pump. Connect these to the green grounding screws located on the metal base of the switch. If the switch has a metal frame, ensure the ground wires make solid contact with the metal to provide a clear path to earth in case of a fault.
- ✓ Step 4: Wire the Line Side (Power In). Identify the two hot wires coming from your breaker panel. Strip approximately 1/2 inch of insulation from the ends. Connect the black wire to terminal L1 and the second hot wire (usually red or white taped black) to terminal L2. Tighten the brass screw firmly to ensure a low-resistance connection.
- ✓ Step 5: Wire the Load Side (To Pump). Take the wires leading to the pump motor. Connect the black wire to terminal T1 and the remaining wire to terminal T2. In a 115V system, ensure the neutral wire (white) is placed on the correct terminal as specified by your specific switch’s diagram.
- ✓ Step 6: Final Inspection. Double-check that no stray wire strands are touching other terminals or the metal housing. Ensure all screws are tight. Gently tug on each wire to confirm it is seated properly.
- ✓ Step 7: Testing the System. Replace the cover and restore power. Watch the pressure gauge on the tank. The pump should engage immediately if the tank is empty. It should cut out once it reaches the “cut-off” pressure (usually 50 or 60 PSI).
When connecting wires to screw terminals, always wrap the wire in a clockwise direction around the screw. This way, as you tighten the screw, it pulls the wire tighter into the connection rather than pushing it out.
Common Issues & Troubleshooting
Even with a perfect well pump pressure switch wiring diagram, issues can arise due to mechanical wear or environmental factors. One of the most common problems is “chattering,” where the switch rapidly clicks on and off. This is often caused by a waterlogged pressure tank or a clogged nipple leading to the pressure switch. If the switch isn’t receiving an accurate pressure reading from the water line, it cannot function correctly.
Another frequent issue is burnt contact points. Over years of operation, the electrical arc that occurs when the contacts close can create carbon buildup or pitting on the metal pads. This increases resistance and can eventually prevent the voltage from reaching the pump. If you see black soot inside the switch cover or notice the contacts are welded shut, the switch must be replaced. Troubleshooting with a multimeter can help identify if power is reaching the Line side but not passing through to the Load side when the switch is closed. If you have power at L1 and L2 but nothing at T1 and T2 while the springs are compressed, the switch is faulty.
Finally, insects such as ants or spiders are often attracted to the warmth of the electrical contacts. They can crawl between the contact points, preventing a solid connection or causing a short. Regularly inspecting the interior of the switch housing can prevent these biological failures from interrupting your water supply.
Tips & Best Practices for Maintenance
To ensure your well system remains operational for years to age, follow these best practices for pressure switch maintenance. First, always keep the area around your pressure tank and switch dry. Moisture can lead to corrosion on the brass screw terminals and eventually cause electrical failure. If your pressure tank is in a damp basement, consider using a dehumidifier to protect the electrical components.
Second, verify your pressure settings periodically. Most switches are pre-set at the factory to 30/50 PSI or 40/60 PSI. If you notice your water pressure is lower than usual, the springs inside the switch may need adjustment. However, always ensure your tank’s air pre-charge is 2 PSI below the “cut-in” pressure of the switch. For example, if your switch turns the pump on at 30 PSI, your tank should have 28 PSI of air pressure when it is empty of water.
Third, use high-quality components. When replacing a switch, choose a reputable brand like Square D or Furnas. These manufacturers provide clear well pump pressure switch wiring diagrams inside the cover, making future repairs much easier. Additionally, using the correct gauge of wire is a one-time investment that prevents expensive motor repairs down the road. If your pump is over 1.5 horsepower, you may need a heavy-duty switch designed for higher amperage loads.
If you are working with a 3-wire submersible pump, you must use a control box. In this setup, the pressure switch sits between the power source and the control box, not directly between the switch and the pump.
In conclusion, mastering the well pump pressure switch wiring diagram is a manageable task for any DIY enthusiast who prioritizes safety and attention to detail. By correctly identifying your hot wire, neutral wire, and ground wire, and ensuring they are secured to the proper brass screw terminals, you can maintain a robust water system. Remember to match your wire gauge to the system’s voltage and amperage requirements to prevent overheating. Whether you are dealing with a standard two-wire setup or a complex system involving a traveler wire and control box, following these documented steps will lead to a successful installation. If you ever feel unsure about the electrical connections, do not hesitate to contact a licensed electrician to verify your work and keep your home safe.
Frequently Asked Questions
Where is the pressure switch located?
The pressure switch is usually found near the pressure tank on the main water line coming from the well. It is often mounted on a small pipe tee or manifold. Look for a small plastic box with wires entering it, situated close to the pressure gauge.
What does the wiring diagram show?
The well pump pressure switch wiring diagram shows the electrical path from your home’s breaker panel to the pump motor. It identifies which terminals are for incoming power (Line) and which are for outgoing power to the pump (Load), ensuring the motor cycles correctly based on water pressure.
How many connections does the switch have?
A standard pressure switch usually has four main terminals: two for incoming power lines and two for the motor leads. Additionally, there are ground terminals for the green ground wire. In specific configurations, you might encounter a traveler wire or a common terminal for advanced control systems.
What are the symptoms of a bad switch?
Common symptoms include the pump not turning on, the pump not turning off (running constantly), or frequent cycling. You may also notice fluctuating water pressure or a clicking sound coming from the switch area. If the contacts are burnt or the diaphragm is ruptured, replacement is necessary.
Can I replace this myself?
Yes, replacing a pressure switch is a common DIY task for those comfortable with basic electrical work. However, you must shut off the power at the breaker and drain the water pressure first. If you are unsure about handling high-voltage wiring, it is best to hire a professional.
What tools do I need for this task?
You will need a screwdriver (flat-head or Phillips), wire strippers, and a multimeter to verify the power is off. A small pipe wrench or pliers may be necessary if you are replacing the entire switch body. Always use electrical tape or wire nuts for secure connections.
