Standard Vehicle Rear Wheel Hub Assembly Diagram: 2026 Repair

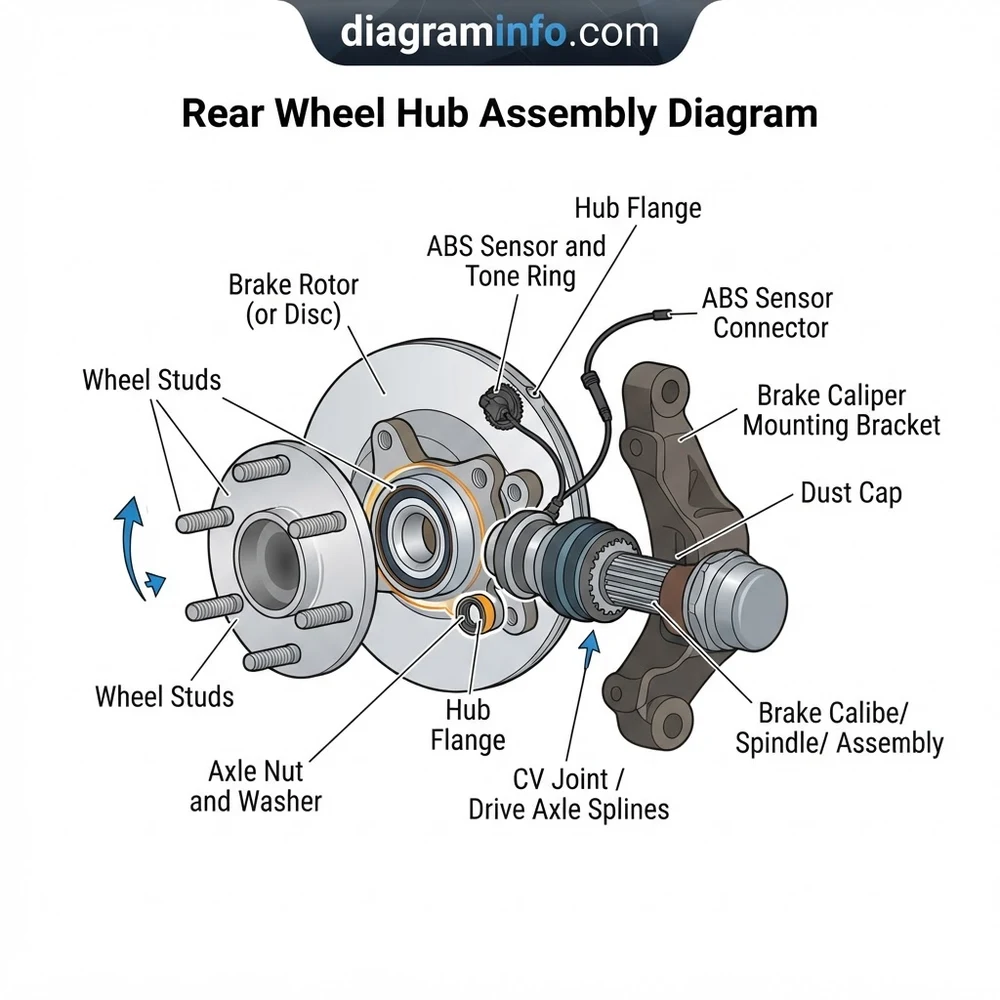

A rear wheel hub assembly diagram illustrates the structural layout connecting the axle shaft to the brake rotor and wheel. It details key components including the wheel bearing hub unit, ABS wheel speed sensor, mounting bolts (typically 80–100 lb-ft torque spec), tone ring, and central axle nut (often 150–200 lb-ft).
📌 Key Takeaways
- Axle nuts require precise torque specs, often between 150 and 200 lb-ft, to prevent premature bearing failure.
- The assembly structure secures the wheel flange, sealed roller bearings, and integrated ABS tone ring.
- Integrated wheel speed sensors connect directly to the vehicle harness for ABS and traction control monitoring.
- Grinding noise or humming that increases with vehicle speed is the primary indicator of internal bearing wear.
- DIY replacement is feasible with standard socket sets, a breaker bar, and a calibrated torque wrench.
Accurate servicing of modern vehicle drivelines requires an in-depth understanding of the rear wheel hub assembly diagram. Whether you are dealing with a solid rear axle configuration or an independent rear suspension (IRS) layout, the rear hub unit integrates mechanical rotation, vehicle weight transfer, and electronic wheel speed monitoring into a single engineered unit. Interpreting a technical blueprint correctly prevents premature bearing fatigue, incorrect torque application, and sensor signal corruption. This technical manual details the component structure, mechanical configuration, schematic analysis, and diagnostic procedures for standard OEM and aftermarket rear hub assemblies across passenger and light industrial vehicles.
Rear Wheel Hub Assembly Diagram: Mechanical Component Breakdown
According to OEM technical specifications, modern rear hub assemblies are primarily classified into Generation 1 (press-in bearing), Generation 2 (flanged bearing unit with separate hub), and Generation 3 (fully integrated dual-flange unit) design patterns. Analyzing a rear wheel hub assembly diagram requires recognizing how these components interact under dynamic cornering loads and radial forces.
Generation 3 hub assemblies incorporate dual angular contact ball bearings or tapered roller bearings pre-packed with synthetic polyurea grease. Maximum allowable lateral axial play is typically specified below 0.05 mm (0.002 inches).
The primary elements highlighted in a complete assembly schematic include:
Hub Flange and Wheel Studs
The forged steel hub flange provides the mounting surface for the brake rotor/drum and wheel wheel rim. Grade 10.9 or 12.9 press-fit serrated wheel studs pass through the flange, rated to withstand shear stresses exceeding 120,000 PSI depending on application size.
Integrated Bearing Cartridge
Contains double-row ball or tapered roller bearings secured within an outer race. In Generation 3 units, the outer race forms the mounting flange that bolts directly to the rear suspension knuckle using 3 or 4 high-tensile fasteners.
ABS Sensor and Encoder Ring Configuration
Modern hub diagrams feature either a external tooth tone ring or an integrated magnetic encoder ring embedded into the inner grease seal. Active Hall-effect sensors read the alternating magnetic poles to communicate wheel speed data to the ABS/ESP module.
| Component Reference | Material / Construction | Typical Fastener / Torque Spec |
|---|---|---|
| Hub Retaining Bolts (Knuckle-to-Hub) | Class 10.9 Alloy Steel | 80–115 Nm (59–85 lb-ft) + Angle Turn |
| Drive Axle Shaft Nut (FWD/AWD) | Prevailing-Torque Steel Nut | 180–300 Nm (133–221 lb-ft) |
| ABS Wheel Speed Sensor Bolt | Grade 8.8 Steel / Stainless | 8–12 Nm (71–106 in-lb) |
| Brake Dust Shield Fasteners | Zinc-Plated Mild Steel | 9–14 Nm (80–124 in-lb) |
Understanding the Rear Wheel Hub Assembly Schematic and Layout
When reviewing a detailed schematic or exploded blueprint, understanding the orientation and sequence of assembly prevents costly installation errors, such as binding bearings or crushing encoder seals. For additional context on suspension interactions, consult our technical documentation on front suspension geometry schematics and structural alignment parameters.
On driven rear axles (AWD/RWD), the CV shaft splines insert directly into the internal helical splines of the inner hub bore. Always apply an approved anti-seize compound or high-pressure grease along the spline interface as specified by the OEM layout.
Identifying Fastener Orientations and Torque Paths
An exploded schematic illustrates the exact entry vector for all mounting hardware. On bolt-on Gen 2 and Gen 3 hubs, the retention bolts pass through the back of the steering or suspension knuckle into threaded holes on the hub housing. Tracing the torque path in the schematic ensures that backing plates or dust shields are positioned correctly between the knuckle flange and the bearing housing before fasteners are secured.
Tracing ABS Wiring and Harness Connectors
Active ABS wheel speed sensor harnesses are represented on schematics as two-conductor shielded cables (typically color-coded Blue/Black or Red/White depending on vehicle platform). The wiring layout in the diagram shows routing clips that prevent the harness from contacting rotating axle shafts or moving sway bar end links.
Distinguishing Press-Fit vs. Bolt-On Structural Interfaces
A standard blueprint will highlight whether the hub unit requires a hydraulic press or standard hand tools. Press-fit configurations display interference fit tolerances (usually 0.025 mm to 0.050 mm press fit) between the outer race and knuckle bore, indicating that a shop press and specific split-plate adapters must be deployed during overhaul. For detailed press operations, refer to our specialized wheel bearing press procedure guides.
Diagnosing Failures Using the Rear Wheel Hub Assembly Blueprint
Systematic troubleshooting of rear-end noise, vibration, and ABS fault codes relies on matching physical symptoms to specific callouts on the assembly schematic.
Never use impact wrenches to tighten the center drive axle nut on Gen 3 hub assemblies. Excessive shock loading can brinell the internal bearing raceways, leading to premature bearing spalling and noise within 5,000 miles.
Excessive Axial Play and Bearing Spalling
When a vehicle exhibits a low-frequency growling or humming noise that changes intensity during lane changes, bearing race damage is likely present. Mount a dial indicator to the suspension knuckle and place the plunger against the hub face. Lateral movement exceeding OEM tolerances (0.05 mm) confirms internal raceway degradation, requiring complete assembly replacement. Check related torque settings against our comprehensive rear brake caliper torque charts during reassembly.
ABS Signal Dropping and Sensor Fault Codes
Diagnostic trouble codes such as C0045 (Rear Left Wheel Speed Sensor) or C0050 (Rear Right Wheel Speed Sensor) point to either harness failure, sensor head air-gap deviation, or a damaged magnetic encoder ring. Measure sensor air-gap using non-magnetic feeler gauges; manufacturer specifications typically dictate an air gap between 0.5 mm and 1.5 mm. If the encoder ring shows rust flaking or iron particle accumulation, signal distortion will trigger intermittent ABS intervention.
Rear Wheel Hub Assembly Diagram Frequently Asked Questions
How do you determine if a rear hub assembly is press-in or bolt-on from a schematic?
A bolt-on assembly diagram highlights a mounting flange with threaded bolt holes integrated directly onto the outer bearing housing, along with corresponding bolts entering through the suspension knuckle. A press-in diagram shows a smooth cylindrical outer bearing race positioned inside a solid knuckle bore, secured by a large internal retaining snap ring (circlip) without external mounting flange bolts.
What are typical torque specifications for rear hub retention bolts?
Mounting flange bolts for Gen 3 rear hubs on mid-size passenger vehicles usually range from 80 Nm to 115 Nm (59 to 85 lb-ft). However, applications utilizing torque-to-yield (TTY) fasteners require a lower initial torque setting (e.g., 50 Nm) followed by a specified angle rotation (e.g., +60 degrees or +90 degrees). Always refer to model-specific OEM repair manuals for exact torque values.
How does an integrated magnetic encoder ring differ from an external tone ring in diagrams?
An external tone ring appears in diagrams as a notched steel ring (toothed wheel) mounted visibly on the axle shaft or inner hub lip. An integrated magnetic encoder ring is built directly into the inner elastomeric grease seal of the bearing cartridge, featuring alternating north/south magnetic poles that are invisible to the naked eye and require a magnetic testing card to verify pole integrity.
Why does the rear wheel hub assembly schematic show a specific sequence for axle nut torquing?
The central axle shaft nut applies axial pre-load to the internal bearing races on driven axles. Torque schematics specify precise values (often 200–300 Nm) while the vehicle is stationary or supported off the ground to seat the inner bearing races fully against the CV joint shoulder. Incorrect torque will cause immediate bearing displacement, overheating, or rapid seal breakdown.
Can a damaged dust shield cause false hub failure symptoms?
Yes. A bent or corroded brake dust shield can contact the rotating hub flange or brake rotor, producing a high-pitched metallic scraping noise that mimics a dry or failing wheel bearing. Examining the schematic clearance specifications helps ensure the dust shield maintains its required 2.0 mm to 3.0 mm air gap from all rotating assemblies.
Step-by-Step Guide to Understanding the Rear Wheel Hub Assembly Diagram
Identify – Locate the wheel hub system components on the diagram, confirming lug stud configuration and ABS sensor wire routing.
Locate – Find the rear hub retaining bolts behind the knuckle and identify the central axle nut position on the diagram setup.
Reference – Cross-check torque specification callouts for the axle spindle nut and mounting bolts prior to disassembly.
Connect/Route – Align the new hub assembly onto the spindle stub while routing the ABS sensor harness along factory clips.
Verify – Spin the installed hub by hand to verify smooth rotation and check for zero lateral play in the bearing unit.
Troubleshoot – If an ABS warning lamp triggers post-installation, trace sensor continuity using the diagram’s pinout layout.
