2026 Ford Key Ignition Lock Cylinder Diagram: Troubleshooting
The key ignition lock cylinder sits inside the steering column housing, linked to the ignition switch. Access requires depressing the 1/8-inch retention pin underneath. The lock mechanical cylinder feeds position signals (ACC, RUN, START) to the ignition switch, powering the ECU and starter relay circuit via 12V battery power.
📌 Key Takeaways
- Depressing the 1/8-inch retaining pin through the lower column access port releases the lock cylinder when turned to the ACC position.
- Worn waist tumblers and deformed key bitting account for over 80% of mechanical ignition binding complaints.
- Tighten steering column housing breakaway shear bolts to exact torque spec (12 Nm / 106 in-lbs) during replacement.
- Defective PATS antenna rings wrapped around the cylinder trigger anti-theft immobilizer diagnostic code faults in the ECU.
- DIY repair requires disabling the SRS airbag system by disconnecting the negative battery terminal and waiting 10 minutes.
Understanding a key ignition lock cylinder diagram is essential for diagnosing no-crank conditions, electrical dropouts, and steering column mechanical lockups. Modern automotive ignition assemblies serve a dual
Key Ignition Lock Cylinder Diagram: Complete Mechanical and Electrical Component Breakdown

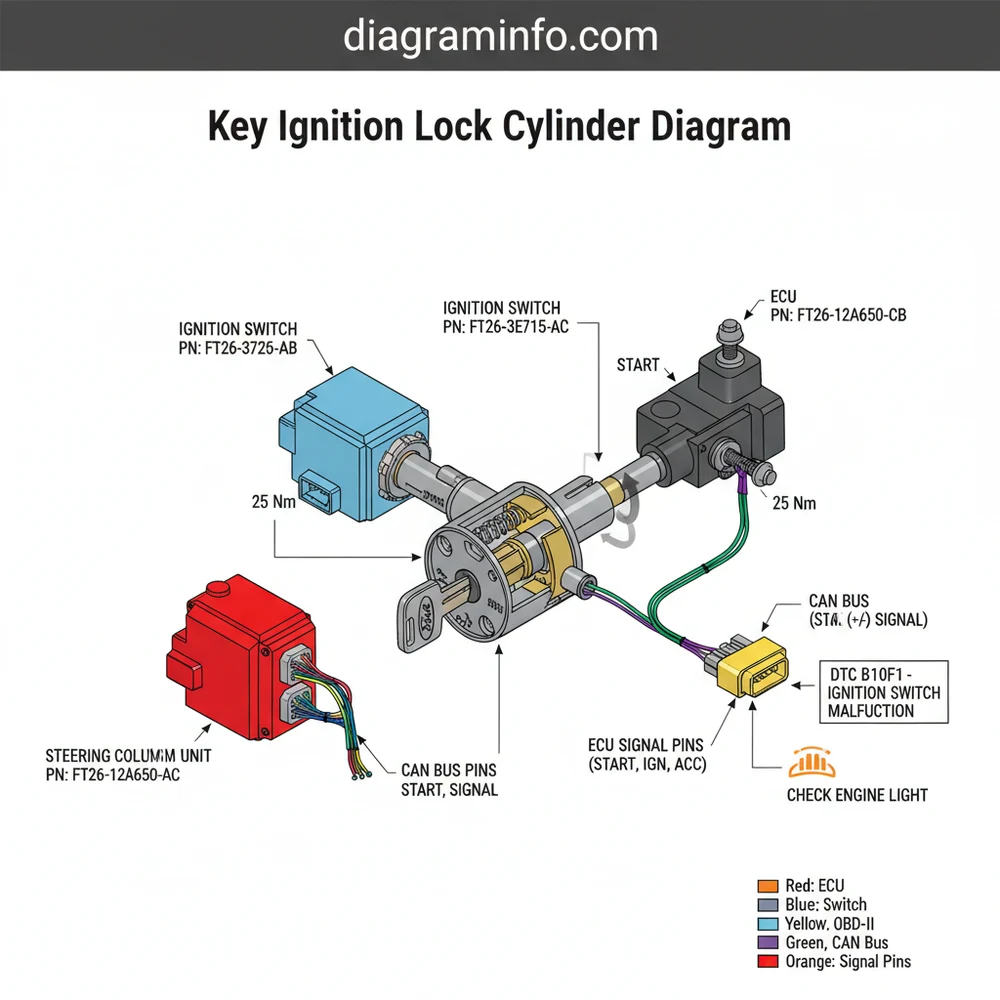

As shown in the key ignition lock cylinder diagram above, the assembly consists of distinct mechanical and electromechanical modules integrated into a single steering column housing. Mechanics must differentiate between the lock cylinder (the mechanical key-way and tumbler assembly) and the ignition switch (the electrical contact plate positioned at the rear of the housing). If you need to trace the complete power path beyond the column, refer to our comprehensive steering column wiring guide for detailed pinouts.
The primary mechanical components illustrated in the diagram include:
- Keyway and Wafer Tumblers: A series of spring-loaded brass or stainless steel wafers calibrated to specific cut depths along the mechanical key blade. When the correct key is inserted, the wafers retract flush with the cylinder core, allowing rotation within the outer housing.
- Lock Cylinder Retaining Pin / Release Pawl: A spring-actuated pin accessible through a access hole on the column housing. Depressing this pin with the key in the “ACC” or “ON” position releases the entire mechanical cylinder core from the column sleeve.
- Rotary Actuator Shaft (D-Shaft): A hardened steel shaft connecting the lock cylinder core to the ignition switch contact block. Rotation of the key mechanically drives the internal cam inside the electrical switch.
- Immobilizer Transceiver Coil (RFID Halo Antenna): Positioned directly around the mouth of the key cylinder. This ring energizes the passive transponder chip inside the key head via 125 kHz RF induction and transmits the key code directly to the security module and ECU.
- Steering Lock Bolt Mechanism: A heavy-duty spring-loaded pin that projects into the steering shaft collar when the key is turned to “LOCK” and removed, mechanically immobilizing the steering wheel.
OEM torque spec for steering column shear bolts securing the lock cylinder housing is typically 12 to 15 Nm (106 to 132 lb-in). Shear bolts are designed with breakaway heads that snap off upon reaching final torque specification to prevent tampering.
The electrical interface on the back of the housing routes power to primary vehicle distribution blocks. The table below outlines standard terminal positions and circuit functions visible on standard automotive schematics.
| Terminal Designation | Circuit Function | Key Position Active | Nominal Operating Wire Gauge / Voltage |
|---|---|---|---|
| Terminal 30 / B+ | Unswitched Battery Direct Power Input | Constant (All Positions) | 10–12 AWG / 12.6V DC Direct |
| Terminal 15 / IGN 1 | ECU Power, Ignition System, Fuel Pump Relay | ON / RUN and START | 12–14 AWG / 12.6V (Drops to ~10.5V during crank) |
| Terminal 50 / START | Starter Solenoid Relay Coil Feed | START Only (Momentary) | 14–16 AWG / 12.6V Output |
| Terminal 75 / ACC | Accessories, HVAC Blower, Infotainment Systems | ACC and ON (Cut during START) | 12–14 AWG / 12.6V Output |
Ignition Lock Cylinder Failures, Check Engine Lights, and OBD-II Diagnostic Codes
Failures associated with the key ignition lock cylinder generally split into mechanical binding and electrical contact wear. Mechanical wear occurs over thousands of insertion cycles, causing the wafer peaks to round off or key cuts to erode. This prevents the lock core from rotating out of the “LOCK” position or causes the key to become trapped in the cylinder. Heavy keychains accelerate wear on the upper guide wafers, misaligning the core relative to the rotary actuator shaft.
When electrical contacts inside the trailing switch degrade, excessive contact resistance generates high voltage drops across Terminal 15. A momentary voltage interruption on the main ignition feed during vehicle operation starves the ECU of regulated operating voltage. This disruption resets module processors and triggers intermittent intermittent system glitches across multiple controllers.
Before working near the steering column wiring harness or removing lock housing covers, disconnect the negative battery cable and wait at least 15 minutes. This fully discharges the SRS airbag backup capacitor to prevent accidental airbag deployment during lock cylinder service.
When the ignition switch contacts bounce or lose connection during crank, the ECU cannot establish proper synchronization signals. During engine cranking, the engine control unit relies on steady voltage while monitoring critical engine positioning components, such as the timing chain position via the camshaft and crankshaft sensors. Low system voltage during cranking interrupts this sensor correlation, resulting in extended crank times and setting a illuminate check engine light.
Furthermore, faults in the immobilizer transceiver ring mounted around the key cylinder directly prevent engine startup. Common OBD-II trouble codes resulting from ignition lock and immobilizer system failures include:
- P1609 / B1352: Ignition Key In Circuit Failure / Immobilizer Transponder Communication Fault.
- P0685: ECM/PCM Power Relay Control Circuit / Open (triggered by degraded switch contacts on Terminal 15).
- P0335: Crankshaft Position Sensor Circuit Malfunction (frequently logged as a secondary code due to extreme voltage drop across the switch while cranking).
For additional details on tracing voltage feed issues back to the primary power block, see our engine control unit power distribution schematic article.
How to Diagnose Terminal Continuity Using a Key Ignition Lock Cylinder Diagram
Systematic troubleshooting of the ignition lock cylinder requires a digital multimeter (DMM) set to DC Volts and Resistance (Ohms). Do not rely solely on visual inspection; internal contact pitting is hidden inside the sealed switch housing.
Follow these diagnostic steps to isolate electrical and mechanical failures using your key ignition lock cylinder diagram:
- Step 1: Check Input Supply Voltage (Terminal 30). Connect the negative meter lead to a known chassis ground. Backprobe the main B+ input wire at the ignition switch connector using the positive lead. Verify steady battery voltage (12.4V to 12.6V DC). If voltage is absent, inspect the main ignition fuse/fusible link in the under-hood power distribution box.
- Step 2: Perform Ignition Switch Voltage Drop Testing. Turn the key to the “ON/RUN” position. Backprobe Terminal 15 (switched ignition output). Measure the voltage difference between battery positive terminal and Terminal 15. A voltage drop exceeding 0.2V DC indicates excessive internal contact resistance requiring switch assembly replacement.
- Step 3: Verify Crank Signal Output (Terminal 50). Turn and hold the key in the “START” position. Verify that Terminal 50 receives full system voltage (minimum 10.5V DC while starter motor engages). If voltage is present at Terminal 50 but the starter relay does not energize, check the neutral safety switch / clutch pedal switch circuit.
- Step 4: Inspect Immobilizer Antenna Loop Resistance. Disconnect the 2-pin or 4-pin transceiver ring harness. Measure resistance across the antenna coil pins using your meter. Standard OEM transceiver loop resistance typically measures between 5 and 25 Ohms. An open circuit (infinite resistance) or short circuit indicates a damaged antenna loop that will cause immobilizer lockout.
- Step 5: Verify Critical Accessory Function. Ensure that secondary systems energized by the key switch in the RUN position—such as engine cooling systems where coolant flow sensors and fan relays receive control power—are powered without intermittent dropouts. Similarly, ensure the instrument cluster energizes the low oil pressure indicator prior to cranking.
Replacing the mechanical lock cylinder core on vehicles equipped with transponder keys requires either transferring the original RFID chip to the new key blade assembly or performing an immobilizer relearn procedure using an OBD-II diagnostic tool. For detailed procedures, review our guide on immobilizer bypass and programming protocols.
Frequently Asked Questions About Key Ignition Lock Cylinder Schematics and Troubleshooting
How does a key ignition lock cylinder diagram help isolate an immobilizer system failure from a mechanical lock failure?
A key ignition lock cylinder diagram isolates these failures by clearly mapping the mechanical lock core separately from the immobilizer transceiver halo ring. If the key turns smoothly through all mechanical positions (ACC, RUN, START) but the security light flashes on the dash and the scanner reports a diagnostic code such as B1352, the mechanical cylinder is operational, and the fault lies within the RFID loop, key chip, or wiring harness. Conversely, if the key cannot physically rotate to energize Terminal 15, the issue is purely mechanical wafer binding within the core cylinder.
What voltage readings should be expected at the ignition switch harness contacts during cranking?
During cranking, Terminal 30 (B+ input) and Terminal 50 (START output) should read at least 9.6V to 10.5V DC depending on battery state of charge and starter motor current draw. Terminal 15 (IGN 1) must remain energized at this same cranking voltage level to keep the ECU powered. Terminal 75 (ACC) should drop to 0V during cranking to divert all available battery power to the starter starter motor, returning to full voltage once the key springs back to the RUN position.
Why does a faulty ignition cylinder switch set an OBD-II diagnostic code or trigger a check engine light?
Internal pitting or loose mechanical tolerances within the ignition switch create micro-arcing and rapid voltage fluctuations on Terminal 15. When power supply voltage drops below the operating threshold of the ECU, processor dropouts occur. The ECU interprets these momentary power disruptions as circuit faults across monitored sensors—such as timing chain position sensors, crankshaft position sensors, or main power relay circuits—causing the ECU to store a diagnostic code and illuminate the check engine light on the instrument cluster.
What torque spec applies to the steering column ignition cylinder housing mounting bolts?
According to OEM manufacturer specifications, standard shear bolts used to attach the lock cylinder housing to the upper steering column tube require a torque spec of 12 to 15 Nm (106 to 132 lb-in). During installation, tightened these shear bolts until the hexagonal installation heads break off, leaving a smooth, tamper-resistant dome collar that secures the locking assembly to the column sleeve.
How do pre-2000 mechanical ignition lock assemblies differ from modern CAN-bus integrated systems on a key ignition lock cylinder diagram?
Pre-2000 key ignition lock cylinder diagrams feature heavy-gauge direct-switched wiring (10 to 12 AWG) carrying full system current directly through internal copper contacts to power starter solenoids, ignition coils, and accessory circuits. Modern CAN-bus integrated diagrams show low-current signal wires (18 to 22 AWG) connected from the switch to a Body Control Module (BCM) or Steering Column Control Module (SCCM). The modules read voltage step changes or multiplexed signals and trigger solid-state relays or CAN messages to power up the ECU and starter systems electronically.
Step-by-Step Guide to Understanding the Key Ignition Lock Cylinder Diagram
Identify – Locate the key ignition lock cylinder diagram reference points and negative battery terminal.
Locate – Access the 1/8-inch lock cylinder release pin hole on the underside of the lower steering column shroud.
Reference – Consult the diagram to align the key to the ACC position for release pin alignment.
Connect/Route – Remove the old cylinder, inspect tumblers, and install the new cylinder assembly into the column housing.
Verify – Reconnect the battery, cycle key positions (OFF, ACC, RUN, START), torque housing bolts to spec, and verify ECU engine cranking.
Troubleshoot – Scan with an OBD-II tool if a check engine light or anti-theft immobilizer code appears.
