Idle Air Control Valve Diagram: Component & Layout Guide
An idle air control valve diagram displays the internal plunger, spring, and electrical connector within the throttle body assembly. It shows how the engine management system regulates bypass airflow to maintain a steady RPM when the throttle plate is closed, ensuring smooth engine operation during stops or cold starts.
📌 Key Takeaways
- Identifies the bypass air passage controlled by the ECU
- The pintle and solenoid are the most critical internal parts
- Always check for carbon buildup within the valve housing
- Use the diagram to locate potential vacuum leak points
- Essential for diagnosing erratic idling or engine stalling
Maintaining a smooth and consistent engine idle is a fundamental aspect of vehicle performance that often goes unnoticed until something goes wrong. When your engine begins to stall at stoplights or fluctuates wildly in RPM while parked, the culprit is frequently a malfunctioning component within the air intake system. To effectively diagnose and repair these issues, a comprehensive idle air control valve diagram is an indispensable resource. This diagram acts as a technical map, illustrating how the valve interacts with the throttle body and the engine control module to regulate airflow when the throttle plate is closed. By understanding the specific layout and schematic of this system, you can move beyond guesswork and perform precision maintenance. This article provides an in-depth exploration of the idle air control valve (IACV), covering everything from basic component identification to complex troubleshooting procedures, ensuring you have the knowledge required to restore your vehicle’s idle stability.
Understanding the Idle Air Control Valve Diagram and System Structure
The internal structure of an idle air control valve is a marvel of electromechanical engineering, designed to manage minute adjustments in air volume. When you examine an idle air control valve diagram, the first thing you will notice is its strategic placement on or near the throttle body. The diagram serves as a visual blueprint that highlights the relationship between the intake manifold and the bypass air passage. Because the throttle plate is completely closed when your foot is off the gas pedal, the engine needs an alternative route for air to enter the combustion chambers; otherwise, the vacuum created would simply choke the engine out.
A detailed schematic of this component typically identifies several key internal parts. First is the solenoid or stepper motor, which receives electrical pulses from the vehicle’s computer. The diagram will show this motor connected to a pintle—a small, cone-shaped plunger. This pintle moves in and out of an orifice within the valve housing. When the pintle retracts, the bypass port opens further, allowing more air to enter the engine and raising the RPM. Conversely, when the pintle extends, it restricts the airflow, lowering the RPM. The configuration of these ports is critical; many diagrams use color-coding to differentiate between the “air inlet” (coming from the air filter side) and the “air outlet” (going into the intake manifold plenum).
The idle air control valve does not measure air; it regulates it. It relies on data from the Mass Air Flow (MAF) sensor and the Crankshaft Position Sensor to determine how much the pintle needs to move to maintain the target idle speed programmed into the ECU.
Variations in layout are common depending on the manufacturer and the age of the vehicle. For instance, some diagrams might show a rotary-style valve instead of a linear pintle design. In a rotary configuration, a small disc rotates to expose or block the bypass port. Regardless of the specific mechanism, the schematic will always emphasize the electrical connector, which usually features two to four pins. These pins carry the power, ground, and control signals necessary for the system to function. Understanding this layout is the first step in diagnosing whether a problem is mechanical (a stuck pintle) or electrical (a dead solenoid).

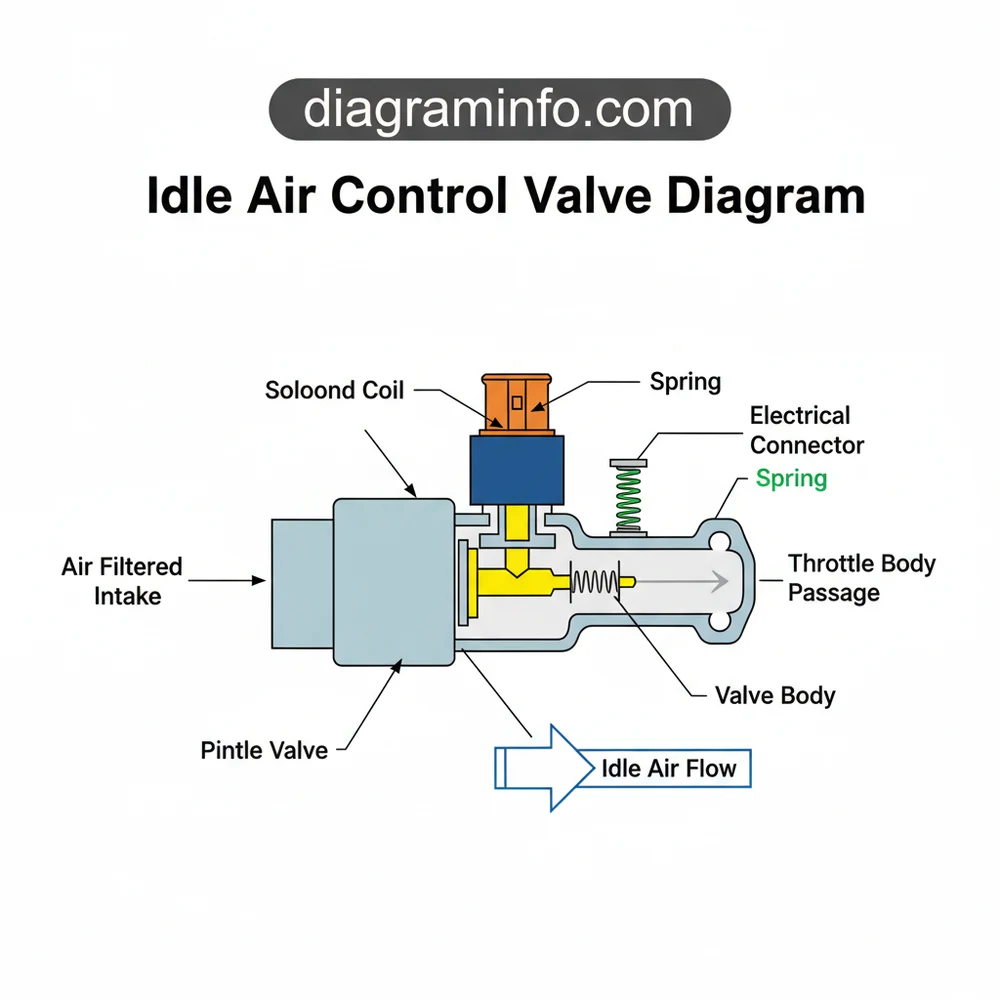

[DIAGRAM_PLACEHOLDER – A detailed technical illustration showing the throttle body assembly, the bypass air channel, the IACV housing, the internal stepper motor, the pintle mechanism, and the electrical harness connection point.]
Step-by-Step Guide: Interpreting the Diagram and Performing Installation
Reading an idle air control valve diagram requires a systematic approach to ensure you are looking at the correct orientation of the parts. Often, a blueprint will provide an “exploded view,” which shows the components separated but aligned in the order they are assembled. This is particularly helpful when you need to identify where gaskets or O-rings are placed to prevent vacuum leaks. Follow these steps to translate the diagram into a successful real-world application:
- 1. Locate the Component: Using the overview section of the diagram, find the throttle body on your engine. The IACV is typically a small cylindrical or rectangular object bolted to the side or bottom of the throttle body assembly.
- 2. Safety First: Before touching any electrical components, disconnect the negative terminal of the battery. This prevents short circuits and protects the engine control unit from voltage spikes.
- 3. Disconnect the Electrical Harness: Refer to the wiring schematic to identify the locking tab on the electrical connector. Squeeze the tab gently and pull the connector away from the valve. Inspect the pins for corrosion.
- 4. Remove Mounting Hardware: Most valves are held in place by two or three bolts (usually 8mm or 10mm). Use the diagram to identify if there are any hidden brackets or vacuum lines attached to the valve housing that need to be cleared first.
- 5. Inspect the Gasket/Seal: Look at the diagram’s exploded view to see the exact shape of the gasket. When you pull the valve off, ensure the old gasket doesn’t stick to the throttle body. A clean mating surface is essential for a leak-free seal.
- 6. Clean or Replace: If the diagram indicates internal passages, use a specialized electronic cleaner to remove carbon buildup from the pintle and the bypass ports. If the solenoid is dead, replace the entire unit.
- 7. Reassemble and Synchronize: Bolt the new or cleaned valve back into place using a new gasket. Once everything is reconnected, some vehicles require an “idle relearn” procedure, which often involves letting the car idle for 10 minutes without any electrical loads.
Never use a screwdriver or abrasive tool to scrape carbon off the pintle. The pintle is precision-machined; even a small scratch can cause an air leak, leading to a permanent high-idle condition. Always use a soft brush and chemical cleaner.
To successfully perform these steps, you will need a few basic tools: a socket set with extensions, a flathead and Phillips screwdriver, a can of throttle body cleaner, and a digital multimeter if you plan on testing the electrical resistance of the solenoid. Having the idle air control valve diagram open on a tablet or printed out beside you will help you verify that every hose and wire returns to its original configuration.
Common Issues & Troubleshooting Strategies
The primary reason enthusiasts and mechanics seek out an idle air control valve diagram is to solve frustrating idle-related problems. One of the most common issues is “idle hunting,” where the RPM bounces up and down rhythmically. This usually indicates that the valve is struggling to find the correct pintle position, often due to carbon deposits creating friction. Another frequent problem is a total stall when coming to a stop; this suggests the pintle is stuck in the fully closed position, preventing the engine from receiving any air when the throttle is released.
The diagram helps solve these issues by allowing you to perform a “bypass test.” By identifying the air inlet port on the diagram, you can temporarily allow a small amount of air into the system manually. If the engine idle stabilizes when you do this, you have confirmed that the IACV is the bottleneck. Additionally, the electrical schematic allows you to check for continuity. By probing the pins identified in the blueprint with a multimeter, you can check if the internal coil has the correct resistance (usually between 6 and 14 ohms, depending on the model). If the multimeter shows an open circuit, the internal motor has failed, and no amount of cleaning will fix it.
If your car idles perfectly when the engine is cold but stalls once it reaches operating temperature, the IACV might be failing under heat stress. Use your diagram to locate the connector and check the signal voltage while the engine is hot to catch this intermittent failure.
Best Practices for Maintenance and Longevity
To prevent the need for frequent troubleshooting, a proactive approach to maintenance is recommended. The idle air control valve lives in a harsh environment; it is constantly exposed to oil vapors from the positive crankcase ventilation (PCV) system and heat from the engine block. Over time, these vapors bake into a hard carbon crust. To ensure your system remains in peak condition, consider the following best practices:
- ✓ Scheduled Cleaning: Don’t wait for a check engine light. Clean the IACV every 50,000 miles or whenever you service the air filter.
- ✓ Quality Replacement Parts: When replacing the unit, opt for OEM (Original Equipment Manufacturer) components. The stepper motors in cheap aftermarket valves often lack the precision required by the vehicle’s computer, leading to a persistent rough idle even with a new part.
- ✓ Check the PCV System: Since the PCV system is the primary source of the “gunk” that clogs the IACV, ensuring your PCV valve is working correctly will significantly extend the life of your idle control components.
- ✓ Verify Vacuum Integrity: A leak in a vacuum hose near the IACV can mimic a valve failure. Use your idle air control valve diagram to trace every hose connected to the throttle body and ensure there are no cracks or loose fittings.
By following these recommendations, you can save hundreds of dollars in professional diagnostic fees. Most idle issues are the result of simple mechanical obstructions that can be cleared with twenty minutes of work and a five-dollar can of cleaner. However, if your troubleshooting reveals that the PCM (Powertrain Control Module) is not sending a signal to the valve, it may be time to consult a professional technician, as this could indicate a deeper fault in the vehicle’s wiring harness or computer logic.
Conclusion: Mastery of the Idle Air Control System
In summary, the idle air control valve diagram is the bridge between a malfunctioning engine and a smooth-running machine. By mastering the ability to read the schematic and identify the key components—such as the pintle, solenoid, and bypass ports—you empower yourself to take control of your vehicle’s maintenance. Whether you are dealing with a fluctuating RPM, a sudden stall at a red light, or simply performing preventative care, the information contained in the system layout is your best defense against engine inefficiency. Remember that the idle system is a delicate balance of mechanical movement and electrical precision. By treating the components with care, using the right tools, and referencing the correct blueprint, you can ensure your car remains reliable for years to come. The idle air control valve may be a small part of the overall engine, but its impact on your driving experience is massive. Keep your diagrams handy, your sensors clean, and your connections tight for the best possible automotive performance.
Frequently Asked Questions
Where is the idle air control valve located?
The idle air control valve is typically located on the throttle body assembly, near the air intake manifold. It is positioned to allow air to bypass the throttle plate. Identifying this location is crucial for maintenance, as it often sits behind the air filter housing or intake ducting for easy access.
What does idle air control valve diagram show?
The diagram illustrates the internal structure of the valve, featuring the solenoid, pintle, and bypass air passages. It provides a visual guide to how the component interfaces with the overall intake system, helping you understand how the ECU manages airflow to maintain a consistent engine idle speed.
How many wires does the idle air control valve have?
Most modern idle air control valves utilize a two or three-pin electrical connector configuration. These connections allow the engine control unit to send pulse-width modulated signals to the solenoid, which accurately moves the internal pintle to adjust the amount of air bypassing the closed throttle plate.
What are the symptoms of a bad idle air control valve?
Common symptoms of a failing component include a surging idle, frequent engine stalling when coming to a stop, or an unusually high RPM. You might also notice the engine struggling to maintain a steady idle when the air conditioning or other heavy electrical loads are engaged.
Can I replace the idle air control valve myself?
Replacing this valve is a manageable DIY task for most vehicle owners. It usually involves removing a few mounting bolts and disconnecting an electrical plug. However, you must ensure the engine is cool and that you have a new gasket ready to maintain a proper airtight seal.
What tools do I need for this task?
You will generally need a basic socket set, a screwdriver, and some throttle body cleaner to remove carbon deposits. Using a torque wrench is also recommended to ensure the mounting bolts are tightened to the correct specification, preventing damage to the throttle body housing or configuration.
