Toilet Grab Bar Placement Diagram: Step-by-Step Instructions
Standard toilet grab bar placement requires a side wall bar at least 42 inches long and a rear bar 36 inches long, both mounted 33-36 inches from the floor. While vanity plumbing utilizes a P-trap and tailpiece, grab bar installation focuses on wall stud security and avoiding the internal vent pipe.
📌 Key Takeaways
- ADA compliance requires specific heights and lengths for safety
- Stud mounting is the most critical factor for weight capacity
- Rear bars must be centered over the toilet tank
- Side bars should extend at least 54 inches from the rear wall
- Use this diagram during bathroom renovations or elder care prep
Ensuring safety and accessibility in a bathroom environment requires precision, especially when it concerns the stability of those with limited mobility. Finding a clear and accurate toilet grab bar placement diagram is the first step in a successful DIY installation or professional renovation. This guide is designed to help you navigate the complexities of ADA (Americans with Disabilities Act) standards and residential safety requirements. By the end of this article, you will understand exactly where to position horizontal and vertical bars, how to secure them to different wall types, and how these accessibility features interact with your overall bathroom infrastructure, from the framing to the intricate plumbing systems.
A standard toilet grab bar placement diagram illustrates the three-dimensional relationship between the toilet fixture and the safety rails. For most residential and commercial applications, the diagram identifies two primary locations: the side wall and the rear wall. The side wall bar is typically the longest, measuring at least 42 inches in length. According to the diagram, this bar must be positioned a maximum of 12 inches from the rear wall and extend at least 54 inches from the rear wall. The height is equally critical; the diagram indicates a placement between 33 and 36 inches from the finished floor to the top of the gripping surface.
The rear wall bar, as shown in most diagrams, should be a minimum of 36 inches long. It is centered over the toilet, or more specifically, it must extend 12 inches from the centerline of the toilet toward the narrow side and 24 inches toward the open side. This asymmetrical placement is vital for providing leverage where the user needs it most. While the toilet itself is a static fixture, the surrounding wall space must be clear of obstructions. This means your placement diagram must account for the location of the toilet paper dispenser, which should be installed below the side grab bar to avoid interference.
Most toilet grab bar placement diagrams follow ADA standards even in residential homes. These standards suggest a mounting height of 33-36 inches. This range provides the optimal ergonomic advantage for the average adult to push upward or lower themselves safely.
– Diagram showing a 42-inch side bar and 36-inch rear bar with measurements 33-36 inches from the floor.

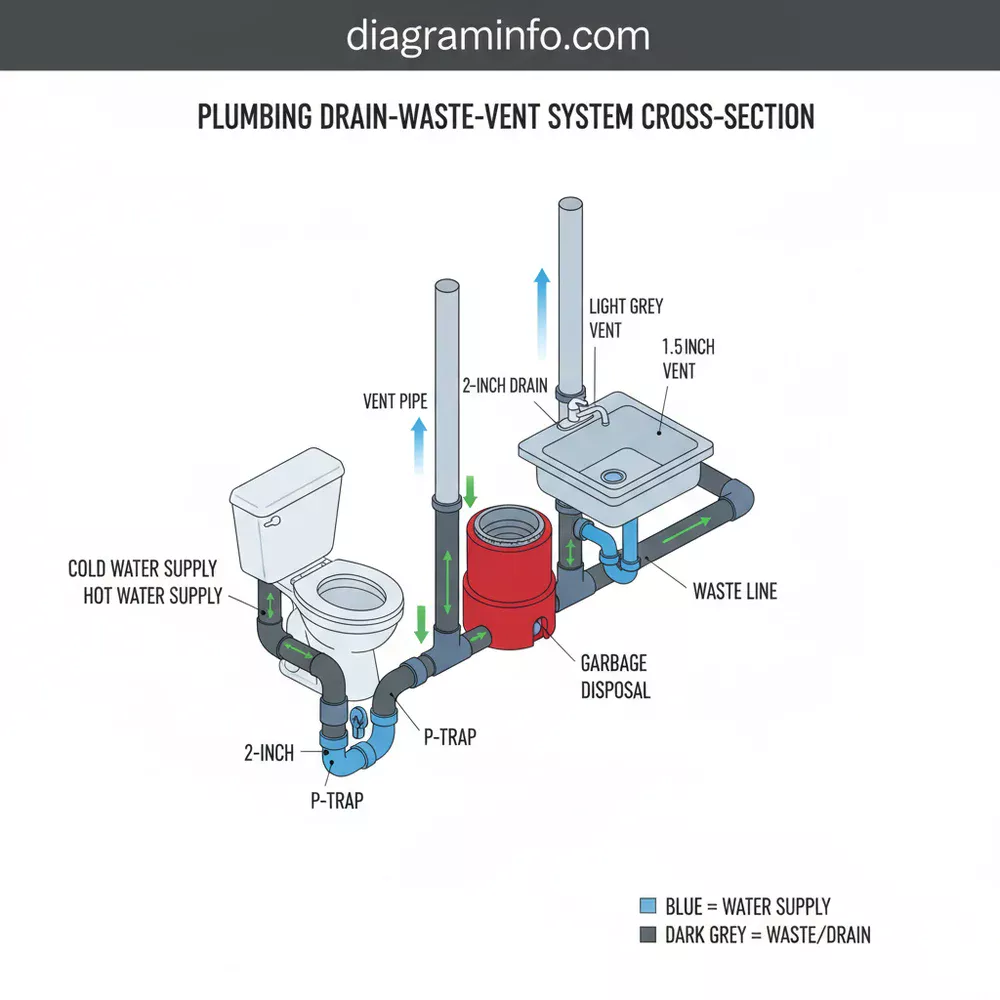

While grab bars are the primary focus, they are often part of a larger bathroom overhaul that involves significant plumbing adjustments. When you are working within the walls to add blocking for a grab bar, you may encounter the vent pipe or the main stack. In accessible bathroom designs, the sink or vanity area also requires attention. The drain assembly must be configured to provide “knee clearance” for wheelchair users. This often involves using a specialized P-trap and tailpiece arrangement that sits closer to the back wall. If you are installing an accessible vanity nearby, you might need to use PVC piping with secure slip joints to ensure the P-trap is tucked away safely. In modern remodels where traditional venting is difficult to reroute, an AAV valve (Air Admittance Valve) may be used to ensure the drain assembly functions correctly without a direct line to the main vent pipe through the roof.
To properly interpret and execute a toilet grab bar placement diagram, you should follow a systematic approach. This ensures that the bars are not only in the right place but are also capable of supporting the required 250 pounds of force.
- ✓ 1. Measure the toilet centerline to establish your starting points.
- ✓ 2. Mark the 33-36 inch height line on both the side and rear walls.
- ✓ 3. Locate the wall studs using a high-quality electronic stud finder.
- ✓ 4. Cross-reference stud locations with the bar length requirements in your diagram.
- ✓ 5. Pre-drill holes through tile using diamond-tipped masonry bits.
- ✓ 6. Secure the mounting brackets with structural screws or specialized anchors.
- ✓ 7. Snap the decorative cover plates into place to hide the fasteners.
Reading the diagram requires an understanding of “clear floor space.” The diagram doesn’t just show where the bar goes; it shows how much room is needed around it. For the side wall bar, you must ensure there is at least 1.5 inches of space between the bar and the wall for a proper grip. If the wall has a wainscoting or decorative ledge, this clearance must be maintained from the furthest protruding point.
In a comprehensive bathroom remodel, you might also find yourself dealing with the kitchen area or a small bar sink. When these areas are made accessible, the plumbing becomes part of the accessibility diagram. A garbage disposal under an accessible sink can often block the necessary legroom. In these cases, the drain assembly and tailpiece must be directed to the side to accommodate the user. Just as the toilet grab bar placement diagram dictates a specific height for safety, the plumbing codes dictate that a P-trap must have a water seal of 2 to 4 inches. Using a slip joint allows for some adjustability during the installation of PVC components, ensuring that the drain lines do not interfere with the user’s mobility aids.
If you find that your wall studs do not align with the hole pattern on your grab bar, do not settle for mounting into drywall alone. Use a “WingIt” anchor or a similar high-capacity toggle bolt specifically designed for grab bars. However, for the ultimate safety, installing 2×6 wood blocking between the studs during the “open wall” phase is the gold standard.
Common issues often arise when the toilet grab bar placement diagram is ignored or misinterpreted. One of the most frequent mistakes is mounting the bar too high. While it might seem easier to reach when standing, a bar placed above 36 inches can cause shoulder strain and provide very little leverage for someone trying to rise from a seated position. Conversely, mounting it too low makes it nearly useless for weight bearing.
Another issue involves the “swing-away” or “fold-down” bars. These are often used when a side wall is not available. The diagram for these bars is different; they are typically mounted on the rear wall and fold down to reside parallel to the toilet. If these are not mounted with heavy-duty backing, they can pull out of the wall entirely, leading to serious injury.
Never use a towel bar as a grab bar. Towel bars are designed to hold the weight of a damp cloth, usually less than 5 pounds. A grab bar must support 250 pounds of vertical and horizontal force. Using the wrong fixture can lead to a catastrophic wall failure during a fall.
If you encounter plumbing within the wall while attempting to install your grab bar, stop immediately. It is common for a vent pipe to run directly behind the toilet. If you accidentally puncture a PVC vent pipe while drilling, you will need to open the wall, cut out the damaged section, and use a slip joint or coupling to repair it. In some cases, if the vent pipe is in the way of where a grab bar must go, you might need to consult a plumber about rerouting it or using an AAV valve to maintain the integrity of the drain assembly without the physical obstruction.
When it comes to the technical side of the installation, quality components are non-negotiable. For the plumbing side of an accessible renovation, always use Schedule 40 PVC for your drain assembly. Ensure that every slip joint is tightened by hand and then a quarter-turn with a wrench to prevent leaks under the sink. If you are integrating a garbage disposal, ensure the electrical and plumbing connections are shielded and do not protrude into the required clearance space.
Maintenance of your grab bars is straightforward but essential. Every few months, check the mounting plates to ensure there is no “play” or wiggle in the bar. If the bar feels loose, the fasteners may be backing out, or the wall material may be degrading. In high-moisture environments, stainless steel bars with a peened (textured) finish are recommended. This finish provides a superior grip even when the user’s hands are wet or soapy, which is a common condition in a bathroom.
For those looking to save costs, the best strategy is “measure twice, cut once.” Incorrectly drilling into expensive tile can be a costly mistake. Use masking tape over the tile before marking and drilling; this prevents the drill bit from wandering and protects the surrounding surface. Furthermore, buying “ADA-compliant” bars ensures that the diameter of the bar (usually 1.25 to 1.5 inches) is ergonomically correct for the human hand, reducing the risk of a slip.
The integration of safety and function is the hallmark of a well-designed bathroom. While the toilet grab bar placement diagram provides the visual roadmap for the safety rails, the underlying systems—like the vent pipe, P-trap, and drain assembly—ensure the room remains hygienic and functional. Whether you are dealing with a simple bar installation or a full-scale remodel involving an AAV valve and new PVC lines, following standardized placement diagrams ensures a safer environment for everyone. By adhering to the 33-36 inch height rule and ensuring solid wall backing, you transform a standard bathroom into a space of independence and security. Remember that accessibility is not just about compliance; it is about providing the dignity of safety and the peace of mind that comes with a job done correctly. Always consult your local building codes as they may have specific requirements that go beyond the standard toilet grab bar placement diagram, especially in multi-family dwellings or commercial properties.
Frequently Asked Questions
Where is the rear grab bar located?
The rear grab bar is located on the wall behind the toilet, mounted 33 to 36 inches above the floor. It must be at least 36 inches long, with 24 inches of that length extending toward the open side of the toilet and 12 inches toward the wall side.
What does this placement diagram show?
The diagram illustrates the precise vertical and horizontal measurements for installing safety rails. It highlights the distance from the floor, the spacing between the bar and the toilet, and how to avoid plumbing obstructions like a vent pipe or a nearby drain assembly to ensure a secure mount.
How many mounting points does the bar have?
Most grab bars have two main mounting flanges, each requiring three screws into a solid wood stud or specialized wall anchor. Unlike a sink tailpiece that handles water flow, these connections must support up to 250 pounds of vertical force to meet safety standards for residential or commercial use.
What are the symptoms of a bad installation?
A poorly installed grab bar will feel loose, wiggle when gripped, or cause the drywall to crack. If you hit a vent pipe during drilling, you might notice odd smells. Ensure the mounting is as firm as a garbage disposal bracket to prevent accidents and ensure long-term reliability.
Can I install a grab bar myself?
Yes, homeowners can install grab bars if they can accurately locate wall studs. While it is less complex than assembling a P-trap or a full drain assembly, you must ensure the mounting is structurally sound. If you lack a stud finder or heavy-duty anchors, consider hiring a professional.
What tools do I need for installation?
You will need a stud finder, a level, a power drill with masonry or wood bits, and a screwdriver. While you won’t need the wrenches used for a garbage disposal or P-trap, a tape measure is essential to match the dimensions provided in the toilet grab bar placement diagram.
