Freightliner XC Chassis Parts Diagram: Proper Routing 2026
The Freightliner XC chassis parts diagram maps the structural frame rails, Neway rear air suspension, Meritor drive axle, and front I-beam layout. It highlights critical service points, including the Alliance fuel-water separator on the rear left rail and the air brake reservoir system configuration under the mid-frame rail.
📌 Key Takeaways
- Identifies the rear-engine diesel configuration, including Meritor drive axles rated at 17,500–24,000 lbs GAWR.
- Frame rail layout uses high-strength steel with crossmember torque specs standard at 180-210 lb-ft.
- Safety precaution: Always bleed primary and secondary air suspension tanks to 0 PSI before servicing air springs.
- Most common failure points: Cracking air dryer purge valves and worn V-link suspension bushings.
- DIY tasks include filter replacements and visual inspections; major frame alignment requires shop equipment.
The Freightliner XC chassis serves as the structural foundation for a vast range of Class A rear-engine diesel motorhomes, incorporating heavy-duty structural steel frame rails, pneumatic suspension systems, full-air braking setups, and integrated powertrain mounts. Interpreting a technical freightliner xc chassis parts diagram requires an understanding of how mechanical, pneumatic, and electrical sub-assemblies interface across the vehicle’s frame. Master technicians and fleet mechanics rely on these schematics to isolate wear items, verify structural torque limits, correctly sequence chassis components, and locate hard-to-find replacement parts based on OEM factory engineering specifications.

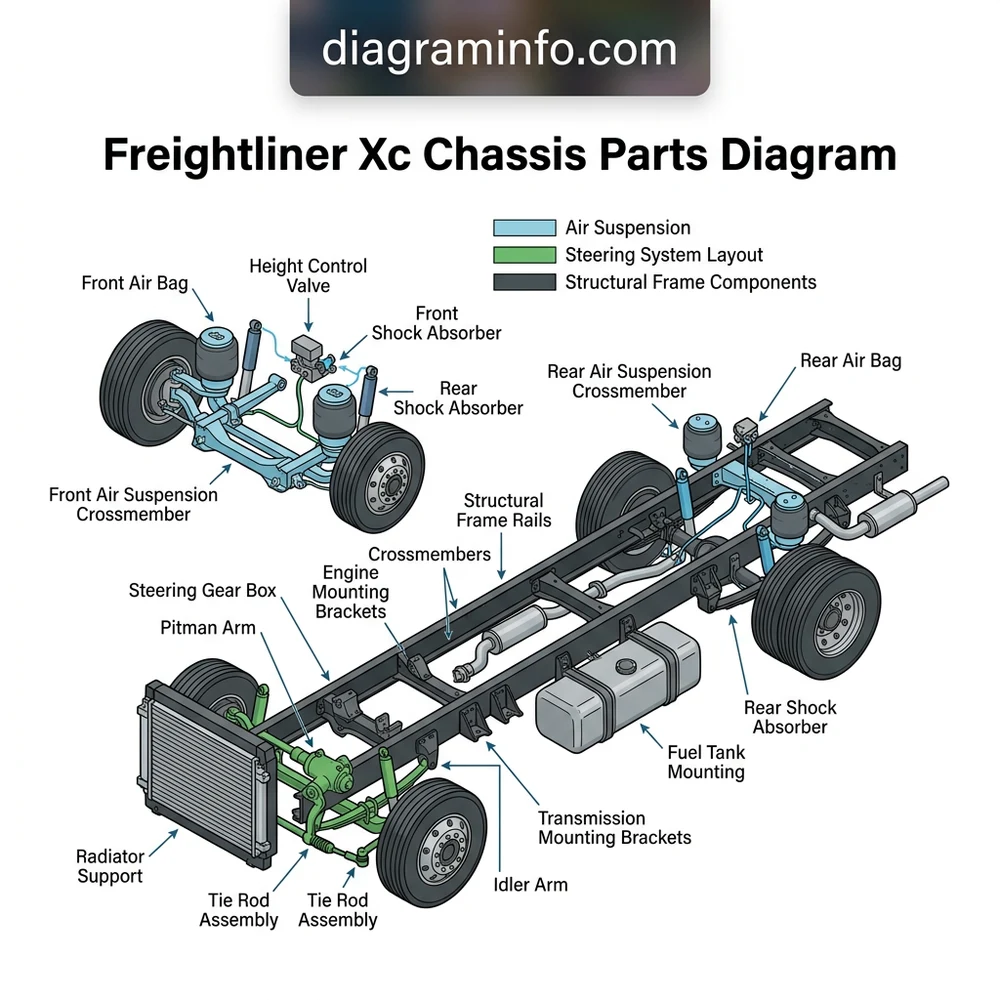

Freightliner XC Chassis Parts Diagram: Core System Layout and Blueprint
The structural layout of the Freightliner XC chassis relies on a high-tensile steel ladder frame configuration engineered to handle extreme torsional loads. Depending on the specific coach builder specification, the frame is manufactured in a raised-rail (XC-R), lowered-rail (XC-L), modular (XC-M), or straight-rail setup. The blueprint illustrates how the frame crossmembers interface with the suspension hangers, engine cradles, and steering gearboxes.
Key assemblies illustrated in the standard freightliner xc chassis parts diagram include the front and rear suspension modules, the WABCO air brake system layout, the Allison transmission housing mount, and the cooling package assembly. The rear section houses either a Cummins ISB/B6.7 or ISL/L9 diesel engine coupled with an Allison 2500 MH or 3000 MH automatic transmission. The cooling module, often mounted in a side-radiator or rear-radiator configuration, is pinned directly to the frame crossmembers via vibration-dampening isolator bushings.
| Sub-System Component | Primary Function / OEM Identifier | Torque / Service Specification |
|---|---|---|
| Front I-Beam / Independent Air Suspension | Hendrickson / Detroit / Neway IFS | Kingpin Bushing Clearance: 0.001 – 0.005 in. |
| Rear Air Suspension (V-Ride / Neway ADL) | Freightliner V-Ride Single Axle Layout | Track Rod Fasteners: 275 – 325 lb-ft |
| Air Dryer & Reservoir Tanks | WABCO System Saver 1200 / Desiccant Cartridge | Governor Cut-Out Pressure: 120 – 135 PSI |
| Frame Crossmember Fasteners | Huck-Bolt / Grade 8 Flange Hardware | 1/2-in Flange Nuts: 110 – 125 lb-ft |
Main chassis frame rails utilize 50,000 PSI to 120,000 PSI yield strength steel. Never drill holes into the top or bottom flanges of the main frame rails; all mounting brackets must attach strictly through the vertical web of the rail in accordance with Freightliner Custom Chassis Corporation (FCCC) body builder guidelines.
Navigating the Freightliner XC Chassis Schematic and Structural Overview
When working with a complex schematic, understanding line weights, callout balloons, and reference codes is essential for accurate disassembly and reassembly. The freightliner xc chassis parts diagram uses numerical callout bubbles indexed directly to an exploded parts list that details part numbers, quantities, and structural designations.
Decoding Frame and Crossmember Callouts
In the structural diagram, crossmembers are assigned identifiers based on their position from front-to-rear (e.g., XC-XM1 through XC-XM6). Fasteners are indexed to differentiate standard Grade 8 bolts from permanent Huck-bolts used in load-bearing zones. Refer to the official Freightliner Custom Chassis Service Manuals to confirm whether a specific frame joint requires cold-swaged fasteners or torqued hex flange bolts during service operations.
Reading Pneumatic and Air Line Routing Systems
Pneumatic system diagrams utilize color-coded routing paths to differentiate between primary air, secondary air, auxiliary air, and wet tank supply lines. Green tubing designates the primary rear brake system, red tubing signifies the secondary front brake circuit, and yellow lines mark the parking brake actuation loop. The blueprint identifies check valves, height control valves (HCV), and pressure protection valves along these routing paths.
Identifying Electrical Harness Connectors and Wire Codes
The electrical schematic section details multiplex wiring pathways, power distribution modules (PDM), and ground stud allocations on the frame web. Individual wires are printed with circuit numbers (e.g., 14A, 43G) indicating fuse block origin and terminal pin assignments within Deutsch or Weather-Pack connector housings.
Frame rail variations (XC-R raised rail vs. XC-M modular) dramatically change the routing paths for hydraulic power steering lines and master wiring trunks. Always verify your 17-digit chassis VIN with the DTNA (Daimler Truck North America) PartsPro system to match the exact schematic overlay for your build year.
Diagnosing Failures with the Freightliner XC Chassis Parts Diagram
Using a detailed chassis parts blueprint streamlines the isolation of mechanical wear, air leaks, and electrical ground faults. By comparing physical component positioning against the standard overview, technicians can rapidly detect misaligned suspension geometry or improperly routed pneumatic lines that cause system degradation.
Tracing Pneumatic Pressure Drop in the Air Brake System
If the secondary air tank experiences rapid pressure loss below 90 PSI, consult the air system diagram to isolate components downstream of the primary reservoir. Check the following components in order:
- Secondary Air Tank Check Valve: Prevents backflow into the wet tank; replace if air bleeds backward through the air dryer purge valve.
- Height Control Valve (HCV) Exhaust Ports: Faulty leveling valves constantly vent supply air to atmosphere under load shifts.
- Spring Brake Control Valve: Inspect internal O-rings if air leaks continuously through the rear brake chamber vent ports.
Resolving Rear Suspension Ride Height Misalignment
Incorrect ride height drastically alters driveline U-joint operating angles, causing severe driveline vibration under acceleration. Consult the V-Ride Rear Suspension Overhaul Guide alongside your chassis schematic to locate the exact measuring points between the bottom of the frame rail and the center of the drive axle. Adjust the height control valve linkage to match OEM factory height specs (typically 10.25 to 11.5 inches depending on suspension model year).
Before working under an air-suspended Freightliner XC chassis, install heavy-duty safety stands under the frame rails. Bleed all air reservoirs completely. Never rely solely on air springs or hydraulic leveling jacks to support the chassis frame during maintenance.
Freightliner XC Chassis Parts Diagram Frequently Asked Questions
What is the primary difference between XC-R, XC-M, and XC-S chassis diagrams?
The primary difference lies in the frame rail construction. The XC-R uses a raised rail configuration that provides a flat interior floor and deeper basement storage; the XC-M features a modular front and rear frame section attached to a center web; the XC-S utilizes a straight rail layout. Component locations for fuel tanks, air reservoirs, and steering linkages shift based on these frame profiles.
How do I find specific OEM part numbers using my chassis schematic?
Locate the callout number on the blueprint section (e.g., item number 14 on the front axle schematic). Cross-reference this number with the index table adjacent to the diagram. For exact ordering numbers, cross-reference the drawing’s group code with your vehicle VIN using the Freightliner DTNA Connect portal or an authorized dealer.
Where is the main chassis electrical distribution panel shown on the blueprint?
On most Freightliner XC models, the main chassis Power Distribution Module (PDM) is located in the driver-side front exterior compartment or near the rear engine compartment. The electrical layout diagram designates this panel as the “Chassis PDM,” housing high-amperage fuses and relays for ignition, fuel lift pump, ABS ECU, and trailer lighting circuits.
What steering linkage components are detailed in the front axle assembly breakdown?
The front axle diagram details the drag link, tie rod assembly, steering arm, pitman arm, and hydraulic steering gear (typically TRW or ZF units). The blueprint specifies pinch-bolt torque limits and castle nut cotter pin installation requirements for steering knuckle ball joints.
How often should the pneumatic system components shown in the diagram be serviced?
According to OEM specs, the desiccant cartridge inside the WABCO air dryer (shown in the pneumatic system blueprint) should be replaced every 2 to 3 years or 30,000 miles. Manual air tank drain valves should be operated periodically to remove moisture and oil sludge from the supply reservoirs, preventing valve fouling in the ABS modulator assemblies.
Step-by-Step Guide to Understanding the Freightliner Xc Chassis Parts Diagram
Identify – Locate the specific Freightliner XC sub-system (suspension, steering, frame, or air brakes) needing service.
Locate – Find the VIN plate on the driver side frame or entry area to confirm exact XC chassis subgroup configuration.
Reference – Match the component number on the schematic breakdown legend to obtain the correct OEM part number.
Connect/Route – Route replacement air lines or position structural crossmembers exactly as designated along the frame C-channel.
Verify – Torque all chassis fasteners to factory specifications (180–210 lb-ft for frame crossmembers) and perform a system check.
Troubleshoot – Inspect for air leaks using soapy water or check alignment if suspension callout dimensions do not align.
