The Tuff Torq K46 parts diagram details the internal hydrostatic drive configuration, including the hydraulic cylinder block, motor piston assembly, center case, pump shaft, and final drive gears. Located under the lawn tractor frame, it uses 5W-50 synthetic oil and features an external bypass lever for free-wheeling the transaxle.
📌 Key Takeaways
- The K46 hydrostatic system operates using 5W-50 synthetic oil with a total oil capacity of 2.3 liters (2.4 qts).
- Internal wear on the upper housing center case and motor cylinder block is the primary cause of thermal drive loss.
- Always torque internal housing bolts to 23.5 Nm (17.3 ft-lbs) during reassembly to prevent hydraulic leaks.
- The bypass valve actuator arm frequently sticks, preventing full hydrostatic pump engagement under load.
- DIY repair requires replacing internal pump/motor cylinder kits; total casing damage requires complete assembly replacement.
The Tuff Torq K46 hydrostatic transaxle is a widely implemented integrated hydrostatic transmission (IHT) found across lawn and garden tractors produced by brands like John Deere, Husqvarna, and Craftsman. Understanding the internal fluid dynamics and mechanical linkages requires a precise technical reference. Utilizing a factory-spec schematic allows technicians to correctly identify wear components, source OEM replacement parts, and perform targeted overhauls. This guide delivers an expert-level breakdown of the transaxle configuration, providing the precise specs, torque ratings, and component relationships needed for tear-downs, rebuilds, and routine maintenance.
Tuff Torq K46 Parts Diagram: Internal Component Breakdown
Analyzing the Tuff Torq K46 parts diagram reveals three distinct operational sub-assemblies: the hydrostatic pump/motor group, the mechanical reduction gear train, and the aluminum housing structure. At the heart of the hydraulic unit sits the variable displacement axial piston pump (driven by the engine flywheel via a vertical drive pulley) and the fixed displacement axial piston motor. These two rotating groups ride on ground cylinder blocks against high-precision swashplates, converting mechanical rotation into hydraulic pressure and back into output torque.
The fluid circuit incorporates an internal suction filter, center case manifold, and an external bypass valve assembly used for manual machine towing. Connected directly to the motor cylinder block is the final drive gear system, consisting of a countershaft reduction gear, differential bull gear, and dual 3/4-inch or 1-inch axle shafts supported by internal bushings or needle bearings depending on the specific model revision. For technicians executing a complete teardown or sourcing Tuff Torq replacement parts, referencing the OEM reference numbers is critical to obtaining exact tolerances.
Fluid Specification: 5W-50 Synthetic Engine Oil (Tuff Torq Tuff Tech OEM spec)
Fluid Capacity: 2.3 liters (77.8 oz / 2.43 qts)
Axle Retaining Bolt Torque: 22–28 Nm (16.2–20.6 ft-lbs)
Case Perimeter Bolt Torque: 22–27 Nm (16.2–19.9 ft-lbs)
Center Case Mounting Bolts: 27–34 Nm (19.9–25.1 ft-lbs)
| Diagram Reference | Component Identification | OEM Part Number / Specification |
|---|---|---|
| Ref #1 | Center Case Assembly | Part # 1A646024000 |
| Ref #18 | Axial Cylinder Block Kit (Pump/Motor) | Part # 1A646098010 |
| Ref #26 | Internal Suction Oil Filter | Part # 1A646024250 |
| Ref #32 | Motor Swashplate (Fixed) | Part # 1A646029010 |
| Ref #88 | Differential Bull Gear Assembly | Part # 1A646031500 |

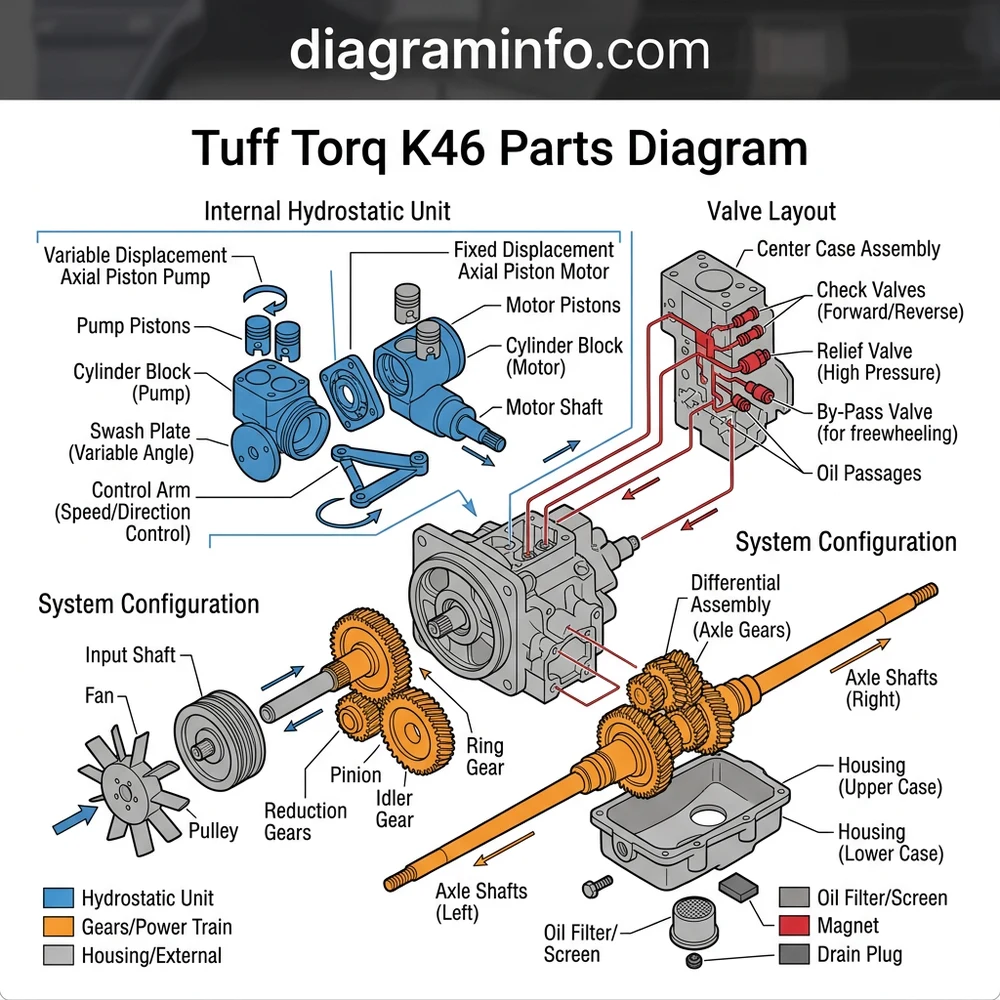

Navigating the Tuff Torq K46 Schematic and Assembly Configuration
Interpreting the technical schematic for the K46 transaxle requires a systematic approach to distinguish mechanical structural fasteners from sensitive hydraulic valving elements. As depicted in the schematic layout, components are indexed from the upper and lower housing boundaries inward toward the center manifold block. When disassembling the system, trace the power input and fluid routing in sequence:
- Input Shaft & Drive Assembly: The input shaft enters through the top case cover, sealed by a 19x32x7 mm double-lip oil seal. It connects directly to the pump cylinder block via a splined coupling, supported by a thrust ball bearing assembly.
- Variable Control Cradle: The directional control arm connects externally to the trunnion shaft. Internally, this rotates the variable swashplate cradle, shifting the stroke angle of the pump pistons to govern forward velocity, reverse movement, and neutral positioning.
- Final Drive & Differential Layout: Output torque generated by the hydraulic motor shaft turns the helical reduction gear set. Power transfers through the mechanical differential assembly, which balances torque between the left and right drive axles.
When working on lawn tractor transmission repair projects, technicians must account for model-year variations. Pre-2007 K46 builds utilized a slightly different center case port plate geometry compared to post-2007 production runs. Always cross-reference the transaxle barcode label (e.g., 46AG0123456 stamped on the lower housing casing) with the blueprint part index before purchasing replacement internal valving or thrust plates.
When referencing the internal pump and motor cylinder blocks on the layout diagram, always inspect the thrust ball bearings and swashplate contact faces for micro-pitting. Even microscopic scoring on these hydraulic mating surfaces will cause severe thermal degradation and loss of drive pressure once the fluid reaches operating temperature.
Diagnosing Transaxle Fluid and Mechanical Failures via the Overview
A loss of tractive effort after 30 to 45 minutes of heavy operation is the most frequent symptom associated with the Tuff Torq K46 transaxle. This performance drop usually stems from internal hydraulic bypass rather than stripped mechanical gear teeth. Utilizing the functional blueprint, mechanics can systematically evaluate three high-wear failure modes during hydrostatic transaxle troubleshooting:
First, examine fluid integrity and filtration. Standard factory 10W-30 mineral oil breaks down under thermal strain, losing viscosity. As oil thins, hydraulic pressure drops across the center case port plate. Simultaneously, suspended metal wear particles blind the internal suction filter (Ref #26), starving the axial piston pump and inducing severe cavitation.
Second, inspect the center case and piston block mating surfaces. The polished cast-iron port plate sits between the rotating cylinder blocks and the aluminum center case. If wear creates clearances exceeding 0.001 inches (0.025 mm), high-pressure fluid escapes directly back into the lower housing sump instead of powering the hydraulic motor cylinder block.
Third, verify bypass valve seating. The manual bypass actuator push-rod forces the motor cylinder block off its valve face to allow free-wheeling. If the internal return spring breaks or metal debris binds the bypass pins, the valve remains partially unseated, bypassing drive fluid indefinitely.
Never purge trapped air from a newly rebuilt K46 transaxle under heavy mechanical load. Elevate the rear drive wheels, engage the bypass rod, start the engine at low RPM, and alternate the control lever forward and reverse 5 to 10 times. Operating under load while aerated will instantly score new cylinder block thrust plates.
Tuff Torq K46 Parts Diagram Technical FAQ
What oil type and fluid capacity are specified in the Tuff Torq K46 parts diagram?
Tuff Torq specifies fully synthetic 5W-50 motor oil (such as OEM Tuff Tech 5W-50) for all severe-duty and overhaul applications. Total internal fluid capacity is 2.3 liters (77.8 fl oz). When refilling a completely drained unit, set the final fluid level between 20 mm and 25 mm below the lip of the internal reservoir fill port or magnet chamber.
How do I locate the exact Tuff Torq K46 variant code on my equipment?
Locate the silver serial number label affixed to the rear or side vertical face of the lower housing case. The sticker displays the exact model designation (e.g., K46BD, K46AW, K46BA) followed by a six-digit serial code. Cross-referencing this specific alphanumeric variant against the parts schematic is vital, as axle shaft lengths, internal reduction ratios, and bypass linkages vary between tractor manufacturers.
Can the internal suction oil filter be replaced without splitting the aluminum housing?
No. The internal suction oil filter (Ref #26) is seated inside the lower housing directly beneath the center case assembly. Servicing or replacing this filter requires removing the transaxle from the chassis, completely draining the oil, removing the perimeter flange bolts, and splitting the upper and lower housing halves.
What sealant should be applied to the case perimeter during reassembly?
The K46 housing does not use a pre-cut paper gasket. Apply a continuous 2 mm bead of high-temperature RTV silicone or anaerobic sealant—such as ThreeBond 1207B, Hondabond, or Permatex Ultra Grey—along the clean, degreased mating flange of the lower housing, routing inside all bolt hole perimeters before torquing to 22–27 Nm.
Why does the K46 transaxle lose forward drive speed only after heating up?
As operating oil temperature increases, fluid viscosity decreases significantly. If the microscopic tolerances between the rotating cylinder blocks, center case port plate, and swashplates are worn, the thinned hot oil bypasses the hydraulic motor pistons under high load, causing a severe drop in output torque until the unit cools down.
Step-by-Step Guide to Understanding the Tuff Torq K46 Parts Diagram
Identify – Match your specific transaxle serial number to the corresponding Tuff Torq K46 parts diagram revision.
Locate – Position the internal cylinder blocks, center case, drive shaft, and bypass valve within the schematic layout.
Reference – Note key part numbers, torque specifications, and seal orientation before starting mechanical teardown.
Connect/Route – Reassemble internal pump pistons, swashplate, and differential gears according to the exploded system configuration.
Verify – Fill transaxle with 5W-50 synthetic oil, purge trapped air, and check for hydraulic leaks across housing seams.
Troubleshoot – If forward/reverse drive slips when warm, re-check center case mating tolerance and internal oil filter seating.
