Golf Cart Solenoid Wiring Diagram: Troubleshooting Guide
A golf cart solenoid wiring diagram illustrates the connection between the battery, ignition switch, and motor controller. It shows how the hot wire from the battery activates the coil, completing the circuit at the common terminal to deliver high-current power, while the ground wire ensures a safe electrical return path.
📌 Key Takeaways
- The diagram identifies the high-current and low-current circuits within the system.
- The solenoid acts as a heavy-duty relay controlled by the ignition switch.
- Correct terminal orientation is critical to prevent short circuits or motor damage.
- Visualizing the circuit helps isolate whether a fault is in the switch or the solenoid.
- Always disconnect the main battery pack before attempting any wiring changes.
Understanding your golf cart solenoid wiring diagram is the first step toward successful DIY maintenance and troubleshooting. Whether you are replacing a faulty unit or upgrading your power system, a clear visual guide ensures that every connection is secure and electrically sound. This comprehensive guide provides a deep dive into the architecture of your vehicle’s electrical heart, detailing how the key switch, battery bank, and motor interact through this critical relay. You will learn to identify specific terminals, choose the correct wire gauge, and safely navigate the high-current environment of your cart. By the end of this article, you will have the confidence to interpret any golf cart solenoid wiring diagram and perform installations that are both reliable and safe.
The Anatomy of a Solenoid Wiring Diagram
A golf cart solenoid wiring diagram serves as a blueprint for the vehicle’s primary electrical switch. The solenoid itself is an electromagnetic relay that uses a low-current signal to close a high-current circuit. In most standard setups, the diagram illustrates four distinct connection points: two large copper or brass posts and two smaller terminals. The large posts are designed to handle the heavy current flowing from the battery pack to the controller and motor, while the smaller terminals manage the activation circuit triggered by your key switch and accelerator pedal.
When you look at a professional diagram, you will notice distinct labeling for the “hot wire” and the “ground wire.” The large terminal on one side typically receives the primary hot wire coming directly from the main positive post of your battery bank. On the opposite large terminal, a wire leads toward the electronic speed controller or the motor itself. This ensures that the high-voltage energy is only released when the solenoid is engaged. The smaller terminals are where the control logic happens. One small terminal is usually the “common terminal” for the activation circuit, receiving a signal from the key switch (often referred to as a traveler wire in some simplified diagrams), while the other completes the circuit to the ground or the negative side of the battery system.
Most modern golf carts utilize a 36-volt or 48-volt system. It is vital to ensure your solenoid’s voltage rating matches your battery pack exactly. Using a 36V solenoid in a 48V system will lead to immediate component failure and potential safety hazards.
Visual diagrams often use color-coding to help the user distinguish between high-voltage and low-voltage paths. For instance, heavy-duty red cables signify the main power feed, while thinner colored wires represent the signal path. You might also see a diode or a resistor bridging the terminals. The resistor, often found on the large posts, allows a small amount of current to flow constantly to keep the controller capacitors charged, while the diode on the small terminals prevents voltage spikes from damaging the key switch when the magnetic field collapses.

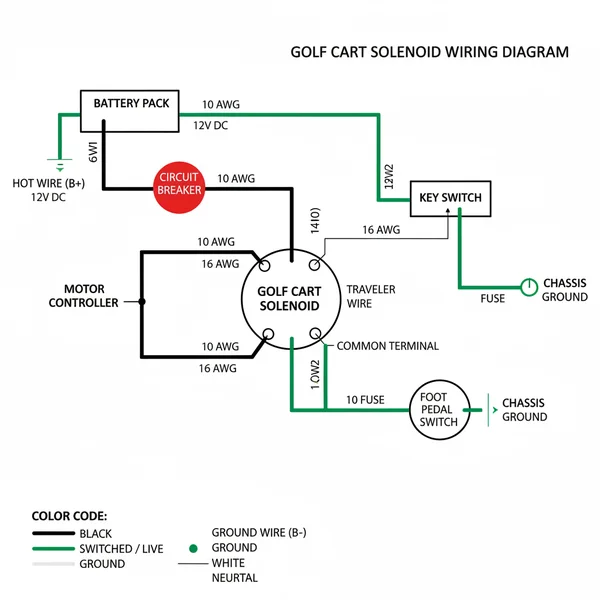

Generic representation of a 4-terminal golf cart solenoid wiring layout.
Step-By-Step Installation and Interpretation
Reading a golf cart solenoid wiring diagram is one thing; physical implementation is another. Before you touch any brass screw or terminal, you must prepare your workspace. To interpret the diagram correctly, you must first identify the orientation of your specific solenoid model. While most follow a standard layout, the placement of the small “activation” terminals can vary between brands.
Required Tools and Materials
- ✓ Insulated socket set (9/16″ and 7/16″ are common)
- ✓ Digital Multimeter for voltage testing
- ✓ Wire brush or sandpaper for terminal cleaning
- ✓ High-quality 4-gauge or 6-gauge battery cables
- ✓ Replacement nuts and locking washers
The Wiring Process
1. Safety Shutdown: Begin by putting the golf cart in “Tow” mode if it is an electric model with a Run/Tow switch. Disconnect the main positive and negative cables from the battery pack to eliminate any potential for short circuits. This is the most critical safety step when dealing with high-voltage DC systems.
2. Identify the Main Feed: Locate the main hot wire coming from the battery positive post. According to your golf cart solenoid wiring diagram, this wire attaches to one of the large brass screw terminals. It does not technically matter which large post you use for “in” and “out” on a standard solenoid, but consistency with the diagram helps with future troubleshooting.
3. Connect the Load: Take the heavy-gauge cable that leads to the motor controller and attach it to the second large terminal. If your diagram includes a pre-charge resistor, slide the circular ends of the resistor over the large posts before tightening the nuts. The resistor should bridge the gap between the two large terminals.
4. The Activation Circuit: Now, look at the small terminals. Connect the traveler wire—the one leading from the key switch or accelerator microswitch—to one of the small posts. This is the common terminal for the low-current trigger. When you turn the key and press the pedal, this wire carries the voltage needed to create the internal magnetic field.
5. Establish the Ground: Connect the ground wire to the remaining small terminal. In most systems, this wire leads to the negative side of the battery pack or a common ground block. If your solenoid uses a diode, ensure the striped end of the diode points toward the positive (hot) side of the activation circuit to prevent back-EMF.
Never over-tighten the nuts on the solenoid terminals. The internal contactors are connected to the brass screws, and excessive torque can snap the internal connection or crack the plastic housing, rendering the solenoid useless.
6. Final Inspection: Compare your physical connections one last time against the golf cart solenoid wiring diagram. Ensure no stray wire strands are touching the metal frame or adjacent terminals. Check that the gauge of your wires matches the current requirements of your motor—typically 6-gauge for standard carts and 4-gauge for upgraded or high-speed models.
Troubleshooting Common Solenoid Issues
A golf cart solenoid wiring diagram is an essential tool when your cart refuses to move. One of the most common issues is the “no-click” scenario. If you turn the key and press the pedal but hear nothing, the diagram helps you trace the path of the traveler wire. Use a multimeter to check for voltage at the small terminals. If you have voltage there but no click, the solenoid’s internal coil has failed.
Conversely, if you hear a “click” but the cart doesn’t move, the issue likely lies with the large terminals or the internal contact disk. You can use your diagram to identify the “hot” side and “load” side. With the wheels jacked up for safety, measure the voltage on the battery side of the solenoid and then on the motor side while the solenoid is clicked shut. If the voltage doesn’t jump across the terminals, the internal brass contacts are likely pitted or burnt, necessitating a replacement.
Another frequent problem is a “welded” solenoid, where the cart moves as soon as the key is turned, even without the pedal being pressed. This happens when the high current fuses the internal contacts together. The wiring diagram will show you how to safely disconnect the battery feed to stop the vehicle and replace the faulty relay.
Best Practices for Maintenance and Performance
To ensure the longevity of your electrical system, follow these pro tips that go beyond the basic golf cart solenoid wiring diagram. First, always prioritize wire quality. The “gauge” of the wire refers to its thickness; a lower number means a thicker wire. If you notice your solenoid or cables getting hot to the touch, you likely need to upgrade to a heavier gauge wire to handle the current demand.
Apply a thin layer of dielectric grease to all brass screw connections. This prevents corrosion from battery acid fumes and moisture, ensuring a “neutral” resistance environment that maintains maximum voltage flow over time.
Maintenance should include a monthly check of all terminal nuts. Vibration from driving on uneven paths can loosen the connections at the common terminal and main posts. A loose connection creates resistance, which generates heat and can eventually melt the solenoid’s plastic casing. Always use locking washers to mitigate this risk.
Finally, when purchasing a replacement, look for “continuous duty” solenoids. Many automotive solenoids look identical but are designed for “intermittent duty” (starting a car for 2 seconds). A golf cart solenoid must stay engaged for the entire duration of your drive. Using the correct part, as specified by your golf cart solenoid wiring diagram, will prevent premature failure and keep your cart running smoothly for years to come. By following these guidelines and keeping a copy of your specific model’s diagram handy, you turn a complex electrical task into a manageable weekend project.
Step-by-Step Guide to Understanding the Golf Cart Solenoid Wiring Diagram: Troubleshooting Guide
Identify – Start with identifying the large high-current terminals and the small control terminals on the physical solenoid.
Locate – Locate the main hot wire leading from the battery positive and map it to the first large post.
Understand – Understand how the traveler wire from the ignition switch connects to the small positive terminal to provide activation signal.
Connect – Connect the ground wire to the second small terminal and ensure the negative return path is secure.
Verify – Verify that the neutral wire equivalent or negative cable is connected to the controller side of the large post.
Complete – Complete the process by checking the common terminal nuts for tightness and testing the solenoid with a voltmeter.
Frequently Asked Questions
What is golf cart solenoid wiring diagram?
This diagram is a visual map showing the electrical connections of a golf cart’s solenoid. It details how the high-voltage battery cables connect to the large posts and how the low-voltage control wires, including the hot wire and ground wire, attach to the small terminals to trigger the system.
How do you read golf cart solenoid wiring diagram?
To read the diagram, trace the path from the battery positive to the main common terminal. Look for the thinner traveler wire that sends a signal from the key switch to the activation coil. Symbols represent the battery, fuse, and motor controller, showing how the circuit opens and closes.
What are the parts of golf cart solenoid wiring?
The main parts include two large copper terminals for high-current flow and two small terminals for the activation coil. Associated components featured in the diagram are the resistor, diode, hot wire from the battery, and the ground wire that completes the circuit for the internal electromagnetic coil to function.
Why is common terminal important?
The common terminal is important because it serves as the primary junction for high-amperage current. In a solenoid diagram, these large posts bridge the gap between the power source and the motor controller. If these connections are loose or corroded, the golf cart will fail to move under load.
What is the difference between hot wire and ground wire?
The hot wire carries the positive electrical potential from the battery to the solenoid to provide power. Conversely, the ground wire provides the return path to the negative terminal of the battery. In DC systems, the ground wire functions similarly to a neutral wire in AC, completing the electrical loop.
How do I use golf cart solenoid wiring diagram?
Use the diagram to verify that every wire is connected to the correct post during a replacement. By following the lines, you can ensure the traveler wire from the ignition reaches the small terminal, preventing you from accidentally crossing high-power leads which could cause dangerous sparking or component failure.
