2011 Honda Civic Serpentine Belt Diagram 2026: Proper Routing

Accurate serpentine belt routing is paramount for the operational integrity of your 2011 Honda Civic. This multi-ribbed belt is solely responsible for transmitting rotational power from the crankshaft to vital engine accessories, including the alternator, air conditioning compressor, and water pump. An incorrectly routed belt, even by a single rib, can lead to premature belt wear, accessory malfunction, or complete system failure. This comprehensive guide provides the precise 2011 Honda Civic serpentine belt diagram, OEM part numbers, and critical installation procedures to ensure optimal performance and longevity for both 1.8L (R18A1) and 2.0L (K20Z3 Si) engine variants.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

BELT PART NUMBERS

Selecting the correct OEM belt or a high-quality aftermarket equivalent is essential. Honda specifies different belt part numbers and belt size based on the engine displacement and installed options. Always cross-reference with your vehicle’s VIN and specific engine code (R18A1 for 1.8L, K20Z3 for 2.0L Si) to ensure compatibility. The dimensions provided are approximate; refer to manufacturer specifications for precise measurements.

Note: The 2011 Honda Civic, for most trims, utilizes an Electric Power Steering (EPS) system, eliminating the need for a traditional belt-driven power steering pump. The 2.0L Si also features EPS.

STEP-BY-STEP ROUTING INSTRUCTIONS

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Accurate belt routing path is critical. Always verify the new belt’s routing against the pulley diagram before releasing the tensioner. This procedure is generally consistent for both 1.8L and 2.0L engines, but always double-check the specific diagram for your vehicle.

To correctly route the serpentine belt on your 2011 Honda Civic, follow these detailed steps:

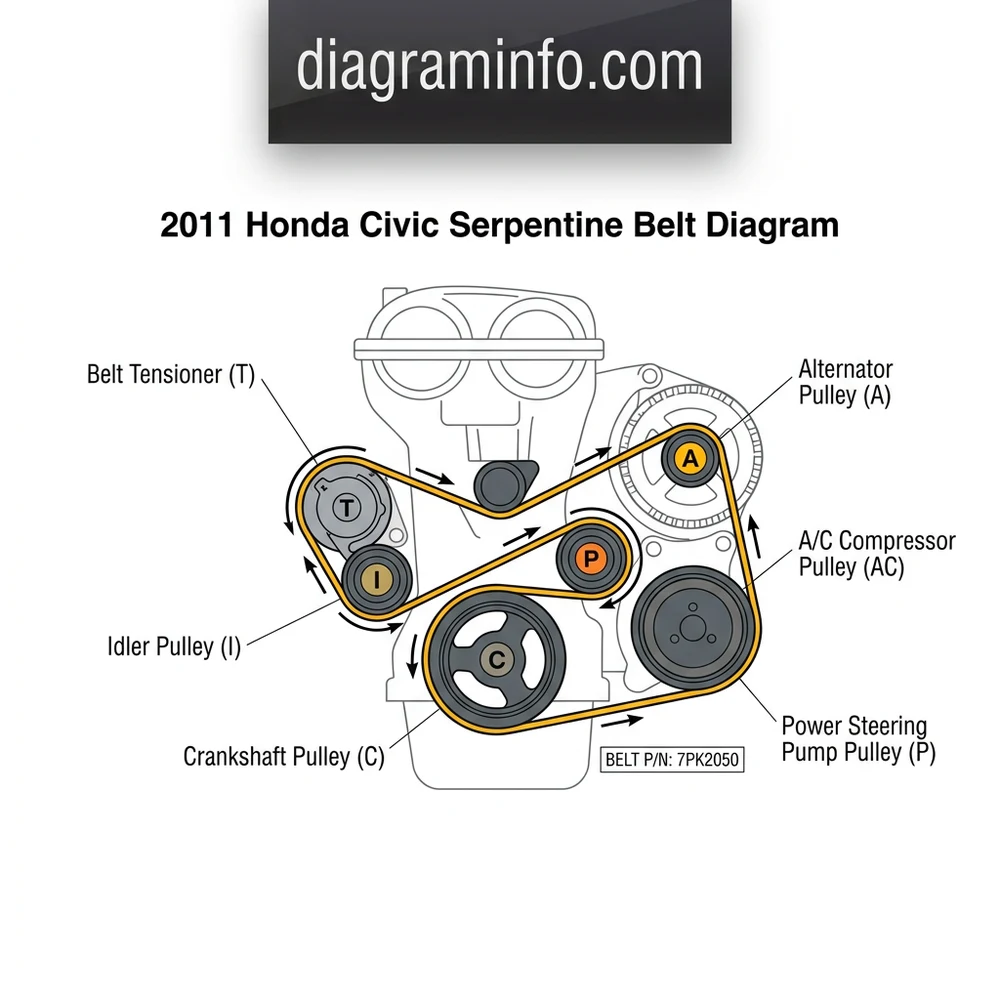

1. Identify All Pulleys: Referring to the pulley diagram, locate the following components:
   • Crankshaft Pulley (A): The largest pulley at the bottom, directly connected to the engine’s crankshaft. This is the primary driver.
   • Alternator Pulley (B): Typically located near the top front of the engine, responsible for charging the battery and powering electrical systems.
   • A/C Compressor Pulley (C): Usually located at the bottom-front, powers the air conditioning system.
   • Water Pump Pulley (D): Circulates coolant through the engine. Its exact location can vary but is generally central.
   • Automatic Belt Tensioner Pulley (E): This unit maintains constant tension on the belt. It features an arm, a pulley, and often an indicator for tension status.
   • Idler Pulley (F): A flat, smooth pulley that guides the belt and ensures proper wrap around other components. The 1.8L and 2.0L engines have slightly different idler pulley configurations.
2. Relieve Belt Tension: Utilize a 14mm or 19mm socket (depending on engine variant and tensioner design, typically 19mm for R18A1) and a long breaker bar to rotate the tensioner assembly. Insert the socket onto the hex bolt located on the tensioner arm. Rotate counter-clockwise (for R18A1) to pivot the tensioner, compressing its spring and loosening the belt.
3. Remove Old Belt: While maintaining tensioner rotation, carefully slip the old belt off one of the easier-to-access pulleys, such as the alternator or idler pulley. Once loose, completely remove the old belt.
4. Inspect Pulleys and Tensioner: Before installing the new belt, manually spin each pulley (alternator, A/C, water pump, idler). Listen for grinding or rough sounds, and check for excessive play. Inspect the automatic belt tensioner for proper spring return, smooth pulley rotation, and alignment. A failing tensioner can cause premature belt wear or noise. Refer to our guide on Serpentine Belt System Diagnostics for more in-depth troubleshooting.
5. Install New Belt – Initial Placement: Begin by routing the new belt around the crankshaft pulley, ensuring it sits correctly in all grooves. This establishes the primary drive point.
6. Route Around Fixed Pulleys: Following your specific pulley diagram (as shown above), route the belt around the A/C compressor pulley, water pump pulley, and alternator pulley. Ensure the V-ribs of the belt align perfectly with the grooves on these pulleys.
7. Route Over Idler Pulley and Under/Over Tensioner Pulley: This is often the most critical and varied section of the belt routing path.
   • For 1.8L (R18A1): The belt will typically route over the idler pulley (F) then under the tensioner pulley (E).
   • For 2.0L Si (K20Z3): The routing may differ slightly, often with a unique idler pulley configuration and the tensioner pulley engaging the ribbed side of the belt.

   Double-check that the belt wraps correctly around the smooth side of any smooth idler pulleys and the ribbed side of any grooved pulleys.

8. Final Belt Placement (Tensioner Last): With all other pulleys correctly routed, use the breaker bar again to pivot the belt tensioner. While held in the fully retracted (loose) position, slip the new belt over the tensioner pulley.
9. Release Tensioner and Verify: Slowly release the breaker bar, allowing the belt tensioner to apply tension to the new belt. Once tension is applied, visually inspect the entire belt routing path. Ensure the belt is seated squarely in every groove on every pulley. There should be no ribs hanging off the edge of any pulley. Rotate the engine manually a few times (if possible, by hand on the crankshaft bolt or with the starter briefly without ignition) and re-verify routing.

TENSION & ADJUSTMENT NOTES

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

The 2011 Honda Civic utilizes an automatic belt tensioner system, which means manual belt tension adjustment is generally not required. The tensioner’s internal spring mechanism automatically maintains the optimal belt tension throughout its lifespan. However, the tensioner itself is a wear item and requires periodic inspection.

Checking Belt Tension and Tensioner Health:

1. Visual Inspection of Indicator Marks: As noted above, locate the indicator marks on the belt tensioner. If the marks are outside the specified range, it can indicate a stretched belt, an incorrect belt size, or a failing tensioner spring.
2. Physical Inspection for Play: With the engine off, attempt to twist the longest unsupported span of the belt. If you can twist it beyond 90 degrees with moderate force, the tension may be insufficient. While this is a rudimentary check for automatic tensioners, it can reveal severe issues.
3. Listen for Noise: A failing tensioner can produce squealing, rattling, or thumping noises. Squealing often occurs under load (e.g., when the A/C is on) due to insufficient tension or a worn pulley bearing. Rattling can indicate a loose or failing tensioner pivot.
4. Check for Pulley Wobble: Observe the tensioner pulley while the engine is running (from a safe distance). Any noticeable wobble or oscillation indicates a worn bearing or a failing tensioner arm. This often necessitates immediate tensioner replacement.
5. Spring Resistance: When relieving tension with a breaker bar, the tensioner arm should move smoothly and offer consistent spring resistance. If it feels “notchy,” sticks, or moves too freely, the internal mechanism is likely compromised.

If the belt tensioner is deemed faulty, replacement of the entire tensioner assembly is typically recommended, not just the pulley. A failing tensioner can lead to rapid belt wear, accessory damage, or complete belt detachment, resulting in a breakdown. For further diagnostic insights into accessory component failures, refer to our comprehensive article on Honda Civic Accessory Drive System Diagnostics.

FAQ

What are the common symptoms of a failing serpentine belt or tensioner on a 2011 Honda Civic?

Symptoms of a failing serpentine belt or belt tensioner can manifest in several ways. The most common is a persistent squealing or chirping noise, especially during cold starts, acceleration, or when accessories like the A/C are engaged. This often indicates a worn, glazed, or misaligned belt, or a failing tensioner that isn’t applying adequate belt tension. Other symptoms include visible cracks, fraying, or missing ribs on the belt. A failing tensioner might also produce rattling or clunking sounds, particularly at idle, due to a worn bearing or a weak spring. Furthermore, if the belt completely fails, you will immediately lose power steering (if applicable), alternator function (battery light will illuminate), and air conditioning, and the engine may overheat due to the water pump ceasing to circulate coolant. Prompt diagnosis is crucial to prevent further component damage.

How often should the serpentine belt be inspected and replaced on a 2011 Honda Civic?

Honda typically recommends inspecting the serpentine belt during routine maintenance intervals, such as every 15,000 to 30,000 miles (24,000 to 48,000 km) or annually. Replacement intervals can vary, but generally, the OEM belt is designed to last between 60,000 to 100,000 miles (96,000 to 160,000 km) or 5-7 years, whichever comes first. However, severe operating conditions (extreme temperatures, dusty environments, frequent short trips) or oil/fluid contamination can accelerate wear. Always inspect for visible signs of wear such as cracks, fraying, material loss, or a glazed appearance. If any of these are present, replacement should be performed regardless of mileage to prevent unexpected failure. The belt tensioner should also be inspected at these intervals and replaced if it shows signs of wear or improper function.

Is a special tool required to replace the serpentine belt on a 2011 Honda Civic?

While no highly specialized proprietary tools are typically required, a long breaker bar and the correct size socket (usually 14mm or 19mm, depending on the engine and belt tensioner design) are essential. The length of the breaker bar provides the necessary leverage to pivot the automatic belt tensioner against its strong internal spring. Some technicians prefer a dedicated serpentine belt tool, which is essentially a long, thin wrench with various socket attachments, designed for accessing tensioners in tight engine compartments. For ensuring precise alignment and inspection, a flashlight and a mirror might also be beneficial. Always ensure the vehicle is safely supported on jack stands and the battery is disconnected before starting the procedure, as detailed in our guide on Safe Automotive Repair Practices.

What causes a serpentine belt to squeal, even after replacement?

A serpentine belt squealing after replacement indicates a persistent issue beyond just belt wear. Common culprits include:

1. Incorrect Belt Routing Path: Even if the belt appears to be on, an improper path can cause misalignment and squealing.
2. Failing Automatic Belt Tensioner: A weak tensioner spring or seized bearing will not apply proper belt tension, leading to slip and noise.
3. Contamination: Oil, coolant, or power steering fluid leaking onto the belt or pulleys can cause slipping and noise.
4. Misaligned Pulleys: A bent or worn accessory pulley (alternator, A/C compressor, etc.) can cause the belt to run at an angle, leading to friction and squealing. This often requires careful inspection with a straightedge.
5. Worn Pulley Bearings: A failing bearing in any of the pulleys (including the idler pulley) can cause noise and increased drag, leading to belt slip.
6. Incorrect Belt Size: A belt that is too long will not achieve proper tension; a belt that is too short may be extremely difficult to install and place excessive stress on components.

Thorough diagnosis of all components within the pulley diagram is necessary to pinpoint the exact cause.

Are there significant differences in the serpentine belt diagram for the 1.8L vs. 2.0L Si engine in the 2011 Honda Civic?

Yes, there are distinct differences in the serpentine belt diagram and component layout between the 1.8L (R18A1) and 2.0L (K20Z3 Si) engines found in the 2011 Honda Civic. These differences primarily stem from varying accessory configurations and engine block designs. The 2.0L Si engine often has a slightly different arrangement of its idler pulley(s) and belt tensioner, sometimes requiring a different belt part number and belt size (as detailed in the “BELT PART NUMBERS” table above). While the fundamental principle of routing around a crankshaft, alternator, and A/C compressor remains, the specific path and the number/placement of idler pulleys can vary. It is absolutely critical to consult the correct pulley diagram specific to your Civic’s engine code to ensure accurate belt routing path and prevent operational issues or premature wear.
