2009 Ford Focus AC Lines Diagram: Proper Routing 2026
The 2009 Ford Focus AC lines diagram routes high-pressure liquid refrigerant from the compressor through the front condenser to the expansion valve. The larger low-pressure suction line returns gaseous refrigerant from the evaporator behind the dash back to the compressor, featuring the low-side service valve mounted near the firewall.
📌 Key Takeaways
- High-pressure lines use smaller diameter aluminum tubing; low-pressure suction lines use thicker tubing with black flexible rubber sections.
- Low-side charging port is located near the rear passenger side of the engine bay on the firewall line.
- Always replace HNBR green O-rings lubricated with PAG 46 oil whenever opening hose connections to prevent leaks.
- Line spring-lock couplers and manifold bolt fittings must be torqued to 15-18 lb-ft (20-25 Nm).
- Complete evacuation with a vacuum pump to -29 inHg is required before recharging 18 oz of R134a refrigerant.
Navigating the climate control architecture of the second-generation North American Focus requires a precise understanding of fluid dynamics and component layout. The 2009 ford focus ac lines diagram details the path of R-134a refrigerant as it cycles between high-pressure and low-pressure states across the engine bay and cabin dashboard. Whether you are servicing a compressor failure, replacing a damaged front-mounted condenser, or tracing an elusive pressure drop, referencing an accurate line schematic ensures factory-spec installation and prevents system contamination. This technical overview breaks down line routing, service valve locations, torque specifications, and diagnostic procedures for proper HVAC maintenance on 2.0L Duratec engines.

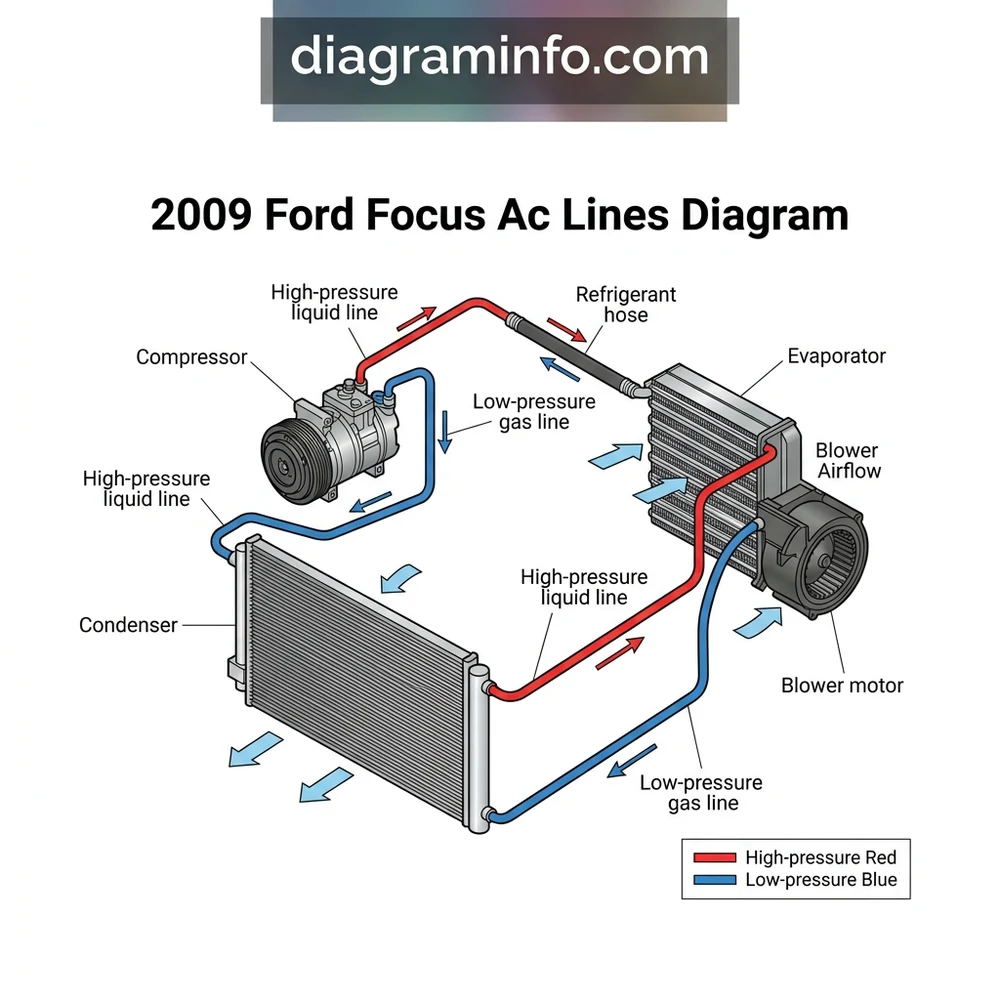

2009 Ford Focus AC Lines Diagram: Key Components Labeled
The HVAC system on the 2009 Ford Focus relies on a closed-loop refrigeration cycle that manages heat transfer between the interior passenger cabin and the outside atmosphere. Analyzing the 2009 ford focus ac lines diagram reveals three primary rigid aluminum and flexible rubber line assemblies connecting the main system hardware. According to OEM technical specifications, maintaining correct line integrity is crucial for maintaining system oil balance and system operating pressures.
| Line Assembly / Component | OEM Part Number | Operating State & Pressure Range | Connection Type |
|---|---|---|---|
| Discharge Line (Compressor to Condenser) | 9S4Z-19710-A | High Pressure Gas (150–250 PSI) | Manifold Block / Flange Spring-Lock |
| Liquid Line (Condenser to Expansion Valve) | 8S4Z-19710-B | High Pressure Liquid (150–250 PSI) | Threaded Fitting / Quick Connect |
| Suction Line (Evaporator to Compressor) | 9S4Z-19D850-A | Low Pressure Vapor (25–45 PSI) | Block Fitting with HNBR O-Ring |
| Thermostatic Expansion Valve (TXV) | 8S4Z-19E639-A | Pressure Transition Point | Firewall Mounting Block |
High-Pressure Discharge Line Assembly
The discharge hose connects directly to the lower manifold block of the belt-driven compressor. It routes upward along the passenger-side frame rail toward the front heat exchanger (condenser). This section carries superheated, high-pressure gaseous refrigerant directly from the compressor outlet port. A high-side service port (Schraeder valve) is integrated into this aluminum line near the front radiator support for service manifold attachment.
Liquid Line and Fixed Thermal Expansion Valve
Exiting the bottom of the condenser unit, the liquid line transfers high-pressure liquid refrigerant toward the passenger cabin firewall. On 2009 models, a thermostatic expansion valve (TXV) is mounted directly against the firewall interface, replacing the older accumulator/orifice tube layout used in previous Focus generations. The liquid line also houses the high-pressure cutoff switch, which communicates directly with the Powertrain Control Module (PCM) to disengage the compressor clutch during over-pressure conditions.
Suction Return Line and Evaporator Core Connection
The large-diameter suction line exits the firewall block fitting from the evaporator core hidden inside the interior air handler assembly. Carrying cold, low-pressure vapor, this line loops back through the engine compartment to the intake port of the compressor. The low-side service valve is located on this line, positioned higher up near the firewall for easy access during pressure diagnostic routines.
According to Ford Factory Service Manuals, the 2009 Focus 2.0L requires 18.0 oz (0.51 kg) of R-134a refrigerant. Total system oil capacity is 6.0 fl oz (170 mL) of Motorcraft YN-12D (PAG 46) synthetic oil. Torque line manifold block bolts to 15 lb-ft (20 Nm) and single-bolt spring-lock couplings to 88 lb-in (10 Nm).
Tracing Refrigerant Routing in the 2009 Ford Focus AC Line Diagram
Understanding how refrigerant travels through the 2009 ford focus ac lines diagram is vital when diagnosing cooling performance losses or replacing physical lines. As shown in the diagram above, the refrigeration cycle alternates between the engine bay heat rejection zone and the interior heat absorption zone.
Step 1: Compressor Compression and Discharge Flow
The cycle begins at the scroll-type compressor mounted to the lower right side of the Duratec engine block. When the magnetic clutch engages, low-pressure gas is compressed into a hot, high-pressure gas. The vapor exits through the discharge line, traveling toward the front condenser assembly mounted directly ahead of the engine radiator.
Step 2: Heat Condensation and Fluid Transformation
Inside the condenser—acting as a high-efficiency aluminum heat exchanger—ambient airflow pulled in by the cooling fans cools the compressed gas. As heat sheds into the atmosphere, the refrigerant condenses into a high-pressure liquid. It passes out of the bottom outlet port and enters the smaller-diameter liquid line. If you are also troubleshooting electrical engagement issues, cross-reference our detailed Ford Focus compressor clutch relay diagnostic guide for control circuit schematics.
Step 3: Metering at the Interior Air Handler
The liquid refrigerant travels along the liquid line toward the dash wall, passing through the expansion valve metering device. The valve restricts flow, causing a sudden drop in pressure. This low-pressure liquid enters the evaporator core inside the dashboard climate housing (air handler). The cabin blower motor draws air across the cold evaporator fins and through the return duct system, transferring interior heat into the boiling refrigerant fluid.
Step 4: Vapor Return Path to the Compressor
Once fully vaporized inside the evaporator heat exchanger, the low-pressure gas exits through the suction line connection at the firewall. The insulated return ducting path directs the cold vapor back to the suction port on the compressor, cooling the internal mechanical components of the pump before restarting the thermodynamic cycle.
While 2008 to 2011 Focus models share the same general platform, the 2009 model year utilizes updated spring-lock seals on the high-pressure liquid line fittings compared to the early 2008 threaded designs. Always verify seal types (HNBR green O-rings vs. captive seal washers) before securing line connections to prevent immediate refrigerant loss.
Troubleshooting Common Failures in Ford Focus Refrigerant Lines
Over time, exposure to engine vibration, thermal stress, and road debris can degrade the aluminum tubes and flexible rubber hoses shown in the 2009 ford focus ac lines diagram. Pinpointing physical failures quickly prevents internal contamination and compressor burnout.
Locating Corrosion Leaks and O-Ring Degradation
The most common leak points on the 2009 Focus occur at the lower compressor manifold block seal and the lower condenser line fittings. Road salt and moisture collect around the steel retaining studs, causing galvanic corrosion between the aluminum line flanges. If UV dye testing indicates seepage near the front bumper structure, refer to our complementary 2009 Ford Focus cooling fan wiring diagram to ensure fans are operating correctly to prevent localized line over-pressurization.
Identifying Suction Line Restrictions and Freezing
If frost builds up along the thick suction return line running from the firewall to the compressor, a restriction is present. Moisture inside the line can freeze at the expansion valve orifice. Alternatively, a clogged cabin air filter can reduce airflow across the evaporator, preventing the refrigerant from absorbing heat and causing the low-pressure lines to ice over solid.
Detecting Physical Chafing and Flex Hose Seepage
Engine movement causes the flexible rubber sections of the discharge and suction lines to flex. Check the high-pressure hose where it passes near the passenger side engine mount. Incorrect line placement after repairs can allow the rubber hose to rub against metal brackets, wearing through the outer barrier ply and allowing gradual R-134a permeation.
Discharge line pressures can exceed 300 PSI under severe heat load or condenser airflow failure. Never disconnect AC line fittings without fully recovering refrigerant using EPA Section 609 certified recovery equipment. Always install replacement line O-rings lubricated with clean PAG 46 oil to prevent pinch damage during flange insertion.
2009 Ford Focus AC Lines Diagram Technical FAQs
What are the exact torque specs for the 2009 Ford Focus AC line fittings?
The single-bolt manifold block fitting at the compressor should be torqued to 15 lb-ft (20 Nm). The spring-lock coupling retaining brackets require 88 lb-in (10 Nm). The high-pressure cutout sensor threaded into the liquid line requires 80 lb-in (9 Nm). Always use a calibrated torque wrench to prevent cracking the cast aluminum port blocks.
Where are the service ports located on the 2009 Ford Focus AC line diagram?
The high-side service port (larger quick-disconnect fitting) is integrated directly into the high-pressure discharge line running near the front radiator support on the passenger side. The low-side service port (smaller fitting diameter) is located on the suction return line near the passenger-side firewall adjacent to the brake booster manifold.
How do I replace the O-rings on the firewall expansion valve line connection?
First, recover the system refrigerant. Remove the single center mounting bolt securing the dual-line block fitting to the expansion valve. Carefully pull the lines straight back to clear the locator pins. Discard the old HNBR green O-rings, thoroughly clean the aluminum mating grooves with solvent, apply fresh PAG 46 oil to the new seals, and torque the retaining bolt to 15 lb-ft (20 Nm).
Can I flush the 2009 Ford Focus AC lines without replacing the expansion valve?
No. You must disconnect and bypass the thermostatic expansion valve (TXV) before flushing the aluminum lines. Solvent forced through the micro-passages of the valve will wash away internal lubricants, damage sensitive internal diaphragms, and trap debris inside the metering orifice. Always back-flush individual line segments separately with solvent before pulling a deep vacuum on the system. For reading vacuum rates and diagnostic pressures, consult our guide on R-134a manifold gauge reading charts.
Step-by-Step Guide to Understanding the 2009 Ford Focus Ac Lines Diagram
Identify – Locate the high-pressure discharge line exiting the compressor and the low-pressure suction line entering from the firewall using the diagram.
Locate – Find the low-side service port near the firewall and the high-side service port near the front condenser assembly.
Reference – Cross-reference hose mounting bracket locations on the frame rail to prevent line vibration and chaffing against metal brackets.
Connect/Route – Route replacement lines exact to factory bends, replacing all union O-rings with lubricated green HNBR seals before seating spring-lock fittings.
Verify – Torque compressor manifold plate bolts to 15 lb-ft and perform a 30-minute vacuum hold test down to -29 inHg to confirm zero pressure drop.
Troubleshoot – If low pressure remains high after charging, verify expansion valve sensing bulb placement and check blower motor airflow across the evaporator.
