2 Wire Solenoid Valve Wiring Diagram: Easy Setup Guide
A 2 wire solenoid valve wiring diagram illustrates the circuit between a power source and the solenoid coil. One lead connects to the hot wire or positive supply, while the other connects to the neutral wire or common terminal. This simple loop allows the coil to energize and actuate the valve.
📌 Key Takeaways
- Provides a visual map for connecting power to a solenoid coil
- The solenoid coil is the most critical component to identify
- Always ensure the voltage of the power source matches the valve rating
- Use waterproof connectors for outdoor or irrigation applications
- Use this diagram when installing single-zone irrigation or industrial fluid controls
Understanding the 2 wire solenoid valve wiring diagram is essential for anyone looking to automate fluid or gas flow in irrigation, automotive, or industrial systems. Whether you are a DIY enthusiast setting up a garden sprinkler system or a technician maintaining complex machinery, knowing how these two wires interact with your power source is the foundation of a reliable installation. This guide provides a comprehensive breakdown of the wiring process, identifying terminal points, explaining color codes, and detailing the physical connections required to ensure your valve operates safely and efficiently. By following this diagram, you will learn the nuances of voltage requirements, polarity differences between AC and DC systems, and the proper sequence for a secure electrical setup.
Most 2-wire solenoid valves are designed as “Normally Closed” (NC), meaning they remain shut until an electrical current is applied. Always verify your valve’s operating state before starting the wiring process.
Detailed Analysis of the 2 Wire Solenoid Valve Wiring Diagram

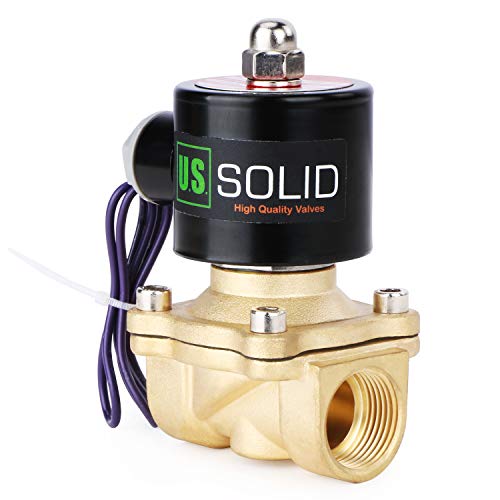

The 2 wire solenoid valve wiring diagram represents the electrical circuit between a power controller and an electromagnetic coil. At the heart of the diagram is the solenoid coil itself, which features two protruding leads or terminals. Unlike complex multi-wire systems, the simplicity of the 2-wire setup makes it highly versatile, but it requires precise identification of the power source to avoid component failure.
In a standard diagram, you will see two primary paths. The first path connects to the “Hot” or “Live” side of the power source, while the second path returns to the “Neutral” or “Common” side. In DC (Direct Current) applications, such as 12V or 24V systems commonly found in vehicles or solar setups, these wires are usually color-coded as Red (Positive) and Black (Negative). In these instances, polarity is often critical; connecting the wires backward can prevent the valve from actuating.
Conversely, for AC (Alternating Current) solenoid valves, such as those used in residential irrigation (24VAC), the two wires are typically interchangeable. The diagram will show one wire connecting to the station terminal on the controller and the other wire connecting to a “Common Terminal” that serves multiple valves. The visual representation also includes the ground wire connection, which is vital for safety, usually represented by a green or bare copper wire attached to the valve body or the metal housing.

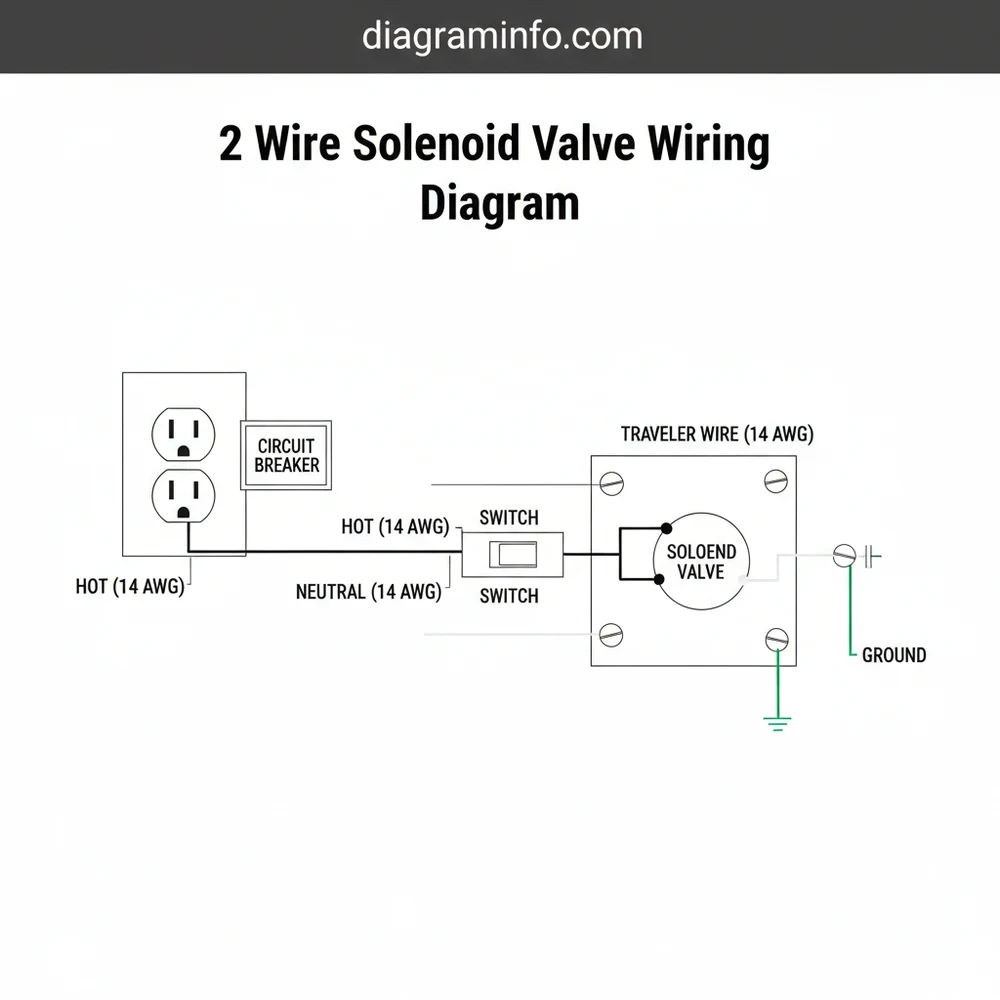

[DIAGRAM_PLACEHOLDER: A schematic showing a power source (AC/DC) connected to a 2-wire solenoid coil. One wire leads to a control switch/terminal, the other leads to the common/neutral line. A separate ground wire is shown attached to the valve casing.]
Step-By-Step Installation and Wiring Guide
Following a 2 wire solenoid valve wiring diagram requires a methodical approach to ensure the electrical integrity of the system. Use the following steps to translate the diagram into a physical, working installation.
1. Preparation and Safety First
Before touching any wires, ensure the power source is completely disconnected. If you are working with high-voltage AC systems, use a multimeter to verify there is no residual current. Gather your tools, including wire strippers, waterproof wire nuts (especially for outdoor use), and a screwdriver compatible with your controller’s terminals.
2. Identify Your Voltage and Wire Gauge
Check the label on the solenoid coil to confirm the required voltage. Using the wrong voltage will either fail to open the valve or burn out the coil. Furthermore, ensure you are using the correct wire gauge. For long distances (over 100 feet), a thicker 14-gauge wire is recommended to prevent voltage drop, while shorter runs can typically use 18-gauge wire.
3. Stripping and Preparing the Leads
Carefully strip approximately half an inch of insulation from the ends of the two wires coming from the solenoid. If your valve uses a DIN connector rather than pigtail leads, you will need to open the connector housing to reveal the internal screw terminals.
4. Connecting to the Common Terminal
In an irrigation or multi-valve setup, one wire from the solenoid must be connected to the “Common” wire. This common wire acts as the return path for all valves in the system. Use a waterproof connector to join one solenoid lead to the main common wire running back to the controller’s common terminal.
5. Connecting the Hot Wire or Traveler Wire
The second wire from the solenoid is the “Hot” wire (sometimes referred to in larger systems as the traveler wire). This wire must run directly back to the specific station or zone terminal on your controller. If your valve is part of a simple on/off switch, this wire connects to the brass screw on the output side of the switch.
6. Establishing the Ground Wire Connection
If your solenoid valve has a metal body or is housed in a metal junction box, you must connect a ground wire. This is usually a green wire that secures to a grounding screw on the valve frame. This provides a safe path for electricity in the event of a short circuit.
7. Securing and Testing the Connections
Once the wires are attached according to the 2 wire solenoid valve wiring diagram, secure all connections with wire nuts or terminal screws. Turn the power back on and activate the controller. You should hear a distinct “click” as the electromagnetic field pulls the plunger up, allowing fluid to flow.
Never apply power to a solenoid coil that has been removed from the valve body. Without the metal plunger inside the coil to create inductance, the coil will overheat and melt within seconds.
Common Issues & Troubleshooting
Even with a perfect 2 wire solenoid valve wiring diagram, issues can arise during or after installation. The most common problem is a “buzzing” or “humming” sound coming from the valve. This usually indicates that the valve is receiving insufficient voltage or that there is debris trapped in the diaphragm, preventing the plunger from seating correctly.
Another frequent issue is the valve failing to open. If the wiring appears correct, check the common terminal connection. A loose common wire can cause multiple valves in a system to fail simultaneously. Use a multimeter to test for continuity across the two solenoid leads; if the meter shows an “open” circuit (infinite resistance), the internal coil windings have likely burned out and the solenoid must be replaced.
If the valve opens but refuses to close, the problem is often mechanical rather than electrical. However, ensure there is no “ghost voltage” leaking from the controller that might be keeping the electromagnetic field active.
Tips & Best Practices for Solenoid Wiring
To ensure the longevity of your system, follow these industry best practices:
- ✓ Use Waterproof Connectors: For any outdoor 2 wire solenoid valve wiring diagram implementation, use grease-filled wire nuts to prevent corrosion from moisture.
- ✓ Label Your Wires: Use clip-on wire markers to identify which wire goes to which zone. This saves hours of troubleshooting in the future.
- ✓ Leave a Service Loop: Always leave an extra 6-12 inches of slack wire coiled inside the valve box. This allows you to pull the solenoid out for maintenance without disconnecting the entire system.
- ✓ Check the Brass Screw Terminals: Ensure all screw-down connections are tight. A loose connection creates heat and can melt the plastic housing of your controller.
If you are wiring a DC solenoid, adding a “flyback diode” across the two terminals can protect your controller from voltage spikes that occur when the valve is turned off.
Correctly implementing a 2 wire solenoid valve wiring diagram is a straightforward process when you pay attention to the details of voltage, grounding, and secure connections. By identifying the common terminal and ensuring the hot wire is properly routed to your control source, you create a system that is both reliable and easy to maintain. Whether you are managing water for a farm or air for a pneumatic lift, the principles of two-wire connectivity remain the same: safety, proper gauge selection, and clean terminations are the keys to success. Always refer back to your specific manufacturer’s instructions to confirm color codes, as these can vary slightly between brands, but the fundamental logic of the circuit remains a constant in the world of electrical engineering.
