Water Heater Expansion Tank Diagram: Installation Guide
A water heater expansion tank diagram illustrates the unit installed on the cold water supply line above the heater. It handles pressure from thermal expansion, protecting your plumbing system. Unlike a sink’s P-trap or drain assembly, this tank is a pressurized vessel designed to prevent relief valves from leaking or pipes from bursting.
📌 Key Takeaways
- Identifies the correct placement on the cold water inlet line
- Visualizes how thermal expansion is safely absorbed by the internal bladder
- Safety critical: Ensures the T&P valve does not fail prematurely
- Installation tip: Always mount the tank vertically for maximum longevity
- Use this diagram when upgrading a water heater or solving high-pressure issues
When you are managing a home plumbing project, understanding the relationship between heat and pressure is vital for the safety and longevity of your appliances. If you have noticed your water heater making knocking sounds or seen small leaks around your pipe fittings, you likely need to consult a water heater expansion tank diagram to understand how to stabilize your system. In a modern “closed” plumbing system, water has no place to go when it expands during the heating process. This article provides a comprehensive water heater expansion tank diagram walkthrough, explaining how this small but critical component prevents catastrophic pipe failure and protects your entire plumbing infrastructure from thermal expansion.
Thermal expansion occurs because water increases in volume as it gets hotter. In a closed-loop system—common in homes with pressure-reducing valves or backflow preventers—this extra volume creates a massive pressure spike that can damage your heater’s inner lining and various downstream fixtures.

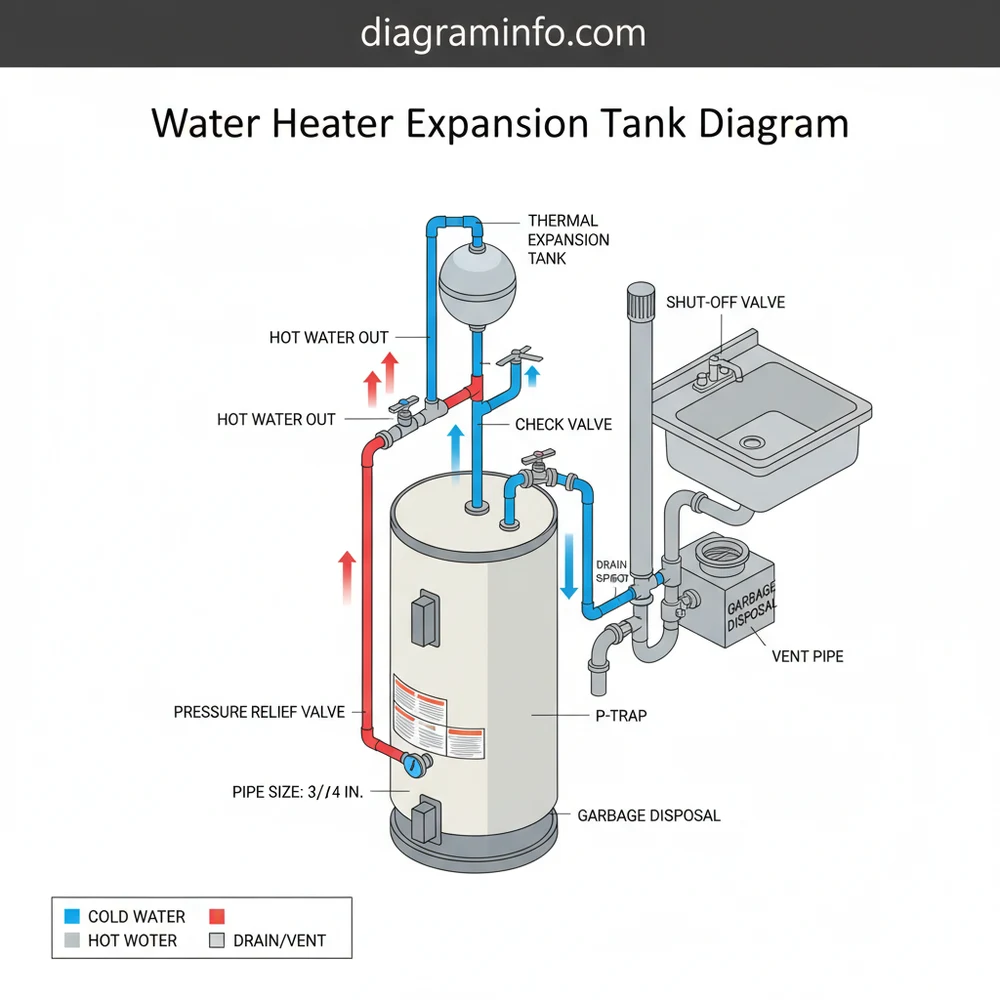

The primary purpose of a water heater expansion tank diagram is to illustrate the placement of the tank on the cold water supply line. Unlike the hot water side, which carries the heated water to your faucets, the cold water side is the entry point where the expansion tank is installed to act as a “shock absorber.” The diagram typically shows a horizontal or vertical tank connected via a “T-fitting” to the pipe entering the top of the water heater. Inside the tank, there is a rubber diaphragm that separates a pocket of pressurized air from the water. As the water in the main tank heats up and expands, it flows into the expansion tank, pushing against the diaphragm and compressing the air, which safely absorbs the pressure.
[DIAGRAM_PLACEHOLDER: A detailed plumbing schematic showing a vertical water heater. The cold water inlet pipe (blue) features a shut-off valve followed by a T-junction. Mounted to this junction is a small, cylindrical expansion tank. The hot water outlet (red) exits the top. Labels include: Cold Supply, Shut-off Valve, T-Fitting, Expansion Tank, Dielectric Union, and TPR Valve.]
When examining the diagram, you will notice several key components that must be installed in a specific order. The shut-off valve is always located “upstream” of the expansion tank, allowing you to isolate the heater and tank for maintenance. Following the valve, the T-fitting redirects a portion of the flow into the expansion tank. While most diagrams show the tank mounted vertically with the connector at the bottom, many modern tanks can be mounted in any orientation as long as they are properly supported. The diagram also highlights the Temperature and Pressure Relief (TPR) valve on the side of the heater, which serves as a secondary safety measure if the expansion tank fails or if the thermostat malfunctions.
Never install an expansion tank on the hot water outlet pipe. The high temperatures can degrade the internal rubber diaphragm prematurely, leading to tank failure and potential water damage.
Reading and interpreting a plumbing diagram requires a methodical approach to ensure every connection is watertight and code-compliant. Follow these steps to translate the visual diagram into a physical installation:
- ✓ Step 1: Identify the Cold Water Line. Locate the pipe entering the water heater marked with a blue ring or “Cold” indicator. This is where your expansion tank must reside according to the diagram.
- ✓ Step 2: Measure Static Pressure. Before installing the tank, use a pressure gauge on an outdoor hose bib to determine your home’s water pressure. The air pressure inside the expansion tank must be adjusted to match this reading exactly.
- ✓ Step 3: Install the T-Fitting. Cut into the cold water line above the heater. Use PVC, copper, or PEX piping depending on your existing setup. Ensure the T-fitting is securely seated and soldered or crimped correctly.
- ✓ Step 4: Support the Tank Weight. A 2-gallon expansion tank weighs about 20 pounds when full of water. Use a mounting bracket or galvanized strapping to secure the tank to a wall stud or the overhead joists, as shown in the structural section of the diagram.
- ✓ Step 5: Apply Thread Sealant. Apply Teflon tape or pipe dope to the threaded tailpiece of the expansion tank. Screw the tank into the T-fitting, ensuring a tight fit without over-torquing, which can crack the slip joint or the tank’s neck.
- ✓ Step 6: Check Downstream Connections. Once the tank is installed, verify that the pressure stabilization is effective by checking distant fixtures. A properly installed expansion tank prevents “surges” at the garbage disposal sink or the bathroom vanity.
- ✓ Step 7: Final Leak Test. Turn on the water supply slowly. Check every slip joint and union for moisture. If you notice a drip, tighten the connection by a quarter turn.
While the expansion tank handles the pressure side of the system, it is important to understand how it interacts with the drainage and venting side. A water heater is often located near a floor drain or a drain assembly that includes a P-trap. If the TPR valve on the heater opens due to excessive pressure, the water must be routed through a discharge pipe to a safe location. This discharge pipe should never be directly connected to a vent pipe or an AAV valve (Air Admittance Valve), as these are designed for sewer gas management, not high-pressure water discharge.
Always check your tank’s air pressure annually. If you press the Schrader valve (the little air needle) and water comes out instead of air, the internal diaphragm has ruptured, and the tank must be replaced immediately.
Even with a perfect water heater expansion tank diagram in hand, problems can arise. One of the most common issues is a “waterlogged” tank. This happens when the air charge is lost or the diaphragm fails, allowing the tank to fill completely with water. Without the air pocket to compress, the tank becomes useless, and you will see the TPR valve on your heater dripping constantly. You can diagnose this by tapping the top and bottom of the tank with a knuckle; the top (air side) should sound hollow, while the bottom (water side) should sound dull and thuddy.
Another frequent issue involves the drain assembly and system-wide vibrations. If you experience “water hammer”—a loud banging sound when faucets are turned off—it might indicate that your expansion tank is undersized or poorly positioned. High-pressure spikes can loosen the slip joint nuts under your kitchen sink or cause the garbage disposal to vibrate excessively during operation. By referring back to the diagram, you can ensure the tank is large enough for your heater’s capacity. A standard 40-to-50 gallon heater usually requires a 2-gallon expansion tank, while an 80-gallon unit might require a 5-gallon model.
The health of your expansion tank also affects your home’s venting system. While an AAV valve helps regulate drainage pressure in the P-trap, the expansion tank regulates the force of the water itself. If the expansion tank fails, the resulting pressure can wear out the seals in your dishwasher or the solenoid valves in your washing machine. If you see signs of rust on the tank’s exterior or around the threaded tailpiece, these are warning signs of imminent failure. Seeking professional help is recommended if you are uncomfortable cutting into copper lines or if your home requires a complex PVC venting setup that interferes with the heater’s placement.
To get the most out of your plumbing system, follow these best practices for maintenance and component selection. First, always choose a tank that is “potable water” rated. Some tanks look identical but are designed for hydronic heating (boilers) and contain liners that are not safe for drinking water. Second, when installing the tank, consider adding a “ball valve” specifically for the expansion tank. This allows you to replace the tank in the future without draining the entire water heater, saving you hours of labor.
- ✓ Consistent Pressure: Use a pressure-reducing valve (PRV) in conjunction with your expansion tank to keep house pressure between 50 and 60 PSI.
- ✓ Dielectric Protection: Use dielectric unions if you are connecting a steel expansion tank to copper piping to prevent galvanic corrosion.
- ✓ System Synergy: Ensure your vent pipe for the heater (if gas) is clear. While it doesn’t affect the expansion tank directly, a backdrafting heater can overheat the surrounding pipes and the tank itself.
Maintenance is relatively simple but often overlooked. Every six months, visually inspect the area around the tailpiece and the P-trap beneath the heater’s discharge line for signs of moisture. If your home uses a garbage disposal or other high-use water appliances, check for “spitting” from the faucets, which can indicate that air is being forced into the lines from a failing expansion tank. High-quality components, such as those made of stainless steel or with reinforced butyl diaphragms, generally last five to ten years. Investing in a quality tank now will save you the cost of replacing a ruptured water heater later.
Ultimately, the water heater expansion tank diagram serves as your roadmap to a stable home environment. By understanding where the tank sits in the flow of water and how it interacts with components like the drain assembly and slip joint fittings, you can take control of your home’s plumbing health. Thermal expansion is a powerful force of nature, but with the right diagram and a proper installation, you can keep that pressure contained and your pipes silent and secure. Whether you are troubleshooting a drip or installing a brand-new heater, keeping this diagram at the center of your project ensures a professional, long-lasting result that meets local building codes and protects your most valuable investment.
Step-by-Step Guide to Understanding the Water Heater Expansion Tank Diagram: Installation Guide
Identify the cold water supply line leading into the top of the water heater.
Locate a suitable mounting point above the heater to avoid interfering with the vent pipe.
Understand how the tee fitting integrates into the existing copper or PEX supply line.
Connect the expansion tank to the threaded tee, ensuring a watertight seal with plumber’s tape.
Verify that the tank’s air charge matches the static water pressure of the home.
Complete the installation by restoring water flow and checking for leaks at the connection.
Frequently Asked Questions
Where is the expansion tank located?
The expansion tank is typically located on the cold water supply line, positioned between the water heater and the shut-off valve. It is usually mounted vertically above the heater. It is entirely separate from drainage components like a garbage disposal or a sink tailpiece found in other plumbing areas.
What does a water heater expansion tank diagram show?
The diagram shows the connection points for the tank, the T-junction required on the cold water line, and the orientation of the air valve. It helps visualize how the supply side of the plumbing system interacts with the heater, distinct from the vent pipe or drainage assembly.
How many connections does the expansion tank have?
A standard residential expansion tank has one single 3/4-inch threaded NPT connection. This single point connects to a tee fitting on the water line. It does not require a P-trap or complex drain assembly because it is a pressurized vessel, not a drainage component.
What are the symptoms of a bad expansion tank?
Common symptoms include the water heater’s temperature and pressure (T&P) relief valve dripping constantly or high pressure spikes when faucets are first opened. If the tank feels heavy or sounds solid when tapped, the internal bladder has likely failed, meaning it can no longer regulate expansion.
Can I install an expansion tank myself?
Yes, many homeowners can install an expansion tank using a tee fitting and thread sealant. While it is more complex than swapping a sink tailpiece or a P-trap, most kits are designed for DIY use. Ensure the tank’s air pressure is calibrated to match your home’s water pressure.
What tools do I need for this installation?
You will need a pipe wrench, a tire pressure gauge to check the tank’s bladder, and thread seal tape. Unlike working on a garbage disposal or vent pipe, you must ensure the water main is shut off and the supply line is fully drained before beginning work.
