1HP Well Submersible Pump Riser Diagram with Pressure Tank 2026

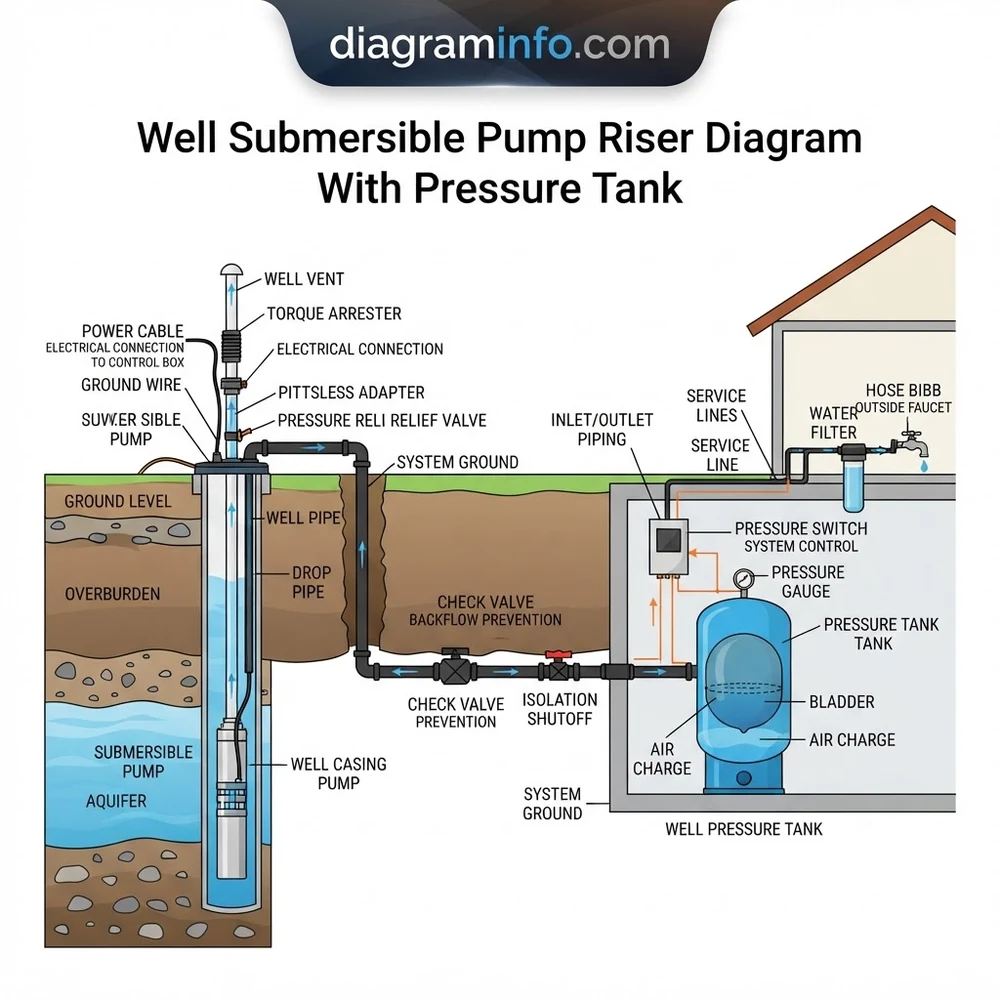

A well submersible pump riser diagram details the vertical assembly from the submerged pump to the surface pressure tank. It illustrates the pump unit, check valve, drop pipe riser, pitless adapter, surface pressure switch (set to 30/50 or 40/60 PSI), tank tee, pressure gauge, and pre-charged diaphragm pressure tank system structure.
📌 Key Takeaways
- Install a check valve directly above the submersible pump and every 200 feet along the riser pipe line.
- Pressure tank pre-charge pressure must be calibrated exactly 2 PSI below the pressure switch cut-in setting.
- Submersible electrical cabling requires waterproof heat-shrink splices and securing bands every 10 feet along the riser.
- Pitless adapters create a watertight connection through the well casing below the local frost line depth.
- Rapid pump short cycling indicates a waterlogged pressure tank bladder or a leaking check valve assembly.
Designing and diagnosing a deep well groundwater extraction network requires a precise understanding of fluid dynamics, electrical control circuits, and mechanical containment. A complete well submersible pump riser diagram with pressure tank serves as the master engineering reference for installing, servicing, and troubleshooting residential and commercial water delivery networks. From the subterranean multi-stage centrifugal pump assembly to the surface pneumatic pressure vessel, each mechanical interface must withstand continuous hydraulic cycling, high head pressures, and rotational torque forces. This technical overview provides a comprehensive structural breakdown, piping layout standards, voltage and torque specifications, and system-level diagnostic workflows designed for mechanical contractors, pump technicians, and experienced equipment specialists.
Well Submersible Pump Riser Diagram With Pressure Tank Component Breakdown
The operational reliability of a deep well water delivery system depends on strict adherence to component sizing, chemical compatibility, and pressure ratings. The mechanical schematic spans from the submerged pumping unit up through the well casing to the surface indoor distribution manifold.
Key components comprising the mechanical and electrical assembly include:
- Submersible Motor & Pump End: A standard NEMA-flanged, 4-inch oil-filled or water-lubricated 230V single-phase or three-phase motor coupled to a multi-stage thermoplastic or 304 stainless steel centrifugal pump stack. Flow rates typically range from 5 to 25 GPM depending on dynamic head requirements.
- Drop Pipe / Riser Column: Schedule 80 PVC threaded drop pipe, 304/316 Stainless Steel, or heavy-wall galvanized steel pipe engineered to suspend the submerged assembly weight, fluid column, and dynamic startup torque.
- Check Valves: Internal or external spring-loaded poppet check valves designed to prevent fluid column backflow and hydraulic water hammer. A check valve is installed directly at the pump discharge head, with additional inline check valves positioned every 200 vertical feet along the drop pipe.
- Pitless Adapter: A precision-machined brass or bronze two-piece drop-in slide fitting installed below the local frost line. It provides a leak-free sanitary passage through the well casing while allowing quick vertical extraction for pump maintenance.
- Submersible Electrical Cable & Torque Arrestor: Heavy-duty AWG 10 or 12 copper 600V jacketed submersible pump wire secured to the drop pipe with rubber cable guards every 10 feet. An expanding rubber torque arrestor mounted within 5 feet of the pump outlet stabilizes the column against casing wall impacts during motor energization.
- Pressure Tank & Control Manifold: A pre-pressurized heavy-gauge steel vessel housing a butyl or polypropylene diaphragm, connected to a cast-brass tank tee manifold equipped with a 0–100 PSI pressure gauge, a 75 PSI brass pressure relief valve, a drain bibb, and an electromechanical pressure switch (e.g., Square D FSG2).
| Component | Standard Material Spec | Key Operating Parameter |
|---|---|---|
| Submersible Pump Wire | Copper THHN/THWN 600V Jacketed | Max 3% total line voltage drop under load |
| Riser Pipe | Schedule 80 Threaded PVC / 304 SS | Min 200–400 PSI rating at 73°F (22°C) |
| Pressure Switch | NEMA 1 Enclosure (Square D FSG2) | 30/50 PSI or 40/60 PSI factory cut-in/cut-out |
| Pressure Relief Valve | Lead-Free Cast Brass (1/2″ or 3/4″ NPT) | Set to discharge automatically at 75–100 PSI |
System Architecture and Physical Layout of the Riser Assembly
Tracing the system layout from the deep well bore to the indoor mechanical room requires adhering to hydraulic engineering principles, electrical isolation practices, and environmental insulation standards. Correct alignment prevents premature motor failure, casing friction, and pressure fluctuations across domestic fixtures.
Downhole column assembly begins at the pump discharge head. When threading the riser pipe sections, technicians must apply NSF-61 approved Teflon tape or non-hardening anaerobic pipe thread sealant to male threads. Thread the primary check valve directly into the discharge port, torquing to OEM specifications—typically 45 to 50 lb-ft for 1-1/4 inch NPT fittings—to prevent unthreading caused by motor rotational counter-torque. Fix the electrical cable to the drop pipe using heavy-duty vinyl tape or heat-shrink wire bands at 10-foot intervals, allowing slight slack between bands to account for pipe stretch under thermal and hydraulic load.
At the top of the well bore, the pitless adapter supports the total suspended deadweight of the pump, fluid column, and piping stack. Using a threaded 1-inch NPT steel pull-pipe attached to the top of the pitless wedge housing, lower the entire column until the male wedge slides firmly into the female body receiver mounted through the casing wall. Ensure the nitrile O-ring on the pitless adapter mating face is clean and lubricated with food-grade silicone grease to guarantee an airtight, sanitary seal.
From the exterior casing penetration, horizontal underground piping—composed of 160 PSI SDR-9 HDPE or Schedule 80 PVC—routes water below the local frost line into the building envelope. Underground electrical wiring must be routed through continuous rigid non-metallic conduit (Schedule 40 PVC) to protect against soil shifting and moisture ingress, terminating at the control box or pressure switch inside the mechanical space. For modern high-efficiency systems, technicians may also reference guidelines for variable frequency drive (VFD) constant pressure controllers to replace standard electromechanical switches.
Pressure tank pre-charge must always be calibrated while the tank is completely drained of water. Set air pressure exactly 2 PSI below the pressure switch cut-in setting (e.g., set pre-charge to 38 PSI for a 40/60 PSI pressure switch rating).
Troubleshooting the Well Submersible Pump Riser Diagram With Pressure Tank Setup
Diagnosing failures within a deep well pump system involves isolating electrical supply faults from mechanical or hydraulic drop-column breakdowns. The following structured troubleshooting workflows cover common operational failures encountered in the field.
Rapid Cycling (Pump Turn-On and Turn-Off Instability):
Rapid cycling occurs when the pump turns on and off continuously within seconds during water demand. This symptom typically indicates a waterlogged diaphragm pressure tank or an incorrect air pre-charge pressure. Disconnect main power at the breaker panel and open a low-point drain valve to fully depressurize the manifold. Measure tank air pressure at the top Schrader valve using an accurate digital pressure gauge. If water streams out of the Schrader valve during checking, the internal rubber bladder or diaphragm has ruptured, requiring total tank replacement. If air pressure is low, re-inflate the air chamber to 2 PSI below cut-in pressure using an air compressor and re-test system drawdown capacity.
Pump Motor Runs Continuously Without Shutting Off:
If the motor runs non-stop without building sufficient pressure to reach the pressure switch cut-out threshold (e.g., 60 PSI), check the physical infrastructure. First, inspect the indoor mechanical setup for a blocked sensor nipple on the pressure switch. Mineral scale buildup in the 1/4-inch NPT brass nipple prevents the switch diaphragm from registering system pressure accurately; clear or replace the nipple. Next, evaluate downhole mechanical integrity. A split or corroded drop pipe section inside the well casing allows pumped water to recirculate back down into the aquifer. A compromised check valve or severely worn centrifugal pump impellers can also prevent the system from reaching cut-out pressure.
High voltage hazard: Always lock out and tag out main electrical supply breakers before removing the pressure switch cover, opening the pump control box, or servicing downhole wiring connections. Test circuit leads with an insulated multimeter set to AC Volts before touching terminal screws.
Overcurrent / Thermal Overload Breaker Tripping:
When a 3-wire motor control box repeatedly trips its thermal overload reset button, perform a winding resistance test using a digital multimeter set to ohms. Disconnect the pump wiring leads (Red, Yellow, Black) at the control box terminals. Measure winding resistance across Main (Yellow to Black) and Start (Yellow to Red) conductors. Compare measured resistance against manufacturer technical specifications (such as Franklin Electric AIM manual charts). High resistance indicates damaged conductor splices downhole, while zero resistance indicates a shorted motor stator winding or skinned wire insulation touching the well casing.
When replacing downhole drop cable splices, use waterproof heat-shrink tubing kits with internal hot-melt adhesive rings. Standard vinyl tape wraps without sealant will fail over time under continuous submersion pressure.
Frequently Asked Questions: Submersible Pump Riser and Pressure Tank Blueprint Setup
What drop pipe material is recommended for deep well submersible pump risers?
Schedule 80 PVC drop pipe with rigid, precision-cut threaded couplings is standard for well depths up to 300 feet. For deep well applications exceeding 300 to 500 feet depth-to-water, high-tensile 304 Stainless Steel or seamless schedule 40/80 steel pipe is required to resist high tensile load stresses, thermal expansion forces, and torsional motor torque.
Where should check valves be placed on a well pump drop pipe column?
A primary spring-loaded check valve must be installed directly onto the pump discharge head to hold the fluid column above the pump. Additional check valves should be installed inline every 200 vertical feet along the drop pipe riser column. Never place a check valve directly between the pitless adapter outlet and the input port of the pressure tank manifold, as this creates localized vacuum pockets and causes extreme hydraulic shock pressure spikes during pump startup.
How do you calculate the required pre-charge air pressure for a diaphragm pressure tank?
The pre-charge air pressure inside an empty diaphragm tank must be set exactly 2 PSI below the pressure switch cut-in activation point. For a standard 30/50 PSI pressure switch setup, set the static tank air pressure to 28 PSI. For a 40/60 PSI pressure switch setup, set the air charge to 38 PSI. Always adjust air pre-charge while the tank is entirely drained of hydraulic pressure.
What wire gauge is required for a 230V single-phase submersible pump motor?
Submersible wire sizing depends on motor horsepower (HP) and total wire run length from the main breaker panel to the submerged motor head. For a typical 1 HP 230V motor at a depth up to 250 feet, AWG 10 copper submersible wire is required. Deep settings or higher motor horsepower (e.g., 3 HP or 5 HP units at 400+ feet) require AWG 8 or AWG 6 heavy-gauge copper conductors to keep total AC line voltage drop below 3% under continuous motor load.
Why is a pressure relief valve required on the pressure tank manifold assembly?
A pressure relief valve set to discharge at 75 PSI or 100 PSI is a critical safety component on all closed-loop well pump installations. If the mechanical contacts inside the pressure switch weld together or the pressure sensor tube becomes clogged with mineral scale, the pump will run continuously. The pressure relief valve prevents dangerous over-pressurization that could rupture domestic piping, shatter plastic filters, or burst the diaphragm pressure tank.
Step-by-Step Guide to Understanding the Well Submersible Pump Riser Diagram With Pressure Tank
Identify – Identify system specifications, including pump horsepower, riser pipe material, depth, and pressure switch settings (30/50 vs 40/60 PSI).
Locate – Locate the wellhead casing, pitless adapter height, main power disconnect box, and indoor pressure tank assembly.
Reference – Reference the riser diagram for proper check valve spacing, torque arrestor placement, and wire taping intervals along the drop pipe.
Connect/Route – Route the riser drop pipe into the pitless adapter and connect the horizontal discharge line to the tank tee inlet manifold.
Verify – Verify pressure tank air pre-charge (2 PSI below cut-in), check wire resistance/continuity, and prime system before turning on power.
Troubleshoot – Troubleshoot pressure drops or motor chatter by testing pressure switch contacts, check valve retention, and pressure tank bladder integrity.
