Single Electric Fan Wiring Diagram: Easy Setup Guide
The diagram illustrates connecting the hot wire from the battery or relay to the fan, while the ground wire or neutral wire completes the circuit to the chassis. It typically incorporates a relay and thermostat switch to trigger the fan based on engine temperature, ensuring the motor receives consistent power.
📌 Key Takeaways
- Provides a visual guide for connecting a radiator cooling fan to a vehicle’s electrical system.
- The relay is the most important component to identify to prevent circuit overloads.
- Always disconnect the battery and use an inline fuse to prevent electrical fires or damage.
- Use color-coded wiring to easily differentiate between power and ground connections.
- Use this diagram when upgrading from a mechanical fan or replacing a faulty electric unit.
When you are looking to upgrade your home’s ventilation or cooling system, understanding the specifics of a single electric fan wiring diagram is the most critical step toward a successful installation. Whether you are installing a high-velocity wall fan, a standard ceiling fan, or an exhaust unit, the wiring configuration dictates not only the functionality of the device but also the safety of your entire electrical circuit. This guide is designed to help DIY enthusiasts and homeowners navigate the complexities of electrical connections, ensuring that every wire is seated correctly and every terminal is properly identified. By following a clear diagram, you eliminate the guesswork that often leads to short circuits or equipment failure. In the following sections, we will break down the color codes, terminal locations, and the precise sequence of connections required to bring power to your fan safely and efficiently.
Always verify that the power is disconnected at the circuit breaker before touching any exposed wires. Use a non-contact voltage tester to confirm the absence of electricity before proceeding with the wiring steps outlined in this diagram.
Understanding the Single Electric Fan Wiring Diagram

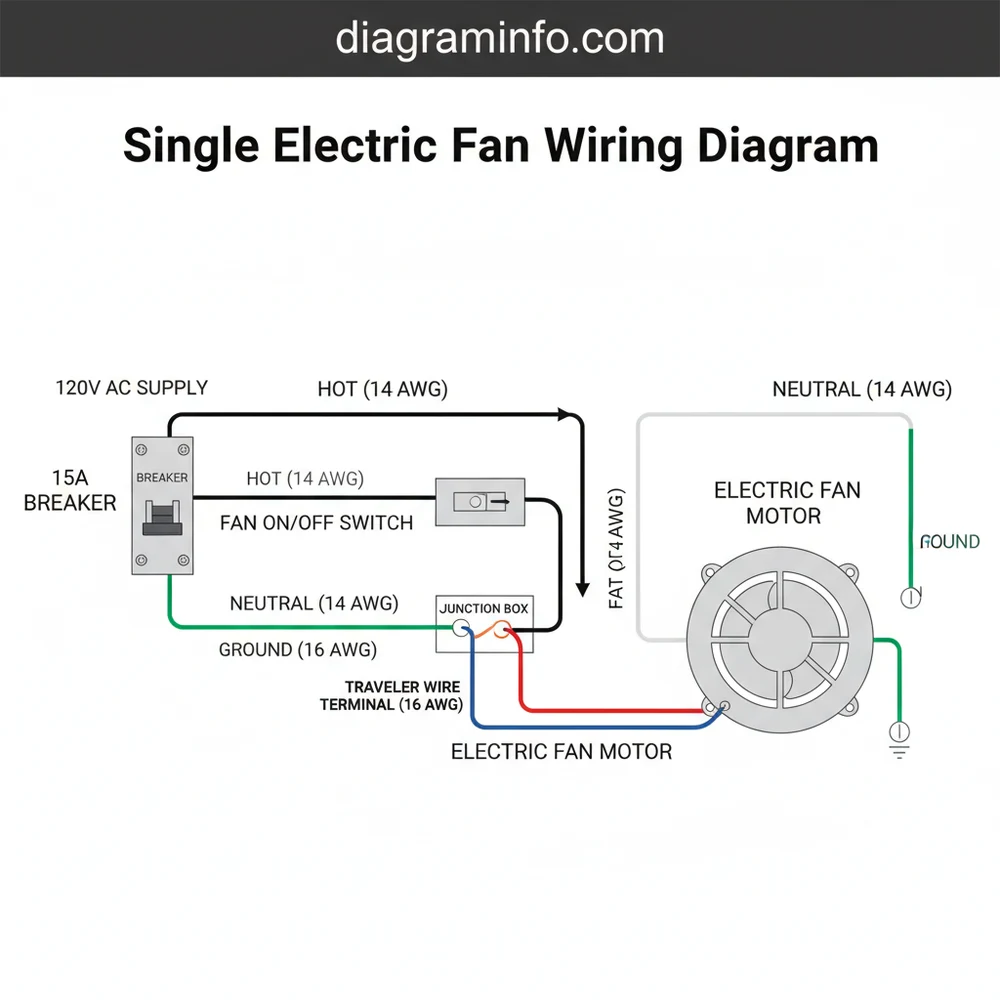

The main objective of a single electric fan wiring diagram is to illustrate the flow of electricity from the power source through the control switch and finally to the fan motor. In a standard residential setup, the diagram focuses on three primary conductors: the hot wire, the neutral wire, and the ground wire. The hot wire, typically colored black or red, carries the active electrical load to the device. The neutral wire, colored white, completes the circuit by carrying the current back to the source. The ground wire, which is either green or bare copper, serves as a safety path for electricity in the event of a fault.
When examining the diagram, you will notice specific labels for terminals. On most fan switches and motor housings, a brass screw indicates the connection point for the hot wire. This is a standard convention in North American electrical systems to prevent “reverse polarity,” a condition where the device remains energized even when switched off. The silver screw or terminal is designated for the neutral wire. If the fan setup includes a multi-way switch—meaning you can control the fan from two different locations—the diagram will introduce a traveler wire and a common terminal. The traveler wires facilitate communication between the two switches, while the common terminal acts as the entry or exit point for the main power feed.
Note: This diagram illustrates a standard single-pole circuit. The Black (Hot) wire connects to the switch and then proceeds to the fan’s motor lead. The White (Neutral) wire bypasses the switch to connect directly to the fan’s neutral terminal. The Green (Ground) wire connects to the metal housing of both the switch box and the fan unit.
Decoding the Essential Components
To interpret a single electric fan wiring diagram correctly, you must be familiar with the physical components it represents. Every line and symbol on the schematic corresponds to a physical part of the installation.
The Power Source and Wire Gauge
The circuit begins at the service panel. Depending on the fan’s power requirements, you must ensure the wire gauge is appropriate for the amperage of the circuit. For a standard 15-amp circuit, 14-gauge wire is the industry standard. However, if the fan is part of a 20-amp circuit, you must use 12-gauge wire to prevent overheating and potential fire hazards. The voltage for most residential fans in North America is 120V, but heavy-duty industrial fans may require 240V, which would necessitate a different wiring configuration involving two hot wires.
The Control Switch
In a basic installation, a single-pole switch is used. The wiring diagram shows the hot wire entering the switch at one terminal and exiting through another (often called the “switch leg”) to travel to the fan. If the diagram includes a common terminal, it is likely a 3-way switch setup. In this scenario, the common terminal is the “bridge” that connects to the power source or the fan, while the traveler wire pair connects the two switches together.
The Fan Motor Leads
At the fan itself, you will typically find three or four wires. The black wire is the fan motor’s power lead. If the fan includes an integrated light kit, there may be a blue or red wire specifically for light control. The white wire is the neutral, and the green/bare wire is the ground. Ensuring these are matched perfectly to the wires coming from the switch box is the core of the wiring process.
When connecting wires to screw terminals, always wrap the wire clockwise around the screw. As you tighten the brass screw, the rotation will pull the wire tighter into the connection rather than pushing it out.
Step-by-Step Installation Guide
Following a single electric fan wiring diagram requires a methodical approach. Follow these steps to ensure a safe and code-compliant installation.
1. Preparation and Tool Gathering
Before starting, gather the necessary tools: a wire stripper, a screwdriver set (Phillips and flathead), electrical tape, wire nuts, and a voltage tester. Ensure your wire gauge matches the existing house wiring to maintain circuit integrity.
2. Power Shutdown and Verification
Locate your home’s electrical panel and switch off the breaker for the room where the fan will be installed. Use your voltage tester inside the electrical box to confirm that no current is flowing through the hot wire.
3. Preparing the Wires
Strip approximately 3/4 inch of insulation from the ends of the black, white, and ground wires in the electrical box and the fan’s leads. Ensure the copper strands are clean and not nicked, as nicks can create weak points that lead to overheating.
4. Wiring the Switch
Connect the incoming hot wire (from the power source) to the bottom screw of your switch. If you are using a 3-way system, this will be the common terminal. Connect the outgoing hot wire (the switch leg) to the top brass screw. This wire will lead directly to the fan motor.
5. Connecting the Neutral Path
In the switch box, the neutral wires do not typically connect to the switch itself. Instead, take the white neutral wire from the power source and the white neutral wire going to the fan, and join them together using a plastic wire nut. This provides a continuous return path for the voltage.
6. Establishing the Ground
Safety is paramount. Connect all green or bare copper wires together. You must also connect a small “pigtail” wire to the green grounding screw on the switch itself and the metal junction box if applicable. This ensures that if a hot wire touches the metal box, the current is safely diverted to the ground.
7. Finalizing Fan Connections
At the ceiling or wall mounting point, connect the black switch leg to the fan’s black motor wire. Connect the white neutral wire from the ceiling to the fan’s white neutral wire. Finally, connect the ground wire to the fan’s grounding bracket. Secure all connections with wire nuts and wrap them with a small amount of electrical tape for added security.
8. Mounting and Testing
Tuck the wires neatly into the junction box, ensuring no wires are pinched. Mount the fan according to the manufacturer’s instructions. Restore power at the breaker and test the switch. The fan should start smoothly without humming or flickering.
Never connect a neutral wire to a switch. Switches are designed to break the hot wire only. Connecting a neutral to a switch can cause a short circuit or create a “hot” appliance even when the switch is off.
Common Issues and Troubleshooting
Even with a high-quality single electric fan wiring diagram, issues can arise during or after installation. Identifying these problems early can prevent damage to the fan motor.
- ✓ The Fan Won’t Start: This is often caused by a loose connection at the wire nut or a tripped breaker. Check the common terminal at the switch to ensure the hot wire is seated firmly.
- ✓ Humming Noises: Excessive humming usually indicates a voltage drop or the use of an incompatible dimmer switch. Fans require a specific motor speed controller rather than a standard light dimmer.
- ✓ Wobbling or Vibrating: While often mechanical, vibrations can sometimes be caused by loose mounting brackets that were disturbed during the wiring process. Ensure the junction box is “fan-rated” to handle the weight and motion.
- ✓ Circuit Breaker Trips: If the breaker trips immediately upon turning the fan on, there is likely a direct short between the hot wire and the ground wire or the metal box. Re-examine the connections at the brass screw.
If you encounter persistent sparks, a burning smell, or if the fan operates only intermittently, disconnect the power immediately. These are signs of serious electrical faults that may require a professional electrician to diagnose.
Tips and Best Practices for Fan Wiring
Achieving a professional-grade installation goes beyond just following the lines on a diagram. Incorporating these best practices will ensure longevity and efficiency for your fan.
Use High-Quality Connectors
While most fans come with basic wire nuts, investing in high-quality, lever-style wire connectors can provide a much more secure and vibration-resistant connection. Given that fans produce constant movement, a secure connection is vital to prevent wires from shaking loose over time.
Label Your Wires
If you are working with a complex box that contains multiple circuits, use small pieces of masking tape to label the traveler wire, the hot wire, and the switch leg. This prevents confusion if you ever need to replace the switch or the fan in the future.
Check for Proper Voltage
Before installation, verify the fan’s voltage requirements against your home’s output. Using a 120V fan on a 240V circuit will instantly destroy the motor, while the reverse will result in a fan that barely moves.
Maintain Proper Clearances
When wiring, ensure there is enough “slack” in the wires to allow for easy maintenance, but not so much that the wires press against the fan’s moving parts or capacitor. Overcrowded junction boxes can lead to heat buildup, which degrades the insulation on the wires.
Component Recommendations
Always choose UL-listed (Underwriters Laboratories) fans and switches. These components have undergone rigorous safety testing. For the wiring itself, use THHN or Romex (NM-B) cabling that meets local building codes.
Final Considerations
Mastering the use of a single electric fan wiring diagram is an empowering skill for any homeowner. By understanding the relationship between the hot wire, neutral wire, and ground wire, you can transform a complex-looking task into a series of simple, logical steps. Remember that the color-coding system is your best friend: the brass screw is for power, the silver for the return path, and the green for safety.
The importance of using the correct wire gauge and identifying the common terminal cannot be overstated. These details are what separate a dangerous “hack job” from a professional, long-lasting installation. Whether you are dealing with a simple on-off switch or a more complex system involving traveler wires, the principles of electricity remain the same. Always prioritize safety, double-check your connections against the diagram, and never hesitate to consult a professional if the project exceeds your comfort level. With the right preparation and this comprehensive guide, your single electric fan will provide reliable cooling and ventilation for years to come.
