2-Terminal RV Battery Disconnect Switch Wiring Diagram: Installation Guide 2026
An RV battery disconnect switch typically connects the main positive battery terminal to the RV’s 12V distribution panel, interrupting the circuit. For a 2-terminal switch, one heavy gauge cable connects from the battery’s positive post, and the other connects to the RV’s main positive buss bar. Ensure proper gauge wire for high amperage.
📌 Key Takeaways
- Heavy gauge battery cables (typically 2 AWG or 0 AWG) are crucial for high amperage disconnect switch circuits.
- Identify the switch’s input (from battery positive) and output (to RV panel) terminals correctly before connection.
- Always disconnect the negative battery terminal first for safety before performing any wiring modifications.
- Improper cable gauge, loose connections, or corrosion are the most common causes of voltage drop and switch failure.
- Consult a certified RV technician for any wiring involving inverter systems, complex charge controllers, or multiple battery banks.
The 7-pin RV blade type connector is the industry standard for establishing a robust electrical connection between a tow vehicle and an RV or large trailer. This connector facilitates critical functions such as brake control, signal lights, and auxiliary power, which is essential for charging an RV’s house battery while in transit. Understanding the precise pin assignments and wiring sequences for this flat connector is paramount for ensuring safe and reliable operation of all trailer systems, including power delivery to internal RV components where an RV battery disconnect switch often resides. This guide provides comprehensive, technical insights into its proper wiring.

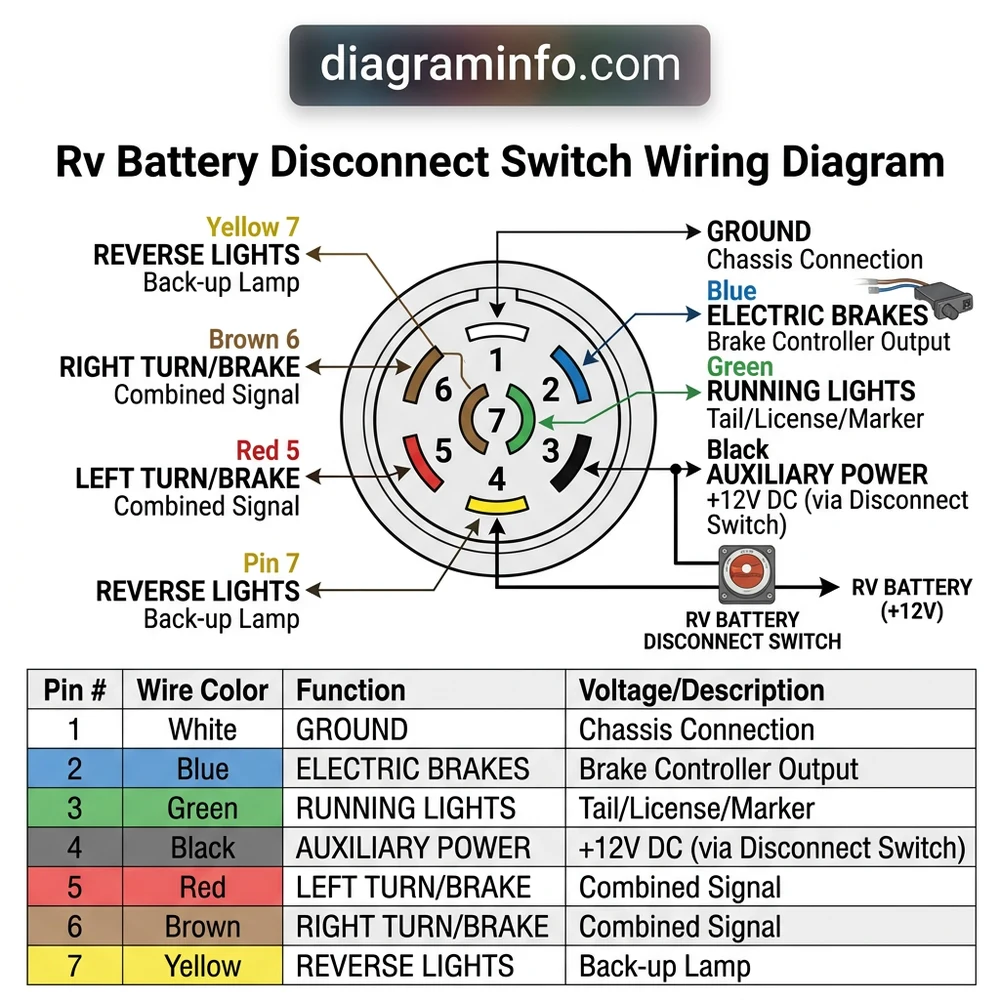

PIN ASSIGNMENT TABLE
The following table details the standard pin assignments for a 7-pin RV blade-style trailer connector, adhering to SAE J560 specifications. Deviations from these standards can lead to electrical malfunctions and safety hazards.
| Pin # | Wire Color (Common) | Function | Notes |
|---|---|---|---|
| 1 | White | Ground | Common ground for all trailer lights and electrical systems. Essential for proper circuit completion. |
| 2 | Blue | Electric Brake Controller | Dedicated power output from the tow vehicle’s brake controller to the trailer’s electric brakes. |
| 3 | Green | Right Turn Signal / Stop Light | Powers the right side turn signal and brake light. |
| 4 | Black | Auxiliary Power (12V+) | Constant 12V+ power for trailer internal accessories, charging the RV battery, or power lift gates. Typically fused. |
| 5 | Red | Left Turn Signal / Stop Light | Powers the left side turn signal and brake light. |
| 6 | Brown | Running Lights / Tail Lights | Activates all trailer marker lights, tail lights, and clearance lights. |
| 7 | Yellow | Center Auxiliary / Reverse Lights | May be used for reverse lights, or for an additional auxiliary function if reverse lights are not present. |
While the wire colors listed are common and adhere to industry standards (e.g., RVIA or SAE J560), it is crucial to always verify the specific function of each wire using a multimeter or circuit tester on your tow vehicle’s receptacle before making any connections to your trailer. This mitigates potential damage from incorrect wiring, especially with year-specific variations in older models or custom setups.
STEP-BY-STEP WIRING GUIDE
Properly wiring your 7-pin RV blade connector is a critical task that requires precision. Follow these steps to ensure all trailer functions operate correctly and safely, particularly the vital auxiliary power that supports your RV’s internal systems.
- Prepare the Wiring Harness: Begin by carefully stripping approximately 1/2 inch of insulation from each wire on your trailer’s harness. Ensure you have adequate wire length to comfortably reach the connector terminals without tension. Identify the function of each wire based on its color, referring to the pin assignment table above.
- Ground Connection (Pin 1 – White Wire): The white wire is your common ground. This is perhaps the most crucial connection for overall system integrity. Securely attach the white ground wire from your trailer’s main harness to Pin 1 (often marked “GND” or “1”) of the 7-pin connector. A robust ground ensures reliable operation of all lights and the electric brake system. Insufficient grounding is a leading cause of intermittent electrical issues.
- Electric Brake Controller (Pin 2 – Blue Wire): Connect the blue wire, which carries the brake controller signal, to Pin 2. This wire delivers a variable voltage from your tow vehicle’s brake controller to the electric brake magnets on the trailer axles, initiating braking. Verify this connection with an appropriate brake controller test tool. For detailed troubleshooting of electric brake systems, refer to our comprehensive guide on Electric Brake Controller Diagnostics.
- Right Turn/Stop Light (Pin 3 – Green Wire): Attach the green wire, responsible for the right turn signal and stop light, to Pin 3. This circuit is combined in many trailer setups, meaning one filament serves both functions. Confirm proper operation with the tow vehicle’s right turn signal and brake pedal activated.
- Auxiliary Power (Pin 4 – Black Wire): The black wire provides constant 12V+ auxiliary power from the tow vehicle to the trailer. Connect this wire to Pin 4. This robust circuit (typically fused at 30-40 amps at the tow vehicle’s battery) is vital for charging your RV’s house battery, operating slide-outs, interior lights, or other 12V accessories when connected. This line connects directly to your RV’s 12V distribution panel, where an RV battery disconnect switch is commonly installed to isolate the house battery from parasitic loads when not in use or for maintenance. This crucial connection ensures your RV battery remains charged during travel.
- Left Turn/Stop Light (Pin 5 – Red Wire): Connect the red wire for the left turn signal and stop light to Pin 5. Similar to the right turn/stop circuit, verify its functionality using the tow vehicle’s left turn signal and brake pedal.
- Running Lights/Tail Lights (Pin 6 – Brown Wire): The brown wire powers all running, marker, and tail lights. Connect it to Pin 6. These lights are essential for visibility during night driving and parking. Activate your tow vehicle’s headlights to test this circuit.
- Center Auxiliary/Reverse Lights (Pin 7 – Yellow Wire): Attach the yellow wire to Pin 7. This pin is typically used for reverse lights on the trailer, but can also serve as an additional auxiliary power feed for specific trailer functions if reverse lights are not present. Confirm its function by engaging reverse gear on the tow vehicle (if applicable) or testing for auxiliary power activation.
- Secure and Protect: Once all connections are made, ensure they are tight and properly insulated. Use heat-shrink tubing or electrical tape to protect exposed terminals from moisture and corrosion. Fasten the harness securely within the connector housing and ensure strain relief is properly applied to prevent wire damage. Proper maintenance of trailer connectors ensures longevity; read more about Trailer Connector Maintenance.
Always disconnect the tow vehicle’s battery before attempting any wiring work on the trailer connector or tow vehicle harness to prevent accidental short circuits or electrical shock. Use appropriate Personal Protective Equipment (PPE).
COMMON WIRING MISTAKES
Even experienced technicians can encounter issues with trailer wiring. Understanding common pitfalls can save significant diagnostic time and prevent potential damage. Incorrect wiring not only leads to frustrating electrical problems but can also create dangerous situations on the road.
- Inadequate Grounding: The most frequent issue is a poor or corroded ground connection (White wire, Pin 1). An intermittent or high-resistance ground path causes dim lights, erratic brake controller operation, and even reversed polarity symptoms for certain circuits. Always ensure a clean, direct connection to the trailer frame and connector.
- Incorrect Pin Assignment: Reversing turn signals (Green/Red) or accidentally connecting the brake controller (Blue) to a running light circuit (Brown) can cause confusing light patterns or render electric brakes inoperative. Always double-check pin assignments against the SAE J560 standard and use a multimeter or dedicated trailer tester.
- Insufficient Wire Gauge: Using wires that are too thin for the current load can lead to voltage drop, causing dim lights, weak auxiliary power delivery for RV battery charging, and overheating. For the auxiliary power (Black, Pin 4) and electric brake (Blue, Pin 2) circuits, a heavier gauge wire (typically 10-12 AWG) is essential, especially for longer trailers.
- Poor Splices and Connections: Exposed or poorly insulated wire splices are prone to corrosion, leading to resistance and eventual failure. Use proper crimp connectors with heat shrink, or solder and insulate thoroughly to create waterproof and durable connections.
- Reversed Polarity on Auxiliary Power: While less common in modern vehicles, ensure the auxiliary power line (Black, Pin 4) is indeed 12V+ and not inadvertently grounded or reversed. This is critical when connecting to an RV battery, as reversed polarity can damage sensitive electronics or the battery itself. Understanding your RV’s 12V power distribution is critical; see our article on RV 12V Power Distribution Systems.
- Damaged Connector Pins: Bent, corroded, or loose pins within the connector itself can lead to intermittent connections. Inspect both the tow vehicle and trailer connectors regularly for physical damage.
FAQ
What is the purpose of the auxiliary power pin (Pin 4) in the 7-pin RV blade connector?
The auxiliary power pin (Pin 4, typically black wire) provides a constant 12-volt direct current (DC) supply from the tow vehicle’s battery to the trailer. Its primary function for RVs is to charge the RV’s house battery while driving, ensuring it remains topped off for onboard appliances. It can also power other 12V accessories within the trailer, such as interior lights, power jacks, or a refrigerator’s DC element, even when the tow vehicle is off, assuming the tow vehicle’s battery isolation relay permits.
How does the RV battery disconnect switch relate to the 7-pin trailer wiring?
While the 7-pin connector provides the charging current to the RV’s battery via the auxiliary power line (Pin 4), the RV battery disconnect switch is an internal component within the RV’s 12V electrical system. It is typically installed between the RV’s house battery bank and the main 12V distribution panel. Its purpose is to physically disconnect the battery from all RV loads, preventing parasitic drain when the RV is stored or not in use, and serving as a safety cut-off during maintenance. The auxiliary power from the 7-pin connector charges the battery through this system, usually before the disconnect switch, allowing the battery to charge even if the RV’s internal loads are disconnected.
Can I use a 7-pin RV blade connector with a smaller 4-flat or 5-flat trailer?
No, a 7-pin RV blade connector is not directly compatible with 4-flat or 5-flat trailer connectors. The physical pin configuration and number of circuits are different. To connect a 7-pin tow vehicle to a 4-flat or 5-flat trailer, you will need a specialized adapter. These adapters consolidate the functions of the 7-pin (like combining stop and turn signals) to match the simpler 4-flat or 5-flat setup.
What wire gauge is recommended for the electric brake and auxiliary power circuits?
For both the electric brake (Pin 2, blue wire) and auxiliary power (Pin 4, black wire) circuits, a minimum of 12 AWG (American Wire Gauge) wire is generally recommended. For longer trailers (over 25 feet) or higher current draw applications (e.g., multiple electric brake axles or heavy auxiliary power use), upgrading to 10 AWG wire is advisable to minimize voltage drop and prevent overheating. Always refer to the manufacturer’s specifications for your specific brake controller and trailer.
What if my trailer lights are flickering or dim?
Flickering or dim trailer lights are almost invariably indicative of a poor ground connection (White wire, Pin 1). Trace the entire ground circuit from the connector, through the trailer harness, and to the chassis ground points. Look for corrosion, loose connections, or frayed wires. Other potential causes include insufficient wire gauge leading to voltage drop, a faulty tow vehicle wiring harness, or issues with the tow vehicle’s alternator or battery. Start by thoroughly inspecting and cleaning all ground connections.
Step-by-Step Guide to Understanding the 2-Terminal Rv Battery Disconnect Switch Wiring Diagram: Installation Guide 2026
Identify – Determine the correct type and amperage rating for your RV battery disconnect switch based on your RV’s total 12V system draw.
Locate – Find a suitable, accessible, and dry mounting location for the switch, preferably close to the battery bank and the main 12V fuse panel.
Reference – Consult the RV battery disconnect switch wiring diagram to understand the input (from battery positive) and output (to RV load) terminal connections.
Connect/Route – Route heavy gauge positive battery cables (e.g., 2 AWG or 0 AWG) from the battery positive post to one switch terminal, then from the other switch terminal to the RV’s main 12V distribution buss bar.
Verify – Use a multimeter to confirm zero voltage at the RV’s 12V buss bar when the switch is in the OFF position, and full battery voltage (12V+) when it’s switched ON.
Troubleshoot – If power issues persist after installation, check all cable connections for tightness, ensure correct polarity, and inspect for blown fuses or tripped circuit breakers in the RV’s 12V panel.
Frequently Asked Questions
What is pin 1 on a rv battery disconnect switch wiring diagram?
A battery disconnect switch doesn’t have “pins” in the conventional sense, but terminals. For a simple 2-terminal switch, one terminal is typically the positive input from the battery, and the other is the positive output to the RV’s main 12V distribution panel. There isn’t a “pin 1” designation like on a multi-pin connector.
What wire color is the brake wire on rv battery disconnect switch wiring diagram?
The brake wire (typically blue for electric trailer brakes, relevant for a brake controller) is not directly part of the RV battery disconnect switch wiring. The disconnect switch isolates the *main house battery* from the RV’s 12V system. The brake wire would typically run from a brake controller to the trailer’s 7-way connector, powered by the towing vehicle, not the RV’s internal battery.
Can I use rv battery disconnect switch wiring diagram without a brake controller?
An RV battery disconnect switch is independent of a trailer brake controller. The disconnect switch manages the RV’s internal 12V power supply. A brake controller is required for trailers equipped with electric brakes to activate them safely and legally. You can install a disconnect switch in your RV without needing a brake controller for the RV itself.
What is the auxiliary pin on rv battery disconnect switch wiring diagram for?
The “auxiliary pin” (LSI: auxiliary power) usually refers to the 12V charging circuit on a trailer’s 7-way RV blade connector (often pin 4, black wire), which is independent of the RV’s internal battery disconnect switch. The disconnect switch isolates the *RV’s house battery*. The 7-way auxiliary power charges the trailer battery or powers accessories while connected to the tow vehicle.
What causes trailer lights to not work with rv battery disconnect switch wiring diagram?
If trailer running lights (LSI: running lights) or turn signals (LSI: turn signal) aren’t working, it’s generally unrelated to the RV’s internal battery disconnect switch. Issues are usually in the tow vehicle’s wiring, trailer wiring harness, faulty connectors (like an RV blade), blown fuses in the tow vehicle, or poor grounding at the trailer. The disconnect switch only affects the RV’s house power.
Is rv battery disconnect switch wiring diagram compatible with 4-pin adapters?
No, an RV battery disconnect switch wiring diagram relates to the RV’s internal 12V system, not external trailer lighting connections. A 4-pin adapter only provides basic lighting functions (running lights, left/right turn/brake) for a trailer. It doesn’t connect to or interact with an RV’s house battery disconnect. These are entirely separate electrical components and functions.
