Old Style Septic Tank Diagram: Design & Layout Guide
An old style septic tank diagram illustrates a single or dual-chamber concrete structure where gravity separates waste. Solids settle at the bottom as sludge, while oils float as scum. This configuration relies on a simple inlet and outlet baffle system to move liquid effluent into the soil absorption field for natural filtration.
📌 Key Takeaways
- Provides a visual map of the internal wastewater flow and solids separation
- The inlet and outlet baffles are the most important components to identify
- Never enter a septic tank due to toxic gases and lack of oxygen
- Map out your yard’s layout to prevent heavy machinery from crushing the tank
- Use this diagram when locating the tank for pumping or inspecting for clogs
Understanding the mechanics of a legacy wastewater system is the first step toward effective home maintenance, especially for those living in historic or rural properties. This guide provides a comprehensive old style septic tank diagram and detailed analysis to help you navigate the complexities of vintage waste management. By studying the specific layout and component interactions within these systems, you will gain the knowledge necessary to identify potential failures, locate hidden access points, and perform routine inspections with confidence. This overview covers everything from basic structural schematics to advanced troubleshooting of the soil absorption field.
Understanding the Structural Schematic and Components
When you examine an old style septic tank diagram, you are looking at a simplified blueprint of a gravity-fed biological processor. Unlike modern systems that may include electrical pumps or aerobic treatment units, the vintage configuration relies almost entirely on the laws of physics and natural bacterial decomposition. The primary component is the septic tank itself, which in older installations might be constructed from materials no longer commonly used, such as redwood, clay brick, or thin-walled steel, though concrete remains the most frequent finding.
The diagram reveals a three-layer separation process occurring within the main structure. At the top of the fluid level, you will find the scum layer, consisting of fats, oils, and grease (FOG). Below this is the effluent or “clarified” water layer. At the very bottom lies the sludge, which is composed of heavier organic solids that have been broken down by anaerobic bacteria. The internal layout is defined by the inlet and outlet pipes, which are often equipped with sanitary tees or baffles. These baffles are critical; the inlet baffle directs incoming waste downward to prevent it from disturbing the scum layer, while the outlet baffle ensures that only the clarified effluent exits the tank into the drain field.
In many older blueprints, you may notice a lack of a secondary chamber. While modern tanks often feature a two-compartment design to enhance solids settling, an older system frequently utilizes a single, large rectangular or cylindrical vault. The configuration of the piping is also distinct; older systems typically use “V” or “Y” shaped distribution boxes made of heavy concrete or even cast iron to split the flow of effluent into various lateral lines within the leach field. Understanding this specific schematic is vital because it determines how you will eventually probe the ground to find the tank’s edges or the distribution box’s location.
In an old style septic tank diagram, the ‘depth of bury’ is often shallower than in modern systems. This makes the tank more susceptible to ground temperature changes and surface pressure, which is why identifying the exact layout is essential before any landscaping or construction work begins.
Step-by-Step Guide to Reading and Implementing the Diagram
Interpreting a complex blueprint of your underground utilities requires a systematic approach. If you are looking at an old style septic tank diagram for the first time, follow these steps to translate the paper drawing into a physical understanding of your property.
- ✓ Identify the Main Exit Point: Locate where the primary waste line leaves your home’s foundation. This is typically a 4-inch cast iron or PVC pipe found in the crawlspace or basement.
- ✓ Trace the Inlet Line: Follow the path of the pipe from the foundation. In an older configuration, the tank is usually located between 10 and 20 feet from the house, though this can vary based on local topography.
- ✓ Locate the Tank Access: Use the schematic to find where the manhole covers or inspection ports should be. Be aware that older tanks were often buried without “risers,” meaning you may need to dig several feet down to reach the actual lid.
- ✓ Determine the Flow Direction: Once the tank is located, the diagram will show the orientation of the outlet pipe. This pipe leads to the distribution box, which is the “brain” of the drainage layout.
- ✓ Map the Drain Field: The schematic will show lateral lines (perforated pipes) extending from the distribution box. On older properties, these lines might be made of clay tiles or perforated bituminized fiber pipe (Orangeburg pipe).
- ✓ Verify Soil Absorption Areas: The diagram should indicate the “setback” distances from wells, property lines, and water bodies. This is crucial for maintaining environmental safety and system longevity.
When working with these systems, you will need a few specialized tools. A soil probe (a long, thin metal rod) is indispensable for “feeling” the tank lid or the distribution box without digging large holes. You may also need a heavy-duty shovel, a measuring tape to match the diagram’s scale to your yard, and a flashlight for inspecting the baffles once the tank is opened.
Never enter a septic tank. Old systems can accumulate lethal levels of methane, hydrogen sulfide, and carbon dioxide. These gases are odorless and can cause immediate loss of consciousness or death. Only certified professionals with proper ventilation equipment should ever enter a tank.
Reading the diagram also involves understanding the “fall” or “slope” of the system. A classic gravity-fed system requires a consistent downward slope of about 1/4 inch per foot. If your blueprint shows a steep drop or a very flat run, this indicates where potential blockages or “bellies” in the pipe are most likely to occur. Pay close attention to any symbols indicating “cleanouts,” as these are the access points you will use for hydro-jetting or snaking the lines if a backup occurs.
Common Issues and Troubleshooting with the System Layout
Vintage septic systems face unique challenges that modern configurations have largely solved. By referencing your old style septic tank diagram, you can perform a diagnostic check when problems arise. One of the most frequent issues is “baffle failure.” In older concrete tanks, the concrete baffles can erode over decades of exposure to acidic sewer gases. If the diagram shows a baffle that has since crumbled, solids will bypass the tank and clog the drain field, leading to a catastrophic system failure.
Another common problem is “root intrusion.” Older clay or Orangeburg pipes have joints every few feet, providing many entry points for thirsty tree roots. If you notice slow drains or gurgling sounds in your plumbing, refer to the blueprint to see if any large trees have grown over the path of the lateral lines. The diagram will show the precise location of the distribution box, which is often the first place to check for root blockages or “sludge judging” to see if the tank is overflowing into the absorption area.
If you cannot find a physical blueprint of your system, contact your local health department or environmental agency. They often keep historical records of “as-built” diagrams for properties dating back several decades, which can save you hours of guesswork and digging.
Warning signs of a failing system include surfacing sewage (wet spots or unusually green grass over the drain field), foul odors near the tank area, and sewage backing up into the lowest drains of the house. If you experience these symptoms, the schematic will help you determine if the problem is a simple blockage in the main line or a structural collapse of the tank or leach field. If the sludge level in the tank is within 12 inches of the bottom of the outlet baffle, the system is overdue for a pump-out.
Tips and Best Practices for Long-Term Maintenance
Maintaining an older septic system requires a proactive approach that differs from modern “set and forget” mentalities. Because the components in an old style septic tank diagram are often made of more degradable materials, protecting the structural integrity of the layout is paramount. One of the best practices is to minimize the hydraulic load on the system. Vintage drain fields were often sized for lower water usage than modern families generate. Installing low-flow fixtures and spreading out laundry loads across the week can prevent the “flushing out” of solids into the leach field.
Quality maintenance also involves what you do not put down the drain. Old systems are particularly sensitive to chemical imbalances. Avoid pouring bleach, paint thinner, or heavy cleaners down the sink, as these kill the beneficial bacteria that digest the sludge. Furthermore, never use a garbage disposal with a legacy septic system. The finely ground organic matter from a disposal does not settle well and can quickly overwhelm the single-compartment tanks found in older configurations.
- ✓ Pump Regularly: For older, smaller tanks, aim for a professional pumping every 2 to 3 years rather than the standard 5-year interval.
- ✓ Protect the Field: Never drive vehicles or heavy machinery over any part of the system shown in the blueprint. This can crush clay pipes or compact the soil, destroying its ability to absorb water.
- ✓ Install Risers: To make future maintenance easier and cheaper, install plastic or concrete risers over the tank openings so you don’t have to dig every time the tank needs service.
- ✓ Vegetation Management: Keep the area over the drain field clear of trees and shrubs. Stick to shallow-rooted grasses to prevent root intrusion into the lateral lines.
Cost-saving advice for owners of vintage systems often centers on prevention. Replacing a failed drain field can cost upwards of ten thousand dollars, whereas a regular pumping and inspection fee is a fraction of that cost. If your inspection reveals that the baffles are missing, you can have an “effluent filter” installed on the outlet. This is a modern component that can be retrofitted into many old style septic tank diagrams to provide an extra layer of protection for your leach field, catching small solids before they can exit the tank.
By mastering the layout and function of your system through an old style septic tank diagram, you ensure the health of your home’s environment and the longevity of your property’s infrastructure. Whether you are troubleshooting a current issue or planning for future upgrades, this structural knowledge is your most valuable tool in wastewater management.
Frequently Asked Questions
Where is the outlet baffle located?
The outlet baffle is located at the top of the tank on the opposite side of the inlet pipe. In an old style septic tank, it is a critical component that prevents floating scum and solids from entering the drain field, which would otherwise cause system failure and clogging.

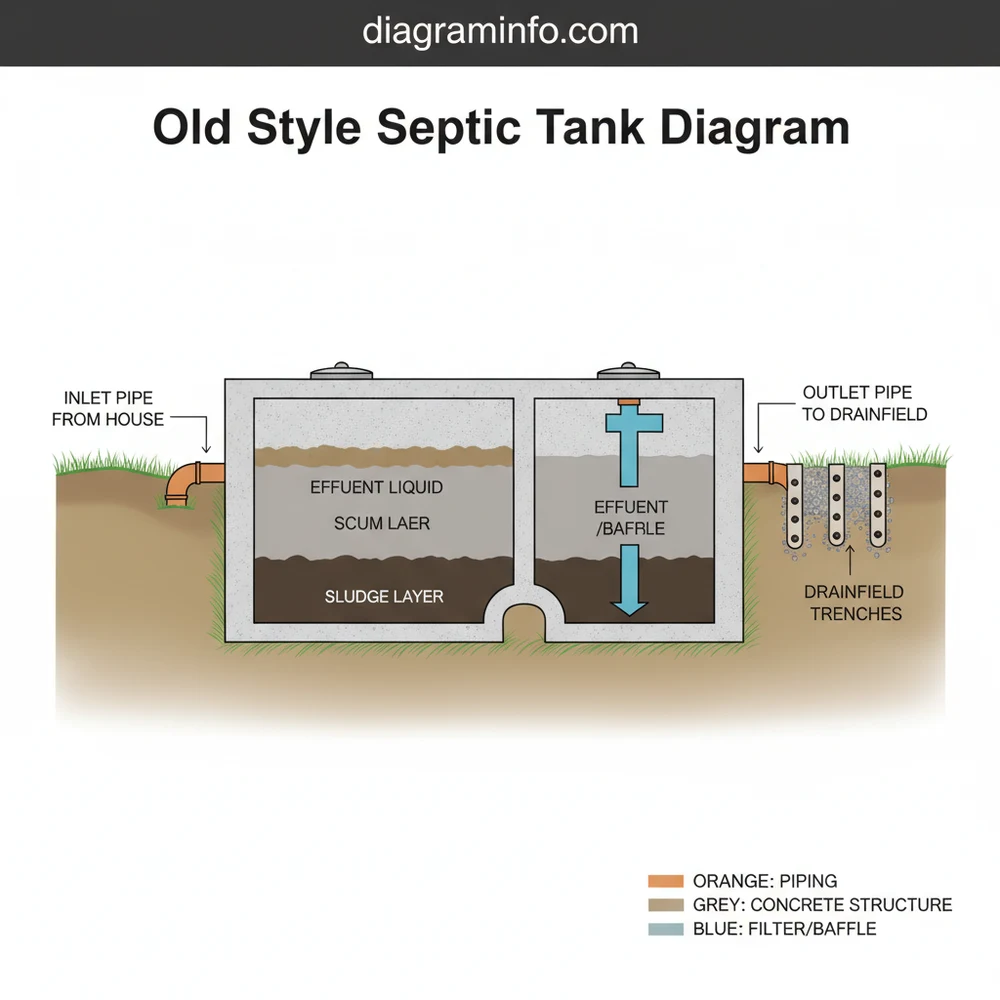

What does this septic diagram show?
This diagram shows the internal structure of a traditional single-chamber septic system. It illustrates the layout of the inlet pipe, the baffle configuration, and how effluent liquid exits the tank. It is essential for understanding how gravity-based wastewater treatment works in older residential properties.
How many chambers does an old septic tank have?
Most old style septic tanks feature a single-chamber configuration, though some larger residential models might include two. A single-chamber system relies on a slow flow rate and baffle placement to ensure that solids settle properly before the liquid effluent moves into the soil absorption field for disposal.
What are the symptoms of a bad septic tank?
Symptoms include slow-draining sinks, gurgling pipes, or sewage backing up into the home. Externally, you might notice bright green grass or standing water over the drain field layout. These issues often indicate that the internal structure is full of sludge or the baffles have collapsed over time.
Can I clean the septic tank myself?
No, you should not clean the tank yourself. While you can use the diagram to locate the lid and inspect the system, pumping requires professional vacuum equipment and proper waste disposal. Furthermore, the gases inside an old septic tank are lethal, making DIY entry extremely dangerous for homeowners.
What tools do I need for locating the tank?
You will need a soil probe or a thin metal rod to find the tank’s edges and a shovel to uncover the access lids. Once the lid is exposed, a tape measure helps confirm the tank’s dimensions against your layout map to ensure you have found the right component.
