Jeep Grand Cherokee Trailer Wiring Diagram 2026: Wiring & Troubleshooting

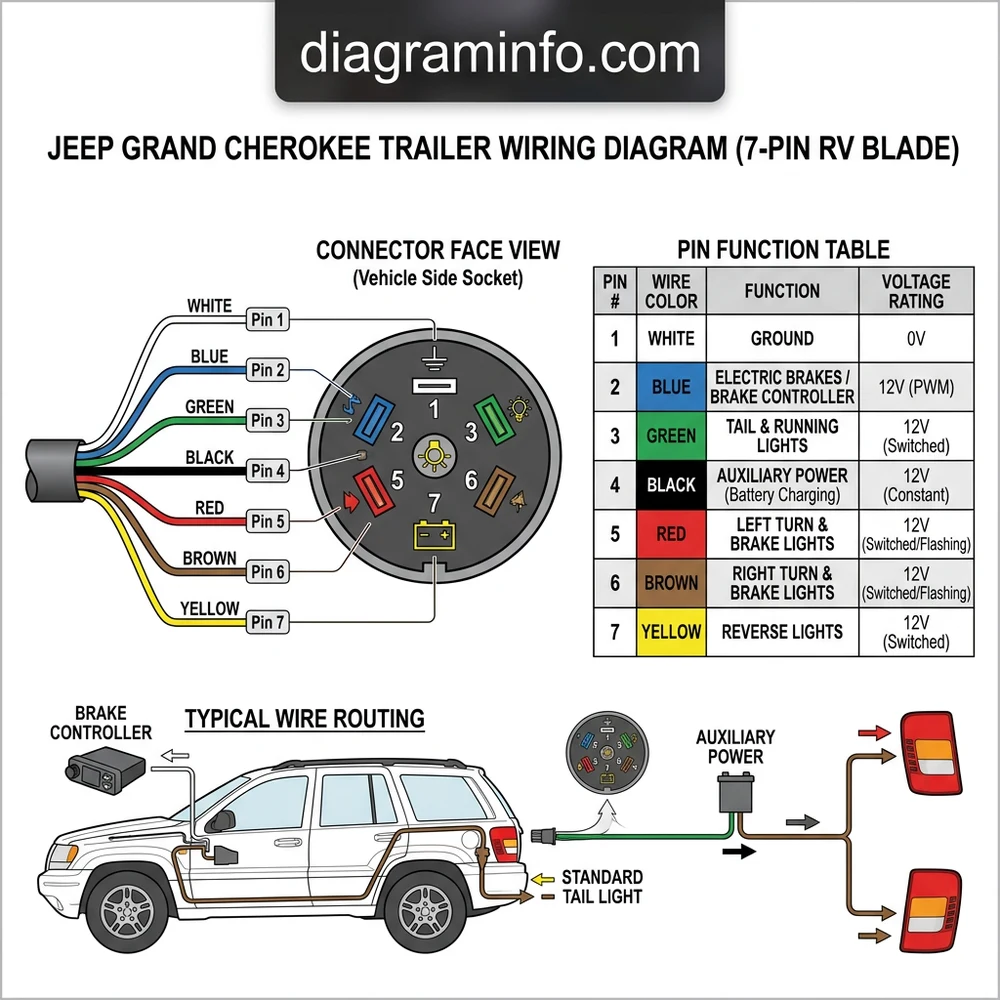

A typical Jeep Grand Cherokee 7-way trailer wiring diagram assigns pin 1 to ground (white), pin 2 to trailer brakes (blue), pin 3 to running lights (brown/black), pin 4 to auxiliary power (red/black), pin 5 to right turn/brake (green), pin 6 to left turn/brake (yellow), and pin 7 to reverse/auxiliary (purple).
📌 Key Takeaways
- Correct 7-way pin assignment is crucial: Pin 1 (White) is Ground, Pin 2 (Blue) is Electric Brakes, Pin 3 (Brown) is Tail/Running Lights.
- Always verify vehicle-side and trailer-side wire color standards; vehicle manufacturers like Jeep can vary, though trailer standards are more consistent.
- Ensure all connections are weatherproofed and secure to prevent corrosion and intermittent electrical faults, especially for auxiliary power lines.
- The most common failure point for trailer lights is poor ground connections or corroded terminals within the connector housing.
- Consult a certified technician if persistent electrical issues arise or if installing a brake controller involves complex vehicle system integration.
When equipping your Jeep Grand Cherokee for towing, understanding the intricacies of its trailer wiring system is paramount, especially when moving beyond basic lighting to trailers requiring electric brakes or auxiliary power. This guide focuses on the standard 7-way RV blade connector, the industry standard for heavier-duty towing applications. This connector provides dedicated circuits for all essential trailer functions, ensuring compliance and safety for your vehicle and towed equipment. Proper installation and identification of each circuit are critical for reliable trailer operation, preventing electrical failures and potential safety hazards on the road.
While a 4-flat connector is common for light-duty trailers, a 7-way RV blade connector is mandatory for trailers equipped with electric brakes or those requiring auxiliary power for charging onboard batteries or powering accessories. Most Jeep Grand Cherokees designed for significant towing capacity will have the necessary provisions for a 7-way connector, often as part of a factory tow package.
PIN ASSIGNMENT TABLE
The following table details the standard pin assignments for a 7-way RV blade type trailer connector, crucial for ensuring compatibility between your Jeep Grand Cherokee and the trailer. Adhering to these color codes and functions is essential for correct operation.
| Pin # | Wire Color (Common) | Function | Notes |
|---|---|---|---|
| 1 (Center) | White | Ground | Provides common ground for all trailer circuits. Essential for proper function. |
| 2 (1 o’clock) | Blue | Electric Brakes | Connects to the electric brake controller for activating trailer brakes. |
| 3 (11 o’clock) | Brown | Running Lights (Taillights, Marker Lights, Clearance Lights) | Powers all continuous-on lighting on the trailer. |
| 4 (7 o’clock) | Black | 12V Auxiliary Power/Battery Charge | Constant 12V power for accessories or charging trailer battery. Often fused. |
| 5 (5 o’clock) | Green | Right Turn Signal/Stop Light | Activates the right turn signal and right brake light on the trailer. |
| 6 (9 o’clock) | Yellow | Left Turn Signal/Stop Light | Activates the left turn signal and left brake light on the trailer. |
| 7 (3 o’clock) | Purple/Red | Reverse Lights/Auxiliary | Powers trailer reverse lights or can be used for other auxiliary functions. |
Always consult your specific Jeep Grand Cherokee’s owner’s manual or a factory service manual for precise wire color codes, as variations can occur between model years and regional specifications. Discrepancies between the vehicle’s harness and the trailer’s can lead to electrical shorts, component damage, or unsafe operation.
STEP-BY-STEP WIRING GUIDE
Properly wiring your Jeep Grand Cherokee for a 7-way RV blade trailer connector requires meticulous attention to detail. This guide assumes you are either connecting to an existing factory tow package harness or integrating an aftermarket kit. For Grand Cherokees without a factory tow package, additional steps involving direct battery connections and fuse panel integrations may be necessary for the auxiliary power and electric brake circuits.
- Isolate and Identify Vehicle Wires: Before making any connections, identify the corresponding wires on your Jeep Grand Cherokee’s tow harness. Utilize a multimeter to confirm wire functions, especially for turn signals and brake lights, as some older models or aftermarket harnesses might deviate slightly from universal color codes. Power the vehicle and activate each circuit (lights, turn signals, brake pedal) to verify voltage output on the correct wires.
- Prepare the Ground Circuit (Pin 1 – White Wire): The ground connection is the foundation of your trailer’s electrical system. Connect the white ground wire from the 7-way connector to a robust chassis ground point on your Jeep Grand Cherokee. Ensure this connection is clean, free of paint or corrosion, and secured with a star washer for optimal conductivity. A poor ground is a primary cause of intermittent trailer light issues.
- Connect Running Lights (Pin 3 – Brown Wire): Splice the brown wire from the 7-way connector into the vehicle’s running light circuit. This circuit should receive constant 12V power when the vehicle’s headlights or parking lights are active. Use appropriate heat-shrink butt connectors for a weather-tight and durable connection.
- Integrate Turn Signals and Stop Lights (Pin 5 – Green, Pin 6 – Yellow):
- Right Turn/Stop (Pin 5 – Green Wire): Connect the green wire from the 7-way connector to the Jeep’s right turn signal/stop light wire. This wire should show 12V pulsating with the right turn signal and constant 12V when the brake pedal is depressed.
- Left Turn/Stop (Pin 6 – Yellow Wire): Similarly, connect the yellow wire from the 7-way connector to the Jeep’s left turn signal/stop light wire. This wire will exhibit the same pulsating/constant voltage behavior for the left side.
For Grand Cherokees with combined turn/stop signals, these connections are typically straightforward. However, if your trailer uses separate turn and stop lights and your vehicle combines them, a trailer light converter module may be required.
- Wire the Electric Brake Circuit (Pin 2 – Blue Wire): This critical circuit connects directly to your electric brake controller. Route the blue wire from the 7-way connector forward through the vehicle’s chassis and firewall to the location of your brake controller. This wire serves as the output from the brake controller to activate the trailer’s electric brakes. For comprehensive details on selecting the appropriate brake controller for your Grand Cherokee, refer to our dedicated guide on brake controller integration.
- Establish Auxiliary Power (Pin 4 – Black Wire): The black auxiliary power wire typically provides a constant 12V supply, often used for charging a trailer’s onboard battery or powering interior lights and accessories. Connect this wire to a fused 12V power source on your Jeep Grand Cherokee, usually directly from the battery or a dedicated terminal in the fuse box, protected by an appropriately rated fuse (e.g., 20-30 amp). This circuit should only be live when the vehicle is running or has the ignition on to prevent draining the vehicle battery.
- Connect Reverse Lights/Auxiliary (Pin 7 – Purple/Red Wire): Connect the purple or red wire from the 7-way connector to the Jeep’s reverse light circuit. This provides 12V power when the vehicle is in reverse, activating trailer reverse lights. Alternatively, this pin can be repurposed for other auxiliary functions if reverse lights are not needed.
- Final Testing: After all connections are made, use a trailer wiring tester or connect your trailer to perform a comprehensive test. Verify each circuit: running lights, left and right turn signals, brake lights, reverse lights, and the function of the electric brakes via the brake controller.
For the 12V auxiliary power (black wire) and electric brake (blue wire) circuits, a minimum 10-gauge wire is typically recommended due to higher current demands. Lighting circuits (brown, green, yellow, purple/red) can often utilize 14-gauge or 16-gauge wire, while the ground (white wire) should ideally match the largest gauge wire used in the system, usually 10-gauge.
COMMON WIRING MISTAKES
Even experienced technicians can encounter common pitfalls when wiring trailer connectors. Awareness of these issues can save significant diagnostic time and prevent potential safety hazards.
- Inadequate Ground Connection: This is arguably the most prevalent issue. A poor ground connection (Pin 1 – White wire) can manifest as dim lights, flickering lights, or entire circuits failing. Ensure the ground connection to the vehicle chassis is clean, rust-free, and tightly secured.
- Incorrect Pin Assignment: Mismatching wire functions to the wrong pins is a critical error. For example, connecting the running lights to the brake light pin can cause constant illumination of brake lights. Always double-check wire colors and functions against the pin assignment table and verify with a multimeter before making final connections.
- Insufficient Wire Gauge: Using wires that are too thin for the current load can lead to voltage drop, overheating, and potential fire hazards. The 12V auxiliary power and electric brake circuits are particularly susceptible and require heavier gauge wire (typically 10-AWG). Refer to the specifications above for guidance.
- Corrosion and Poor Splices: Exposed or improperly sealed wire splices are prone to corrosion, especially in environments where road salt and moisture are prevalent. This degrades electrical conductivity. Always use heat-shrink butt connectors, solder, or other weather-resistant splicing methods, followed by electrical tape or liquid electrical tape for maximum protection.
- No Power to Auxiliary or Brake Controller: This often indicates a blown fuse in the vehicle’s fuse box or an improperly installed circuit. Many Grand Cherokee models require specific fuses or relays to be installed for the factory tow package to fully activate the 12V auxiliary and electric brake circuits. Check the vehicle’s fuse diagram for the relevant fuse locations.
- Incompatible Brake Controller: Not all brake controllers are universally compatible with every Grand Cherokee model or wiring harness. Ensure your brake controller is designed to work with your vehicle’s electrical system, especially with regard to low-voltage sensing or pulse-width modulated (PWM) brake signals. Understanding the nuances of vehicle electrical systems is crucial; explore our article on automotive electrical diagnostics for further insights.
FAQ
Do all Jeep Grand Cherokees come with factory trailer wiring?
No, not all Jeep Grand Cherokees are equipped with a full factory tow package, which includes the necessary wiring for a 7-way connector. Base models or those without the optional tow package typically come with only a 4-flat connector or no trailer wiring provisions at all. It is crucial to verify your specific vehicle’s configuration, often identifiable by checking for the presence of a factory hitch receiver and a pre-wired harness near the rear bumper.
Can I convert a 4-pin flat connector to a 7-way RV blade connector on my Grand Cherokee?
Yes, it is possible to convert from a 4-pin flat to a 7-way RV blade connector. However, this conversion typically requires more than just an adapter. To utilize functions like electric brakes and 12V auxiliary power, additional wiring must be routed from the vehicle’s battery and brake controller. Simple plug-and-play adapters usually only extend the existing 4-pin functions (running lights, turn signals, brake lights) and will not power electric brakes or auxiliary circuits. It often involves installing a dedicated 7-way harness kit.
What wire gauge should I use for connecting a brake controller to my Jeep Grand Cherokee?
For the electric brake circuit (blue wire) connecting from the brake controller to the 7-way connector, a 10-gauge wire is the industry standard recommendation. This gauge is capable of handling the current required by most electric trailer brakes without excessive voltage drop, ensuring optimal braking performance. For the 12V auxiliary power (black wire), 10-gauge is also recommended to support charging or powering onboard trailer accessories.
My trailer lights are dim or flickering, even with new bulbs. What could be the cause?
Dim or flickering trailer lights are almost invariably indicative of a poor ground connection (Pin 1 – White wire). A weak ground restricts the flow of current, causing voltage drop and reducing the brightness of the lights. Inspect the ground wire connection point on both the trailer and the Jeep Grand Cherokee for corrosion, looseness, or damage. Ensure the connection to the vehicle chassis is clean, metallic, and securely fastened.
How do I integrate a brake controller into my Grand Cherokee’s 7-way wiring?
Integrating a brake controller primarily involves connecting its output to the blue electric brake wire (Pin 2) of the 7-way connector. The brake controller itself requires connections to vehicle’s 12V power (typically fused directly from the battery), vehicle ground, and the vehicle’s brake light switch signal. Many Grand Cherokee models with factory tow packages include a pre-wired harness adapter or a specific connector under the dash for simpler brake controller installation. Consult your vehicle’s manual and the brake controller’s instructions for precise wiring specifics.
Step-by-Step Guide to Understanding the Jeep Grand Cherokee Trailer Wiring Diagram 2026: Wiring & Troubleshooting
Identify – Determine the specific trailer connector type (e.g., 7-way RV blade) and verify the wiring harness present on your Jeep Grand Cherokee.
Locate – Find the vehicle’s factory trailer wiring harness, usually near the rear bumper, and any pre-installed connectors or access points.
Reference – Consult the official Jeep Grand Cherokee trailer wiring diagram to match vehicle-side wire colors to trailer-side pin functions (ground, brakes, running lights, turn signal, auxiliary power).
Connect/Route – Securely connect the trailer wiring harness to the vehicle’s electrical system, routing wires safely away from exhaust or moving parts, ensuring weatherproof splices if not plug-and-play.
Verify – Test all trailer lights (running, brake, turn signals) and auxiliary functions using a trailer tester or a known-good trailer, checking each pin assignment.
Troubleshoot – If issues arise, check all fuses, ground connections, and continuity in the wiring. Address any common wiring mistakes like incorrect wire color matching or loose terminals.
Frequently Asked Questions
What is pin 1 on a jeep grand cherokee trailer wiring diagram?
Pin 1 on a typical Jeep Grand Cherokee 7-way trailer wiring diagram is consistently assigned as the Ground wire. This is crucial for completing all electrical circuits. It’s usually a white wire and connects to the trailer’s frame, providing a common return path for all trailer lights and electric brakes, ensuring proper functionality and safety.
What wire color is the brake wire on jeep grand cherokee trailer wiring diagram?
On a Jeep Grand Cherokee 7-way trailer wiring diagram, the electric brake wire is almost universally colored blue. This wire carries the signal from your brake controller to the trailer’s electric brakes, activating them proportionally to your vehicle’s braking. Correct connection is vital for safe towing, especially with an RV blade system.
Can I use jeep grand cherokee trailer wiring diagram without a brake controller?
You can use your Jeep Grand Cherokee trailer wiring for basic functions like running lights, turn signals, and brake lights without a separate brake controller. However, for trailers equipped with electric brakes (usually those over 1,500 lbs GVWR), a brake controller is legally required and essential for safe operation, providing proportional trailer braking.
What is the auxiliary pin on jeep grand cherokee trailer wiring diagram for?
The auxiliary power pin on a Jeep Grand Cherokee trailer wiring diagram (often red or black with a stripe) typically provides a constant 12V power supply to the trailer. This can be used for charging an RV blade battery, operating interior trailer lights when disconnected from the tow vehicle, or powering other accessories like a breakaway switch.
What causes trailer lights to not work with jeep grand cherokee trailer wiring diagram?
Common causes for non-functional trailer lights with a Jeep Grand Cherokee trailer wiring diagram include corroded or loose ground connections, faulty bulbs, blown fuses in the Jeep or trailer, damaged wiring, or a dirty/corroded trailer connector. Always check fuses first, then inspect all connections, especially the white ground wire and running lights circuit.
Is jeep grand cherokee trailer wiring diagram compatible with 4-pin adapters?
Yes, a Jeep Grand Cherokee trailer wiring diagram, especially with a 7-way connector, is compatible with 4-pin adapters. These adapters convert the more comprehensive 7-way signal into a standard 4-pin flat connector for simpler trailers. This allows the Jeep to tow trailers requiring only basic running lights, turn signals, and ground functions without needing electric brakes or auxiliary power.
