Golf Cart 36V Wiring Diagram: Wiring & Troubleshooting 2026
A 36V golf cart typically uses six 6-volt batteries connected in series. The positive terminal of one battery connects to the negative of the next, creating the cumulative voltage. The main positive and negative cables then connect to the solenoid and controller, providing power to the system. Verify all connections are tight.
📌 Key Takeaways
- A 36V golf cart system typically utilizes six 6-volt deep-cycle batteries connected in series.
- Crucially identify the main positive (usually red) and negative (usually black) cables from the battery bank to the solenoid and controller.
- Always disconnect the main battery pack’s negative terminal before performing any wiring or component maintenance for safety.
- The solenoid is a common failure point; a lack of audible click or power delivery often indicates a faulty solenoid or its control circuit.
- For complex controller diagnostics or motor repairs, seeking assistance from a certified golf cart technician is recommended over DIY.
This comprehensive guide is designed for professionals and experienced technicians. Always consult the specific Original Equipment Manufacturer (OEM) service manual for your golf cart’s make, model, and year before performing any electrical work. Wiring configurations can vary significantly between models, even within the same voltage system.
Understanding the intricacies of a golf cart 36v wiring diagram is paramount for effective maintenance, troubleshooting, and performance upgrades. This guide provides a detailed breakdown for common 36-volt golf cart systems, often found in Club Car, EZ-GO, and Yamaha models from specific production years. Accurate identification of wire colors, terminal connections, and current paths is critical for diagnosing electrical faults, replacing components such as the solenoid or controller, and ensuring the safety and longevity of your vehicle. Navigating these systems requires a precise approach, as incorrect wiring can lead to severe component damage or electrical hazards.
WIRE COLOR REFERENCE TABLE
The following table outlines common wire colors found in 36-volt golf cart systems. Note that specific colors and functions may vary by manufacturer and model year. Always cross-reference with your vehicle’s OEM wiring schematic.
| Wire Color | Function | Connect To | Notes |
|---|---|---|---|
| Red (Heavy Gauge) | Main Positive (+) | Battery Bank Positive, Solenoid Large Terminal (input) | Primary power feed from battery bank. |
| Black (Heavy Gauge) | Main Negative (-) | Battery Bank Negative, Controller B- Terminal | Primary ground path. |
| Blue (Heavy Gauge) | Controller Output (B+) | Solenoid Large Terminal (output), Controller B+ Terminal | Switched positive power to controller. |
| Yellow (Medium/Small) | Key Switch Output / Pedal Switch | Solenoid Small Terminal (+), Key Switch, Controller Activation | Activates solenoid upon key/pedal engagement. |
| White (Medium/Small) | Charger Receptacle Sense | Charger Port, OBC, Controller | Communicates charging status or interlock. |
| Green / Brown (Heavy) | Motor Field Windings | Controller (F1, F2), Forward/Reverse Switch | Connects to motor field windings for direction control. |
| Orange (Medium/Small) | Solenoid Coil Ground / Control | Solenoid Small Terminal (-), Controller Ground/Output | Completes the solenoid activation circuit. |
| Gray/Brown (Small) | Throttle Sensor Input | Controller (ITS, TPS), Pedal Assembly | Variable signal from throttle position sensor. |
COMPONENT CONNECTION GUIDE
Precision is key when connecting primary electrical components in a 36-volt golf cart. Referencing your specific golf cart 36v wiring diagram is crucial, as configurations can vary. The following steps detail common connection sequences for the solenoid, controller, On-Board Computer (OBC), and drive motor.
Solenoid Wiring
The solenoid acts as the main contactor, switching high current to the controller. It typically has two large terminals and two small activation terminals. As shown in the diagram:
- Large Terminal 1 (Input): Connect the heavy-gauge RED cable directly from the main positive terminal of your battery bank to this terminal. Ensure the connection is clean and tight.
- Large Terminal 2 (Output): Connect a heavy-gauge BLUE or RED cable from this terminal to the B+ terminal on your motor controller. This supplies switched positive voltage to the controller.
- Small Terminal 1 (Activation Positive): Connect the YELLOW wire originating from the key switch and/or pedal switch microswitch to this terminal. This provides 36V when the key is on and pedal is depressed.
- Small Terminal 2 (Activation Negative): Connect the ORANGE wire. This typically goes to the controller’s solenoid activation output or directly to battery negative if controlled solely by the pedal switch. Modern systems often use the controller to switch the negative side of the solenoid coil.
- Diode/Resistor Installation: A diode (band towards positive, typically parallel to small terminals) and/or a resistor (in series with small terminals) may be present. These protect the control circuit from voltage spikes. Always replace them as per OEM specifications if removed or damaged.
Incorrect solenoid wiring, especially regarding the diode or resistor, can lead to premature solenoid failure or damage to the controller. Always ensure the diode’s band (cathode) faces the positive activation terminal.
Controller Wiring
The motor controller is the brain of the drive system, regulating power to the motor based on throttle input. Consult your controller’s specific pinout diagram.
- B+ Terminal: Connect the heavy-gauge BLUE or RED cable from the output side of the solenoid.
- B- Terminal: Connect the heavy-gauge BLACK cable from the main negative terminal of the battery bank.
- Motor Connections (A1, A2, F1, F2): For series motors, A1 and A2 are armature connections, F1 and F2 are field connections. For shunt (regen) motors, these are often labeled S1, S2, A1, A2. Connect heavy-gauge cables to the corresponding motor terminals. The forward reverse switch typically reconfigures the field windings.
- Throttle Input: Connect the throttle sensor (ITS, Potentiometer, or Hall Effect) wires to the designated terminals (e.g., A, B, C for a 3-wire potentiometer or 1, 2 for ITS). This signal dictates motor speed.
- Solenoid Activation Output: If the controller switches the solenoid, connect the ORANGE wire from the solenoid’s small negative terminal to the controller’s activation output.
- Run/Tow Switch: Connect the run tow switch wires to the designated controller terminals. This switch isolates the controller from the battery for safe maintenance.
On-Board Computer (OBC) / Charger Port Wiring
The OBC manages the charging process and often prevents the cart from running while charging. It integrates with the charger port.
- Battery Positive/Negative: Connect the OBC directly to the main positive and negative terminals of the battery bank via appropriately fused lines.
- Charger Port: The OBC interfaces with the charger port via specific signal wires (e.g., sense wire). This allows the charger to “talk” to the OBC, monitoring battery state and preventing overcharging.
- Controller Interlock: In some systems, the OBC sends a signal to the controller to disable the drive system when the charger is plugged in, preventing accidental operation.
Motor Wiring
The electric drive motor receives power from the controller. Motor types (series vs. shunt/regen) dictate specific terminal configurations.
- Armature (A1, A2): Connect the heavy-gauge cables from the controller’s A1 and A2 terminals to the motor’s armature terminals.
- Field (F1, F2 or S1, S2): Connect the heavy-gauge cables from the controller’s F1 and F2 (or S1, S2) terminals to the motor’s field terminals. These connections, often routed through the forward reverse switch, determine motor direction.
- Terminal Identification: Always verify terminal labels on the motor itself. Incorrect connection of armature and field windings can result in motor damage or unexpected operation.
According to OEM specifications for typical 36V golf carts, all high-current cables (battery to solenoid, solenoid to controller, controller to motor) should be a minimum of 4-gauge, with 2-gauge or 0-gauge recommended for higher performance or sustained operation to minimize voltage drop and heat generation. Torque large terminal nuts to 90-110 in-lbs (10.2-12.4 Nm) unless otherwise specified by the manufacturer.
COMMON WIRING PROBLEMS & FIXES
Electrical issues in a 36-volt golf cart often stem from improper connections, corroded terminals, or component failure. Here are common problems and their diagnostic approaches:
1. No Power / Cart Does Not Move
- Diagnosis: Begin by checking the main battery bank voltage. A fully charged 36V system should read around 38.2V to 38.6V (6.37-6.43V per battery). Verify continuity through the main fuse (if present) and ensure all battery terminals are clean and tight.
Check for solenoid activation. When the key is on and the pedal is pressed, you should hear an audible “click” from the solenoid. If not, test for 36V at the small activation terminals of the solenoid. If voltage is present but no click, the solenoid coil is likely faulty. If no voltage, trace back through the key switch, pedal microswitch, and run tow switch.
- Fix: Replace corroded terminals or faulty fuses. If the solenoid does not click with activation voltage, replace the solenoid. Repair or replace open circuits in the key switch or pedal switch pathways.
2. Intermittent Operation / Loss of Power Under Load
- Diagnosis: This often indicates poor connections or failing components that degrade under stress. Inspect all heavy-gauge cables for signs of corrosion (green or white powder), fraying, or loose connections, particularly at the battery bank, solenoid, and controller. Voltage drop testing across individual cables under load can pinpoint a high-resistance connection. A failing controller wiring harness or motor connection can also cause this.
According to diagnostic procedures, measure voltage across battery terminals while accelerating. If a significant voltage drop (more than 1.5V) occurs across a single battery, that battery may be failing. Also, inspect the condition of the main contactor within the solenoid, as pitted contacts can cause intermittent connection.
- Fix: Clean and tighten all terminal connections. Replace any visibly damaged or corroded cables. If a battery is failing, consider replacing the entire battery bank for optimal performance, as mixing old and new batteries is not recommended. Replace solenoids with pitted contacts.
3. Charging Issues / Batteries Not Fully Charging
- Diagnosis: The charger port and On-Board Computer (OBC) are primary suspects. First, ensure the charger itself is functional by testing its output voltage. Verify the charger port receptacle is clean and that the charger plug makes good contact.
For systems with an OBC (common in Club Car), check the OBC’s internal fuse. The OBC senses battery voltage and controls the charging cycle. If the OBC is faulty, it may prevent charging or terminate it prematurely. You can often bypass the OBC for a quick test (consult OEM guidance for safe procedures) to see if the charger functions directly.
- Fix: Clean or replace a corroded charger port. Replace faulty OBCs or internal OBC fuses. Ensure proper connection of the OBC to the battery bank and the charger port. For comprehensive battery maintenance, refer to our guide on Golf Cart Battery Maintenance Best Practices.
4. Forward/Reverse Malfunction
- Diagnosis: The forward reverse switch (mechanical or electronic) is responsible for changing motor direction by reconfiguring the field windings.
For mechanical switches, physically inspect the switch for burnt contacts, loose connections, or mechanical binding. Use a multimeter to test continuity through the switch in both forward and reverse positions, ensuring all contacts are making proper connection. For electronic F/R (often integrated into the controller), check the switch input signals to the controller. An issue here might suggest a controller fault or wiring to the switch.
- Fix: Clean or replace a faulty mechanical forward reverse switch. Repair or re-secure loose connections. If the issue persists with a known good mechanical switch, a controller diagnosis may be required.
FAQ
What is the primary difference between a 36 volt system and a 48 volt system in terms of wiring?
While the fundamental principles of current flow remain similar, the key difference lies in the number of batteries and the voltage thresholds for all components. A 36 volt system typically uses six 6-volt batteries, while a 48 volt system may use eight 6-volt batteries or six 8-volt batteries. This impacts the voltage ratings of the solenoid, controller, and charger. OEM specifications indicate that a 48V system generally allows for higher torque and speed due to increased power output, but requires components specifically designed for the higher voltage. Never interchange 36V and 48V components without proper conversion protocols, as this will lead to immediate damage. For detailed conversion information, consult our article on Converting a 36V Golf Cart to a 48V System.
How do I test a solenoid to determine if it’s faulty?
To test a solenoid wiring circuit, first ensure the run tow switch is in the RUN position and the batteries are charged. Engage the key switch and press the accelerator pedal. Listen for an audible “click” from the solenoid. If no click is heard, use a multimeter:
1. Check for full pack voltage (approx. 36V) across the two small activation terminals.
2. If voltage is present and the solenoid doesn’t click, the coil is faulty, and the solenoid needs replacement.
3. If it clicks but the cart doesn’t move, check for full pack voltage across the two large terminals when activated. If there’s a significant voltage drop (more than 1V) across the large terminals, the internal contacts are likely pitted, and the solenoid requires replacement. This diagnostic aligns with standard automotive electrical troubleshooting.
What role does the On-Board Computer (OBC) play in a 36V golf cart’s charging process?
The OBC serves as the intermediary between the external charger and the golf cart’s battery bank. Its primary functions, as observed in OEM designs like those from Club Car, include monitoring the battery voltage and temperature, controlling the charging cycle (determining when to start and stop charging), and often acting as an interlock to prevent the cart from operating while the charger is connected. It communicates with the charger via the charger port to optimize battery health and prevent overcharging or undercharging, which can extend battery life.
Can issues with the run/tow switch affect the entire electrical system?
Absolutely. The run tow switch is a critical safety and maintenance component. When in the “TOW” position, it completely disconnects the controller from the battery bank, isolating the electrical system. If the switch develops an internal fault (e.g., corroded contacts, open circuit), it can prevent power from reaching the controller even when in the “RUN” position. This would result in a “no go” condition despite all other components being functional. Always verify continuity through the run/tow switch as part of your initial electrical troubleshooting steps. For more complex diagnostics of auxiliary systems, consult our guide on Golf Cart Accessory Wiring.

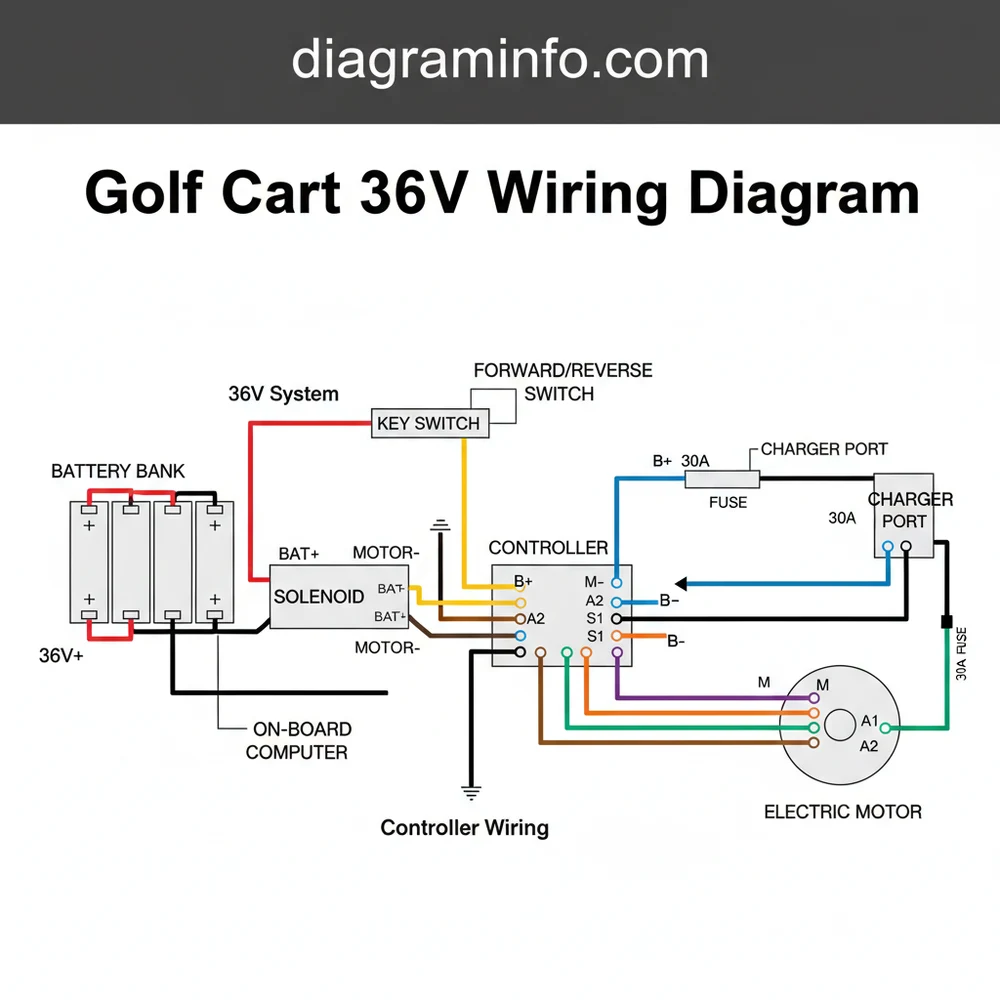

Step-by-Step Guide to Understanding the Golf Cart 36V Wiring Diagram: Wiring & Troubleshooting 2026
Identify – All major components: battery bank, solenoid, controller, motor, forward/reverse switch, and accelerator pedal switch.
Locate – The main positive and negative terminals of the 36V battery bank and the corresponding connection points on the solenoid and controller.
Reference – The provided golf cart 36V wiring diagram to trace the current paths for both high-current power and low-current control circuits.
Connect/Route – All wiring according to the diagram, ensuring proper polarity, secure terminals, and adequate insulation for all connections.
Verify – Continuity and correct voltage at critical points (e.g., battery output, solenoid input/output, controller power) using a multimeter before full system operation.
Troubleshoot – Any issues by systematically checking components and connections against the diagram, paying close attention to common failure points like the solenoid or pedal switch.
Frequently Asked Questions
What is the standard voltage for a 36V golf cart system?
A 36V golf cart system operates at a nominal 36 volts, typically achieved by connecting six 6-volt batteries in series. This configuration ensures consistent power delivery to the motor, controller, and other electrical components. Maintaining proper battery charge and connections is crucial for optimal performance.
How are wire colors typically used in a 36V golf cart wiring diagram?
Wire colors vary by manufacturer, but common conventions include thick red for main positive, thick black for main negative, and smaller gauges for control circuits (e.g., green for throttle, blue for reverse, white for ignition). Always refer to your specific golf cart’s diagram for accurate identification.
How do I troubleshoot a 36V golf cart that won’t run?
Start by checking the battery pack voltage; ensure it’s fully charged. Inspect all main power cables for corrosion or loose connections. Test the solenoid for clicking, indicating it’s engaging. Then, check the controller for fault codes or signs of damage. Lastly, verify the throttle sensor function.
How is the solenoid typically wired in a 36V golf cart system?
The 36V golf cart solenoid acts as a high-current relay. It has two large terminals for battery pack positive and controller/motor power, and two small terminals for the activation coil (often from the key switch, pedal switch, and controller). When activated, it closes, allowing full battery power to flow.
How many batteries are in a typical 36V golf cart system?
A standard 36V golf cart system typically utilizes six 6-volt deep-cycle batteries. These batteries are connected in series, meaning the positive terminal of one battery connects to the negative terminal of the next, summing their individual voltages to reach the desired 36-volt output.
What gauge wire is typically used in a 36V golf cart wiring system?
For main power circuits in a 36V golf cart, 4-gauge or 2-gauge wire is commonly used, depending on motor size and current draw, to minimize voltage drop and heat. Smaller control wires, such as for the throttle or switches, typically range from 16 to 22 gauge.
