The Cub Cadet XT1 belt diagram illustrates the specific routing for both deck and drive belts. The drive belt connects the engine to the transaxle. The deck belt routes from the PTO clutch to the mower deck spindle pulleys via idlers. Correctly follow the diagram’s arrowed path, ensuring all pulleys are properly engaged and tension is set.
📌 Key Takeaways
- Always use the exact OEM or equivalent belt part numbers (e.g., specific Cub Cadet numbers for drive and deck belts) for optimal fit and performance.
- Proper belt routing path around all pulleys, including idler pulleys and the belt tensioner, is crucial for preventing slippage and premature wear.
- Maintain correct belt tension, typically ensuring 1/2 to 1 inch of deflection, to avoid damage to pulleys or loss of power transmission.
- The most common failure point is worn or cracked belts, often due to improper tension or misaligned pulley diagram components.
- Seek professional help if you encounter persistent routing issues, difficulty with tension adjustment, or if significant component replacement beyond the belt is required.
The integrity of your Cub Cadet XT1 riding lawn mower’s operational efficiency hinges significantly on the correct routing of its drive and deck belts. Understanding the precise Cub Cadet XT1 belt diagram is not merely about replacing a worn component; it ensures optimal power transfer, prevents premature wear on pulleys and bearings, and maintains consistent cutting performance. This guide provides a detailed breakdown for mechanics and experienced equipment owners, covering identification, routing, and critical adjustment parameters for the various belt systems on your XT1 series tractor. Accurate belt installation, as dictated by the OEM diagram, is paramount for safety and longevity.
BELT PART NUMBERS
Identifying the correct OEM belt part number and specifications is crucial for maintaining the operational integrity and performance of your Cub Cadet XT1. While aftermarket belts may be available, manufacturer specifications dictate the precise dimensions, material composition, and flexibility required for optimal power transfer and longevity within the system. Refer to the table below for common Cub Cadet XT1 series belt specifications. Always verify the specific part number against your model’s owner’s manual or Cub Cadet’s official parts portal, as variations exist based on deck size and sub-model year.
| Belt Type | OEM Part # | Dimensions (Width x Length) | Compatible XT1 Models (Example) |
|---|---|---|---|
| Drive Belt | 954-04282 / 954-04282A | 1/2″ x 90.7″ | XT1 LT42, XT1 LT46 |
| 42″ Deck Belt | 954-04207A | 1/2″ x 103.7″ | XT1 LT42 (various sub-models) |
| 46″ Deck Belt | 954-04209A | 1/2″ x 106.75″ | XT1 LT46 (various sub-models) |
| 50″ Deck Belt | 954-04219A | XT1 LT50 (various sub-models) |
OEM belts are manufactured to strict specifications regarding chord material (e.g., Kevlar), rubber compound, and angle. This ensures proper grip, heat dissipation, and resistance to stretching, leading to a significantly longer service life and consistent power delivery compared to many generic aftermarket alternatives. For optimal performance and longevity, always utilize genuine Cub Cadet replacement belts.
STEP-BY-STEP ROUTING INSTRUCTIONS
Accurate belt routing is critical for the proper function of your Cub Cadet XT1, affecting everything from drive traction to consistent blade speed for the deck engagement. Refer to the Cub Cadet XT1 belt diagram provided, noting the specific paths for both the drive belt (motion drive) and the mower deck belt.
Understanding the Diagram:

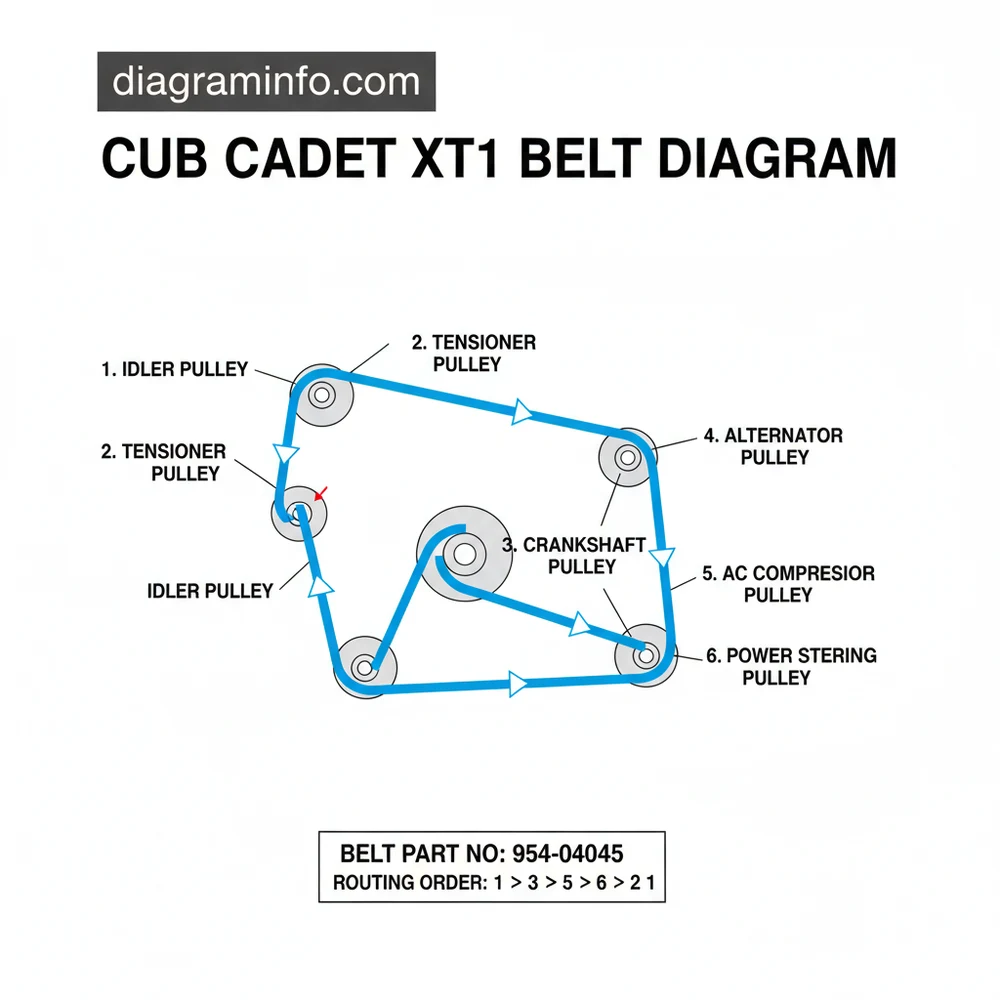

The provided diagram illustrates the sequence and orientation of the belts around various pulleys. Pulleys are typically identified by numbers or letters. Arrows often indicate the direction of belt travel or engagement. Observe whether the belt rides on the flat side of a pulley (backside idler) or within the groove.
I. Drive Belt Routing (Motion Drive System):
The drive belt transmits power from the engine to the transaxle, propelling the mower.
1. Preparation: Disengage the PTO, set the parking brake, and remove the mower deck for unimpeded access to the drive system. You may also need to remove any protective shields or covers.
2. Engine Pulley: Begin routing the V-side of the new drive belt onto the lower groove of the engine’s double-groove pulley. This is the primary power source.
3. Front Idler Pulley (Stationary): From the engine pulley, guide the belt rearward to the stationary idler pulley located forward of the transaxle. The V-side of the belt should engage this pulley.
4. Tensioner Pulley Assembly: The belt then proceeds to the tensioner pulley assembly. This assembly typically includes one or two idler pulleys, one of which is connected to a tension spring. Route the belt around the V-side of the movable tensioner pulley(s), ensuring the belt is correctly seated within the grooves. Note that on some XT1 models, a backside idler pulley may be part of this assembly, requiring the belt to ride on its flat side.
5. Transmission Pulley (Transaxle Input Pulley): Finally, route the belt onto the input pulley of the transaxle. Ensure the V-side of the belt is securely seated in the transaxle pulley’s groove.
6. Tension Application: Release the tensioner mechanism (if compressed during installation) or re-engage the spring. The belt tensioner will automatically apply the necessary tension. Double-check that the belt is fully seated in all pulley grooves and that no twists or kinks are present along the entire belt routing path.
II. Mower Deck Belt Routing (e.g., 42-inch deck):
The deck belt transmits power from the PTO clutch to the mower blades.
1. Preparation: Ensure the deck is completely removed from the tractor for clear access. Remove any belt covers from the deck shell.
2. PTO Pulley (on Tractor): For initial installation or complete replacement, the deck belt first engages the PTO clutch pulley extending from the engine directly beneath the chassis. This is the power input for the deck.
3. Deck Input Pulley (Mule Drive/Primary): The belt runs from the PTO pulley to the main input pulley on the deck. This is often an adjustable idler pulley or part of the deck’s primary belt guide.
4. Idler Pulleys (Deck): From the deck input, the belt will wrap around a series of idler pulleys. These idlers, both grooved and backside (flat), are crucial for maintaining tension and guiding the belt path. Pay close attention to whether the V-side or flat side of the belt contacts each idler, as indicated on the pulley diagram. Incorrect routing here is a common cause of belt slippage or dislodgement.
5. Spindle Pulleys: The belt then wraps around the individual spindle pulleys, which drive the cutting blades. For a two-blade deck, the belt typically goes from an idler to one spindle, then to another idler, then to the second spindle, forming a figure-eight or serpentine path depending on the design. For three-blade decks, the path becomes more complex, incorporating additional idlers to drive all three spindles simultaneously.
6. Final Tension Check: Once routed, confirm the belt is seated in all pulley grooves. The deck’s tensioning system (often spring-loaded idlers) will automatically apply the correct tension once the deck is engaged or when the PTO lever is activated. Manually rotate the blades to confirm free movement and proper belt travel without binding.
Before performing any belt inspection or replacement, ensure the engine is off, the spark plug wire is disconnected to prevent accidental starting, and the parking brake is engaged. Moving components can cause severe injury.
TENSION & ADJUSTMENT NOTES
Correct belt tension is indispensable for both the drive and deck systems of your Cub Cadet XT1. Insufficient tension leads to belt slippage, excessive heat generation, reduced power transfer, and premature belt wear. Conversely, excessive tension can overstress bearings in pulleys and the transaxle, causing accelerated component failure. According to OEM specifications, both systems utilize automatic tensioning mechanisms, primarily spring-loaded idler pulleys or a spring-assisted deck engagement lever.
Checking Drive Belt Tension:
The drive belt tension is largely non-adjustable in a conventional sense; it relies on the integrity of the tensioner spring and associated idler pulley components. Visually inspect the drive belt’s path. When the tractor is in neutral and the engine off, the belt should feel firm, not slack. The tensioner spring should be intact and fully extended when the belt is disengaged, and compressed appropriately when engaged. If you observe the belt sagging significantly or detect excessive play, inspect the tensioner spring for elongation or breakage, and check the idler pulley bearing for wear or seizure. A worn idler pulley can prevent proper tensioning.
Checking Mower Deck Belt Tension:
Similar to the drive belt, the deck belt’s tension is maintained by spring-loaded idler pulleys. When the PTO is disengaged, the deck belt should have some slack, allowing the blades to remain stationary. When the PTO is engaged, the tensioner arm moves, drawing the belt taut around the spindle pulleys. The belt should be firm to the touch, without excessive deflection. If the blades slip during cutting or fail to engage crisply, investigate the deck belt tension. Common issues include:
Worn Belt: An old, stretched belt will not hold tension effectively.
Weakened Tensioner Spring: Over time, the tensioner spring can lose its elasticity, failing to provide adequate force.
* Seized Idler Pulley: If an idler pulley is seized, it prevents the tensioner arm from moving freely, leading to improper tension. Refer to relevant service manuals for detailed instructions on checking spring tension and idler pulley free play. Regularly inspecting these components as part of your routine engine maintenance schedules can prevent unexpected failures.
While specific belt deflection measurements are not typically provided for automatic tensioning systems, a general rule of thumb is that with moderate thumb pressure (approx. 10 lbs), the belt should deflect no more than 1/2 inch at its longest span. This is a visual aid and not a precise measurement; always prioritize the proper function of the tensioner spring and idlers.
FAQ
Why does my Cub Cadet XT1 belt keep coming off?
Multiple factors can cause a belt to repeatedly dislodge from its path. The most common reasons include incorrect belt routing (e.g., the belt riding on the flat side of a grooved pulley), a stretched or worn-out belt that has lost its tensioning capacity, or worn pulley flanges allowing the belt to jump off. Additionally, a failing tensioner spring or a seized idler pulley can prevent proper tension, leading to slippage. Worn PTO clutch components can also affect deck belt stability. Ensure all belt guides and retainers are present and correctly positioned.
What is the difference between an OEM belt and an aftermarket belt for my Cub Cadet XT1?
OEM (Original Equipment Manufacturer) belts are engineered specifically for your Cub Cadet XT1 model, designed to meet precise specifications regarding material composition, dimensions, and load capacity. They often feature high-strength cords (like Kevlar) and specialized rubber compounds for optimal grip, heat resistance, and flexibility. Aftermarket belts, while often more affordable, may vary in quality, material, and manufacturing tolerances. While some aftermarket belts perform adequately, many may not offer the same longevity or precise fit, potentially leading to premature wear, slippage, or inconsistent performance. Always prioritize OEM belts for critical applications to ensure reliable operation and avoid issues that could void warranties or damage other components.
How often should I replace the belts on my Cub Cadet XT1?
The replacement interval for your Cub Cadet XT1 belts is highly dependent on usage, operating conditions, and maintenance. There isn’t a fixed hour count; instead, replacement should be based on inspection. Look for signs of wear such as cracking, fraying, glazing (a shiny, hardened surface), stretching, or missing sections. Belts that squeal excessively or slip under load are indicators of impending failure. Generally, with moderate use, inspecting belts annually or every 50-100 operating hours is a good practice. Proactive replacement of worn belts can prevent breakdowns during critical operation periods and reduce potential damage to other components.
Can I use a different size belt if the exact OEM belt is unavailable?
No, using a belt that deviates from the manufacturer’s specified dimensions (length and width) is strongly discouraged. A belt that is too long will lack proper tension, leading to slippage, excessive heat, and accelerated wear. A belt that is too short will be difficult or impossible to install, and if forced, will create excessive tension, overstressing pulleys, bearings, and potentially causing premature failure of the PTO clutch or transaxle. The belt’s profile (V-belt angle) must also match the pulley grooves precisely. Always refer to your Cub Cadet XT1’s owner’s manual or parts diagram for the exact belt part number and dimensions to ensure proper function and longevity.
How do I differentiate between various pulleys on my Cub Cadet XT1 belt diagram?
On a typical Cub Cadet XT1 belt diagram, pulleys are usually identified by their function or location. The “Engine Pulley” is the primary drive pulley attached directly to the engine’s crankshaft. The “Transmission Pulley” or “Transaxle Pulley” is the input pulley for the drive system. “Idler Pulleys” are non-powered pulleys that guide the belt and, if spring-loaded, provide tension; they can be “grooved” (V-side contact) or “backside” (flat-side contact). “Spindle Pulleys” are located on the mower deck and directly drive the cutting blades. The “PTO Pulley” (Power Take-Off) is the pulley that engages the deck belt, typically located under the tractor chassis. Referencing these key identifiers alongside your specific model’s Cub Cadet XT1 belt diagram is essential for correct interpretation. For further diagnostic information, explore resources on PTO clutch diagnostics.
Step-by-Step Guide to Understanding the Cub Cadet Xt1 Belt Diagram: Proper Routing & Maintenance 2026
Identify – Locate your specific Cub Cadet XT1 model number and serial number, typically under the seat or on the frame for accurate part identification.
Locate – Find the official belt routing diagram for your XT1 model in the owner’s manual, a service manual, or on a sticker affixed to the mower’s chassis (often under the hood or near the deck).
Reference – Carefully compare the diagram’s pulley layout to the actual system on your mower, noting the precise path around the engine, PTO clutch, spindle, and all idler pulleys.
Route – Carefully thread the new belt according to the diagram’s arrowed path. Ensure the belt sits correctly and deeply within all V-grooves and runs flat against any flat idler pulleys.
Verify – Double-check the entire belt routing path against the diagram from multiple angles, ensuring there are no twists, kinks, or incorrect wraps around any tensioner or pulley.
Troubleshoot – If the belt slips, makes unusual noises, or appears improperly tensioned during initial operation, immediately re-check the routing, pulley alignment, and confirm the correct belt part number was installed before continuing use.
Frequently Asked Questions
What is the part number for the cub cadet xt1 belt diagram?
Cub Cadet XT1 models have varying belt part numbers based on deck size and year. Common examples include 754-04284 (drive belt) and 754-04077B (42-inch deck belt). Always consult your specific XT1 owner’s manual or use the Cub Cadet parts lookup with your tractor’s serial number for exact identification.
How do I route the cub cadet xt1 belt diagram correctly?
To correctly route the Cub Cadet XT1 belt, refer to the printed diagram often found under the hood or in the owner’s manual. Ensure the belt follows the arrowed path, wrapping around all engine, PTO, spindle, and idler pulleys. Confirm the V-side of the belt sits in V-grooves and the flat side against flat idlers.
What size belt does cub cadet xt1 belt diagram use?
Cub Cadet XT1 models use specific belt sizes for the drive and deck, varying by model year and deck width. For example, a 42-inch deck belt might be 98 inches long and 1/2 inch wide. The drive belt will be different. Always consult your XT1 owner’s manual or a verified parts list for precise dimensions.
How do I adjust belt tension on cub cadet xt1 belt diagram?
Cub Cadet XT1 deck belt tension is typically self-adjusting via spring-loaded idler pulleys, not manually adjustable. For the drive belt, minor tension adjustments might be possible at a specific bolt near the engine or transaxle. The primary method for correct tension is ensuring the right belt is properly routed and all idler pulleys function freely.
What causes the cub cadet xt1 belt diagram belt to slip?
Cub Cadet XT1 belt slippage is commonly caused by worn, stretched, or glazed belts that have lost their grip. Other factors include incorrect belt tension (too loose), seized or worn idler pulleys failing to apply proper tension, debris caught in the pulley grooves, or misaligned pulleys. Inspect all these components for effective troubleshooting.
Can I replace the cub cadet xt1 belt diagram belt myself?
Yes, replacing the Cub Cadet XT1 belt is a common DIY task. You’ll need basic tools like wrenches, a socket set, and potentially a floor jack. Always disconnect the spark plug wire for safety, refer to your model’s specific belt diagram for routing, and ensure proper tension. Take photos before disassembly for easier reassembly.
