Brake Booster Check Valve Diagram: Testing and Replacement

Understanding the vacuum system in your vehicle is essential for maintaining safe braking performance and engine efficiency. When your brake pedal feels unexpectedly stiff or requires excessive pressure to stop the car, a faulty check valve is often the primary culprit. Accessing a clear brake booster check valve diagram allows you to pinpoint this small but critical component, saving you hours of guesswork and expensive diagnostic fees. This guide provides a detailed visual breakdown of the assembly, explains how the valve interacts with engine vacuum, and offers a step-by-step approach to testing and replacing the part.

Interpreting the Brake Booster Check Valve Diagram

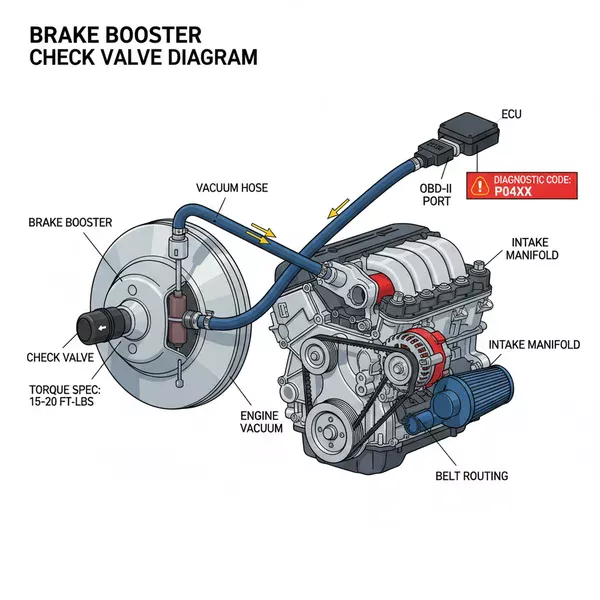

The brake booster check valve diagram typically illustrates the connection between the intake manifold of the engine and the large, circular brake booster drum located on the driver-side firewall. In most automotive configurations, the diagram features several key elements that must be understood to diagnose a failure effectively. At the center is the check valve itself, usually a small plastic elbow or straight fitting that presses directly into a rubber grommet on the face of the booster.

The diagram will show the vacuum supply line, which is a reinforced rubber hose running from the intake manifold to the valve. In modern vehicles, this line may also interact with sensors that report data back to the ECU (Engine Control Unit). While the check valve is a mechanical component, a leak here can cause the ECU to struggle with fuel trim adjustments, as the engine is sucking in “unmetered” air that has bypassed the mass airflow sensor.

Visual breakdowns often highlight the internal components of the valve, including a spring-loaded diaphragm or a simple plastic plunger. The diagram indicates the direction of flow; air should only move from the brake booster toward the engine. If the diagram shows a “T” junction, this may lead to other vacuum-operated accessories, though most modern designs isolate the braking system for safety. Variations exist between naturally aspirated engines and turbocharged models. In turbocharged vehicles, the brake booster check valve diagram may include an additional vacuum pump, as turbochargers create positive pressure (boost) in the manifold, which would otherwise neutralize the vacuum needed for braking assistance.

Step-by-Step Guide to Using the Diagram for Replacement

Reading a brake booster check valve diagram is the first step toward a successful DIY repair. To translate the diagram into action, follow these structured steps to ensure the vacuum integrity of your braking system is restored.

• ✓ Step 1: Locate the Component – Open your hood and identify the brake booster, which is the large black canister behind the master cylinder. Use your diagram to find the exact entry point of the vacuum hose.
• ✓ Step 2: Inspect the Vacuum Hose – Before removing the valve, check the hose for cracks or brittleness. Unlike a robust timing chain, vacuum hoses are made of soft rubber that degrades over time due to engine heat.
• ✓ Step 3: Remove the Valve – Use pliers to slide back the hose clamp. Gently twist and pull the valve out of the rubber grommet. Be careful not to tear the grommet, as this provides the airtight seal for the booster.
• ✓ Step 4: The Directional Test – Perform a “blow test” on the old valve. You should be able to blow air through the side that connects to the booster, but no air should pass through from the engine side. This confirms the one-way functionality shown in your diagram.
• ✓ Step 5: Replace the Grommet – If your kit includes a new rubber grommet, pry the old one out with a flathead screwdriver. Lubricate the new grommet with a tiny amount of silicone spray to help it seat properly.
• ✓ Step 6: Install the New Valve – Press the new valve into the grommet until it clicks or seats firmly. Reattach the vacuum hose and secure the clamp.
• ✓ Step 7: System Check – Start the engine and listen for any hissing sounds. Pump the brake pedal; it should feel soft and responsive once the engine generates sufficient vacuum.

Common Issues and Troubleshooting

When the check valve fails, the symptoms are usually immediate and noticeable. The most frequent problem is a “hard pedal” condition. Because the check valve is no longer holding vacuum, the booster cannot provide the mechanical advantage needed to press the master cylinder pistons. If you consult your brake booster check valve diagram, you can see that any break in this vacuum seal—whether at the valve, the hose, or the grommet—effectively turns your power brakes into manual brakes.

Another common issue is a rough engine idle. Since the vacuum hose is connected directly to the intake, a leak at the check valve acts as a vacuum leak for the engine. This often triggers a check engine light on your dashboard. When you use an OBD-II scanner, you might see a diagnostic code related to a “lean” fuel mixture (such as P0171 or P0174). The ECU detects that there is too much air and not enough fuel, but it cannot see the physical crack in your check valve housing. By using the diagram to inspect every connection point, you can differentiate between a complex engine sensor failure and a simple five-dollar plastic valve failure.

Tips and Best Practices for Maintenance

Maintaining your vacuum system is just as important as monitoring your coolant flow or checking your oil levels. To ensure long-term reliability, periodically inspect the area around the brake booster. Heat is the primary enemy of the check valve and its associated hoses. Over years of operation, the constant temperature cycles near the engine block can make the plastic valve brittle.

When performing other major maintenance, such as replacing an accessory belt or a timing chain, take a moment to look at your vacuum lines. These components are often disturbed during larger repairs. Ensure that the vacuum hose is routed away from moving parts and high-heat areas like the exhaust manifold. If you are tightening any bolts nearby, always refer to the manufacturer’s torque spec; over-tightening nearby brackets can sometimes pinch vacuum lines, leading to intermittent braking assist issues.

Additionally, pay attention to your coolant flow and heater hoses. In many engine bays, the heater core hoses run very close to the brake booster. A small coolant leak can spray hot pressurized liquid onto the check valve grommet, causing the rubber to swell and eventually fail. Keeping the engine bay clean and the hoses properly routed according to your specific brake booster check valve diagram will extend the life of your braking components significantly.

In conclusion, the brake booster check valve is a small but mighty component of your vehicle’s safety system. By utilizing a brake booster check valve diagram, you empower yourself to diagnose “hard pedal” issues, resolve mystery vacuum leaks that trigger a check engine light, and maintain a safe driving experience. Whether you are clearing an OBD-II diagnostic code or simply performing preventative maintenance, understanding how this valve regulates vacuum flow is a vital skill for any DIY mechanic. Regular inspection and timely replacement using high-quality components will ensure that your power brakes remain reliable for miles to come.
