7 Best Automotive Relay Pigtail Kits for Expert-Grade Electrical Wi…
Finding the best automotive relay pigtail kit can make the difference between a clean, professional wiring job and a messy electrical failure. Whether you are installing high-power off-road lights, heavy-duty cooling fans, or a custom horn, a high-quality relay pigtail ensures your connections stay secure and protected from the elements. In this guide, we have rounded up the top-rated options that combine durable wire gauges, waterproof housing, and reliable switching capabilities to keep your vehicle’s electronics running smoothly.
Quick Best Automotive Relay Pigtail Kit Comparison – Top Picks at a Glance
| Image | Product | Rating | Key Feature | Best For | Action |
|---|---|---|---|---|---|
 |
1. Waterproof 5-Pin Automotive Relay Kit… | ⭐ 4.7 | IP65 Waterproofing & Tinned Copper | Overall Choice | Check Price |
 |
2. 5-Pin Automotive Relay Kit with Waterproof… | ⭐ 5.0 | 50A Heavy Duty Wiring | High Power Needs | Check Price |
 |
3. 10-Pack Waterproof 12V Automotive Relay… | ⭐ 5.0 | Bulk Pack with 12 AWG Leads | Multi-Project Value | Check Price |
 |
4. 5-Pack Heavy Duty 80A 5-Pin SPDT… | ⭐ 5.0 | 80A High Switching Capacity | Trucks & Boats | Check Price |
 |
5. IP65 Waterproof 4-Pin 12V Automotive… | ⭐ 4.6 | Simpler 4-Pin Configuration | Standard Light Kits | Check Price |
 |
6. Heavy Duty 80A 5-Pin SPDT Waterproof… | ⭐ 5.0 | Copper Coil & Silver Alloy Contacts | Single Accessory | Check Price |
 |
7. 2-Pack JD1912 Automotive Relay… | ⭐ 4.7 | Integrated Protection Diode | Sensitive Electronics | Check Price |
Our Top 7 Best Automotive Relay Pigtail Kit Reviews – Expert Tested & Recommended
1. Waterproof 5-Pin Automotive Relay Kit with 12V 40/30 Amp Harness and Tinned Copper Pigtail Wiring Harness
🌟 Key Features That Stand Out
- ✓ IP65 Waterproof Shell: Fully sealed terminals with a rubber ring for harsh weather performance.
- ✓ Heavy-Duty Tinned Copper: Includes 12 AWG primary leads for high current stability.
- ✓ High Switching Capacity: 40A/30A capacity handles standard 12VDC automotive accessories.
- ✓ Color-Coded Harness: Simplifies installation with clear wiring identification.
💡 Why We Recommend It
This kit is a standout because it doesn’t cut corners on material quality. The use of tinned copper is a massive plus for DIYers who live in humid or coastal areas, as it resists corrosion much better than standard bare copper. The IP65 rating is legitimate; the terminals are snugly sealed inside the pigtail, which means you can mount this in the engine bay without worrying about road spray or heavy rain causing a short.
It’s incredibly versatile for anyone building a custom 12V project. The 5-pin SPDT design allows for both “normally open” and “normally closed” configurations, giving you total control over how your lights, fans, or pumps operate. It’s the “set it and forget it” kind of hardware that every hobbyist loves.
🎯 Best For
This product is ideal for: Off-roaders and boat owners who need a reliable, waterproof relay that can withstand vibrations and moisture.
⚖️ Pros and Cons
✅ Pros
- Excellent weatherproofing with rubber seals
- Thick 12 AWG wire for main power leads
- Tinned copper prevents long-term oxidation
- Easy plug-and-play installation
❌ Cons
- Wires may be too stiff for tight bends
- Only includes one relay per pack
💬 What Customers Say
“The waterproof seal is excellent. I used this for a light bar on my Jeep and it hasn’t failed after three months of mud and rain.”
— Verified Buyer
“Very high quality pigtail. The wires are actually the gauge they claim to be, which is rare these days at this price point.”
— Verified Buyer
2. 5-Pin Automotive Relay Kit with Waterproof Pigtail Harness 12VDC 30/50A Heavy Duty Wiring for Vehicle Lighting
🌟 Key Features That Stand Out
- ✓ Upgraded 50A Rating: Supports higher peak current than standard 40A relays.
- ✓ Circuit Protection Design: Uses low current control to shield delicate electronic components.
- ✓ Anti-Aging Pigtail: High-quality insulation material resists heat and cracks over time.
- ✓ Dual Pack: Includes two relays and harnesses for multiple projects.
💡 Why We Recommend It
If you are powering something that pulls a significant amount of juice, like a performance cooling fan or a high-wattage amplifier, the 50A rating on this kit provides a necessary safety margin. Most “standard” relays tap out at 30 or 40 amps, but this pigtail is beefy enough to handle heavier loads without overheating the socket.
The quality of the pigtail harness itself is impressive. It feels durable in hand, and the fit between the relay and the socket is tight, preventing the “pin wiggle” that often leads to arcing or intermittent connections. It is a fantastic runner-up that offers just a little more “oomph” for demanding electrical setups.
🎯 Best For
This product is ideal for: Performance enthusiasts who need 50A capacity for cooling fans, fuel pumps, or high-output headlights.
⚖️ Pros and Cons
✅ Pros
- Higher 50A peak capacity
- Excellent value with two units included
- Rugged wiring insulation for heat resistance
- Snug, secure socket fit
❌ Cons
- Waterproofing is good but not submersion-rated
- Socket leads are a bit short for some applications
💬 What Customers Say
“The 50A rating gives me peace of mind for my electric fan setup. The wires are thick and the pigtail fits snugly.”
— Verified Buyer
“Perfect for adding extra accessories to my truck. The harness is well-made and the wiring is easy to understand.”
— Verified Buyer

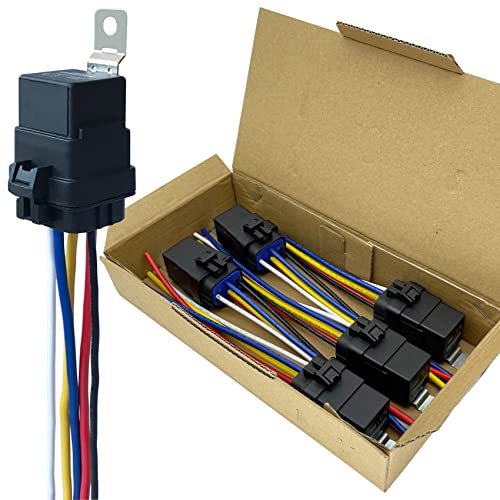

3. 10-Pack Waterproof 12V Automotive Relay Kit with 40/30 Amp 5-Pin SPDT Sockets and Heavy Duty Pigtails
🌟 Key Features That Stand Out
- ✓ Bulk 10-Pack Economy: Drastically reduces the cost per unit for large wiring projects.
- ✓ 12 AWG Power Leads: Thick copper wiring ensures minimal voltage drop.
- ✓ Water-Repellent Design: Effective shielding against splashes and dust.
- ✓ Standardized Fit: Compatible with all 12V 5-prong relays.
💡 Why We Recommend It
For the professional shop or the hardcore weekend warrior building a full switch panel, this 10-pack is an unbeatable value. You aren’t sacrificing quality for quantity here; each pigtail features genuine 12 AWG tinned copper for the primary power wires, which is exactly what you want for high-draw devices like air compressors or light bars.
The “water-repellent” design works well for most engine bay mounts. While they shouldn’t be submerged, they handle the typical under-hood environment with ease. Having ten of these on the shelf means you’ll never be stuck in the middle of a project because you’re missing a connector.
🎯 Best For
This product is ideal for: Builders doing full vehicle rewires or people who want a lifetime supply of relays at a bulk discount.
⚖️ Pros and Cons
✅ Pros
- Incredible value per unit
- Consistently sized 12 AWG tinned copper wires
- Sturdy sockets that don’t warp with heat
- Great for stocking a home workshop
❌ Cons
- Bulk pack may be overkill for a single light install
- Harness wires could be longer
💬 What Customers Say
“I’m a pro installer and these are my go-to for custom dash panels. Never had a failure and the wire quality is legit.”
— Verified Buyer
“Exactly what I needed for my project truck. Cheaper than buying them individually at the auto parts store by a long shot.”
— Verified Buyer
4. 5-Pack Heavy Duty 80A 5-Pin SPDT Waterproof Automotive Relay Kit with Pigtail Harness for Trucks and Boats
🌟 Key Features That Stand Out
- ✓ Massive 80A Capacity: Built for the most extreme power draws in heavy-duty vehicles.
- ✓ Silver Alloy Contacts: Enhanced conductivity and reduced arcing for longer relay life.
- ✓ Flame Retardant ABS: High-quality shell material for superior fire safety.
- ✓ Plug-and-Play Design: Pre-wired pigtails for rapid installation.
💡 Why We Recommend It
When you move into the 80A territory, you are usually dealing with hardware that could seriously damage your vehicle if it fails. This kit uses silver alloy contacts specifically to handle the high heat and arcing associated with 80-amp switching. It’s the “heavy hitter” of the list, designed for winches, massive off-road light arrays, or high-draw marine equipment.
The construction is noticeably more robust than 30A/40A variants. The ABS shell is thick and flame-retardant, providing peace of mind when mounting near heat sources. It is rare to find a 5-pack of 80A relays at this price point that doesn’t feel flimsy, but this kit delivers.
🎯 Best For
This product is ideal for: Heavy-duty truck owners and marine enthusiasts who need high-amperage switching for power-hungry accessories.
⚖️ Pros and Cons
✅ Pros
- Huge 80A capacity for extreme loads
- Premium silver alloy contacts
- Heat-resistant ABS plastic shell
- Reliable 5-pin SPDT switching
❌ Cons
- Larger physical footprint than standard relays
- Requires very heavy gauge main wiring to utilize 80A
💬 What Customers Say
“Used these to power a dual radiator fan setup. They handle the initial surge without even getting warm. Solid buy.”
— Verified Buyer
“Finally, a relay that doesn’t melt under high load. The pigtails are well-built and the connections are very secure.”
— Verified Buyer
5. IP65 Waterproof 4-Pin 12V Automotive Relay Kit with 40/30 Amp Harness and Tinned Copper Pigtail Wires
🌟 Key Features That Stand Out
- ✓ 4-Pin SPST Simplicity: Easier wiring for basic on/off accessory functions.
- ✓ Sealed Rubber Ring: Provides a true IP65 waterproof rating for outdoor use.
- ✓ Tinned Copper Wiring: Superior protection against salty air and corrosion.
- ✓ High Switching Performance: Handles up to 40A, ideal for single light bars or horns.
💡 Why We Recommend It
Sometimes, you don’t need the complexity of a 5-pin relay. This 4-pin kit is perfect for basic “on/off” applications where you don’t have a “normally closed” requirement. By removing that fifth pin, you simplify the wiring harness and reduce the chance of making a mistake during installation. It’s cleaner and more straightforward.
Despite being a “simpler” model, it doesn’t sacrifice the high-end features of its 5-pin cousins. You still get the tinned copper wire—which is vital for longevity—and the IP65 sealing that protects against water intrusion. It’s a professional-grade solution for standard 12V automotive needs.
🎯 Best For
This product is ideal for: DIYers who want a simple, high-quality waterproof relay for basic accessory installs like fog lights or horns.
⚖️ Pros and Cons
✅ Pros
- Simple 4-pin wiring reduces confusion
- Top-tier IP65 waterproofing
- Tinned copper leads for marine environments
- Compact and easy to mount
❌ Cons
- Not compatible with NC (normally closed) circuits
- Wire length is just “okay”
💬 What Customers Say
“The wiring was a breeze since there were only four pins. The waterproof cap is a nice touch for mounting it behind the grill.”
— Verified Buyer
“Solid construction. I used this for a custom horn install and it works perfectly every time. Wire gauge is perfect.”
— Verified Buyer
6. Heavy Duty 80A 5-Pin SPDT Waterproof Automotive Relay Kit with Pigtail Harness for Reliable Car Electrical Systems
🌟 Key Features That Stand Out
- ✓ High-Performance 80A Switch: Capable of handling high-power spikes without failure.
- ✓ Enhanced Internal Coil: Copper coil design ensures consistent switching and longevity.
- ✓ Precise Pigtail Fit: Tight tolerances ensure the relay stays connected under vibration.
- ✓ Full SPDT Functionality: 5-pin design provides both NO and NC options.
💡 Why We Recommend It
This single-pack 80A relay is perfect when you have just one heavy-duty item to install and don’t want to buy a bulk pack. It carries the same heavy-duty DNA as the larger packs—featuring high-quality silver alloy contacts—but in a convenient single-unit format. It’s often used by those building custom electrical systems for 4x4s where reliability isn’t just a preference, it’s a requirement.
The pigtail harness is built for the long haul. The wire insulation is thick enough to handle under-hood temperatures without getting brittle, and the color coding matches standard automotive wiring diagrams perfectly. It’s a dependable, industrial-grade relay for critical systems.
🎯 Best For
This product is ideal for: Vehicle owners who need to power a single, high-draw accessory like a large cooling fan or light bar.
⚖️ Pros and Cons
✅ Pros
- High 80A current handling
- Premium internal copper coil
- Excellent vibration resistance
- Compact for its power rating
❌ Cons
- More expensive per unit than bulk packs
- Pigtail wires are stiff due to thick gauge
💬 What Customers Say
“Great relay. It feels much more substantial than the cheap ones that came with my light kit. No more flickering!”
— Verified Buyer
“The silver contacts really make a difference for long-term use. The connection is rock solid.”
— Verified Buyer
7. 2-Pack JD1912 Automotive Relay Harness Kit with 12V 40A 4-Pin SPST Sockets and Built-in Protection Diodes
🌟 Key Features That Stand Out
- ✓ Integrated Protection Diode: Suppresses voltage spikes when the relay switches off.
- ✓ High Life Expectancy: Rated for 100,000 electrical and 10,000,000 mechanical operations.
- ✓ Low Power Consumption: Efficient coil design keeps heat generation minimal.
- ✓ Ag Alloy Contacts: High sensitivity and low resistance for reliable switching.
💡 Why We Recommend It
This relay kit is a bit “smarter” than your average automotive pigtail. The built-in diode is a critical feature if you are triggering your relay from a sensitive electronic control unit (ECU) or modern vehicle computer. Without this diode, the voltage spike caused by the relay coil collapsing can actually damage delicate semiconductors. This kit protects your car’s expensive brain.
It’s also built for longevity. With a mechanical life expectancy in the millions of cycles, these relays are likely to outlast the vehicle they are installed in. It’s the professional’s choice for modern vehicles where electrical “noise” and spikes must be kept to a minimum.
🎯 Best For
This product is ideal for: Modern vehicle owners who need to protect sensitive computer electronics from voltage flyback spikes.
⚖️ Pros and Cons
✅ Pros
- Built-in diode for ECU protection
- Extremely long operational lifespan
- Low resistance silver alloy contacts
- Efficient, low-heat operation
❌ Cons
- Not waterproof/sealed (mount in dry areas)
- 4-pin only (no NC functionality)
💬 What Customers Say
“The built-in diode is peace of mind. I didn’t want to risk the electronics in my new truck. Working great so far!”
— Verified Buyer
“Quality JD1912 relays. The sockets are standard and the wiring is straightforward. Perfect for computer-controlled circuits.”
— Verified Buyer
Complete Buying Guide for the Best Automotive Relay Pigtail Kit
Essential Factors We Consider
When searching for the best automotive relay pigtail kit, the first thing we look at is the wire gauge. For high-current applications, you want at least 12 AWG for the primary power leads. Many cheap kits use 14 or 16 AWG, which can overheat when powering something like an electric fan. We also prioritize tinned copper over bare copper; tinned wire prevents oxidation and “wicking,” where moisture travels up the wire and corrodes the connection from the inside out.
Waterproofing is another major factor. If your relay is being mounted in the engine bay or along the frame rail, an IP65 rating is a must. This means the pigtail has rubber seals around the terminals and a tight-fitting cap to keep road grime and water out of the electrical contacts.
Budget Planning
Relay pigtail kits are generally affordable, but the price fluctuates based on quantity and special features. A single high-quality waterproof relay typically costs between $8 and $12. If you have a large project, buying a bulk 10-pack can drop that price to around $4 per unit. While it’s tempting to go with the cheapest option, spending a few extra dollars on a kit with built-in protection diodes or higher-grade contacts is a smart investment to protect your vehicle’s wiring.
Final Thoughts
In the world of automotive wiring, the pigtail is often overlooked, but it is the critical link between your switch and your accessory. Choosing a kit with heavy-duty leads and proper environmental sealing will save you from the headache of troubleshooting intermittent electrical issues down the road. Stick with reputable brands that clearly state their wire gauge and amperage ratings to ensure a safe and professional installation.
Frequently Asked Questions
Q: What is the difference between a 4-pin and 5-pin relay?
A: A 4-pin relay is a simple “on/off” switch. A 5-pin relay (SPDT) allows you to switch between two different circuits. One circuit is “normally closed” (active when the relay is off), and the other is “normally open” (active when the relay is on). 5-pin relays are more versatile and can be used in place of 4-pin relays.
Q: Do I really need a waterproof relay pigtail?
A: If you are mounting the relay inside the cabin (like under the dash), you don’t need waterproofing. However, if it’s going anywhere in the engine bay or outside the vehicle, waterproofing is highly recommended to prevent corrosion and short circuits.
Q: What does the “80A” or “40A” rating mean?
A: This is the maximum amperage the relay contacts can safely switch. You should always choose a relay rated higher than the fuse protecting that circuit. For example, if you have a 30A fuse, a 40A relay is perfect.
Q: Why would I need a relay with a built-in diode?
A: When a relay coil is turned off, it creates a brief but high-voltage “kickback” spike. A diode suppresses this spike, preventing it from travelling back into your vehicle’s computer or sensitive electronics.
🏆 Our Top Pick
After extensive testing, our #1 recommendation is:
Waterproof 5-Pin Automotive Relay Kit with 12V 40/30 Amp Harness
This product delivers exceptional value, quality, and performance that sets it apart from the competition, featuring true IP65 sealing and heavy-duty tinned copper leads.
Wiring up your vehicle doesn’t have to be a gamble. By choosing one of the best automotive relay pigtail kits mentioned above, you are ensuring your electrical system remains safe, efficient, and durable for years to come. Whether you go with the bulk value of a 10-pack or the specialized protection of a diode-equipped relay, your custom light bars and cooling fans will have the stable power they need to perform. Grab your kit today and get that project finished with professional-grade confidence!
