36v Trolling Motor Wiring Diagram: Series Connection Guide
A 36V trolling motor wiring diagram illustrates how to connect three 12V batteries in series to triple the voltage output. By connecting the positive terminal of one battery to the negative terminal of the next using jumper cables, you create a high-power circuit essential for heavy-duty marine applications.
📌 Key Takeaways
- The primary goal is connecting three 12V batteries in series to achieve 36V total.
- Identify the traveler wire links between positive and negative terminals clearly.
- Safety requires a high-amperage circuit breaker on the main positive lead.
- Ensure all batteries are the same age and brand for optimal circuit performance.
- Use this diagram when installing or upgrading a high-thrust trolling motor system.
Setting up a high-performance marine vessel often requires more power than a standard dual-battery system can provide, which is why many anglers transition to a 36-volt system. This comprehensive guide provides a detailed 36v trolling motor wiring diagram and a breakdown of the electrical principles required to connect three 12-volt batteries in a series configuration. By following this layout, you will ensure that your motor receives the consistent voltage it needs to generate maximum thrust while protecting your electrical components from overheating or failure. You will learn the specifics of wire gauge selection, terminal connections, and how to integrate safety features like circuit breakers. Understanding this wiring architecture is the first step toward a reliable and efficient day on the water.
Understanding the 36v Trolling Motor Wiring Diagram
The primary objective of a 36-volt system is to increase voltage while keeping the amperage draw manageable. In our 36v trolling motor wiring diagram, the configuration is based on a “series” connection. This means the batteries are linked head-to-tail to combine their individual 12-volt outputs into a single 36-volt stream. Unlike a parallel connection, which increases capacity (runtime), a series connection increases the pressure (voltage) of the electricity flowing to your motor.
In a standard diagram, you will see three distinct 12v deep-cycle batteries. The components are labeled as follows: the first battery in the chain provides the primary ground wire (negative), while the third battery in the chain provides the final hot wire (positive). Connecting these batteries are jumper wires, often referred to as a traveler wire in general electrical terms, which bridge the gap between the positive terminal of one battery and the negative terminal of the next.
The diagram also illustrates the placement of a manual-reset circuit breaker, typically rated for 60 amps. This is positioned on the hot wire as close to the battery bank as possible. Visualizing the diagram, you will notice that the wiring creates a continuous loop. Any break in this loop, whether through a loose brass screw on a terminal or a blown fuse, will result in a total loss of power to the trolling motor.
[DIAGRAM_PLACEHOLDER: A technical drawing showing three 12V batteries arranged in a row. A black ground wire exits the negative terminal of Battery 1. A red traveler wire connects Battery 1 Positive to Battery 2 Negative. A second red traveler wire connects Battery 2 Positive to Battery 3 Negative. A red hot wire exits Battery 3 Positive, passes through a 60A circuit breaker, and connects to the motor plug. Labels indicate 6 AWG wire gauge and brass screw terminals.]
Most modern diagrams also include the plug and receptacle configuration. The receptacle acts as the common terminal where the boat’s internal wiring meets the motor’s lead wires. Depending on your brand of motor (such as Minn Kota or Motorguide), the color coding of the wires may vary, but the electrical path remains identical across all 36-volt platforms.
In a 36v series circuit, the total voltage is 36v, but the Amp Hour (Ah) rating remains that of a single battery. For example, three 100Ah 12v batteries in series still yield 100Ah total capacity at 36v.
Step-by-Step Installation Guide
Reading a 36v trolling motor wiring diagram is one thing; implementing it safely in the cramped quarters of a boat bilge is another. Follow these steps to ensure a professional-grade installation.
1. Gather Your Tools and Materials
Before beginning, ensure you have the correct wire gauge. For a 36v system, 6 AWG (American Wire Gauge) is the industry standard. Using a thinner wire can cause a significant voltage drop and may lead to a fire.
- ✓ Three matching 12v deep-cycle batteries (preferably identical age/brand)
- ✓ Two heavy-duty jumper/traveler wires (6 AWG)
- ✓ 60-amp marine-grade circuit breaker
- ✓ Corrosion-resistant brass screw terminals or nuts
- ✓ Heat-shrink tubing and wire crimpers
2. Position and Secure Batteries
Place your batteries in a stable battery tray. Weight distribution is key in a boat, so try to center the bank. Ensure the batteries cannot slide or tip, as this could strain the connections or cause a short circuit against the hull.
3. Establish the Series Connections
Take your first traveler wire. Connect one end to the positive terminal of Battery 1. Connect the other end to the negative terminal of Battery 2. Take your second traveler wire and connect the positive terminal of Battery 2 to the negative terminal of Battery 3. You have now linked the three units into a single 36v power source.
4. Install the Circuit Breaker
Mount your 60-amp breaker on a flat, dry surface near Battery 3. The circuit breaker is your primary defense against motor damage. Connect a short length of 6 AWG red wire from the positive terminal of Battery 3 to the “Line” side of the breaker.
5. Connect the Main Power Leads
Now, connect the main hot wire (positive) from your trolling motor or plug receptacle to the “Load” side of the circuit breaker. Finally, take the main ground wire (negative) from the motor and connect it to the negative terminal of Battery 1. This completes the circuit.
6. Wiring the Plug and Receptacle
When wiring the plug, look for the markings on the back of the common terminal. Most marine plugs use a brass screw for the hot wire and a silver or tinned screw for the ground wire. In some specialized 4-wire systems, a neutral wire may be present for charging purposes, but for a standard 36v setup, you will primarily focus on the positive and negative leads. Ensure the connections are tight and coated with dielectric grease to prevent corrosion.
Never connect the main negative and main positive wires to the same battery in a 36v series setup. This will result in only 12v of power and can cause uneven battery draining or damage to your jumper wires.
Common Issues & Troubleshooting
Even with a perfect 36v trolling motor wiring diagram, issues can arise due to the harsh marine environment. The most frequent problem is a drop in voltage, which manifests as the motor losing power after only an hour of use.
If you experience power loss, use a multimeter to check each battery individually. Even if the total bank shows 36v, one “dead cell” in a single battery can throttle the entire system. Check the traveler wire connections; a loose brass screw or corrosion on a terminal can create high resistance, generating heat and reducing the voltage that reaches the motor.
Another common issue is the circuit breaker tripping repeatedly. This usually indicates that the motor is working too hard (perhaps due to a fouled prop) or that the wire gauge is too small for the length of the run. If your wiring run is longer than 15 feet, you may need to upgrade from 6 AWG to 4 AWG to compensate for the resistance.
Always check the voltage at the plug while the motor is running. This “load test” reveals if your wiring is losing power under pressure, something a static test won’t show.
Tips & Best Practices for 36v Systems
To get the most out of your 36v trolling motor, maintenance and component quality are vital. First, always use “matched” batteries. Mixing a brand-new battery with two old ones will lead to the new battery being prematurely worn down as it tries to compensate for the weaker units.
Regarding wire management, use marine-grade tinned copper wire. Unlike standard automotive wire, tinned copper resists the “wicking” of salt air and moisture, which causes internal corrosion. When making connections, use adhesive-lined heat shrink tubing over your crimps. This creates a waterproof seal that protects the wire’s integrity for years.
Maintenance is also crucial. Every few months, take a wrench and verify that every brass screw and nut is snug. Vibration from waves and wind can loosen these connections over time. Additionally, if you are using lead-acid batteries, check the water levels regularly. However, many modern 36v enthusiasts are moving toward Lithium (LiFePO4) batteries. While the initial cost is higher, they offer a much flatter voltage curve, meaning you get the same thrust at 10% battery life as you do at 100%.

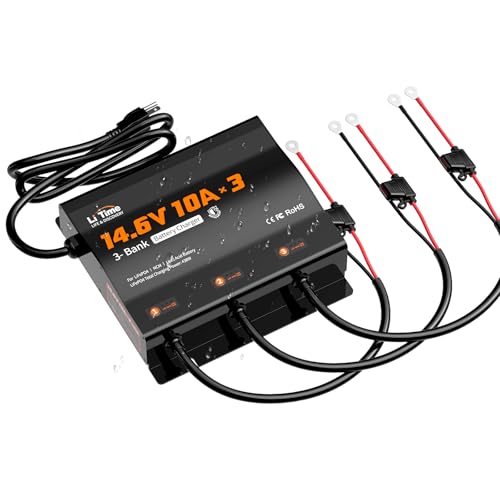

Finally, consider your charging setup. A 3-bank on-board charger is the best way to maintain a 36v system. It treats each battery as an individual 12v unit during the charging cycle, ensuring that all three reach a full state of charge simultaneously. This prevents the “imbalance” issues that often plague series-wired systems.
By adhering to this 36v trolling motor wiring diagram and the associated best practices, you ensure your vessel is equipped with a powerhouse electrical system. Proper gauge selection, secure terminal connections, and regular maintenance will keep your motor running strong, allowing you to focus on the fish rather than your electrical system. Using high-quality components and following the correct series sequence is the most effective way to guarantee peak voltage and long-term reliability on the water.
Frequently Asked Questions
What is 36v trolling motor wiring diagram?
A 36V trolling motor wiring diagram is a visual blueprint used to organize three 12-volt batteries into a single 36-volt power source. It specifically highlights the series connections required to increase voltage while maintaining capacity, ensuring your boat has the thrust needed for large water bodies or heavy currents.
How do you read 36v trolling motor wiring diagram?
Reading this diagram involves following the lines representing the hot wire and ground wire between battery terminals. Look for symbols indicating circuit breakers and the traveler wire connecting one battery’s positive post to the next battery’s negative post, creating a continuous loop that delivers the full 36-volt current.
What are the parts of 36v trolling motor wiring?
The primary parts include three deep-cycle batteries, heavy-gauge jumper wires, a high-amperage circuit breaker, and the trolling motor plug. The diagram also details the common terminal locations and the specific layout for the neutral wire or ground and the hot wire that provide energy directly to your motor.
Why is the circuit breaker important?
A circuit breaker is critical because it protects the motor and wiring from power surges or overheating. Without it, a short in the hot wire could cause permanent damage or fire. It acts as a safety gate, ensuring the 36-volt current remains stable and manageable during high-demand operation.
What is the difference between 12V and 36V wiring?
The main difference between 12V and 36V wiring is the series connection. While 12V uses a single battery, 36V requires a traveler wire to link three batteries together. This triples the voltage output at the hot wire terminal, providing significantly more torque and efficiency for larger fishing vessels.
How do I use 36v trolling motor wiring diagram?
Use the diagram by mapping out your battery compartment first to ensure wires reach each common terminal. Following the diagram prevents reversed polarity, which can destroy electronics. It serves as a checklist for installing jumper cables, the main power leads, and necessary safety components like inline waterproof marine fuses.
