Shifter Mercury Outboard Shift Linkage Diagram: Setup Guide
A shifter Mercury outboard shift linkage diagram provides a detailed visual layout of the mechanical components connecting the cockpit controls to the lower unit. This structure helps users identify every part, from cables to rods, ensuring the entire system configuration allows for precise gear engagement and smooth transitions during engine operation.
📌 Key Takeaways
- The diagram serves as a visual guide for the mechanical path of the shifting system.
- The shift slide is the most critical component to identify for adjustment and troubleshooting.
- Always ensure the engine is off and the battery is disconnected before touching the linkage.
- Check for salt buildup or corrosion on the linkage components to prevent future shifting stiffness.
- Use this diagram when experiencing grinding noises or difficulty finding the neutral gear position.
Navigating the complexities of a marine propulsion system requires precision, and nothing is more vital for smooth operation than a clear shifter mercury outboard shift linkage diagram. Whether you are performing routine maintenance or diagnosing a shifting failure, understanding the internal layout of your outboard’s control system is the difference between a successful day on the water and an expensive tow back to the dock. This article provides a comprehensive breakdown of the shift linkage system, detailing every component from the remote control box to the lower unit, ensuring you have the knowledge to repair and maintain your Mercury engine with confidence.
Understanding the Shift Linkage Layout and Configuration
The internal configuration of a Mercury shift system is a mechanical chain reaction that begins at the operator’s hand and ends at the propeller shaft. A shifter mercury outboard shift linkage diagram serves as a map for this mechanical sequence. The primary component is the shift cable, which enters the engine cowl and attaches to the shift slide or shift block. This block is the central hub of the system, translating the horizontal pull of the cable into the vertical movement required to engage the lower unit gears.
In a standard configuration, the layout includes a shift rail that guides the motion of the linkage. The upper shift shaft connects to this rail and extends down through the midsection of the engine. At the point where the powerhead meets the lower unit, you will find a splined coupler or a shift shaft connector. This is a critical interface where many alignment issues occur. The lower shift shaft then enters the gearcase, where it operates the cam that pushes the clutch dog into the forward or reverse gears.
Most Mercury outboard diagrams use a specific color-coding or numeric labeling system. In many technical layouts, the shift cable is represented by a solid line, while the mechanical linkages are shown with exploded views to highlight the washers, cotter pins, and bushings that secure the system.
The structure of the linkage can vary slightly depending on whether the engine is a small portable four-stroke or a large V6 Verado. In larger models, the system may include a shift actuator or an electronic gear shift (DTS) module, though the mechanical backup linkage remains a core element of the design. When viewing the diagram, pay close attention to the orientation of the shift cam; if this component is installed upside down or out of phase, the engine may shift into reverse when the lever is pushed forward.

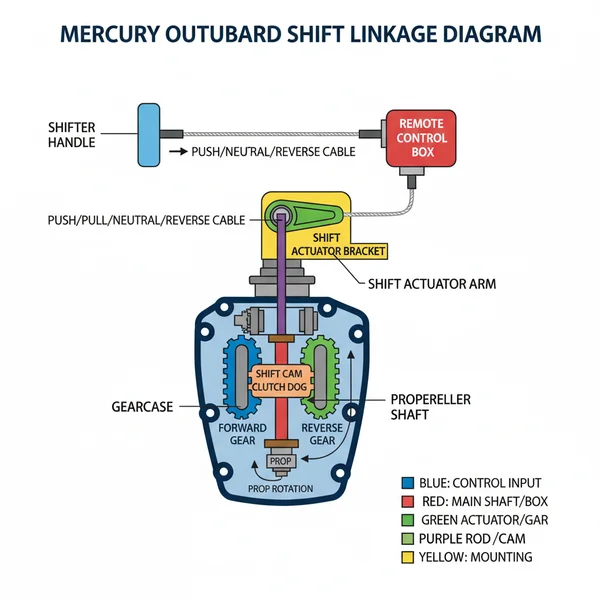

[DIAGRAM_PLACEHOLDER: SHIFT LINKAGE SCHEMATIC] 1. Remote Control Cable (Input) 2. Shift Cable Anchor (Pivot Point) 3. Shift Block/Slide (Translation Hub) 4. Upper Shift Shaft (Vertical Transfer) 5. Splined Coupler (Mid-Section Join) 6. Lower Shift Shaft (Gearcase Input) 7. Shift Cam (Actuator) 8. Clutch Dog (Engagement)
Step-by-Step Guide to Interpreting and Servicing the Linkage
Successfully using a shifter mercury outboard shift linkage diagram involves more than just looking at the picture; it requires a systematic approach to disassembly and synchronization. To ensure the system functions correctly, you must follow the mechanical flow of the diagram while observing the physical state of the components.
Always disconnect the battery and remove the spark plug wires before working on the shift linkage. If the engine were to start while the linkage is being manipulated, it could lead to severe injury or mechanical destruction.
-
✓ Step 1: Secure the Engine and Neutralize
Place the remote control lever in the neutral position. This aligns the shift block in the center of its travel path, which is the reference point for most diagrams. -
✓ Step 2: Remove the Cowling and Locate the Shift Block
Remove the top engine cover. Using your diagram, identify where the shift cable enters the lower pan. Follow the cable until you find the plastic or metal slide that connects to the vertical shift shaft. -
✓ Step 3: Inspect the Cable Tension and Anchors
Check the barrel nut on the end of the shift cable. The shifter mercury outboard shift linkage diagram will show exactly how many threads should be visible or how the cable is seated in the anchor bracket. Loose anchors are a primary cause of “soft” shifting. -
✓ Step 4: Disconnect the Vertical Linkage
If you are removing the lower unit, you must disconnect the shift shaft coupler. Refer to the diagram to see if your model uses a screw-type coupler or a plastic snap-fit connector. Use a 10mm or 12mm wrench as specified by the hardware size. -
✓ Step 5: Verify the Lower Unit Gear State
Before re-attaching the lower unit, ensure the gearcase is in neutral. Rotate the lower shift shaft with pliers (carefully) until the propeller spins freely in both directions. The diagram will illustrate the “Neutral” position of the lower shaft splines. -
✓ Step 6: Reassemble and Synchronize
Slide the lower unit back into place, ensuring the upper and lower shift shafts mate perfectly. Tighten the coupler according to the torque specifications found in your technical manual. -
✓ Step 7: Perform a Shift Test
While spinning the propeller by hand (or with the engine safely off), have an assistant move the shifter from Neutral to Forward and then to Reverse. The propeller should lock in one direction for Forward and the opposite for Reverse.
To perform these steps effectively, you will typically need a basic set of marine tools, including a socket set, needle-nose pliers, a flat-head screwdriver, and high-quality marine-grade lithium grease.
Common Issues and Troubleshooting the Shift System
Even with a perfect shifter mercury outboard shift linkage diagram, mechanical wear can lead to frustrating issues. One of the most frequent problems is a “stiff” shifter. This is often caused by salt-crystal buildup inside the shift cable housing or a lack of lubrication on the shift slide. If the lever is hard to move, do not force it, as you may snap the internal plastic components of the remote control box.
Another common issue is the engine “grinding” when entering gear. This indicates that the linkage is not pushing the clutch dog far enough to fully engage the gear teeth. By consulting the diagram, you can identify the adjustment points on the cable barrel. Turning the barrel nut just a few rotations can often restore the necessary travel to ensure a crisp, clean engagement.
If your outboard stays in gear regardless of the shifter position, the splined coupler in the midsection has likely stripped or disconnected. Use the diagram to locate the access port on the side of the engine leg to inspect the connection without removing the entire lower unit.
Warning signs of imminent linkage failure include excessive “play” in the shift lever, a clicking sound when the engine is in neutral, or the engine stalling when shifted into gear. If you notice these symptoms, use your diagram to check the integrity of the plastic bushings and cotter pins. These small components are the most likely to fail due to vibration and corrosion.
Best Practices for Maintaining the Shift Linkage
To avoid the need for emergency repairs, a proactive maintenance schedule is essential. The shift linkage system is exposed to harsh marine environments, including saltwater, heat, and constant vibration. Following these best practices will extend the life of your Mercury outboard components.
First, always use high-quality marine grease on all moving parts identified in the shifter mercury outboard shift linkage diagram. Specifically, the shift slide and the splined ends of the shift shafts should be coated during every annual service. This prevents the “seizing” of parts that makes future disassembly nearly impossible.
Second, inspect your shift cables every season. Look for cracks in the outer jacket or rust at the ends where the cable meets the engine. If the jacket is compromised, water will enter the cable, freeze or corrode, and eventually lead to a total failure of the system. Replacing a cable early is significantly cheaper than replacing a damaged gearcase caused by a partial shift engagement.
When purchasing replacement parts, always use the engine’s serial number. Mercury often makes subtle changes to the linkage configuration mid-production, and the serial number is the only way to ensure the component matches your specific diagram.
Finally, always perform a “dry shift” test before launching your boat. While the engine is off, move the shifter through its full range of motion. It should feel smooth and provide a distinct “click” as it enters each gear position. If the movement feels spongy or restricted, refer back to your diagram and re-verify the alignment of the shift block and cable tension. By keeping your shifter mercury outboard shift linkage diagram handy and performing routine checks, you ensure your vessel remains reliable for every journey.
Frequently Asked Questions
What is shifter Mercury outboard shift linkage diagram?
This visual representation details the mechanical structure connecting the remote control handle to the gearcase. It identifies the specific path and orientation of cables, rods, and levers within the shifting system. Using this layout allows boaters to pinpoint exactly where mechanical failures occur during gear transitions or maintenance procedures.
How do you read shifter Mercury outboard shift linkage diagram?
Start by identifying the cable entry point near the engine front and follow the mechanical path toward the lower unit. Look for labeled parts like the shift slide, cam, and link arm. The diagram shows how each component interacts, illustrating the configuration required for neutral, forward, and reverse gear positions.
What are the parts of shifter Mercury outboard shift linkage?
The primary parts include the shift cable, cable barrel, shift slide, vertical shift rod, and the shifting cam located in the gearcase. Each component must be perfectly aligned within the system configuration to ensure the transmission engages correctly without grinding or slipping during high-speed operation on the water.
Why is the shift cable important?
The shift cable is the critical component that transmits manual force from the operator to the engine’s internal gears. If this part is frayed or improperly adjusted within the layout, the boat may fail to shift or jump out of gear, potentially causing dangerous docking situations or mechanical damage.
What is the difference between side-mount and top-mount shifters?
Side-mount shifters are fixed to the gunwale, while top-mount versions sit on the console. While their external housing differs, the internal shift linkage diagram for the engine remains similar. The main difference lies in the initial cable routing and the specific configuration of the internal throttle-to-shift lever mechanism.
How do I use shifter Mercury outboard shift linkage diagram?
Use the diagram to verify that all mounting hardware and cotter pins are in the correct positions. It serves as a reference when replacing worn bushings or adjusting cable tension. By following the illustrated structure, you can ensure that the linkage moves freely through its full range of motion.
