How to Read a Wiring Diagram: Step-by-Step Instructions
Learning how to read a wiring diagram requires identifying symbols for components like switches and loads. You must trace the path from the hot wire source through the common terminal to the neutral wire. Recognizing specific colors and symbols ensures you understand the circuit flow and safety requirements for any project.
📌 Key Takeaways
- Interpret symbols to identify physical electrical components
- Follow the path from the power source to the return ground
- Always distinguish between power-carrying and safety wires
- Use diagrams to verify terminal connections before installation
- Reference these charts for troubleshooting faulty home circuits
Embarking on a home improvement project or attempting to repair a faulty electrical fixture can be an intimidating task without a clear roadmap. Whether you are installing a new light fixture, replacing a three-way switch, or troubleshooting a dead outlet, learning how to read a wiring diagram is the single most important skill you can acquire. These diagrams serve as a technical blueprint, translating complex physical connections into a visual language that ensures safety and functionality. By understanding how to read a wiring diagram, you gain the ability to trace the flow of electricity, identify specific connection points, and ensure that every wire reaches its intended destination. In this guide, we will break down the symbols, color codes, and terminal types you will encounter, providing you with the confidence to tackle electrical tasks with professional precision.
Understanding the Components of a Wiring Schematic

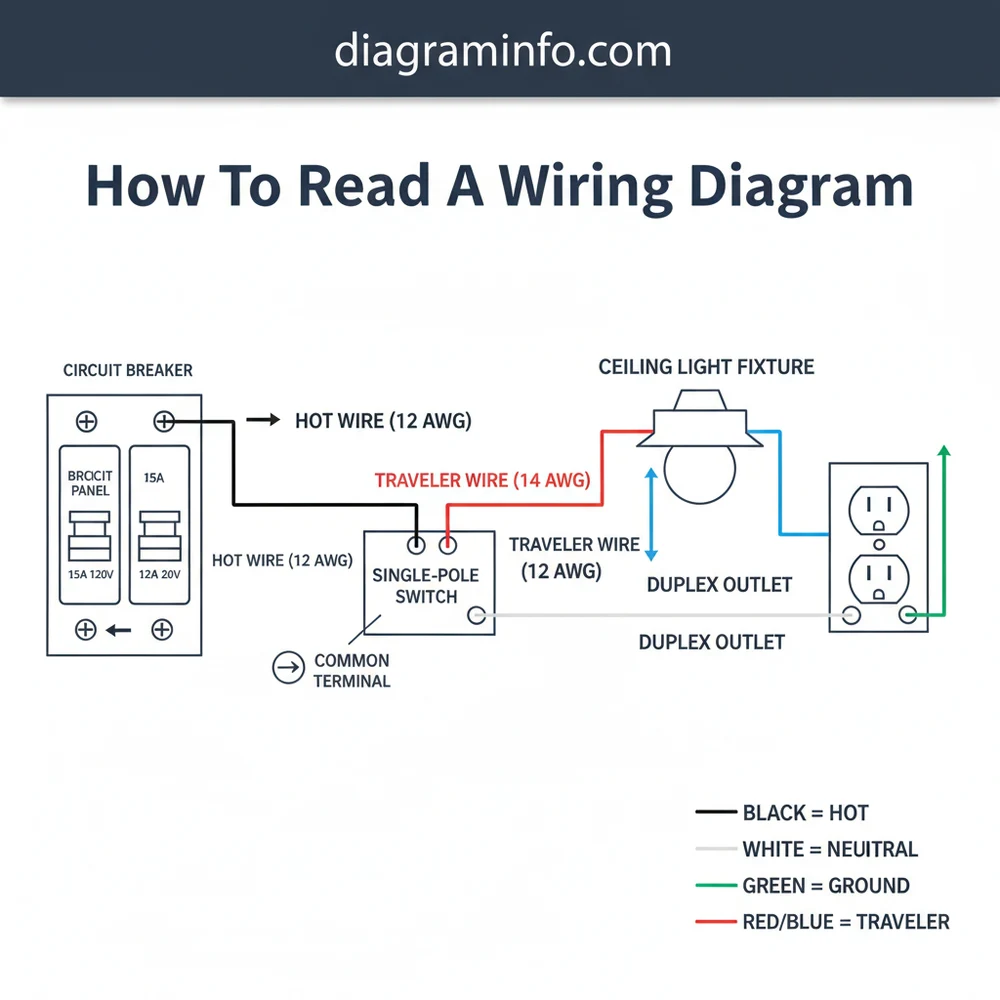

A wiring diagram is a simplified visual representation of an electrical circuit. Unlike a pictorial drawing, which shows what the components look like in real life, a schematic uses standardized symbols to represent devices like switches, receptacles, and light fixtures. The primary goal of the diagram is to show the logical path of electricity from the power source through various control devices and eventually to the load, which is the device consuming power.
The lines in these diagrams represent the physical wires. When you look at a diagram, you will notice that lines are often color-coded or labeled to correspond with the physical wire insulation colors used in your home. For example, a solid black line typically represents a hot wire, while a dashed or white-colored line represents a neutral wire. Understanding these visual cues is essential for identifying which wires carry the live current and which serve as the return path.
Beyond the wires themselves, the diagram will highlight connection points. A dot where two lines intersect usually indicates a physical splice or connection, often housed within a junction box. If two lines cross without a dot, they are passing each other without making electrical contact. Identifying these junctions is critical because it tells you where you need to use wire nuts or terminal blocks to join conductors together.
Most modern wiring diagrams follow the standards set by the National Electrical Code (NEC). While industrial diagrams may use different symbols, residential diagrams focus on clear terminal identification and wire color consistency to prevent hazardous errors.
The Universal Language of Wire Colors and Terminals
To read a wiring diagram effectively, you must be intimately familiar with the color coding system used in electrical systems. Electricity operates in a loop, and the colors signify the role each wire plays in that loop. The hot wire, usually black or red, is the conductor that brings the 120-volt current from the breaker panel to the device. In many diagrams, you will see the hot wire connecting directly to a brass screw on a switch or outlet. The brass screw is the universal indicator for the hot side of a device.
The neutral wire, almost always white or light gray, provides the return path for the current to go back to the source. In a schematic, the neutral wire connects to the silver screw on a receptacle. This ensures the circuit remains balanced and functional. Then there is the ground wire, which is either green or bare copper. Its job is safety; it provides a direct path to the earth in the event of a short circuit. On a diagram, the ground wire will terminate at a green hex-head screw.
In more complex circuits, such as those involving two different switches controlling one light, you will encounter the traveler wire. Traveler wires are typically found in pairs and are used to carry the current between two 3-way switches. These are often represented in diagrams as red and black wires running parallel to each other. Identifying the traveler wire is key to ensuring that the light can be toggled from either location without interrupting the flow of electricity.
If you are working with an older home where the wire colors have faded or don’t match modern standards, always use a multimeter to verify which wire is hot before making any connections. Never assume a wire’s function based solely on its appearance in an old system.
Step-by-Step Guide to Interpreting and Executing the Diagram
Interpreting a wiring diagram requires a systematic approach. Follow these steps to ensure you understand the circuit before you even pick up a screwdriver.
- ✓ Step 1: Identify the Power Source – Locate where the electricity enters the diagram. This is usually labeled as “Line” or “Source.” Trace the black hot wire from this point to the first device in the circuit.
- ✓ Step 2: Locate the Common Terminal – If you are reading a diagram for a 3-way switch, find the common terminal. This is the dark-colored screw (often black or bronze) on the switch. One common terminal will receive power from the source, while the other will send power to the light fixture (the load).
- ✓ Step 3: Trace the Traveler Path – In multi-switch setups, identify the two traveler wires connecting the two switches. On the diagram, these will connect the remaining two brass screws on the first switch to the corresponding screws on the second switch.
- ✓ Step 4: Verify the Neutral Connection – Ensure the white neutral wire bypasses the switches and connects directly to the silver terminal on the load (light fixture or outlet). In most residential lighting circuits, switches do not connect to the neutral wire.
- ✓ Step 5: Check Grounding Points – Look for the ground symbol (a series of horizontal lines decreasing in width). Ensure the bare or green ground wire is connected to every metal box and the green ground screw on every device.
- ✓ Step 6: Map the Physical Layout – Before installing, physically lay out your wires to match the diagram. Check the wire gauge—typically 14-gauge for 15-amp circuits and 12-gauge for 20-amp circuits—to ensure your physical materials match the circuit requirements shown.
To perform this work, you will need several essential tools:
- – Non-contact voltage tester (to verify power is off)
- – Wire strippers (to remove insulation)
- – Needle-nose pliers (to create wire loops for terminal screws)
- – Multimeter (to check for continuity and voltage)
- – Screwdrivers (both Phillips and flat-head)
Never attempt to read or implement a wiring diagram on a live circuit. Always turn off the breaker at the main service panel and use a voltage tester to confirm there is zero voltage present at the wires you intend to touch.
Common Issues and Troubleshooting with Wiring Diagrams
Even with a perfect diagram, real-world installation can present challenges. One of the most frequent issues is the “swapped traveler” in a 3-way switch configuration. If the light only works when both switches are in a specific position, you likely have a traveler wire connected to a common terminal. By referring back to your diagram, you can identify that the common terminal should only hold the line or the load, never a traveler.
Another common problem is “open neutrals.” This occurs when a neutral wire is not properly seated in a wire nut or is connected to the wrong terminal. This can cause fixtures to appear dead even if the hot wire is carrying voltage. The diagram helps solve this by showing the continuous return path; use your multimeter to trace this path from the fixture back to the panel to find the break.
Warning signs of incorrect wiring include flickering lights, buzzing sounds, or warm switch plates. These often indicate loose connections or a mismatch in wire gauge. If the diagram calls for 12-gauge wire but 14-gauge was used, the wire may overheat under a heavy load. If you encounter a situation where the physical wiring does not match any standard diagram, or if you see evidence of scorched wires, it is time to seek professional help from a licensed electrician.
The Importance of Wire Gauge and Voltage Ratings
When you are learning how to read a wiring diagram, it is easy to focus solely on where the wires go and forget about the physical specifications of the conductors. The gauge of a wire refers to its thickness; the smaller the gauge number, the thicker the wire. This is a critical safety detail often noted in the margins of professional diagrams. Using a wire that is too thin for the intended voltage and amperage can lead to resistance buildup and fire hazards.
In standard residential wiring, you will primarily deal with 120-volt circuits. However, certain appliances like clothes dryers or electric ranges require 240-volt circuits. A 240-volt wiring diagram will look different, often featuring two hot wires (usually black and red) instead of one. In these diagrams, both hot wires carry 120 volts, combining to provide the 240-volt total required by the heavy-duty load. Understanding how the diagram represents these high-voltage connections is vital for major appliance installations.
Furthermore, pay attention to the terminal markings on the devices themselves. Quality components often have the words “Hot” and “White” stamped directly into the metal or plastic near the screws. When reading your diagram, correlate these stamps with the visual lines. For example, the brass screw will always be the intended landing spot for the hot wire, while the silver screw is dedicated to the neutral wire. This “color-matching” between the screws and the wire insulation is a fail-safe built into electrical hardware to support the logic of the schematic.
Tips and Best Practices for Implementation
To ensure a smooth project, always label your wires as you pull them into a junction box. While the diagram shows black, red, and white lines, the physical wires inside a wall can become a jumbled mess once they are stripped. Using small pieces of electrical tape or wire markers to label “Traveler,” “Common,” or “Switch Leg” will save you hours of frustration and prevent you from having to re-test the circuit multiple times.
Another best practice is to maintain a “clean” wiring box. This means folding the wires neatly into the back of the box to prevent the terminals from touching the sides of the box or other wires. When you follow the diagram’s layout, ensure your wire loops around the terminal screws are turned in a clockwise direction. This way, when you tighten the screw, the loop closes tighter around the shank rather than opening up.
Finally, always prioritize quality components. Use commercial-grade switches and receptacles when possible, as they offer better terminal clamping and durability than the cheapest “contractor grade” options. These higher-quality parts often have clearer markings that make following your wiring diagram even easier.
Take a photo of your wiring before you disassemble an old switch. Use the photo in conjunction with a new wiring diagram to ensure you understand exactly how the original circuit was intended to function before making any changes.
Summary of Electrical Schematic Mastery
Mastering how to read a wiring diagram is a journey from confusion to clarity. By breaking the circuit down into its fundamental parts—the power source, the hot wire path, the control devices, and the neutral return—you turn a complex web of conductors into a logical sequence. Remember that the color of the wire and the color of the screw are your most reliable guides. The brass screw hosts the hot wire, the silver screw hosts the neutral, and the green screw secures the ground.
Whether you are identifying a traveler wire in a hallway lighting circuit or locating a common terminal on a new switch, the diagram is your source of truth. By following the steps outlined in this guide and adhering to safety protocols, you can ensure that your electrical work is not only functional but also compliant with safety standards. Proper interpretation of these schematics reduces the risk of short circuits and provides a professional finish to any DIY project. With patience and attention to detail, you will find that the electrical “roadmap” is the most valuable tool in your kit.
Frequently Asked Questions
Where is the common terminal located?
The common terminal is typically found on a three-way switch, often identified by a darker-colored screw compared to the others. It serves as the bridge between the power source or the light fixture and the traveler wires, acting as the critical pivot point for controlling the electrical circuit effectively.
What does a wiring diagram show?
A wiring diagram illustrates the visual representation of an electrical circuit, showing how components are interconnected. It displays the path of electricity from the power source through various devices and switches, allowing you to identify wire colors, terminal connections, and the overall logic of the electrical system.
How many connections does a three-way switch have?
A standard three-way switch typically features four connections. These include one common terminal for the main power or load, two terminals for the traveler wire set that connects to another switch, and a green screw for the ground wire to ensure the circuit is safely bonded to the earth.
What are the symptoms of a bad ground wire?
A bad or missing ground wire often results in electrical shocks when touching metal components, flickering lights, or tripped circuit breakers. Without a solid ground connection, the circuit loses its safety path for excess current, which can lead to equipment damage or even fire hazards in your home.
Can I read and use this diagram myself?
Most DIY enthusiasts can learn how to read a wiring diagram for basic household tasks like replacing a light switch. However, if the circuit involves high voltage or complex breaker panels, it is best to consult a professional electrician to ensure your work meets local building codes and safety standards.
What tools do I need for interpreting diagrams?
To effectively use a wiring diagram, you need a non-contact voltage tester to identify the hot wire and a multimeter to check for continuity. Additionally, wire strippers, electrical tape, and a screwdriver set are essential for physically verifying the connections mapped out in your specific electrical diagram.
