Access Control Magnetic Door Lock Wiring Diagram: Easy Guide
An access control magnetic door lock wiring diagram shows the circuit between the power supply, controller, and electromagnetic lock. It illustrates how the hot wire and neutral wire provide constant power, while the traveler wire and common terminal interact with the relay to break the circuit and release the door.
📌 Key Takeaways
- Provides a visual map for connecting readers, controllers, and locks.
- Identifying the relay contacts is the most critical part of the setup.
- Always ensure power is disconnected before touching any exposed wiring.
- Use high-quality shielded cables to prevent electromagnetic interference.
- Use this diagram when installing commercial-grade fail-safe entry systems.
Setting up a secure entry point requires a precise understanding of how electrical components interact to create a reliable locking mechanism. If you are a DIY enthusiast or a security technician, finding an accurate access control magnetic door lock wiring diagram is the first step toward a successful installation. This guide provides a comprehensive breakdown of how to interface a magnetic lock (maglock) with an access control keypad, a power supply, and an exit button. By the end of this article, you will understand the nuances of terminal identification, the importance of correct wire gauge, and the specific sequence required to ensure your fail-safe system functions correctly every time a credential is presented.
The architecture of a modern access control system relies on a central controller acting as the “brain” that manages the flow of electricity to the magnetic lock. When viewing an access control magnetic door lock wiring diagram, the primary focus is on the relay configuration. Because magnetic locks are inherently fail-safe—meaning they require a continuous flow of electricity to remain locked—the circuit must be wired through the Normally Closed (NC) and Common (COM) terminals. The diagram illustrates how the 12V or 24V DC positive lead travels from the power supply to the controller’s common terminal, then emerges from the NC terminal to reach the maglock. This setup ensures that when the controller receives a valid signal from a keypad or card reader, it “breaks” the circuit, cutting power and releasing the door.
In a magnetic lock system, the “Common” terminal acts as the entry point for the positive voltage, while the “Normally Closed” terminal serves as the exit point for that voltage during its idle state. This keeps the magnet energized until the system is triggered.

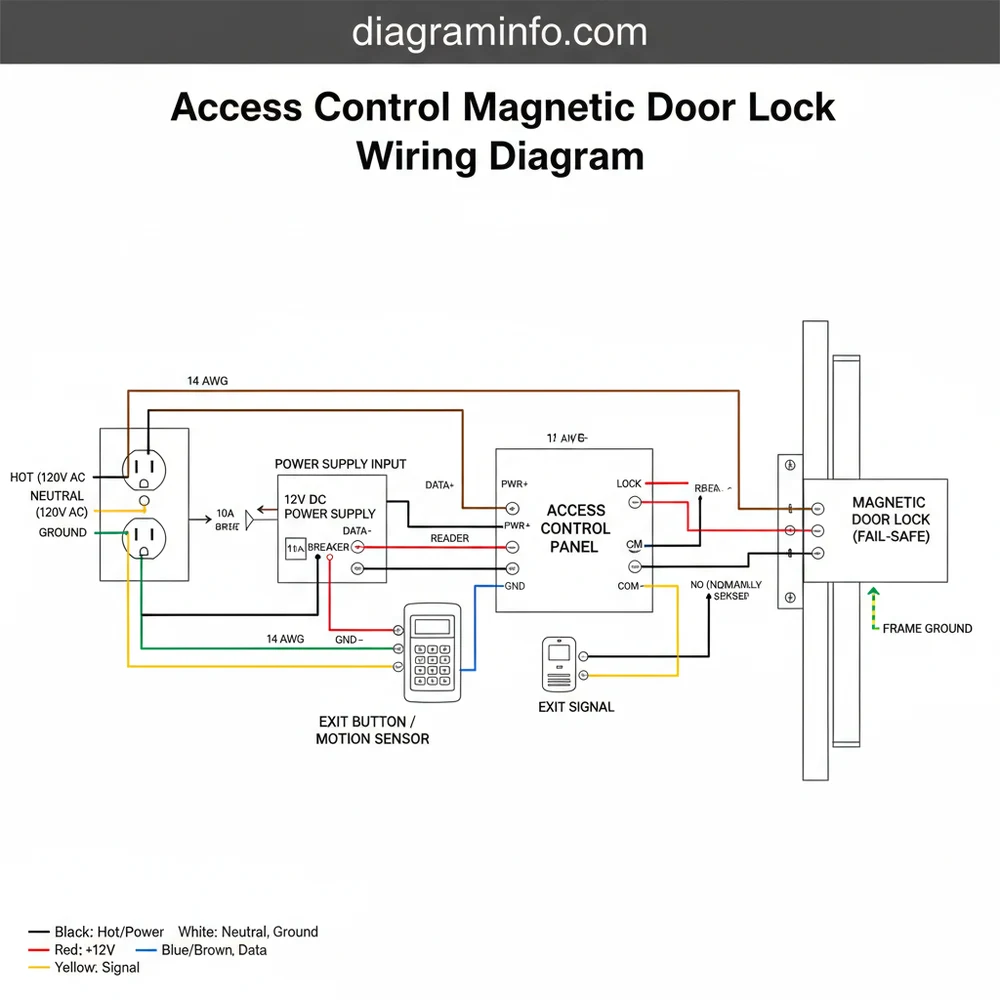

Visualizing the components is essential for a clean install. The diagram typically includes:
- ✓ The Power Supply: Often a metal box containing a transformer and a battery backup system.
- ✓ The Magnetic Lock: The heavy electromagnet mounted to the door frame.
- ✓ The Armature Plate: The metal plate mounted to the door that completes the magnetic circuit.
- ✓ The Controller/Keypad: The interface where users enter codes or scan badges.
- ✓ Request-to-Exit (REX): A button or motion sensor that allows people to leave from the inside.
Technical Breakdown of Circuitry and Wiring Logic
To properly implement the access control magnetic door lock wiring diagram, one must understand the relationship between AC input and DC output. The power supply usually receives 120V AC power from the building. On the input side of the power supply, you will find the hot wire, the neutral wire, and a ground wire. Conventionally, the hot wire connects to a brass screw terminal, while the neutral wire connects to a silver or nickel-plated screw. Proper grounding is non-negotiable for safety; the ground wire must be securely bonded to the chassis to prevent electrical shock and reduce electromagnetic interference.
Once the power supply converts AC to DC, the voltage is distributed to the access controller and the lock. Most professional-grade systems use a specific gauge of wire to prevent voltage drop. For runs under 50 feet, a 22-gauge wire is often sufficient for data and low-current triggers, but for the power delivery to the magnetic lock itself, an 18-gauge wire is highly recommended. This thicker wire ensures that the full 12V or 24V reaches the magnet without significant loss, which could weaken the holding force of the lock.
Always verify the voltage setting on your magnetic lock before applying power. Wiring a 12V maglock to a 24V power supply will cause immediate and permanent damage to the electromagnet’s internal coils.
Step-by-Step Installation Guide
Following a specific sequence is vital when translating a diagram into a physical installation. Follow these steps to ensure your access control system is wired for longevity and reliability.
1. Mounting the Hardware: Begin by installing the magnetic lock on the door frame and the armature plate on the door. Ensure the armature plate has the provided rubber washer installed; this allows the plate to “float” and self-align with the magnet for a perfect seal.
2. Preparing the AC Power: Connect the 120V input to the power supply. Connect the hot wire to the L (Line) terminal, usually marked by a brass screw. Connect the neutral wire to the N (Neutral) terminal. Ensure the ground wire is connected to the Earth Ground terminal to protect against surges.
3. Connecting the Controller: Run a pair of wires from the DC output of the power supply to the power input of the keypad or controller. Observe polarity: red for positive (+) and black for negative (-).
4. Wiring the Maglock Loop: Take the positive wire from the power supply and connect it to the Common (COM) terminal of the controller’s relay. Then, connect a wire from the Normally Closed (NC) terminal of the controller to the positive (+) terminal on the magnetic lock.
5. Completing the Negative Circuit: Connect the negative (-) terminal of the magnetic lock directly back to the negative (-) terminal of the power supply. This creates a continuous loop that is only interrupted when the relay in the controller switches states.
6. Integrating the Exit Button: If you are using a Request-to-Exit (REX) button, wire it in series with the NC circuit or into the dedicated REX input on the controller. This allows the lock to release when the button is pressed from the inside.
7. Incorporating the Traveler Wire for Auxiliary Controls: In more complex setups involving multiple entry points or remote release switches, a traveler wire may be used to bridge signals between different control boards. This ensures that a trigger at one station can effectively communicate with the main locking relay.
8. Testing the System: Before closing the panels, test the keypad code. The magnet should release immediately. Check that the door opens smoothly and that the magnet re-engages as soon as the programmed delay time expires.
Use a multimeter to check the voltage at the lock while it is engaged. If the voltage is significantly lower than the power supply output, you likely need a larger wire gauge to compensate for the distance of the run.
Common Issues & Troubleshooting
Even with a high-quality access control magnetic door lock wiring diagram, issues can arise during the commissioning phase. One of the most frequent problems is residual magnetism, where the door remains slightly stuck even after power is cut. This is often solved by ensuring the armature plate has enough “play” to break the suction or by checking if the lock has an internal kickback diode. If the lock is not holding at its rated strength (e.g., 600 lbs or 1200 lbs), the culprit is almost always insufficient voltage due to using an undersized wire gauge or a power supply with a failing battery backup.
Another common point of failure is the relay itself. If you hear the controller “click” but the lock does not release, the NC and NO (Normally Open) terminals might be swapped. Remember: Magnetic locks must use the NC terminal. If you use the NO terminal, the door will remain unlocked and will only lock when a code is entered, which is the opposite of the desired behavior. If troubleshooting does not resolve the issue, check for a blown fuse in the power supply or a loose ground wire that might be causing intermittent resets of the keypad.
Tips & Best Practices for a Professional Install
To ensure your system remains operational for years, follow these industry best practices:
Wire Management: Use conduit or armored cable (BX) for any exposed wiring. This prevents tampering and protects the wires from environmental wear. Inside the power supply box, use zip ties to keep the hot wire and neutral wire separate from the low-voltage DC lines to minimize noise.
Fire Alarm Integration: In many jurisdictions, it is a legal requirement that magnetic locks interface with the building’s fire alarm system. This involves wiring a fire alarm relay in series with the maglock’s power. When the alarm sounds, the relay opens, cutting power to all locks and allowing for immediate evacuation.
Component Selection: Don’t skimp on the power supply. A dedicated access control power supply with a battery backup ensures that the building remains secure during a local power outage. Look for units that offer individual fused outputs for each door to prevent a short circuit at one door from taking down the entire system.
Maintenance: Periodically wipe the face of the electromagnet and the armature plate with a soft cloth and a light cleaning solvent. Dust or rust buildup can create a gap between the two metal surfaces, significantly reducing the holding force. Additionally, check the tightness of the armature bolt, as frequent door slams can loosen the hex screw over time.
When wiring multiple locks to a single power supply, calculate the total current draw (Amps). Most maglocks draw between 300mA and 500mA. Ensure your power supply has at least 20% headroom above the total calculated draw.
Understanding the access control magnetic door lock wiring diagram is fundamentally about mastering the flow of DC current and the logic of Normally Closed relays. By paying close attention to terminal labels, using the correct gauge of wire, and ensuring all connections—from the brass screw on the AC input to the traveler wire on auxiliary triggers—are secure, you can create a high-security environment that is both safe and reliable. Whether you are troubleshooting an existing installation or starting a new project, this systematic approach ensures that your magnetic lock provides the protection it was designed for while maintaining the fail-safe requirements necessary for modern life safety codes. Always double-check your connections against the manufacturer’s specific documentation, as slight variations in pinouts can occur between different brands of controllers. With the right tools and a clear diagram, professional-grade door security is well within your reach.
